Rittal DK 7979.440 PDU Managed 0U Three-Phase Rack PDU 36x C13 + 6x C19 CEE 16 A 11 kW Switchable with Metering
Brand:
Rittal
Rittal DK 7979.440 PDU Managed 0U Three-Phase Rack PDU 36x C13 + 6x C19 CEE 16 A 11 kW Switchable with Metering
€3171.11 inc. VAT
7979440
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Rittal DK 7979.440 PDU Managed — 36 × C13 + 6 × C19, Switchable, 3-Phase 16 A
36 × C13 + 6 × C19Per-outlet switchingPer-slot metering2 × Gbit LAN

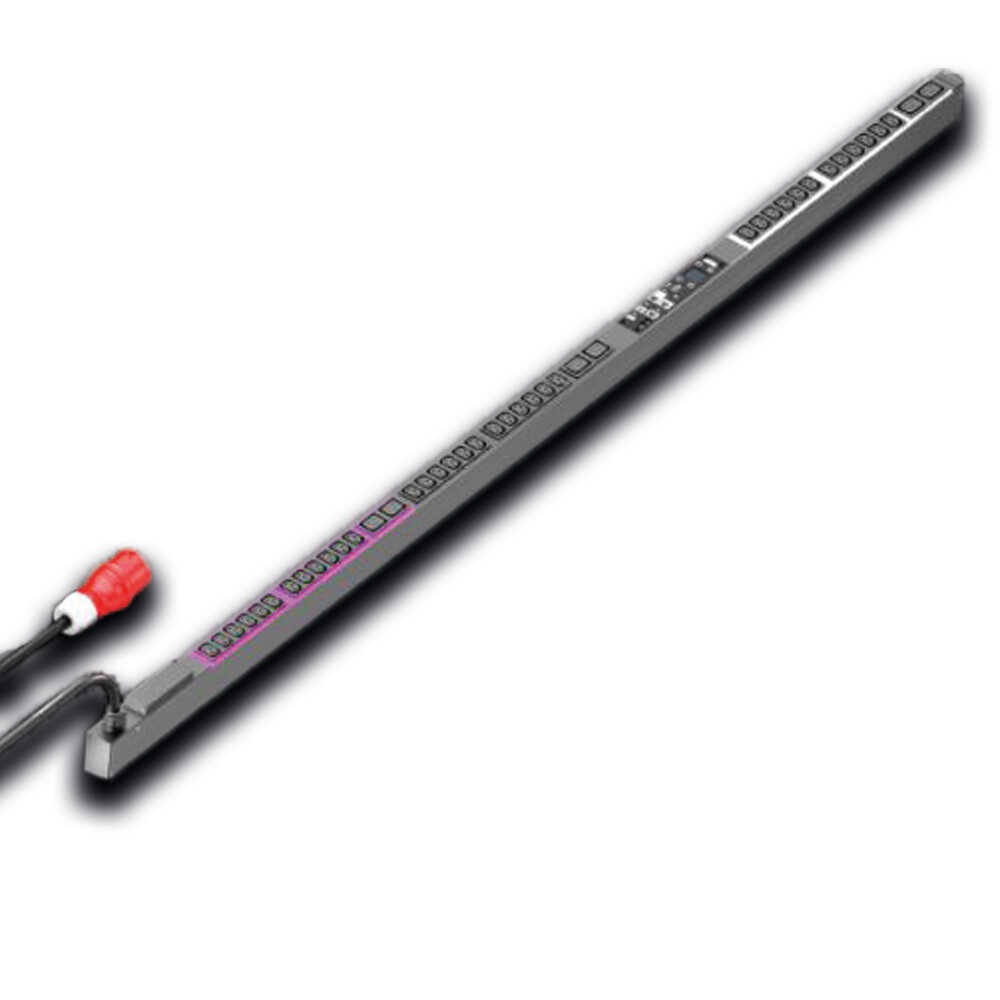

The Rittal DK 7979.440 PDU managed is a vertical 0U power distribution unit for server racks with 36 IEC C13 and 6 IEC C19 outlets, fed from a three-phase 400 V / 16 A supply through a CEE 16 A plug on a 3 m cable, for up to 11 kW. Each phase serves 12 × C13 and 2 × C19 outlets.
Every outlet can be switched individually over the network, and every output slot is metered — voltage, current, frequency, active and apparent power, power factor and THD — with ±1% energy accuracy to EN 62053-21. Two redundant Gigabit Ethernet ports provide HTTP/HTTPS, SSH, SNMP v1/v2c/v3, Modbus/TCP, OPC-UA, FTP/SFTP and SMTP email.
Before you order: the PDU needs a three-phase 400 V CEE 16 A five-pin supply, and the outlets are IEC C13/C19 only. Servers and storage with C14/C20 inlets connect directly; devices with Schuko plugs need adapters or a different PDU.
What's in the Box
- 1 × Rittal DK 7979.440 PDU managed with 3 m cable and CEE 16 A plug
- Assembly parts
What It Means in Practice
- Remotely switch off, restart or sequence individual servers and network devices.
- Per-slot metering for capacity planning and energy allocation per customer or system.
- Integrate into DCIM or BMS via SNMP v3, Modbus/TCP or OPC-UA; email alerts via SMTP.
- Up to 16 environmental sensors on the CAN bus.
What Will Not Work
- No Schuko sockets.
- Not for single-phase or 32 A supplies.
- 11 kW total — for higher-density racks, a 32 A model is needed.
- Not a surge protector or UPS.
Key Features
Switchable outlets
Every slot individually switchable over the network.
Per-slot metering
V, A, Hz, kW, kVA, PF and THD per slot, ±1% kWh.
Redundant LAN
2 × RJ45 10/100/1000 with HTTPS, SSH, SNMP v3, Modbus/TCP, OPC-UA.
Display & sensors
TFT 128 × 128 display, CAN bus for up to 16 sensors, real-time clock.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A managed three-phase PDU combines remote switching and per-slot metering, the two features that matter most for remote server rooms. Match the 16 A three-phase supply and IEC cords before ordering. More rack power and mounting parts are in our rack accessories.
✓ Buy it if you need many switchable IEC outlets with per-slot metering in a server rack on a 16 A three-phase feed.
✕ Skip it if your equipment uses Schuko plugs or your supply is single-phase.
→ Also consider the Rittal DK 7979.534 metered plus with 24 Schuko outlets on a 32 A supply.
Not sure it fits your rack and supply? Send us the rack model and supply details and we will check before you order.
Features - Rittal - 7979440
Colour
black
Length
3m
More Details
Product Code
04:386970
EAN Code
4028177948242
Manufacturer
Rittal
