Rittal PSM Socket Module — 6 × IEC C13 with 10 A Thermal Protection
6 × IEC C1310 A thermal fuseHot-swapPSM system

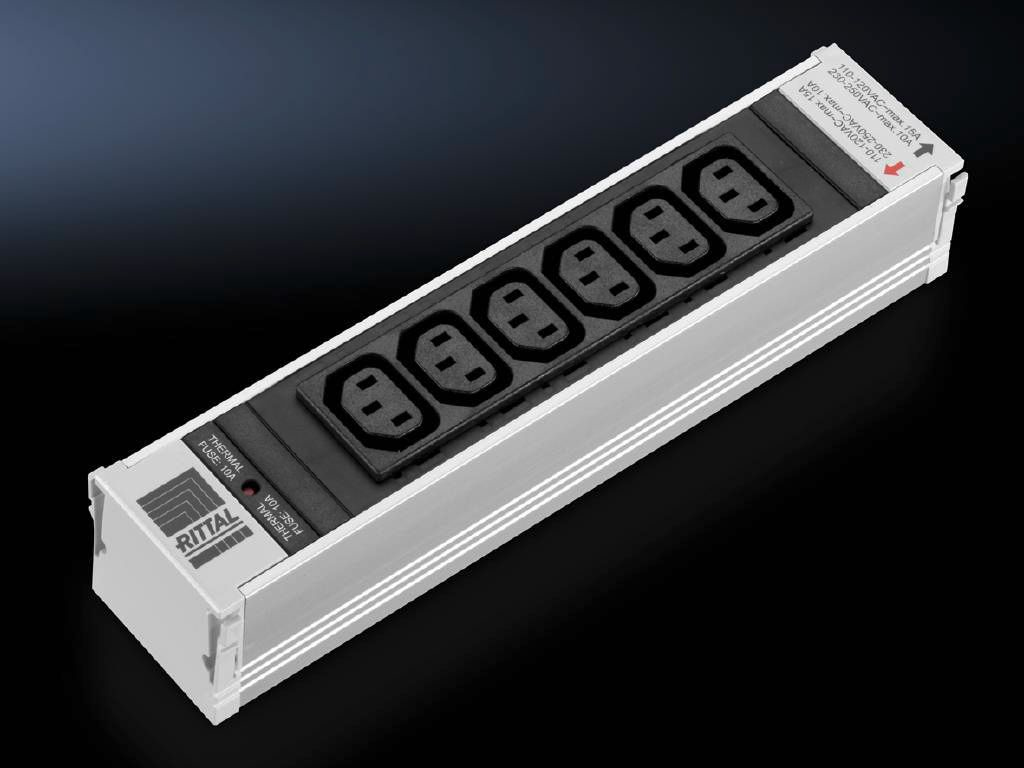

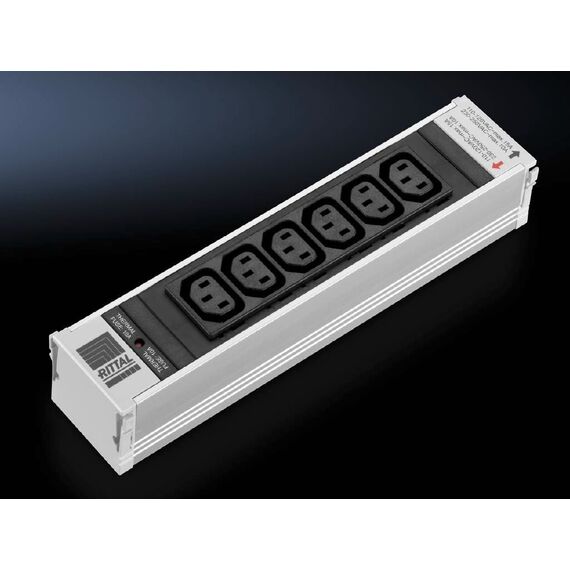

The Rittal DK 7856.070 is a PSM (Power System Module) socket module with six IEC 320 C13 outlets and an integrated 10 A thermal overload fuse, made to lock into a Rittal PSM busbar in server and network racks.
In the PSM system the busbar is mounted vertically in the rack and fed once; socket modules click into free slots and can be locked in or released while the system is working. Compared with the non-fused DK 7856.080, this version protects all six sockets with a 10 A thermal overload device, so an overloaded module trips locally instead of taking down the busbar circuit.
Before you order: This is a module only. It needs a Rittal PSM busbar (for example DK 7856.010, 1200 mm, 4 module slots) with its infeed connection. It does not plug into a wall socket, a standard PDU or a UPS.
What's in the Box
- 1 × Rittal PSM socket module DK 7856.070 (6 × IEC C13, 10 A thermal protection)
What It Means in Practice
- Six C13 outlets per busbar slot for servers, switches and storage.
- The 10 A thermal fuse covers all six sockets together — plan the total load of the module at 10 A or less.
- Add or swap modules while the rest of the rack keeps running.
- Mix fused and non-fused modules on the same busbar as needed.
What Will Not Work
- Will not work without a Rittal PSM busbar and infeed — no cable or plug of its own.
- C19 devices and Schuko plugs do not fit.
- The six outlets share 10 A: six fully loaded high-power servers will trip it.
- No metering, outlet switching or remote monitoring.
Key Features
Thermal protection
Integrated 10 A thermal overload protection for the whole module.
Plug & play
Locks into the PSM busbar; shock-hazard protected system.
Hot-swappable
Can be locked in or unlocked while the system is working.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
We usually recommend the fused module where several small loads share one module and a fault should stay local. Size the load per module (10 A total) before you plug in. Busbars and other cabinet parts are listed under rack accessories.
✓ Buy it if you run a Rittal PSM busbar and want six C13 outlets with their own overload protection.
✕ Skip it if you have no PSM busbar (choose a standard rack PDU) or the six loads together exceed 10 A.
→ Also consider Rittal DK 7856.080 (same module without fuse).
Tell us your PSM busbar model and the devices you plan to connect and we will check the load before you order.
Features - Rittal - 7856070
Colour
black
More Details
Product Code
04:238906
EAN Code
4028177402522
Manufacturer
Rittal
