Rittal DK 7856.230 — PSM Socket Module with 4 × C19 Outlets
4 × IEC C1916 APSM plug-inBlack

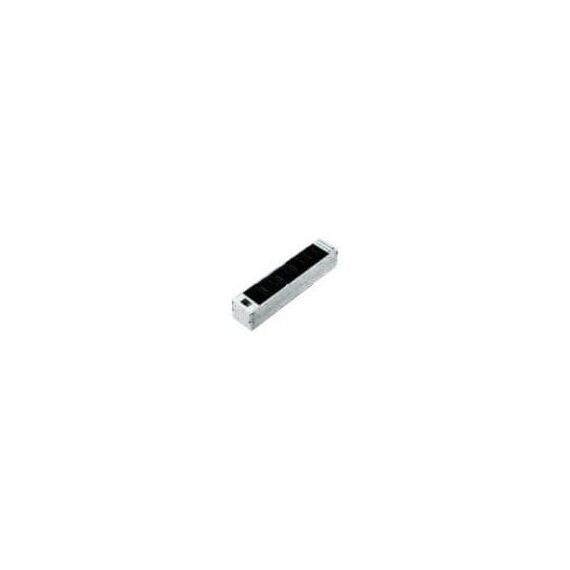

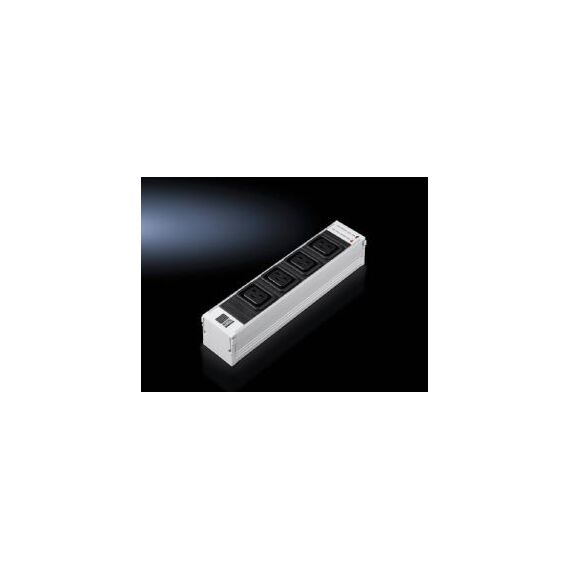

The Rittal DK 7856.230 is a PSM socket module with four IEC 60320 C19 outlets, designed to plug into Rittal’s PSM (Power System Module) busbar support rail inside server and network racks. It is for data centre and server room teams who build modular rack power distribution and need high-current C19 outlets for servers, blade chassis, storage arrays or large switches with C20 power inlets.
Because PSM modules slide into the support rail in any combination, you can mix C13 and C19 modules on the same rail and change the outlet layout later without replacing the whole PDU.
Before you order: This is not a standalone PDU: it needs a Rittal PSM support rail (busbar) with its own power infeed. The module has no fuse or circuit breaker of its own, so overcurrent protection must come from the infeed or upstream.
What's in the Box
- 1 × Rittal DK 7856.230 PSM socket module, 4 × C19 (packaging unit 1)
What It Means in Practice
- Four C19 outlets feed devices with C20 inlets, typically high-power servers, storage and chassis switches.
- Plug the module into a free slot of the PSM support rail; it uses one module slot.
- Several modules can share one rail, so you can extend the number of outlets as the rack fills.
- Plan the load: the module is rated 16 A maximum, and all outlets on the rail share the infeed’s capacity.
What Will Not Work
- It does not plug into a wall socket and does not work without a Rittal PSM support rail.
- Devices with C14 inlets (most 1U servers, switches) need C13 outlets or C14-to-C19 adapter cables.
- It is not switchable and has no metering or remote monitoring.
Key Features
4 × C19 outlets
High-current IEC outlets for servers and storage.
PSM plug-in system
Slides into the Rittal PSM busbar support rail in any combination with other modules.
16 A rating
Rated 16 A maximum at 110–230 V AC, 50/60 Hz.
Robust housing
Anodised aluminium profile with PA6 GF30 V1 socket inserts.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
PSM is a good choice when the rack layout will change over time: you add or swap outlet modules on the same rail instead of replacing a whole PDU. Count your C20 and C14 inlets before ordering and balance the load across infeeds. More options are in our rack accessories.
✓ Buy it if you already run, or are building, Rittal PSM busbar power distribution and need C19 outlets.
✕ Skip it if you need a standalone rack PDU with its own power cable or metering.
→ Also consider a standalone 19" rack PDU if you do not use the Rittal PSM system.
Not sure your rail fits? Send us your Rittal PSM rail or rack model and we will check compatibility before you order.
Features - Rittal - 7856230
Colour
black
More Details
Product Code
04:238900
EAN Code
4028177485358
