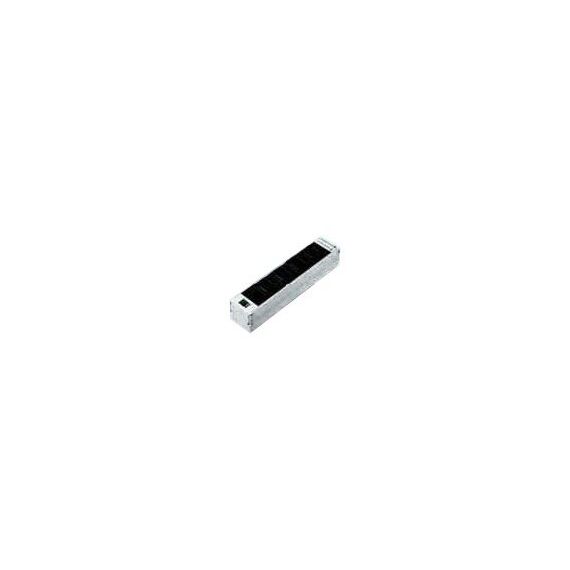

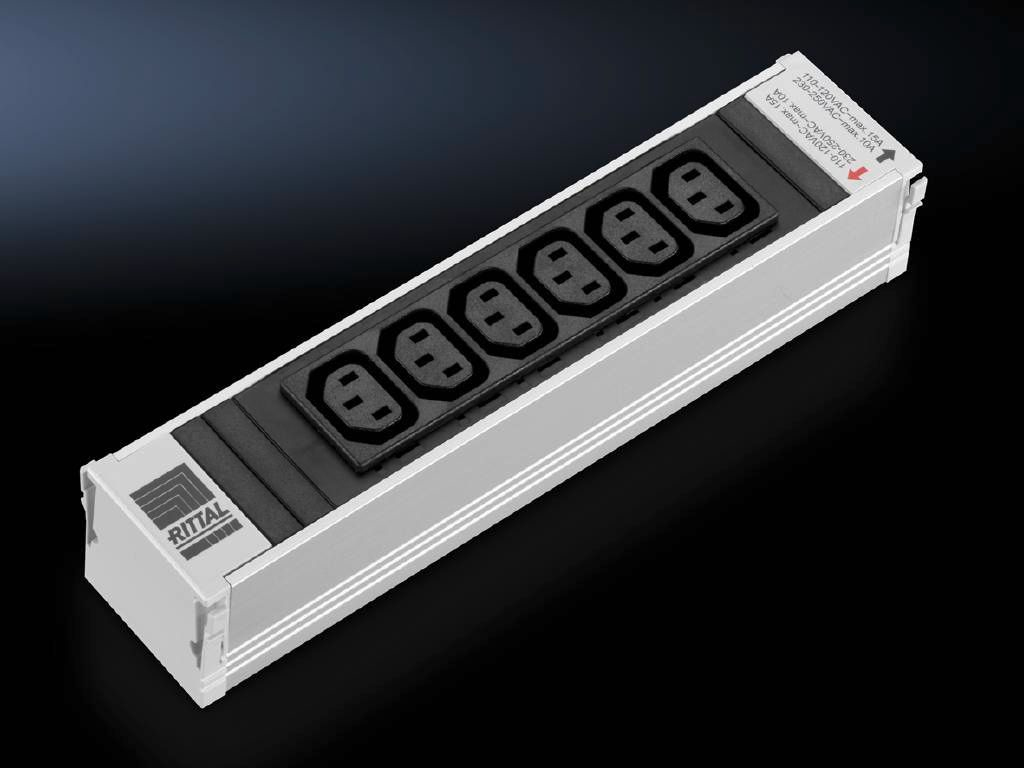

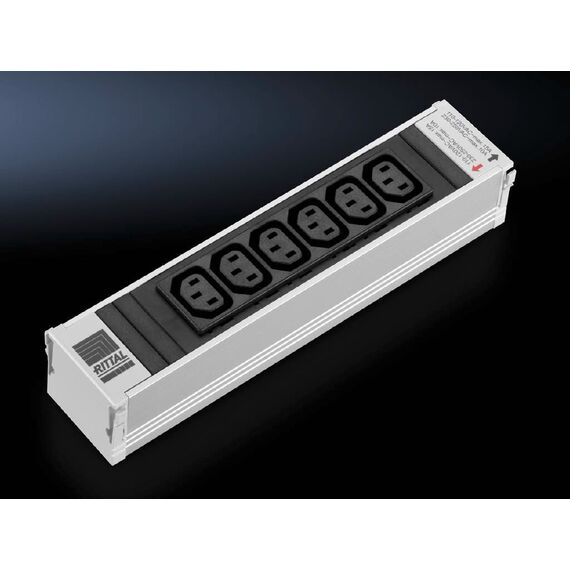

Rittal PSM Socket Module 7856.080, 6 × IEC C13, Plug-in for PSM Busbar, Hot-Swappable, Non-Fused, Black

Brand:
Rittal
Rittal - Power distribution strip (plug-in module) - ou | 7856080
Rittal PSM Socket Module 7856.080, 6 × IEC C13, Plug-in for PSM Busbar, Hot-Swappable, Non-Fused, Black
€104.8 inc. VAT
Buy
7856080
€88.07
€104.80 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
04:238899
EAN Code
4028177402539
Manufacturer
Rittal

Quick Specs

Type
PSM plug-in socket module
Outlets
6 × IEC C13
Key spec
Max 10 A per module at 230 V · non-fused
Compatibility
Rittal PSM busbar (e.g. DK 7856.010)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Rittal PSM Socket Module — 6 × IEC C13, Plug & Play

6 × IEC C13Hot-swapNo integrated fusePSM system

The Rittal DK 7856.080 is a PSM (Power System Module) socket module with six IEC 320 C13 outlets that locks into a Rittal PSM busbar, for data centres and server rooms that want to change rack power outlets without rewiring.

The PSM system separates the power rail from the outlets: the busbar is fitted vertically in the rack and fed once, and socket modules click into any free slot. Modules can be locked in or released while the system is live, and Rittal designs the system as shock-hazard protected plug-and-play, so outlets can be added or re-arranged by IT staff. This version has no integrated fuse — choose DK 7856.070 if you want 10 A thermal overload protection on the module.

Before you order: This is a module only. It needs a Rittal PSM busbar (for example DK 7856.010, 1200 mm, 4 module slots) with its infeed connection. It does not plug into a wall socket, a standard PDU or a UPS.

What's in the Box

  • 1 × Rittal PSM socket module DK 7856.080 (6 × IEC C13)

What It Means in Practice

  • Six C13 outlets per busbar slot — the usual connector for servers, switches and storage power supplies.
  • Swap or add modules while neighbouring equipment keeps running.
  • Mix with other PSM modules (fused C13, other socket types) on the same busbar.
  • No fuse on the module: overcurrent protection has to come from the busbar infeed or the upstream circuit.

What Will Not Work

  • Will not work without a Rittal PSM busbar and infeed — it has no cable or plug of its own.
  • C19 devices (high-power servers, blade chassis) and Schuko plugs do not fit.
  • No metering, switching or remote monitoring.
  • No built-in overload protection — do not use it where you need per-module fusing (see 7856.070).

Key Features


Plug & play
Locks into the PSM busbar; installed and moved without an electrician.

Hot-swappable
Can be locked in or unlocked while the system is working.

6 × C13
Standard IEC outlets for IT equipment, max 10 A per module at 230 V.

Technical Specifications

Identification
Part Number DK 7856.080
EAN / GTIN 4028177402539
Brand Rittal
System PSM (Power System Module)
Electrical
Outlets 6 × IEC 320 C13
Phase Single-phase (1~)
Rated voltage 110–230 V AC, 50/60 Hz
Max current per module 10 A at 230 V AC · 15 A at 110 V AC
Overcurrent protection None integrated (non-fused)
Switching Non-switchable
Connection WAGO WINSTA MIDI to busbar
Mechanical
Module slots used 1
Dimensions (W × H × D) 50 × 250 × 45 mm
Material Anodised aluminium section, PA6 GF 30 V1 socket inserts
Colour Black
Protection IP20
Net weight 0.3 kg
Environment & Approvals
Operating temperature +5 to +45 °C
Humidity 5–95 % non-condensing
Approvals IEC CB · UR / C-UR · VDE
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Manufacturer warranty term not published by Rittal — claims handled through Singular

Frequently Asked Questions

What is the difference between 7856.080 and 7856.070?
Both have 6 × C13. The 7856.070 has an integrated 10 A thermal overload fuse protecting all six sockets; the 7856.080 has none.
Can I use it in a non-Rittal rack?
The module only works on the Rittal PSM busbar. The busbar itself can be retrofitted to Rittal TS/PS racks with a mounting kit — ask us for other cabinets.
Does it come with a power cord?
No. Power comes from the PSM busbar, which is fed via its own infeed cable.
Singular Expert Insight · Buyer's Guide
PSM is worth it when a rack changes often: you buy outlets per module instead of replacing a whole PDU. Plan the busbar infeed and protection first, then pick fused or non-fused modules to match. Busbars, mounting kits and other cabinet parts are listed under rack accessories.
✓ Buy it if you already run, or are planning, a Rittal PSM busbar and need six more C13 outlets.
✕ Skip it if you do not have a PSM busbar (choose a standard rack PDU) or you need fusing on the module (choose 7856.070).
→ Also consider Rittal DK 7856.070 (same module with 10 A thermal fuse).
Tell us your PSM busbar model and infeed and we will check the module mix before you order.
