Rittal DK 7240.201 — 19-inch Socket Strip with 9 × IEC C13 and C14 Inlet
9 × IEC C13C14 inlet19" · 44 mm10 A fused

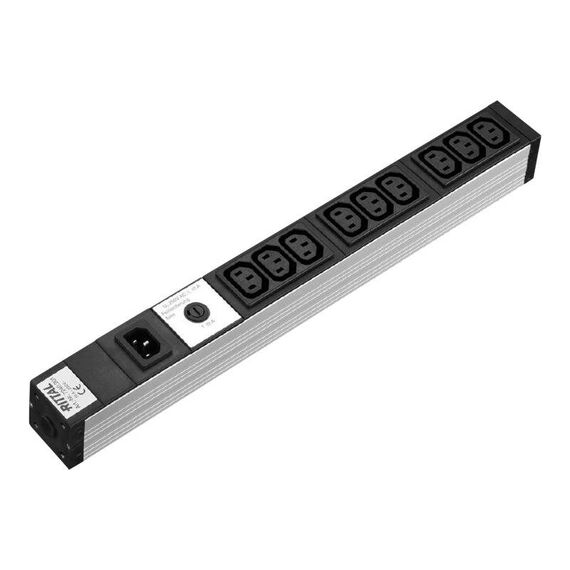

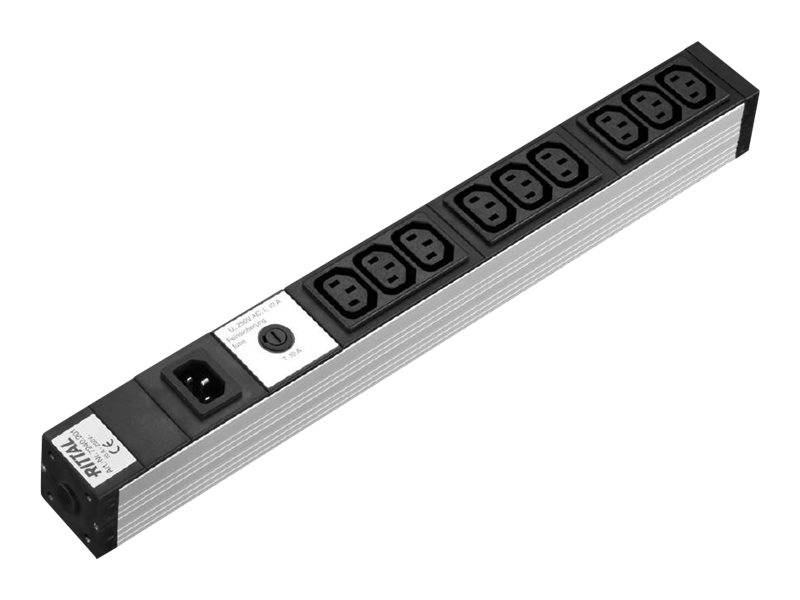

The Rittal DK 7240.201 is a 19-inch socket strip with nine IEC 60320 C13 outlets and a C14 inlet, for powering servers, switches and other IT equipment with IEC power inlets inside a rack or enclosure. It is rated 250 V AC, 50 Hz, max. 10 A, and has an integral 5 × 20 mm miniature fuse (10 A).
The body is a natural anodised aluminium section with black polycarbonate socket inserts, 44 mm high and 482.6 mm long. It fits 19-inch mounting levels, enclosure frames and Rittal DK wall-mounted distributors on a 25 mm pitch pattern, with two mounting brackets supplied.
Before you order: the input is an IEC C14 inlet, so the strip is powered from a C13 outlet — typically a UPS or a PDU — through a C13-to-C14 cable. The outputs are C13, so connected devices need C14 plugs (standard IEC kettle-lead cords for IT gear). Maximum 10 A for the whole strip.
What's in the Box
- 1 × Rittal DK 7240.201 socket strip (9 × C13, C14 inlet, integral 10 A fuse)
- 2 × mounting brackets
- Assembly parts
What It Means in Practice
- Feed nine devices from one UPS output: connect the strip to a UPS C13 socket and plug servers, switches and routers into it.
- 10 A total, about 2300 W at 230 V — plan the load per strip accordingly.
- Mounts horizontally in a 19-inch rack, on enclosure frames or in a DK wall distributor.
- The fuse protects the strip and cabling against overload.
What Will Not Work
- No Schuko sockets — devices with Schuko plugs (monitors, chargers) cannot be connected.
- It cannot plug into a wall socket directly without a Schuko-to-C13 cord; the C14 inlet needs a C13 source.
- No switch, surge protection, metering or remote management.
- Not for loads above 10 A in total.
Key Features
9 × IEC C13
Standard IT outlets for servers, switches, storage and UPS-protected equipment.
C14 inlet
Feeds from a UPS or PDU C13 output for a clean, protected chain.
Integral 10 A fuse
5 × 20 mm miniature fuse protects against overload.
Rittal mounting system
Fits 19-inch levels, enclosure frames and DK wall distributors; two brackets supplied.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Pairing a C14-inlet strip with a UPS is the cleanest way to distribute protected power to IT equipment in a rack: one cable from the UPS, nine IEC outlets for the devices. Keep the 10 A limit in mind. More rack power and mounting options are in our rack accessories.
✓ Buy it if you need nine C13 outlets in a 19-inch rack fed from a UPS or PDU.
✕ Skip it if you need Schuko sockets or more than 10 A per strip.
→ Also consider the Rittal DK 7240.200 with 12 × C13 outlets if you need more outlets (hard-wired input).
Not sure it fits your rack or UPS? Send us the models and we will check compatibility before you order.
Features - Rittal - 7240201
Colour
silver
Length
2m
More Details
Product Code
04:211355
EAN Code
4028177237544
Manufacturer
Rittal
