Rittal DK 7094.100 Assembly Screws M6 x 16 mm, Phillips-head Drive, with Plastic Washers, for 19-inch Equipment, Pack of 50
Brand:
Rittal
Rittal DK 7094.100 Assembly Screws M6 x 16 mm, Phillips-head Drive, with Plastic Washers, for 19-inch Equipment, Pack of 50
€8.97 inc. VAT
7094100
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

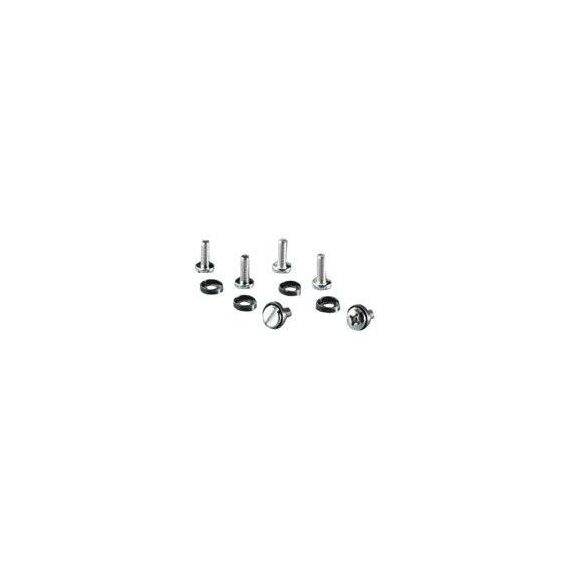

Rittal DK 7094.100 — M6 x 16 mm assembly screws for 19-inch installations
M6 x 16 mmPhillips-head50 pcsPlastic washers
The Rittal DK 7094.100 is a pack of 50 M6 x 16 mm assembly screws with phillips-head drive and plastic washers, for fixing electronic equipment, 482.6 mm (19-inch) installed components and blanking plates in Rittal racks.
Rittal specifies a maximum tightening torque of 3 Nm, which protects threads and painted surfaces during installation.
Before you order: These are M6 screws. They need M6 threads or M6 cage nuts in the rail — check your rack before ordering, because M5 hardware is not interchangeable. Cage nuts are not included.
What's in the Box
- 50 x M6 x 16 mm assembly screws (phillips-head)
- Plastic washers
What It Means in Practice
- Enough screws for around a dozen devices at four screws each.
- Plastic washers protect device ears and rail finish.
- Phillips head works with a standard screwdriver.
- Tighten to max. 3 Nm as specified by Rittal.
What Will Not Work
- Cage nuts are not included — use the cage nuts or threaded rails of your rack.
- Not for M5 cage nuts or M5-threaded rails.
- Not suitable for round-hole or 10-32 (US) threaded rails.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Mixing M5 and M6 hardware is the most common cause of stripped rack threads. Order by the thread already used in your cabinet. Browse our rack accessories for cage nuts, panels and shelves.
✓ Buy it if your rack uses M6 threads or M6 cage nuts and you need Rittal assembly screws.
✕ Skip it if your rack is M5 or US 10-32, or you need cage nuts as well.
→ Also consider Complete M6 sets with cage nuts, such as equip 922492 or Good Connections GC-N0050.
Not sure which thread your rack uses? Send us the rack model and we will check before you order.
Features - Rittal - 7094100
More Details
Product Code
04:206514
EAN Code
4028177663015
Manufacturer
Rittal
