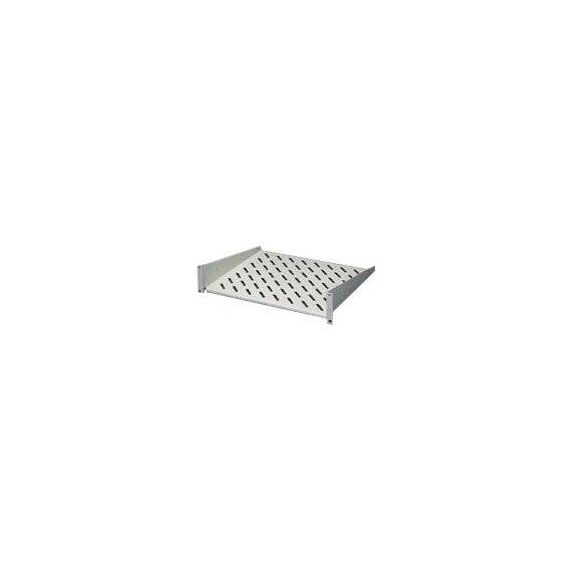

Rittal DK Component Shelf for 19-Inch Racks, 2U, Static Installation, 25 kg, 250 mm Deep, Sheet Steel, Light Grey RAL 7035

The Rittal DK 7119250 is a 2U component shelf for static installation between the 482.6 mm (19-inch) mounting angles of a rack or enclosure, giving you a 250 mm deep sheet-steel platform for up to 25 kg of equipment that cannot be rack-mounted directly — routers, modems, small switches, controllers or power supplies.

It is spray-finished in RAL 7035 (light grey), the classic light grey of many network enclosures. Rittal supplies it as a single shelf for fixed installation.

• 1 × Rittal DK component shelf, 2U, RAL 7035 (light grey)
• Mounting screws and cage nuts are not listed as included by Rittal

• A fixed place in the rack for small devices without rack ears, so they no longer sit on the cabinet floor or on top of other equipment.
• 2U of height gives more clearance above the device than a 1U shelf.
• 25 kg surface load covers typical routers, firewalls and small switches.
• The RAL 7035 (light grey) finish matches light-grey 19-inch racks and enclosures.

• Use with telescopic slides — Rittal states the shelf is not suitable for this.
• Devices deeper than 250 mm or heavier than 25 kg.
• Sliding out for servicing — this is a static shelf.
• Installation without rack hardware — screws and cage nuts are not listed in the scope of supply.
