Rittal DK 7000.630 Socket Strip, 8 x Schuko CEE 7/3, 16 A, 2 m Cable with Wire Ferrules (No Plug), Black

Brand:
Rittal
Rittal Socket Strip - Power strip - AC 230 V - input po | 7000630
Rittal DK 7000.630 Socket Strip, 8 x Schuko CEE 7/3, 16 A, 2 m Cable with Wire Ferrules (No Plug), Black
€63.63 inc. VAT
Buy
7000630
€53.47
€63.63 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
Product Code
04:211722
EAN Code
4028177438569
Manufacturer
Rittal

Quick Specs

Type
Enclosure socket strip, plastic housing
Connectors
2 m cable with wire ferrules · 8 x Schuko CEE 7/3
Key spec
230 V / 16 A · 45° sockets · no switch
Compatibility
Rittal TE 7000 / 19" sections · electrician connection
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

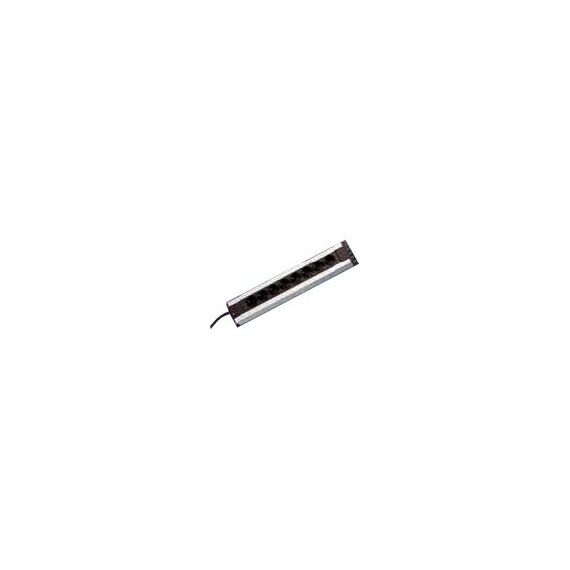

Rittal DK 7000.630 — socket strip with 8 Schuko sockets for hard-wired connection in enclosures

8 x Schuko CEE 7/3230 V · 16 ANo plug — wire ferrulesRittal TE 7000

The Rittal DK 7000.630 is a socket strip in a black plastic housing with eight Schuko (type F, CEE 7/3) sockets, rated 230 V / 16 A, for installation in Rittal network enclosures such as TE 7000 or on 19" mounting sections. It is part of Rittal's DK enclosure accessory range.

Its 2 m H05VV-F 3G 1.5 mm² connection cable ends in wire-end ferrules, not a plug: it is meant to be hard-wired by an electrician to a fused supply or a terminal inside the enclosure. The sockets are angled at 45° so angled plugs fit side by side.

Before you order: This strip has NO mains plug. The cable ends in bare wire ferrules for connection by a qualified electrician. If you want to plug it into a wall socket, choose a strip with a CEE 7/7 plug instead. The sockets are Schuko — BS 1363 plugs do not fit.

What's in the Box

  • 1 x Rittal DK 7000.630 socket strip
  • 1 x 2 m connection cable H05VV-F 3G 1.5 mm² with wire-end ferrules
  • Assembly parts: screws, 2 serrated washers, conductive captive M6 nuts, nuts

What It Means in Practice

  • Hard-wiring lets an electrician connect the strip to a dedicated, fused enclosure supply — common in industrial and structured-cabling installations.
  • Eight Schuko outlets with 45° rotation for angled plugs and power supplies.
  • No switch and no surge module: protection comes from the circuit it is wired to.
  • The conductive captive nuts bond the strip to the enclosure frame for earthing continuity.

What Will Not Work

  • Plugging into a wall socket — there is no plug, only wire ferrules.
  • DIY installation without an electrician.
  • BS 1363 (UK/Cyprus) plugs — the sockets are Schuko.
  • Surge protection or an on/off switch — neither is fitted.

Key Features


8 Schuko sockets
Type F (CEE 7/3) sockets angled at 45°.

Hard-wire connection
2 m cable with ferrules for a fixed supply.

Enclosure assembly parts
Screws, serrated washers and conductive captive M6 nuts included.

Rittal DK system
Designed for Rittal TE 7000 and 19" sections.

Technical Specifications

Identification
Part Number DK 7000.630 (7000630)
EAN / GTIN 4028177438569
Brand Rittal
Product type Socket strip in plastic housing
Electrical
Rated voltage 230 V AC, 50 Hz
Rated current 16 A
Sockets 8 x Schuko type F (CEE 7/3), angled 45°
Connection 2 m H05VV-F 3G 1.5 mm² cable with wire-end ferrules (no plug)
Switch / surge protection No
Physical
Housing Plastic, black
Mounting Rittal TE 7000 enclosures / 19" mounting sections
Weight 0.92 kg (net)
Approvals Declaration of conformity
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Manufacturer warranty term not published by Rittal — claims handled through Singular

Frequently Asked Questions

Why does it have no plug?
Rittal supplies it for fixed connection inside enclosures. An electrician connects the ferrule-ended cable to a fused supply or fits a suitable plug.
Can I add a plug myself?
Mains wiring should be done by a qualified electrician. If you want plug-and-play, choose a strip with a moulded CEE 7/7 plug.
Does it fit non-Rittal racks?
It is designed for Rittal enclosures and 19" sections; send us your rack model and we will check the fixing.
Singular Expert Insight · Buyer's Guide
This is an installer's part: ideal when an electrician is wiring a Rittal enclosure to its own supply, wrong if you expect to plug it into the wall. For plug-in rack strips see our rack accessories.
✓ Buy it if an electrician is wiring a Rittal TE 7000 or similar enclosure to a dedicated supply.
✕ Skip it if you want a strip with a plug for a wall socket or UPS.
→ Also consider Rittal DK 7240.210 (aluminium 19" strip, 7 x Schuko) or EFB EK631DE.1 (19" 1U, 9 x Schuko with CEE 7/7 plug).
Not sure it suits your enclosure? Send us the enclosure model and we will check before you order.
