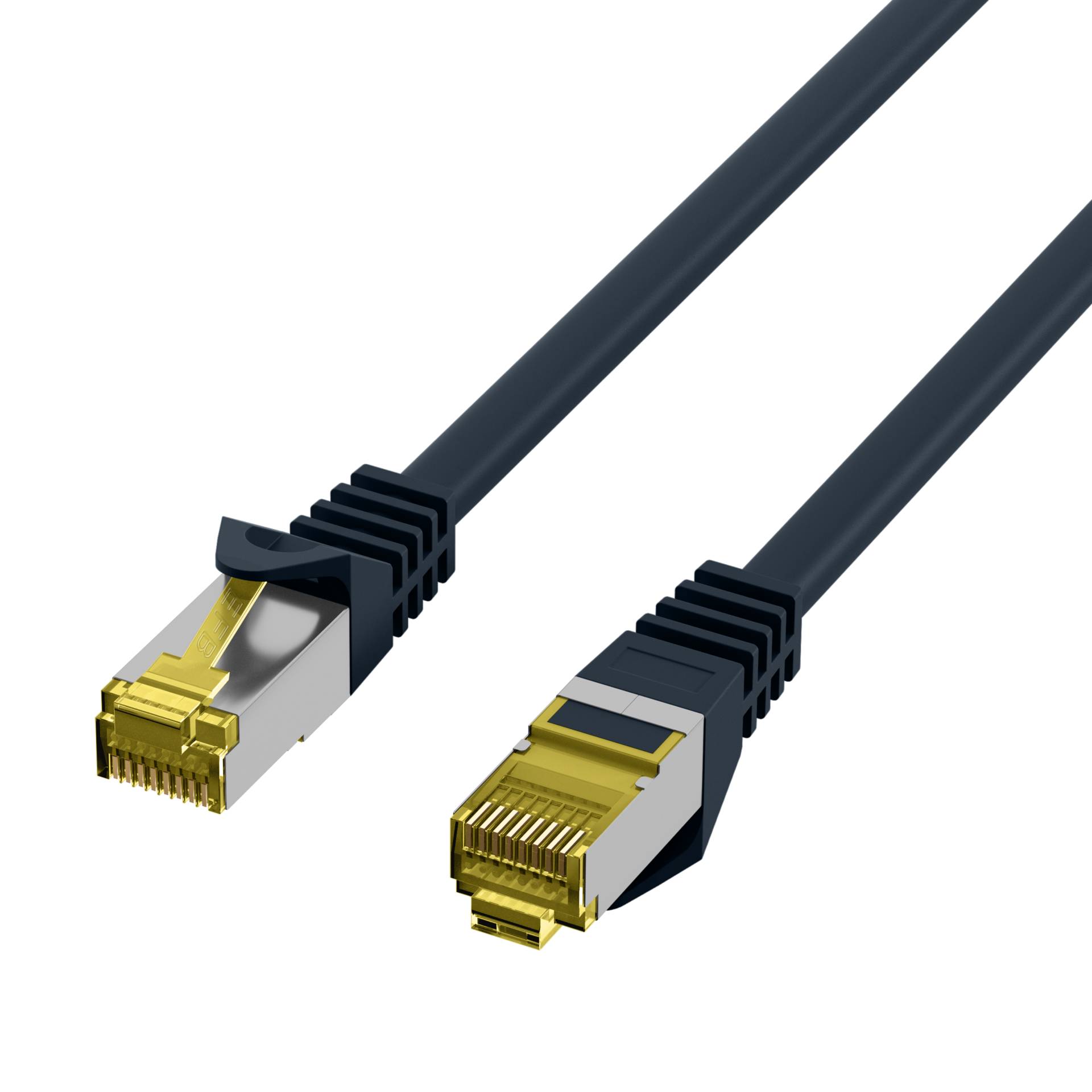

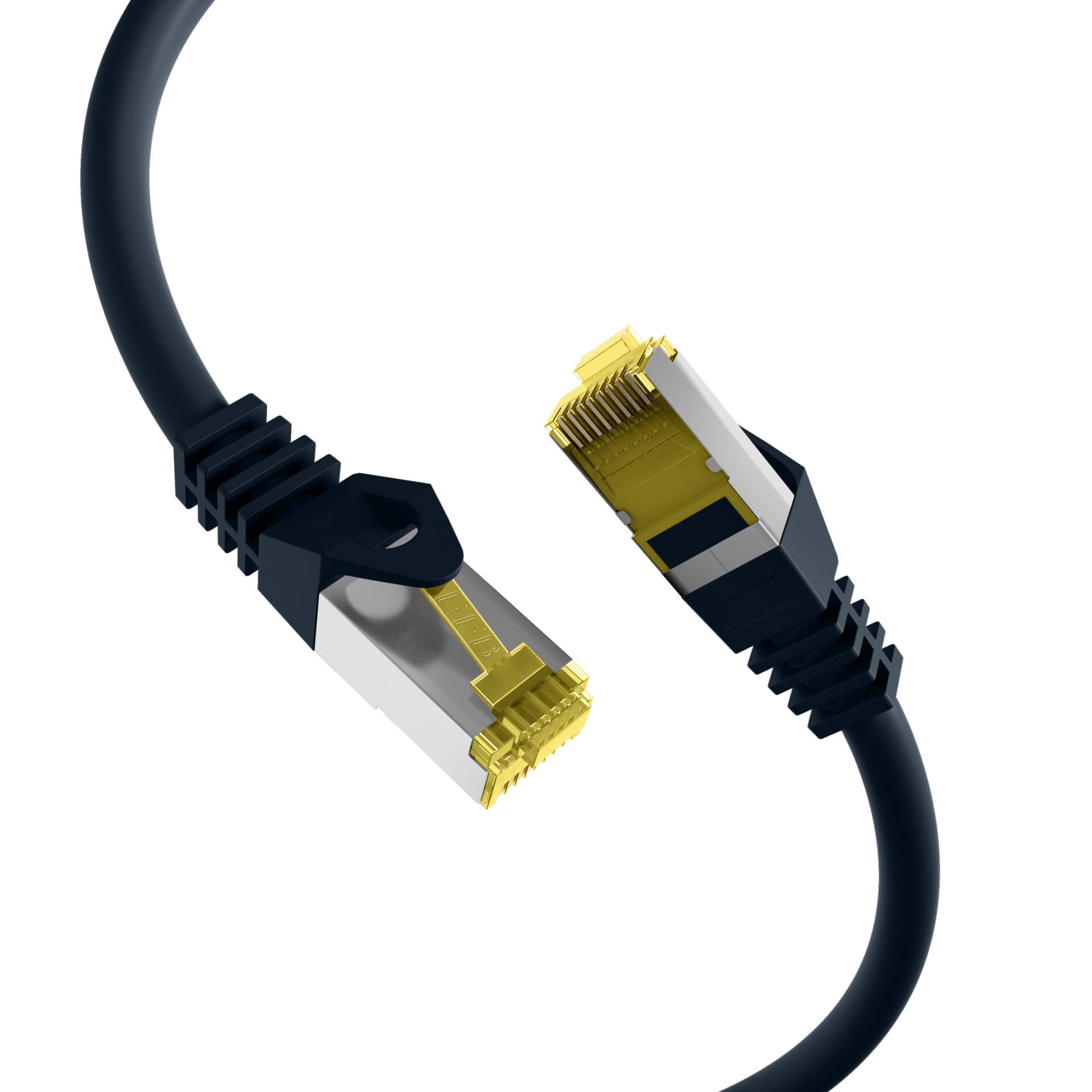

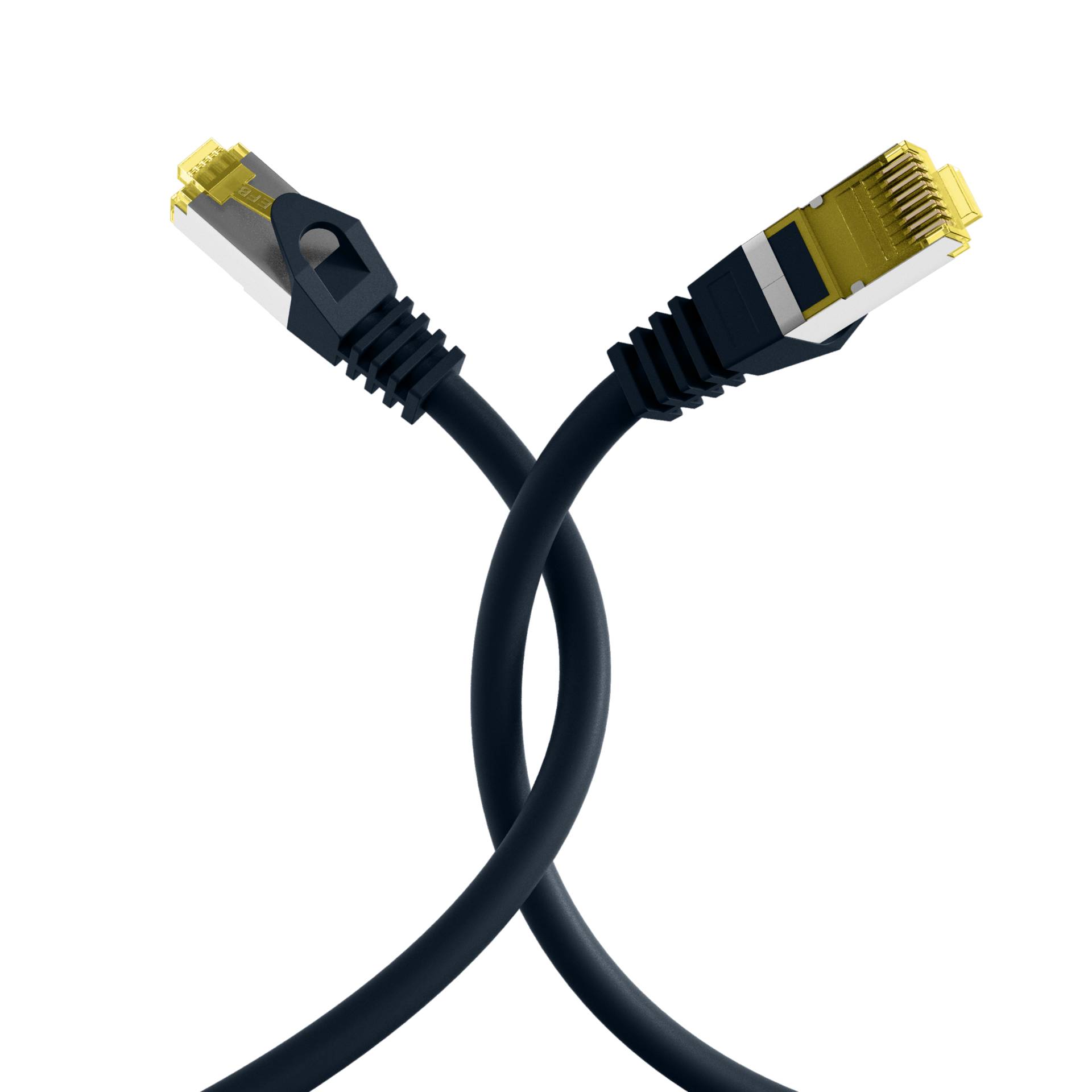

EFB-Elektronik / Patch cable / RJ-45 (M) to RJ-45 (M) / 25 cm / 6.5 mm / S/FTP / CAT 6a / halogen-free, molded, snagless, stranded / black | MK7001.0,25B
Please sign in so that we can notify you about a reply
Product Specification
| Network Cable Type | Patch cable - CAT 6a |
| Technology | S/FTP |
| Wiring Scheme | T568B |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 26 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Impedance | 100 Ohm |
| Plated Connector | Gold |
| Features | Halogen-free, molded, snagless, stranded, PoE+ Ready, PoE ready, yellow connectors, copper conductors, silicon-free, length imprint, 4PPoE ready, CAT 7 raw cable |
| Length | 25 cm |
| Diameter | 6.5 mm |
| Colour | Black |
| Connectivity | Connectivity |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Miscellaneous | Miscellaneous |
| Compliant Standards | EN 50173-1, IEC 60332-1, ISO/IEC 11801, IEC 60603-7-51, IEC 60754-2, IEC 61034, TIA/EIA-568-B-2.1, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | 1-year warranty |
Features - EFB - MK7001.0,25B
Colour
black
Length
0.25m
General
CAT6a
More Details
Product Code
04:261936
EAN Code
4049759126384
Manufacturer
EFB
