Roline Fiber Optic Patch Cable OS2 9/125µm Singlemode LC to LC Duplex 10m LSOH Yellow
Brand:
Roline
Roline Fiber Optic Patch Cable OS2 9/125µm Singlemode LC to LC Duplex 10m LSOH Yellow
€20.55 inc. VAT
21.15.8789
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Roline OS2 Singlemode Fiber Patch Cable, LC to LC, Duplex, 10 m
OS2 · 9/125 µmLC ↔ LCDuplex10 m

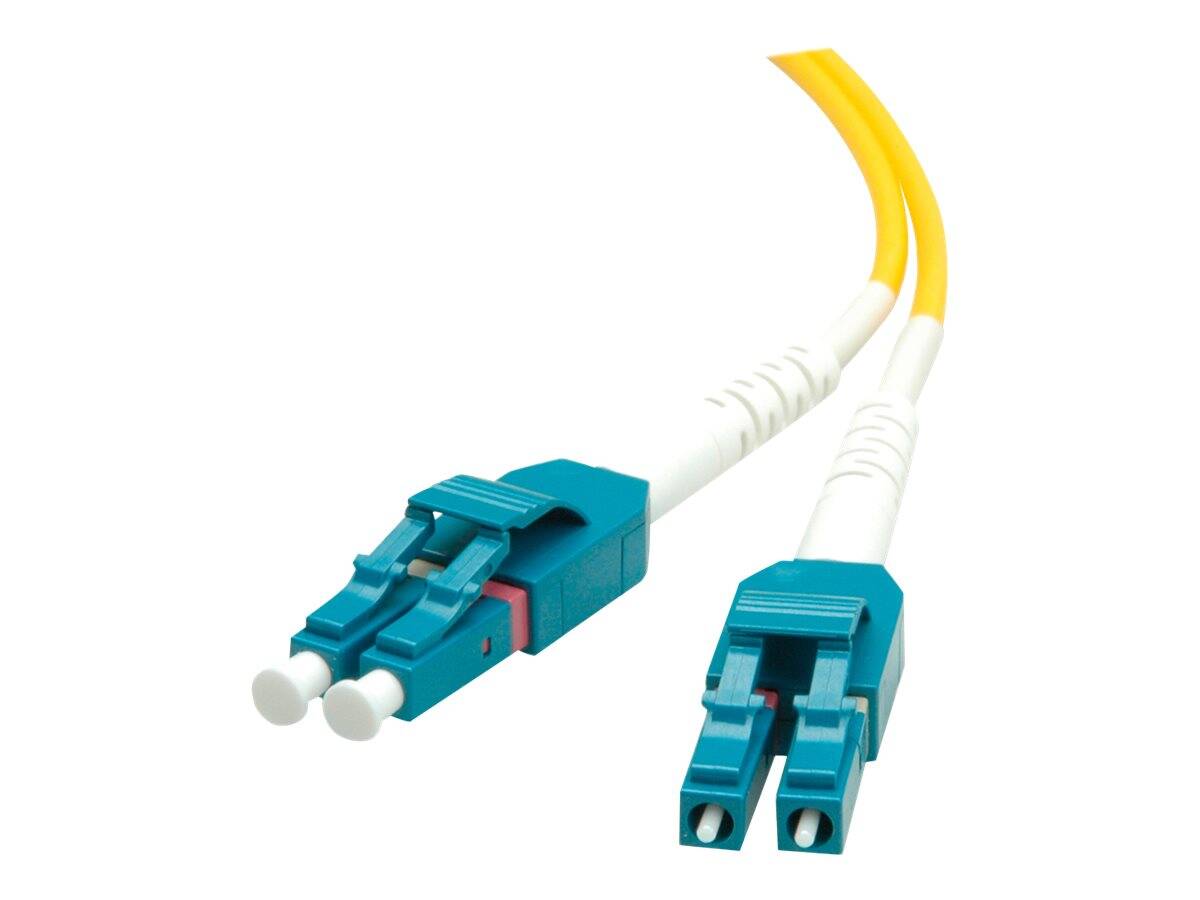

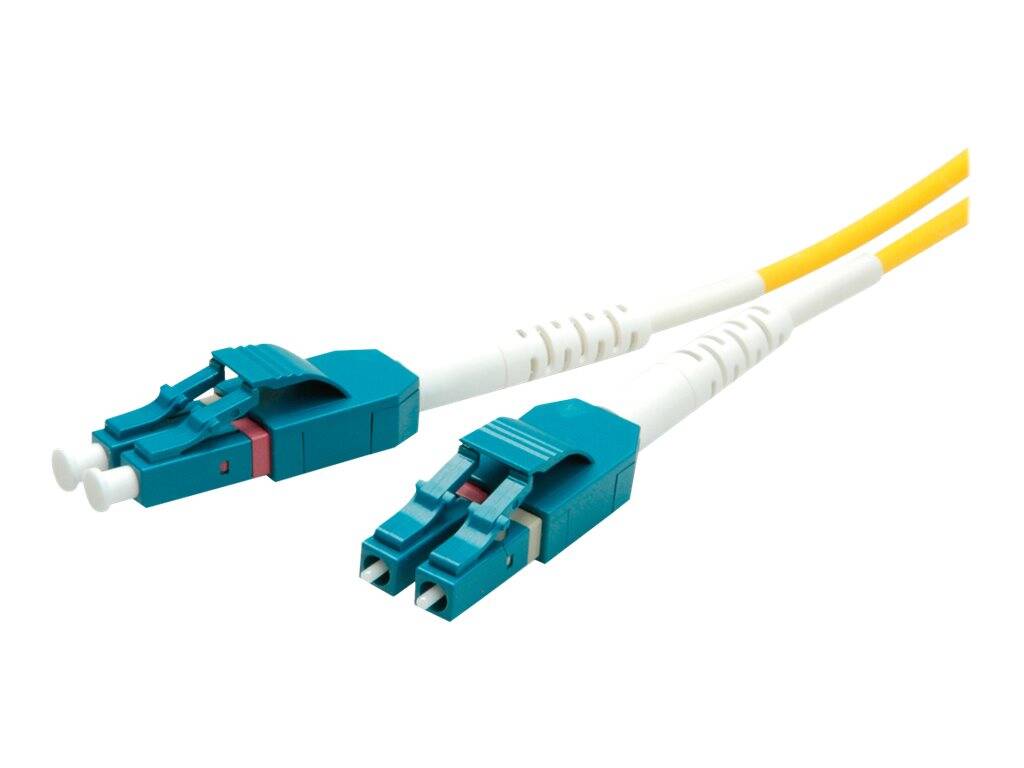

The Roline 21.15.8789 is a 10 m duplex OS2 singlemode fibre patch cable with LC connectors on both ends, made for singlemode links between switches, SFP/SFP+ optics, patch panels and media converters.
The cable uses an LSOH jacket with a 3.0 mm outer diameter in yellow, the standard colour for singlemode, so it is easy to tell apart in a busy rack.
Before you order: OS2 singlemode works with 1310/1550 nm long-reach (LR/LX/ER) singlemode optics only. Multimode SR/SX transceivers will not work on this cable. Check that both ports are LC.
What's in the Box
- 1 × Roline OS2 duplex fibre patch cable, 10 m, LC – LC
- Transceivers, couplers and patch panels are not included
What It Means in Practice
- Two fibres in one cable: one transmits, one receives — the normal setup for SFP, SFP+, SFP28 and most media converters.
- At 10 m it reaches between neighbouring racks or across a server room; for building backbones use installation cable and patch panels instead.
- Singlemode OS2 is the right choice for 1310/1550 nm optics (1000BASE-LX, 10GBASE-LR and similar) and for links that will be extended later over long distances.
- Respect the minimum bend radius (30 mm static / 60 mm dynamic): route the cable in gentle loops and do not pinch it in rack doors or cable ties.
- Keep the connectors covered until the moment of connection and clean the end-faces if a link shows high loss — dirt is the most common cause.
What Will Not Work
- Multimode SR/SX transceivers (850 nm) — they need OM3/OM4/OM5 cable.
- Ports of another connector type (SC, ST, MPO/MTP, E2000) without the right hybrid cable or adapter.
- Permanent in-wall or outdoor installation — this is a patch cable for racks, desks and equipment rooms.
Key Features
OS2 9/125 µm
Singlemode OS2 for 1310/1550 nm optics and long links.
LC – LC
Same connector on both ends.
LSOH jacket
Low-smoke, halogen-free jacket, 3.0 mm — suitable for offices and server rooms.
Published losses
Insertion loss ≤ 0.3 dB, return loss ≥ 50 dB.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Singlemode OS2 is the safe default for new fibre links: it handles 1G to 100G and long distances with the right optics. Match three things before ordering: fibre type (OS2), connector at each end (LC / LC) and polish. Typical partners are switches with SFP/SFP+ ports and the matching transceivers.
✓ Buy it if your ports are LC on both sides and the link is OS2.
✕ Skip it if your transceivers are multimode SR/SX — order OM4 instead.
→ Also consider the same cable in other lengths.
Not sure which fibre or connector you have? Send us the model of your switch, transceiver or patch panel and we will check it before you order.
Features - Roline - 21.15.8789
Colour
yellow
Length
10m
More Details
Product Code
CO43583
EAN Code
7611990127146
Manufacturer
Roline
