Zebra ZT510 Industrial Label Printer, 300 dpi, Cutter, Thermal Transfer & Direct Thermal, Gigabit Ethernet, USB, RS-232 & Bluetooth LE

Brand:
Zebra
Zebra ZT510 ZT51043-T1E0000Z 300 dpi Cutter Label Printer
Zebra ZT510 Industrial Label Printer, 300 dpi, Cutter, Thermal Transfer & Direct Thermal, Gigabit Ethernet, USB, RS-232 & Bluetooth LE
€3936.53 inc. VAT
Buy
ZT51043-T1E0000Z
€3,308.01
€3,936.53 inc. VAT
Ships from EU stock: 14 item(s)
+ −
Add to wish list Ask a question
Product Code
V368563
EAN Code
8596375178250
Manufacturer
Zebra
Features
Bluetooth

Quick Specs

Resolution
300 dpi
Handling
Cutter fitted
Print width / speed
104 mm / up to 254 mm/s
Interfaces
USB, Serial, Gigabit LAN, BLE
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

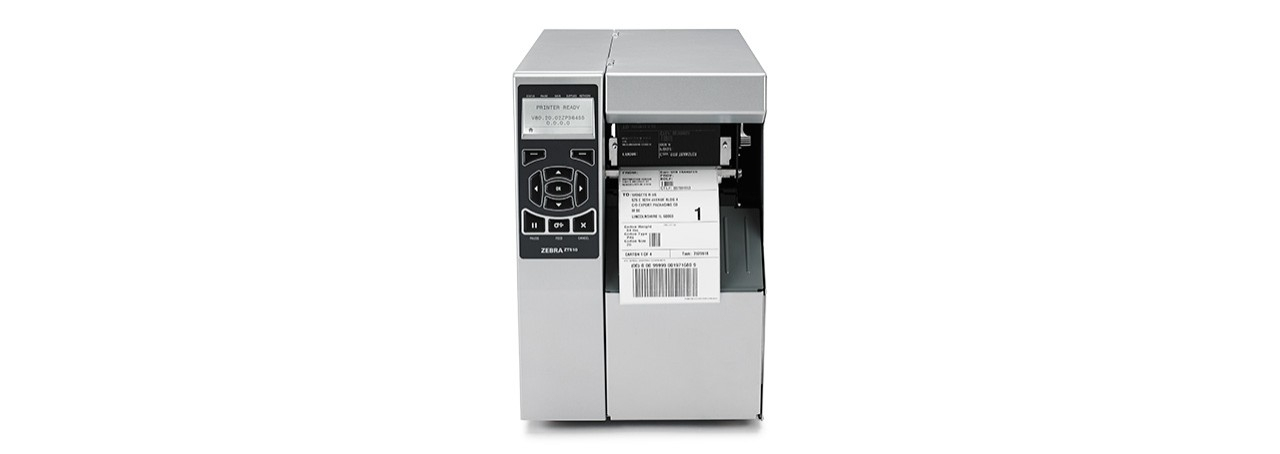

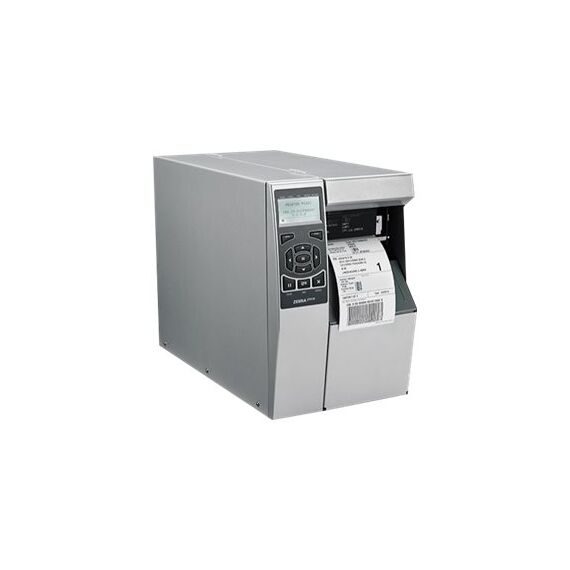

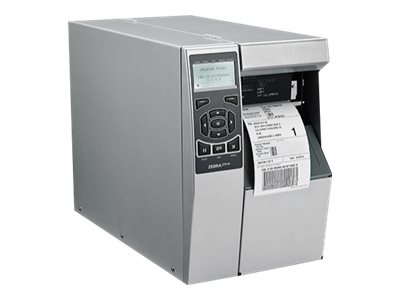

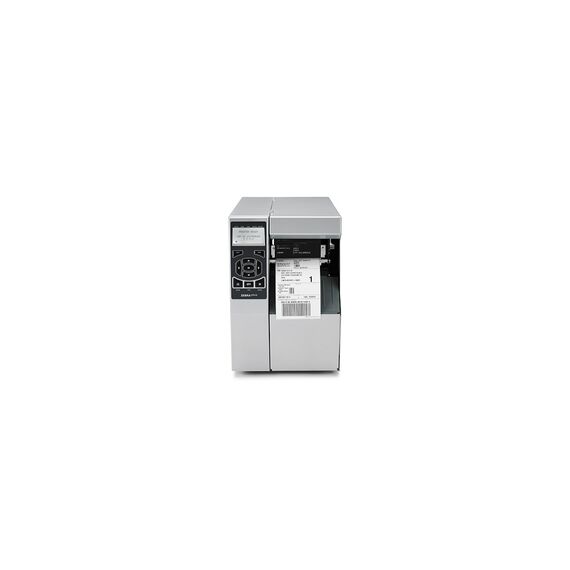

Zebra ZT510 300 dpi Cutter Industrial Label Printer

300 dpiCutter fitted104 mm / up to 254 mm/sUSB, Serial, Gigabit LAN, BLE

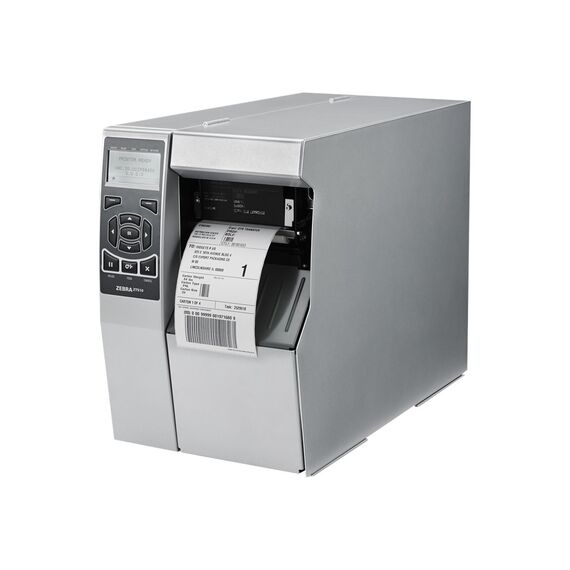

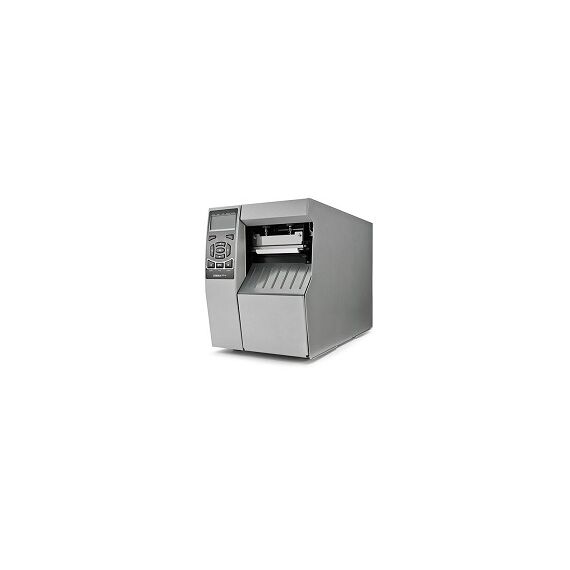

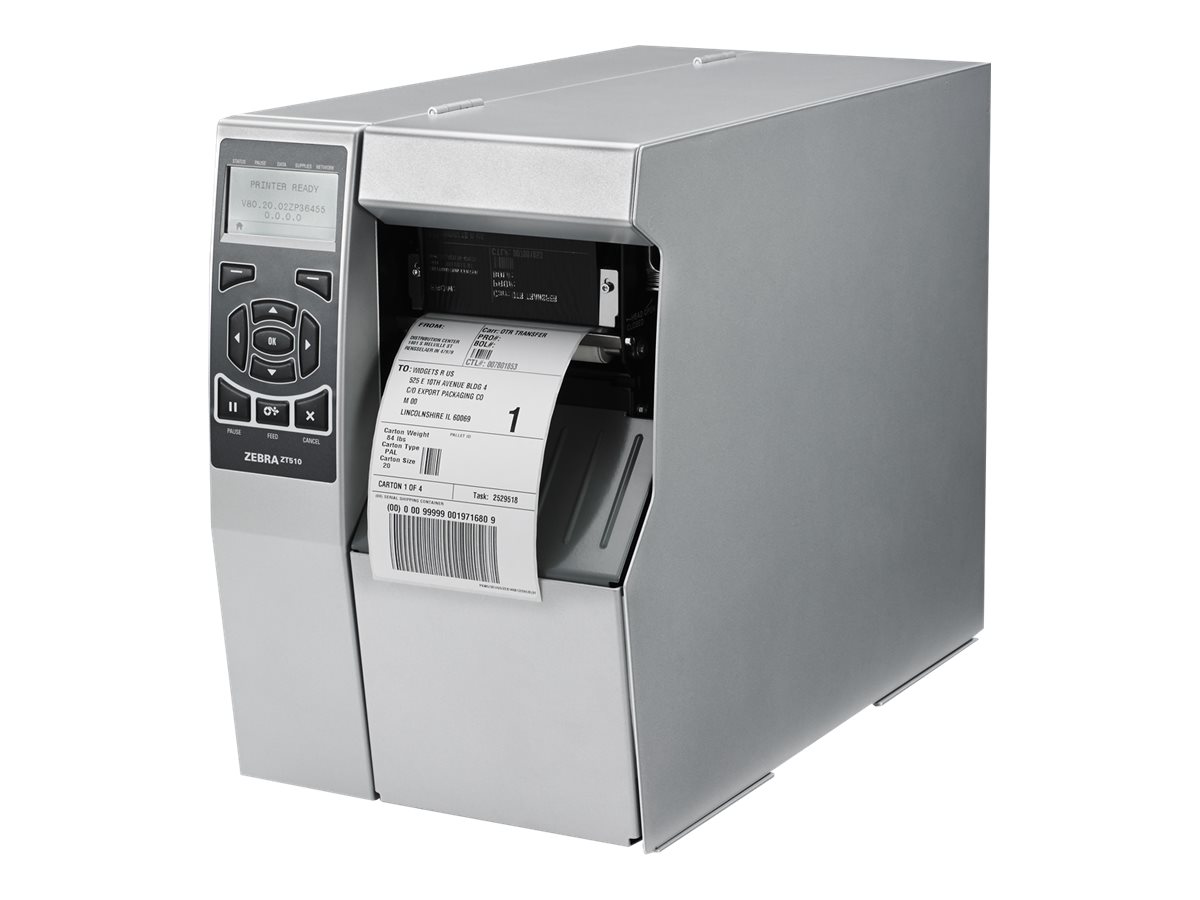

The ZT51043-T1E0000Z is the 300 dpi Zebra ZT510 industrial label printer with a fitted cutter. It prints barcodes, text and graphics up to 104 mm wide using thermal transfer or direct thermal media. The cutter separates printed media under software control, making this configuration useful for batches of individually cut labels or strips. USB, RS-232, Gigabit Ethernet and Bluetooth LE provide the verified connections; Wi-Fi is not fitted.

Before you order:
This is the 300 dpi cutter configuration, with a maximum print speed of 10 ips / 254 mm/s. Cutter media must be 0.076–0.23 mm thick with a minimum 38 mm label length; qualify the stock and cutting workflow before use. Parallel and USB Host require optional cards.

What's in the Box

  • Zebra ZT51043-T1E0000Z printer with 300 dpi printhead and cutter.
  • EU and UK power cables; order the interface cable separately.

What It Means in Practice

  • For a label batch, load suitable stock, add a matching ribbon for thermal transfer, calibrate and send the format from your host application. Configure the software to cut individual labels or groups as required.
  • Direct thermal needs heat-sensitive stock without ribbon; thermal transfer requires a ribbon matched to the label material. The cutter separates media but does not automatically stick labels onto products.
  • The 300 dpi printhead should be chosen around the smallest text and barcode in your label. Test actual supplies, layout and cut frequency rather than assuming the maximum 254 mm/s is the sustained cut-batch speed.

What Will Not Work

  • The cutter option is not compatible with rewind and peel options according to Zebra.
  • This SKU does not provide fitted Wi-Fi, Parallel or USB Host. Bluetooth LE is mainly for setup and light data transfer.
  • Do not use non-thermal paper for direct thermal output or operate thermal transfer without a suitable ribbon.

Key Features

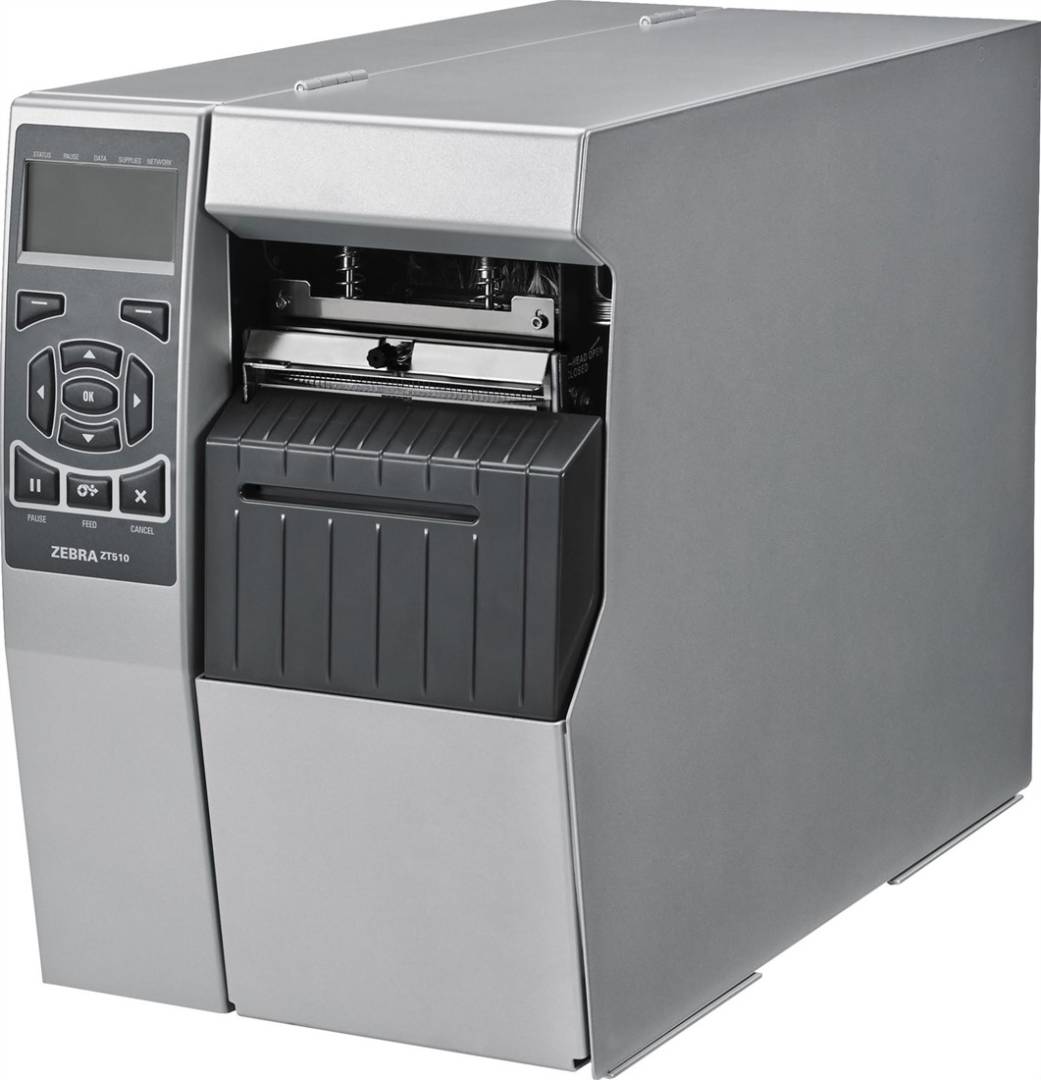

300 dpi with a fitted cutter
The software-controlled guillotine cuts individual labels or strips. Match cutter thickness and minimum label length to the media before deploying the workflow.

104 mm width, up to 254 mm/s
The 300 dpi engine supports production label layouts at up to 10 ips. Actual print-and-cut throughput depends on supplies, layout and cut frequency.

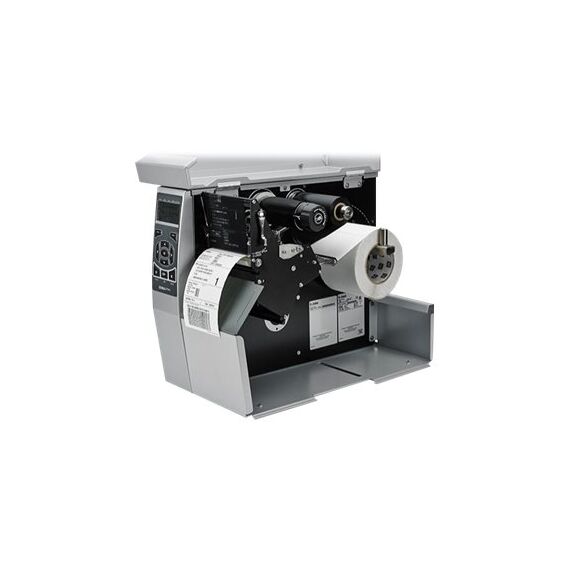

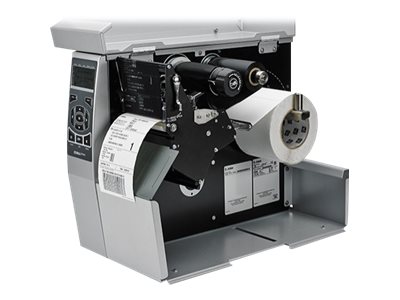

Industrial construction and controls
A metal frame, backlit multi-line LCD, keypad, RTC and reflective/transmissive media sensors support a fixed warehouse or production workstation.

Wired network integration
Gigabit Ethernet, USB 2.0 and RS-232 connect to compatible systems. ZPL, ZPL II and XML-enabled printing are supported; Link-OS tools support setup and management.

Technical Specifications

Identification
Brand / model Zebra ZT510
Manufacturer part number ZT51043-T1E0000Z
EAN 8596375178250
Type / colour Industrial label printer / grey
Print engine
Printing methods Thermal transfer and direct thermal
Resolution 300 dpi (nominal 12 dots/mm)
Maximum print width 104 mm
Programmable print speeds 2.4, 3, 4, 5, 6, 7, 8, 9, 10 ips; maximum 254 mm/s
Maximum print length 2540 mm continuous; 991 mm non-continuous
Minimum label length, cutter 38 mm in cutter mode; depends on media, ribbon and speed
Registration tolerance Vertical ±0.75 mm at up to 6 ips, ±1.5 mm above 6 ips; horizontal ±1.5 mm; supply/application dependent
Barcode X dimension Non-rotated 3.3–49 mil; rotated 3.9–39 mil
Performance conditions Manufacturer reference tests use Zebra Certified Supplies; qualify actual media, ribbon, layout and speed for the application
Media and ribbon
Supplied media handling Software-controlled guillotine cutter; individual labels or strips; incompatible with rewind/peel
Media width, label and liner 20–114 mm
Media thickness, cutter 0.076–0.23 mm, cutter limit
Media types Continuous, die-cut, notch, hole, black mark
Maximum media roll / core 203 mm outside diameter / 76 mm inside diameter
Media sensors Transmissive and reflective
Gap / notch / hole sensing Gap 2–4 mm (3 mm preferred); notch 6 × 3 mm; hole diameter 3 mm
Black-mark sensing Length 3–11 mm; width greater than 11 mm; within 1 mm of inside edge; density greater than 1.0 ODU; media density maximum 0.5 ODU
Ribbon 450 m standard length; 51–110 mm width; coated side out
Ribbon roll / core 81.3 mm maximum outside diameter / 25.4 mm inside diameter
Connectivity, controls and software

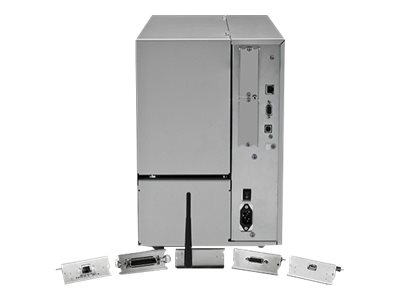

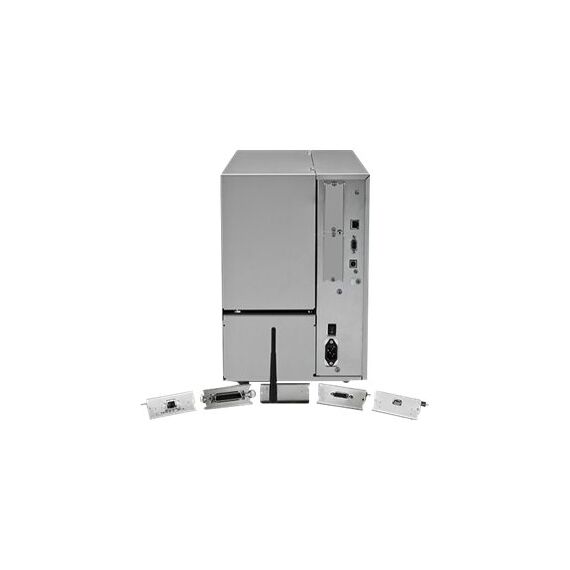

Fitted interfaces USB 2.0, RS-232, Gigabit Ethernet (10/100/1000 Mbit/s), Bluetooth LE
Base Bluetooth / NFC Bluetooth LE for setup/light data transfer; static NFC tag for Print Touch pairing
Optional interfaces Wi-Fi, Parallel and USB Host cards; not included
Processor Cortex-A9 800 MHz
Installed memory 512 MB SDRAM / 2 GB Flash
User-available memory 32 MB DRAM / 512 MB Flash

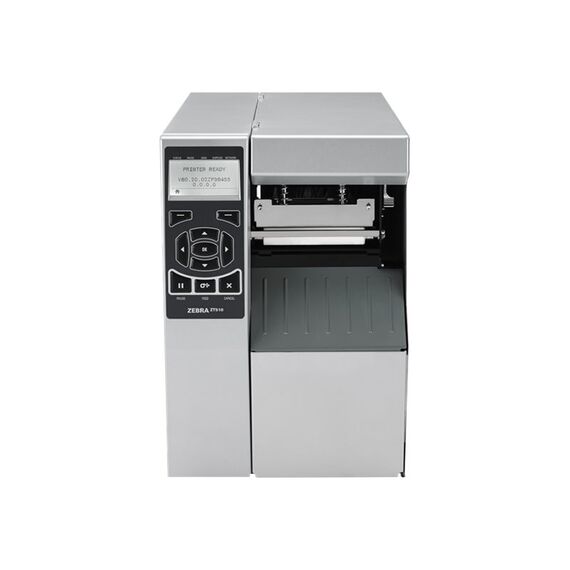

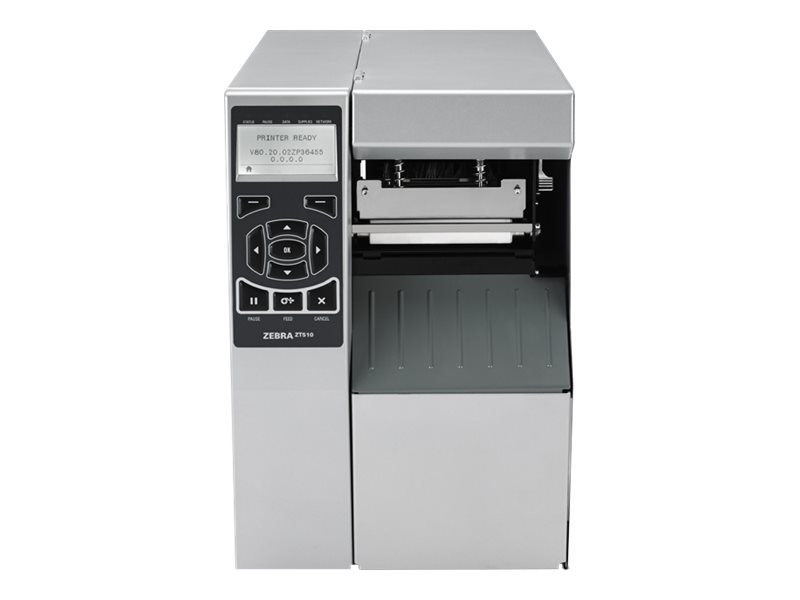

Display / controls Backlit multi-line graphic LCD, keypad, programmable password protection, real-time clock
Calibration / alerts Automatic media calibration at power-on or printhead closure; printhead-cleaning alerts
Print languages / management ZPL, ZPL II, XML-enabled printing; Link-OS, Zebra Setup Utility, WebView and Alert
Fonts / graphics 16 resident expandable ZPL II bitmap fonts, 2 scalable ZPL fonts, Unicode; downloadable fonts, graphics and formats
Code pages 850; 1250, 1252, 1253, 1254, 1255 with font 0
Linear barcodes Code 11, Code 39, Code 93, Code 128 A/B/C, UCC Case Codes, ISBT-128, UPC-A/E, EAN-8/13, UPC/EAN 2/5-digit extensions, Plessey, Postnet, Standard/Industrial/Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2D barcodes Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 and composite, Aztec
Power, physical and environment
Construction Metal frame
Dimensions, closed (W × D × H) 268.2 × 512.3 × 395.68 mm
Weight 22.7 kg
Power supply rating 90–265 VAC, 47–63 Hz, 250 W rated, power-factor correction; not typical consumption
Operating temperature Thermal transfer 5–40 °C; direct thermal 0–40 °C
Storage / transport temperature −30–60 °C
Operating / storage humidity 20–85%, non-condensing
Compliance ENERGY STAR; CE; IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
Package
Verified included items Printer; EU and UK power cables
Separately required Suitable media; ribbon for thermal transfer; interface cable if used; compatible host application/workflow

Frequently Asked Questions

Is the cutter included in this exact SKU?
Yes. ZT51043-T1E0000Z is the 300 dpi cutter configuration. The guillotine operates under software control to cut individual labels or strips.
Does it also peel or rewind the labels?
No. Zebra specifies the cutter as incompatible with rewind and peel options. It separates media; an operator or separate equipment handles label application.
Which connections and supplies do I need?
The verified interfaces are USB, RS-232, Gigabit Ethernet and Bluetooth LE. EU/UK power cables are included; order an interface cable separately. Choose suitable cutter-compatible media and a matching ribbon for thermal transfer.
Singular Expert Insight
Choose this 300 dpi configuration for an actual cutting requirement. Match label detail, stock thickness and cut frequency to your process; the print-engine speed alone does not describe finished batch throughput. label printers at Singular.

Buyer’s Guide

✓

Buy it if

 You need a 300 dpi industrial 104 mm printer with automatic cutting.
✕

Skip it if

 Your process needs peel-and-present, rewind or fitted Wi-Fi.
→

Also consider

 A different resolution for finer text, or a tear-off configuration when automatic cutting adds no value.
Ask Singular to check your label size, material, ribbon and software workflow before selecting the final printer configuration.
