Samsung PM9A3 3.84TB M.2 22110 PCIe 4.0 NVMe SSD | AES-XTS

Brand:
Samsung
Samsung 04:377371

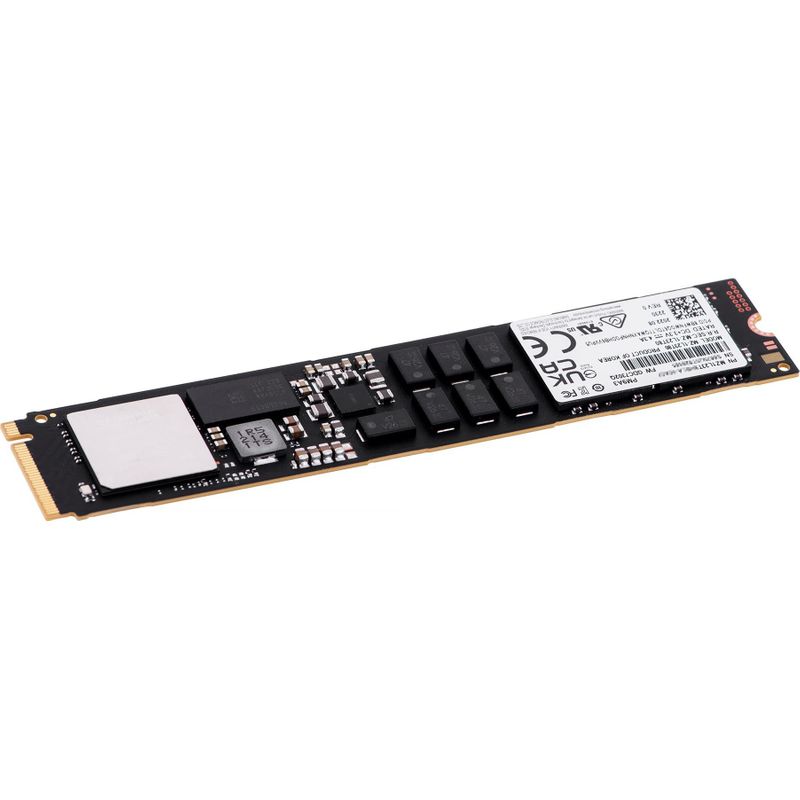

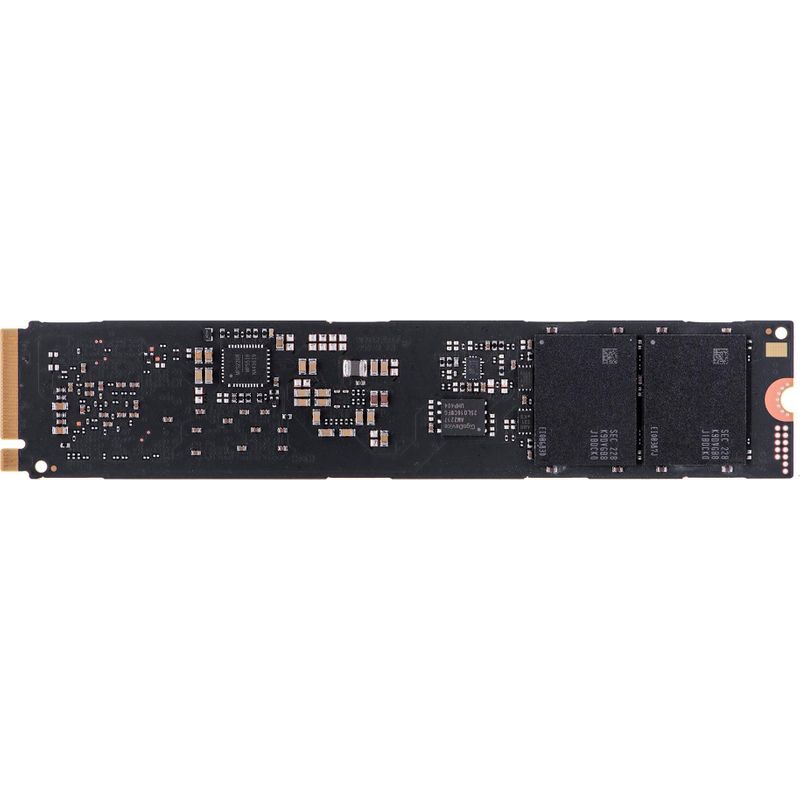

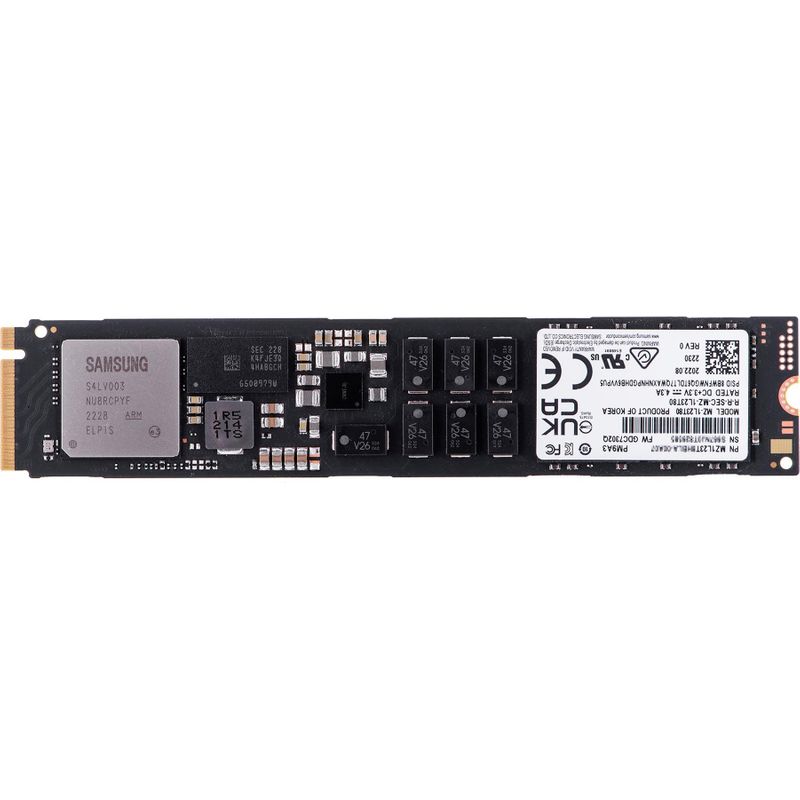

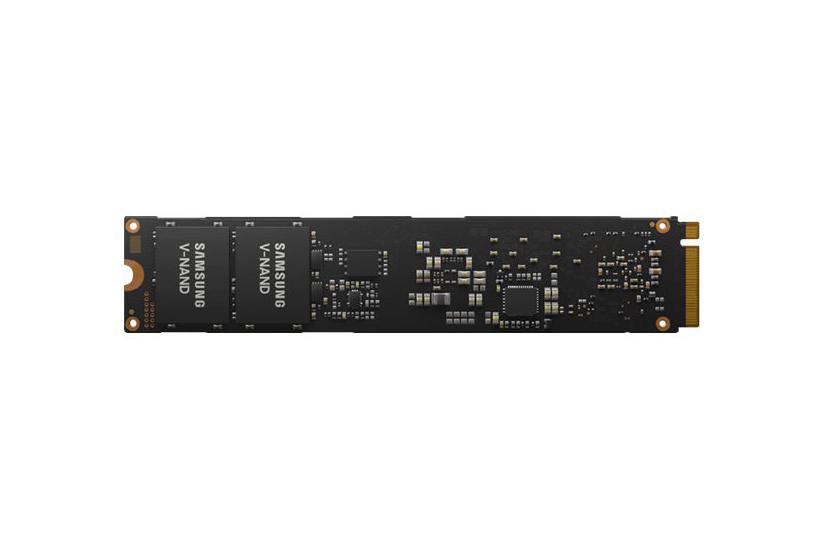

Samsung PM9A3 3.84TB M.2 22110 PCIe 4.0 NVMe SSD | AES-XTS
€3713.03 inc. VAT
Buy
MZ1L23T8HBLA-00A07
€3,120.19 €3,466.88
€3,713.03 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
04:377371
EAN Code
8592978395070
Manufacturer
Samsung

Quick Specs

Interfaces
PCI Express 4.0 x4 (NVMe)
Security
256-bit AES-XTS
Product Type
Solid state drive - internal
NAND Flash Memory Type
Multi-level cell (MLC)
Interface
PCIe 4.0 x4 (NVMe)
Power Consumption
8.2 Watt (read) / 8.2 Watt (write) / 2.5 Watt (idle)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

Samsung PM9A3 3.84TB M.2 22110 PCIe 4.0 NVMe SSD

The Samsung PM9A3 is an internal 3.84TB M.2 SSD designed for systems that need high-capacity NVMe storage in the 22110 form factor. It combines PCIe 4.0 x4 connectivity with 256-bit AES-XTS hardware encryption, making it a strong fit for secure storage deployments where the correct bay size is confirmed.
PCI Express 4.0 x4 (NVMe) 256-bit AES-XTS Solid state drive - internal Multi-level cell (MLC)

The Samsung PM9A3 is an internal 3.84TB M.2 SSD designed for systems that need high-capacity NVMe storage in the 22110 form factor. It combines PCIe 4.0 x4 connectivity with 256-bit AES-XTS hardware encryption, making it a strong fit for secure storage deployments where the correct bay size is confirmed.

Best For
✓ Values hardware encryption as part of the storage specification

Key Features


Commercial Fit
The key reason to choose this model is the combination of 3.84TB capacity, PCIe 4.0 x4 NVMe connectivity, M.2 22110 sizing and 256-bit AES-XTS hardware encryption in one enterprise-oriented drive.

NAND Flash Memory Type
NAND Flash Memory Type: Multi-level cell (MLC)

Interface
Interface: PCIe 4.0 x4 (NVMe)

Interfaces
Interfaces: PCI Express 4.0 x4 (NVMe)

Technical Specifications

Capacity 3.84 TB
Interface PCIe 4.0 x4 (NVMe)
Form Factor M.2 22110
Security 256-bit AES-XTS
Hardware Encryption Yes
NAND Flash Memory Type Multi-level cell (MLC)
Features V-NAND Technology | Samsung Elpis Controller
Internal Data Rate 5500 MBps (read) / 2000 MBps (write)
4KB Random Read 800000 IOPS
4KB Random Write 85000 IOPS
Bytes per Sector 512
Weight 20 g
Width 22 mm
Depth 110 mm
Height 3.8 mm
Power Consumption 8.2 Watt (read) / 8.2 Watt (write) / 2.5 Watt (idle)
Compliant Standards TUV | VCCI | BSMI | cUL | CB | IC | FCC | RoHS | KCC | halogen-free | RCM
MTBF 2,000,000 hours
Non-Recoverable Errors 1 per 10^17
Interfaces PCI Express 4.0 x4 (NVMe)
Product Type Solid state drive - internal
SKU / EAN MZ1L23T8HBLA-00A07 | 8592978395070

Frequently Asked Questions

What should I know before buying?
Check that your device supports the M.2 22110 form factor before ordering. This is an internal SSD only, so it is intended for compatible systems with an available M.2 slot.
What connectivity does it offer?
PCIe 4.0 x4 (NVMe)
What are the key specifications?
NAND Flash Memory Type: Multi-level cell (MLC) | Interface: PCIe 4.0 x4 (NVMe) | Interfaces: PCI Express 4.0 x4 (NVMe)
Singular Expert Insight
The key reason to choose this model is the combination of 3.84TB capacity, PCIe 4.0 x4 NVMe connectivity, M.2 22110 sizing and 256-bit AES-XTS hardware encryption in one enterprise-oriented drive.

Buyer’s Guide

Buy it if
Best for buyers who need a high-capacity internal NVMe drive for a system that supports the longer M.2 22110 format and values hardware encryption as part of the storage specification.
Skip it if
Check that your device supports the M.2 22110 form factor before ordering. This is an internal SSD only, so it is intended for compatible systems with an available M.2 slot.
Also consider
If you do not need the 22110 length or hardware encryption, a more conventional M.2 NVMe SSD may be a simpler choice.

Features - Samsung - MZ1L23T8HBLA-00A07

Form Factor
  • Internal
Interface
  • M.2
More Details
Product Code
04:377371
EAN Code
8592978395070
Manufacturer
Samsung
Technical specifications
Capacity
4TB
