SanDisk Optimus GX 7100M 2 TB M.2 2230 PCIe 4.0 x4 NVMe SSD, Without Heatsink

Brand:
Sandisk

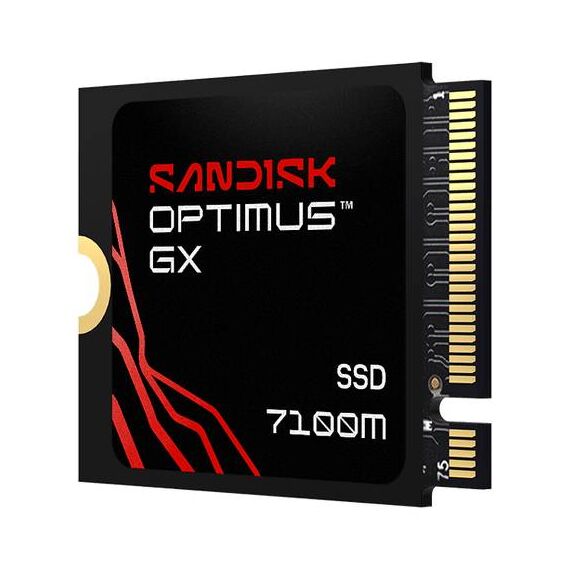

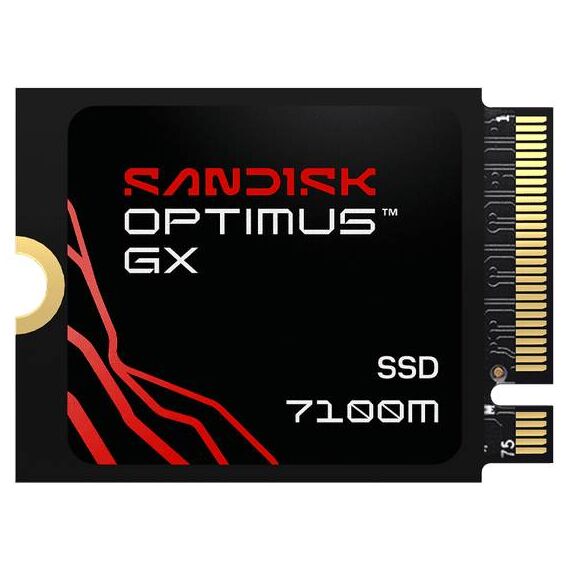

SanDisk Optimus GX 7100M 2 TB M.2 2230 NVMe SSD without heatsink
SanDisk Optimus GX 7100M 2 TB M.2 2230 PCIe 4.0 x4 NVMe SSD, Without Heatsink
€666.64 inc. VAT
Buy
SDSP71200TAT-000E0
€560.20 €622.44
€666.64 inc. VAT
Ships from EU stock: 9 item(s)
+ −
Add to wish list Ask a question
Product Code
CS56745
EAN Code
0619659232245
Manufacturer
Sandisk

Quick Specs

Capacity / format
2 TB · M.2 2230
Sequential read / write
Up to 7250 / 6900 MB/s
Interface / cache
PCIe 4.0 x4 · HMB
Endurance / cooling
1200 TBW · No heatsink
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

SanDisk Optimus GX 7100M 2 TB SSD

2 TB · M.2 2230Up to 7250 / 6900 MB/sPCIe 4.0 x4 · HMB

The 2 TB Optimus GX 7100M adds fast internal storage for compatible handheld gaming consoles and compact laptops. Its 30 mm M.2 2230 board fits devices that cannot take an 80 mm 2280 drive. It combines PCIe 4.0 x4 NVMe 2.0, TLC NAND and nCache 4.0, with manufacturer sequential maxima of 7250 MB/s read and 6900 MB/s write.

Compatibility — check before buying:
Confirm a PCIe NVMe M.2 2230 slot, the supported drive capacity and 2.38 mm board-height clearance. A SATA-only M.2 slot is not suitable. Peak speeds require a suitable host; older compatible PCIe links reduce available bandwidth.

Key Features


Performance for this capacity
This 2 TB configuration is rated up to 1M read and 1.3M write IOPS, alongside 7250/6900 MB/s sequential read/write. These are internal-test maxima, rather than sustained rates for every transfer.

Cache and NAND
HMB uses host memory works with nCache 4.0 and 8th-generation BiCS TLC 3D CBA NAND.

Cooling and installation
No heatsink is supplied. Check the device service guide and its cooling arrangement before replacing the existing drive.

Technical Specifications

Identification
Brand SanDisk
Model / MPN SDSP71200TAT-000E0
EAN / GTIN 0619659232245
Storage and interface
Capacity 2 TB (decimal; usable capacity is lower)
Form factor M.2 2230-S3-M
Interface / protocol PCIe 4.0 x4 · NVMe 2.0
PCIe backward compatibility PCIe 3.0 x4/x2/x1; PCIe 2.0 x4/x2/x1, with reduced bandwidth
NAND 8th-generation SanDisk BiCS TLC 3D CBA NAND
DRAM / host memory Host Memory Buffer (HMB)
SLC cache SanDisk nCache 4.0
DirectStorage Supports Microsoft DirectStorage games; compatible host/software required
Performance and endurance
Sequential read / write (1 MB) Up to 7250 / 6900 MB/s; QD8, 1 thread
Random read / write (4 KB) Up to 1M / 1.3M IOPS; QD32, 16 threads
Performance conditions Manufacturer internal testing; varies with host, workload, capacity and other factors
Endurance 1200 TBW; JEDEC client workload JESD219
MTTF reference Up to 1.75 million hours; Telcordia SR-332, GF, 25°C statistical estimate, not individual lifespan or warranty
Power and security
Average active read / write power 3.7 / 4 W
Power measurement conditions IOMeter 1.1.0, separate burst sequential read/write, 10-second moving average; varies with setup and firmware
Sleep power (PS4) 5 mW
Security TCG Pyrite 2.01; ATA Security passthrough over NVMe
Physical and environmental
Heatsink Not included
Dimensions (L × W × H) 30 × 22 × 2.38 mm
Weight 2.8 g
Dimensional / weight tolerance Length/width ±0.15 mm; weight ±1 g
Operating temperature 0°C to 85°C, as reported by the drive, not ambient; package rated to 60°C
Non-operating temperature −40°C to 85°C; does not guarantee data retention
Operating vibration 5 gRMS, 10–2000 Hz, 3 axes
Non-operating vibration 4.9 gRMS, 7–800 Hz, 3 axes
Shock 1500 G at 0.5 ms, half-sine
Compatibility, software and coverage
Manufacturer-listed system requirements Windows 10+; PCIe NVMe M.2 2230 slot
Dashboard SanDisk Dashboard download, Windows only; health, firmware and Game Mode
Migration software Acronis True Image for SanDisk: 5-year compatible-drive licence; redeem within 90 days; download, installation, admin privileges and possibly account required; offer terms apply
Manufacturer limited warranty 5 years or 1200 TBW limit, whichever occurs first; regional terms apply
Compliance BSMI, CAN ICES-3(B)/NMB-3(B), CB-Scheme, CE, FCC, KCC, Morocco, RCM, TÜV, UL, VCCI, UKCA; RoHS
Package contents 1 × SSD

What's in the Box

1 × SanDisk Optimus GX 7100M SSD

What Will Not Work

A SATA-only slot or a mounting position for a different M.2 length will not suit this drive.

Frequently Asked Questions

Does this fit a Steam Deck-sized slot?
This is a 30 mm M.2 2230 NVMe drive. SanDisk lists compatible Steam Deck, MSI Claw, Surface and Dell devices; check the exact device service guide before fitting.
Is a heatsink supplied?
No. This SKU is the bare-drive version, 2.38 mm high. Use the cooling arrangement specified by your system manufacturer.
Will every transfer reach the rated speed?
No. The published figures are maxima under the stated test workloads. Host bandwidth, file sizes, drive state and workload affect results; the endurance limit also forms part of the limited warranty.
Singular Expert Insight
Choose the cooling assembly and physical format before comparing peak speed. The 7100M is the compact 2230 option; the 7100 needs an 80 mm 2280 mounting position. Compare the alternate Optimus configuration

Buyer’s Guide

Buy it if

You want 2 TB NVMe storage and have verified the physical fit.

Skip it if

Your device requires a different drive size or cooling assembly.

Also consider

Compare the linked alternate configuration by format, capacity and heatsink.
