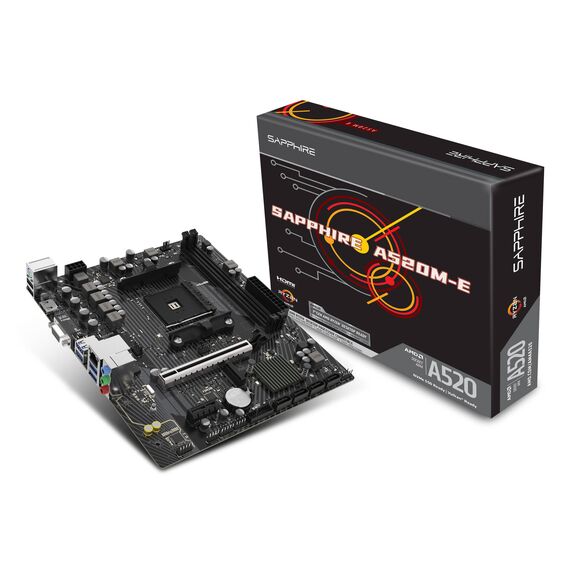

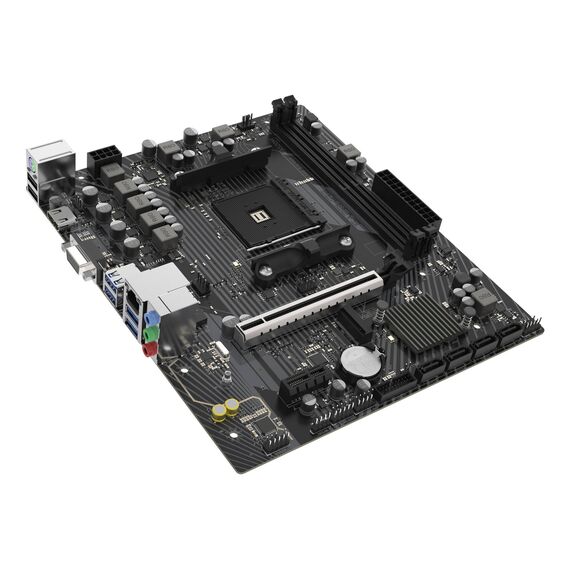

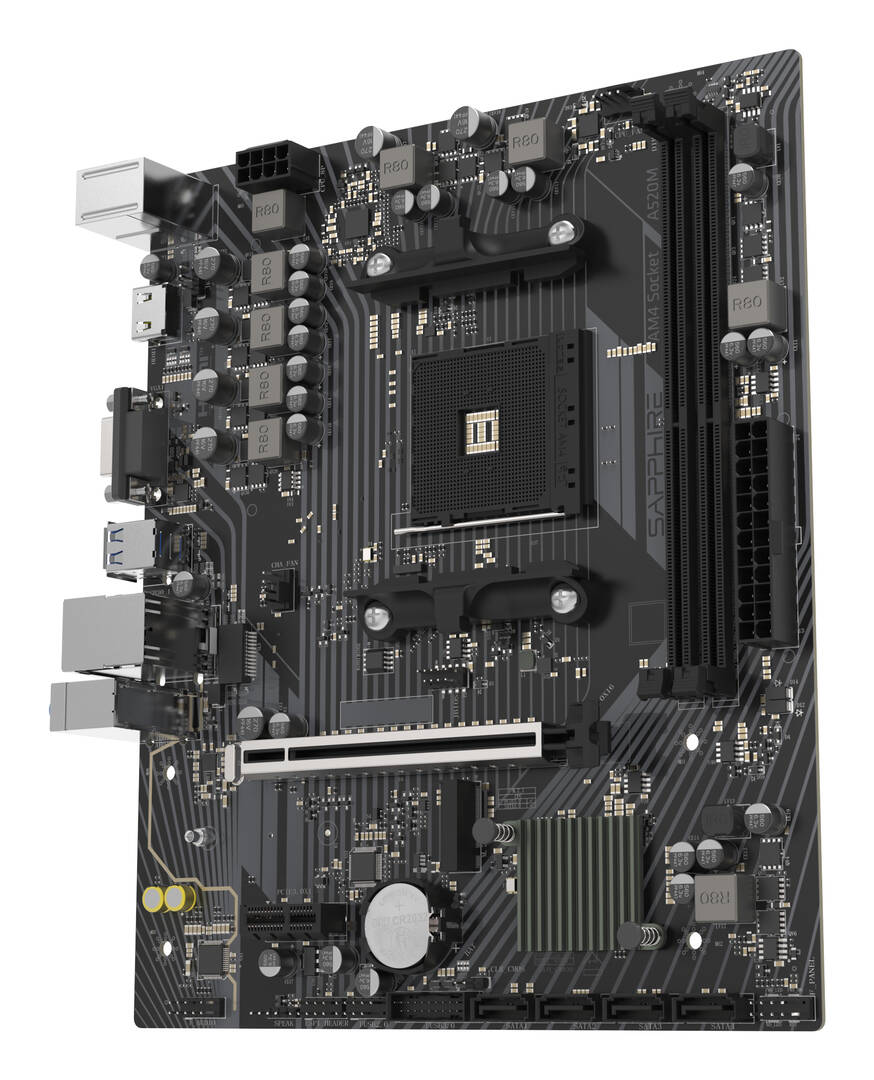

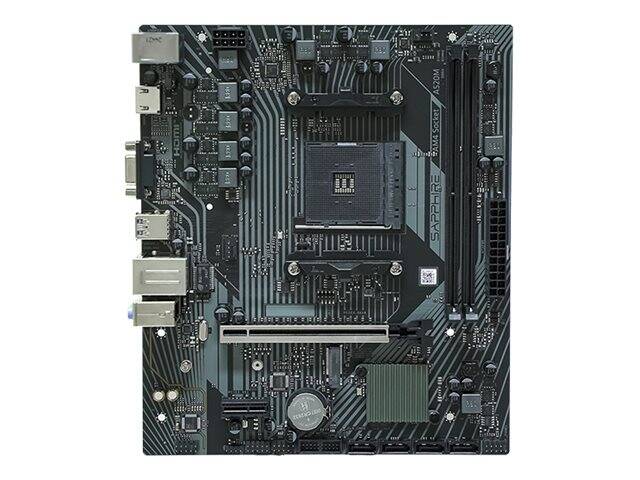

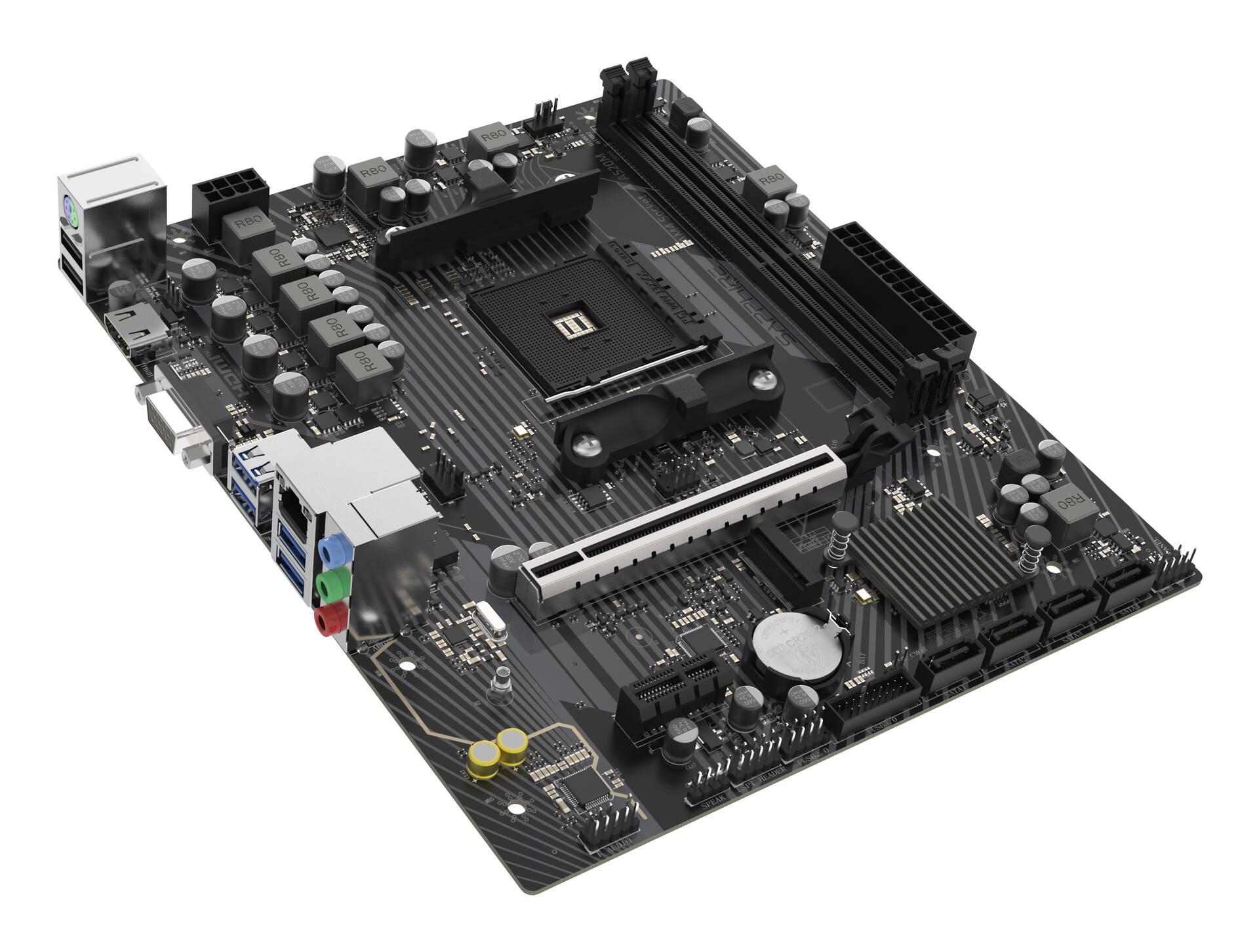

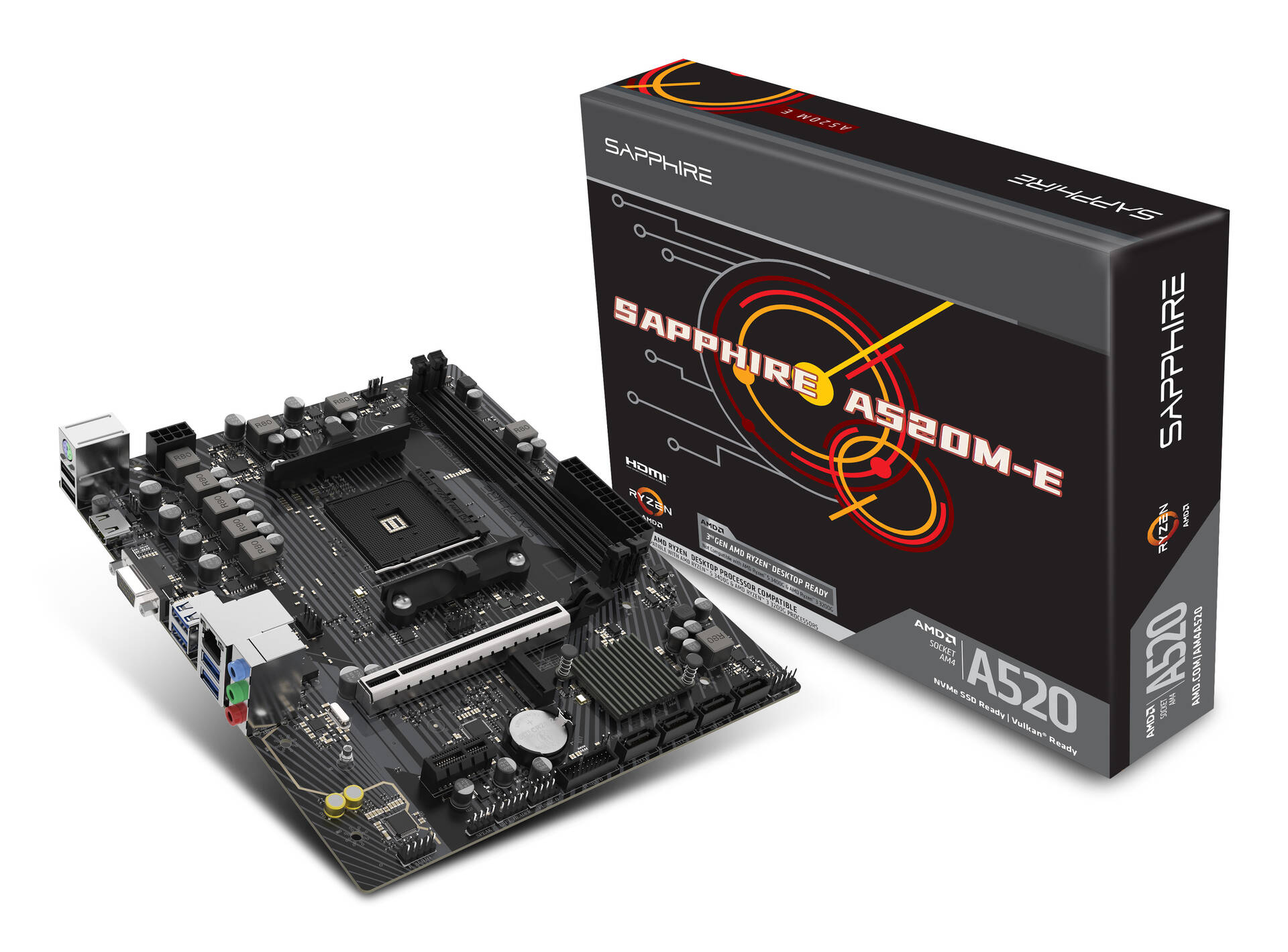

Sapphire A520M-E Motherboard Micro-ATX AM4 DDR4 PCIe 3.0 HDMI VGA 4x USB 3.2 AMD Ryzen

Brand:
sapphire
Sapphire A520M-E / Motherboard / micro ATX / Socke | 52119-04-40G
Sapphire A520M-E Motherboard Micro-ATX AM4 DDR4 PCIe 3.0 HDMI VGA 4x USB 3.2 AMD Ryzen
€82.09 inc. VAT
Buy
52119-04-40G
€68.98 €76.65
€82.09 inc. VAT
Ships from EU stock: 52 item(s)

Four rear USB 3.2 Gen 1 ports, colour-coded debug LEDs and a reliable Ryzen-ready platform — the Sapphire A520M-E brings more USB connectivity and clearer troubleshooting to budget AM4 builds from the brand that knows AMD hardware best.

+ −
Add to wish list Ask a question
Product Code
04:548115
EAN Code
4895106296886
Manufacturer
sapphire

Quick Specs

Platform
Micro-ATX · AM4 · A520
CPU Support
Ryzen 5000 / 4000G / 3000
Memory
DDR4 · 2× DIMM · Up to 64GB
Storage
1× M.2 PCIe 3.0 · 4× SATA
USB Rear
4× USB 3.2 Gen 1 + 2× USB 2.0
Debug
Colour Debug LEDs (CPU/DRAM/GPU/Boot)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

Sapphire A520M-E — Micro-ATX AM4 DDR4 Motherboard

Four rear USB 3.2 Gen 1 ports, colour-coded debug LEDs and Ryzen 5000/4000G/3000 support — more USB connectivity than most competing A520 boards, from AMD's own GPU partner.
Micro-ATX · AM4 · A520 4× USB 3.2 Gen 1 Colour Debug LEDs DDR4 · M.2 NVMe

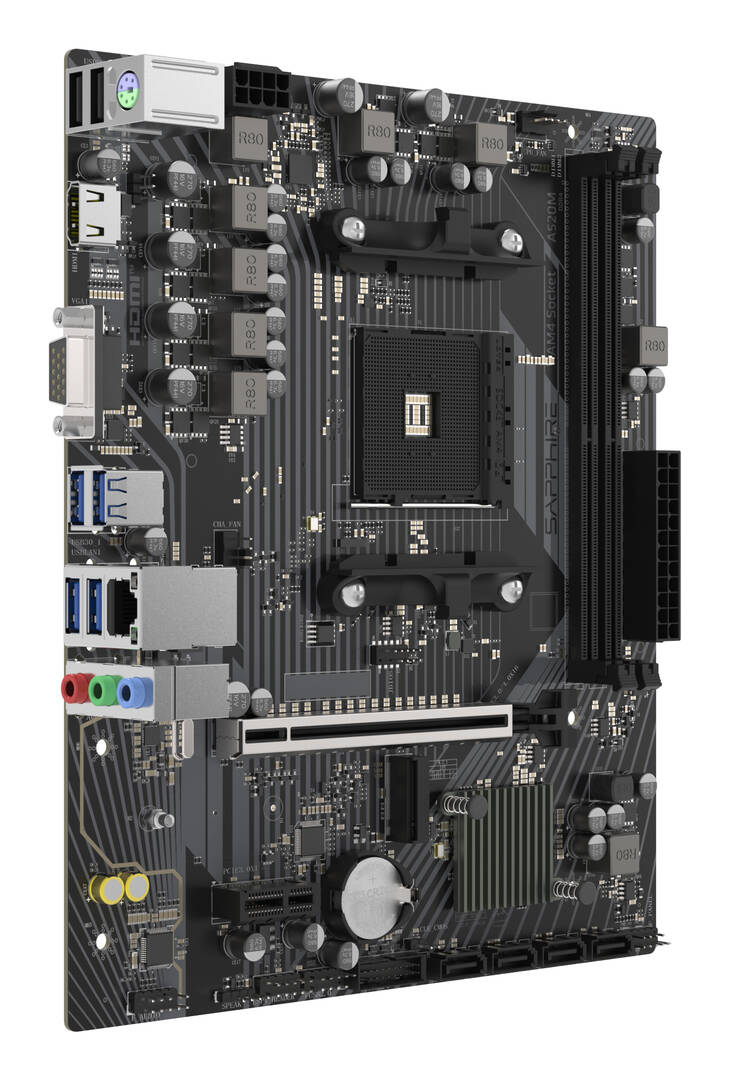

The Sapphire A520M-E is a Micro-ATX motherboard on the AMD A520 chipset for Socket AM4, designed by one of AMD's longest-standing hardware partners — a brand better known for Radeon graphics cards than motherboards, but applying the same reliable approach to platform design. It stands out among budget A520 boards by providing four USB 3.2 Gen 1 (5Gbps) ports on the rear panel — double what most competing A520 boards offer — along with colour-coded POST indicator LEDs (red for CPU, yellow for DRAM, white for GPU, green for Boot) for straightforward troubleshooting. DDR4, one M.2 NVMe slot, four SATA ports, HDMI, VGA and Gigabit Ethernet cover the essential requirements for a working Ryzen 5000/4000G/3000 build.

Note: The A520 chipset does not support CPU or memory overclocking. DDR4 runs at JEDEC standard speeds (no XMP). For overclocking capability, a B550 or X570 motherboard is required.
Best For
✓ Budget AM4 builds needing more rear USB 3.0 ports
✓ First-time builders who value colour-coded debug LEDs
✓ Office and home PCs with Ryzen G-series APU
✓ Sapphire/AMD ecosystem builds in a compact Micro-ATX case

Key Features


4× USB 3.2 Gen 1 Rear
Four rear USB 3.2 Gen 1 (5Gbps) Type-A ports — significantly more than the one or two USB 3.0 ports found on most competing A520 boards. A practical advantage when connecting external drives, hubs and fast peripherals without using a USB hub.

Colour-Coded Debug LEDs
Four distinct colour LEDs (CPU = red, DRAM = yellow, GPU = white, Boot = green) indicate which component is causing a POST failure — a clearer and more intuitive implementation than single-colour EZ Debug found on competing boards.

AM4 · Ryzen 5000/3000 Support
Compatible with AMD Ryzen 5000 Series (Zen 3), Ryzen 4000G Series (Zen 2 with integrated graphics) and Ryzen 3000 Series — covering the main AM4 CPU generations. The 4+2+1 phase VRM provides stable power delivery for up to 65W TDP processors.

PS/2 + Legacy Compatibility
A PS/2 port on the rear panel supports legacy keyboards and mice — particularly useful in IT and office environments with older peripherals. HDMI and D-Sub (VGA) outputs cover modern and legacy monitors alike for APU builds.

Technical Specifications

Part Number 52119-04-40G
EAN 4895106296886
Form Factor Micro-ATX (230 × 197mm)
Chipset / Socket AMD A520 · Socket AM4
CPU Support AMD Ryzen 5000 Series · AMD Ryzen 4000G Series · AMD Ryzen 3000 Series
Memory 2× DDR4 DIMM · Dual Channel · Up to 64GB · Up to 4733 MHz (OC) — no XMP support
PCIe Slots 1× PCIe 3.0 x16 (CPU, GPU) · 1× PCIe 3.0 x1 (Chipset)
M.2 Slot 1× M.2 (PCIe 3.0, supports 2280/2242 NVMe)
SATA 4× SATA 6Gb/s

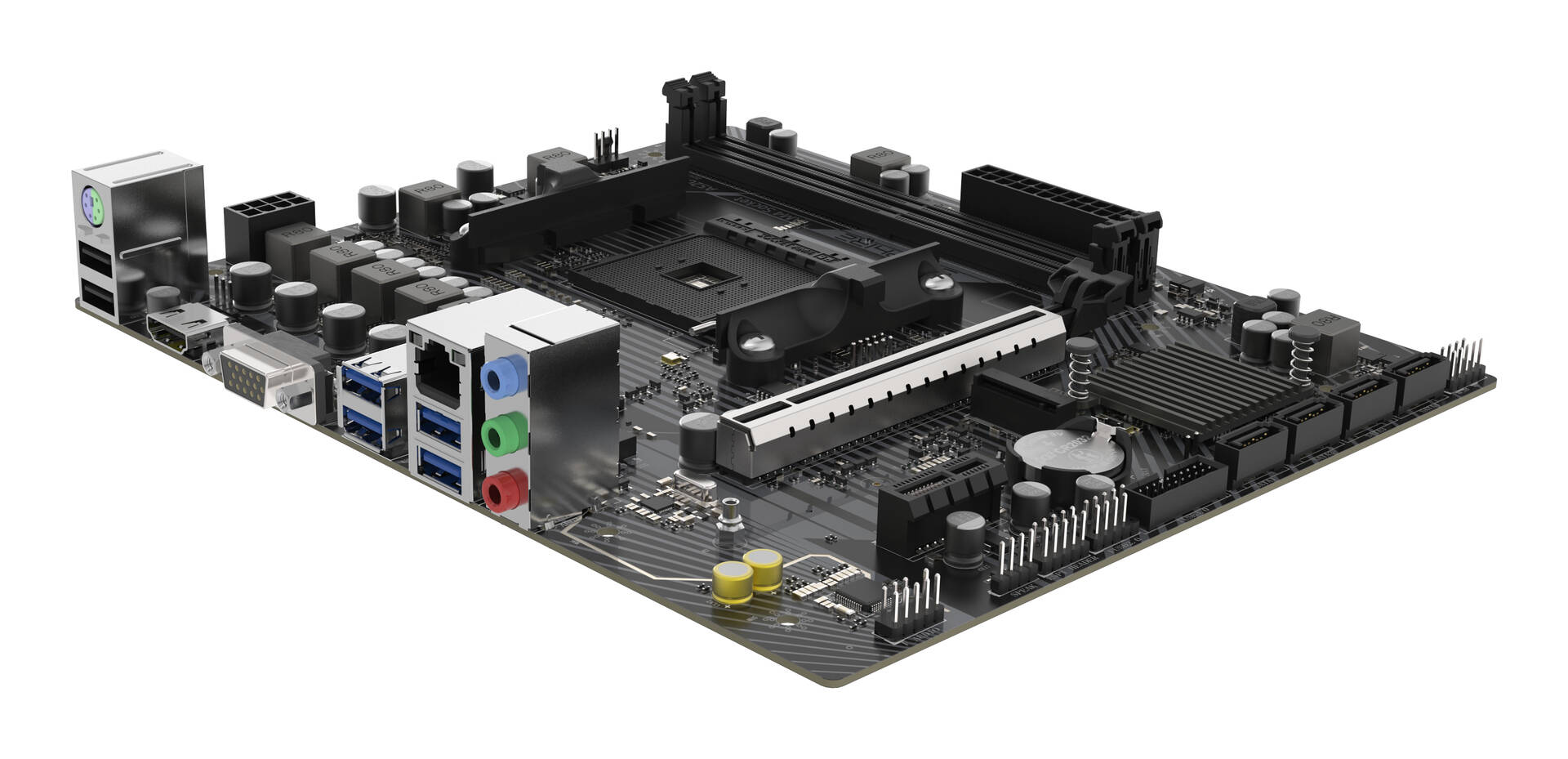

USB Rear Panel 4× USB 3.2 Gen 1 Type-A · 2× USB 2.0 · 1× PS/2
Ethernet 1× Gigabit LAN (Realtek RTL8111M)
Wireless None — no Wi-Fi, no Bluetooth
Video Output 1× HDMI · 1× D-Sub VGA (requires CPU with integrated graphics)
Audio Realtek ALC897 · 5.1 Channel HD Audio
Debug Features Colour POST LEDs: CPU (Red) · DRAM (Yellow) · GPU (White) · Boot (Green)
VRM 4+2+1 phase · 50A per phase
Overclocking None — A520 chipset is locked (no CPU or memory overclocking)
Warranty 3-year manufacturer warranty

Frequently Asked Questions

Why does Sapphire make motherboards?
Sapphire Technology is one of AMD's oldest and most trusted board partners — primarily known for Radeon graphics cards since 2001. The A520M-E is part of a small range of AM4 motherboards designed to accompany Ryzen CPUs and APUs, particularly for compact and budget builds where Sapphire's AMD expertise translates into a reliable product.
How do the colour debug LEDs work?
Four POST indicator LEDs are located on the motherboard. During boot, the LEDs light in sequence (CPU → DRAM → GPU → Boot). If a component prevents POST from completing, the LED for that component stays lit: red for CPU, yellow for DRAM, white for GPU, green for Boot. The colour-coded system is faster to read than single-colour alternatives.
Does the Ryzen 5 5600 work on this board?
Yes, after a BIOS update. Sapphire has released BIOS updates enabling Ryzen 5000 Series support for the A520M-E. A Ryzen 3000 or 4000G processor may be required for the initial boot to update the BIOS before installing a Ryzen 5000 CPU.
How does this compare to the other A520 boards in this range?
The Sapphire A520M-E provides the most rear USB 3.2 Gen 1 ports (4×) of the A520 boards available, and colour-coded debug LEDs for clearer troubleshooting. It does not have DisplayPort (HDMI + VGA only), unlike the ASRock A520M-HDV. The MSI A520M-A PRO adds EZ Debug LED (single-colour). The Gigabyte A520M K V2 adds an M.2 Thermal Guard heatsink. Choose Sapphire for USB connectivity; ASRock for DisplayPort; MSI for brand-preference debug LEDs; Gigabyte for M.2 heatsink.
Singular Expert Insight
The Sapphire A520M-E wins on USB connectivity at the budget A520 tier — four rear USB 3.0 ports is meaningfully more useful than the one or two found on most competitors, particularly for users with multiple external drives, hubs or fast peripherals. The colour-coded debug LEDs are also a genuine advantage for troubleshooting vs single-colour implementations. If DisplayPort output matters, choose the ASRock A520M-HDV instead. If budget is the absolute priority and USB count is secondary, any of the competing A520 boards achieve the same core result.

Buyer's Guide

Buy it if
You want the most USB 3.0 ports of any budget A520 board — 4× USB 3.2 Gen 1, colour debug LEDs, M.2 NVMe, HDMI+VGA and Ryzen 5000/4000G/3000 support from AMD's longest-standing GPU partner.
Skip it if
You need DisplayPort output (choose ASRock A520M-HDV), overclocking (choose B550), Wi-Fi, or an M.2 heatsink (choose Gigabyte A520M K V2).
Also consider
ASRock A520M-HDV for DisplayPort + triple video output. MSI A520M-A PRO for EZ Debug LED. Gigabyte A520M K V2 for M.2 Thermal Guard. ASRock B550M Pro4 (B550) for overclocking capability at modest extra cost.
