SAPPHIRE NITRO+ X870EA PhantomLink Polar Edition ATX Motherboard, AMD AM5 X870E, DDR5, Wi-Fi 7, 2× USB4, 5GbE, White
Brand:
sapphire
SAPPHIRE NITRO+ X870EA PhantomLink Polar Edition ATX Motherboard, AMD AM5 X870E, DDR5, Wi-Fi 7, 2× USB4, 5GbE, White
€525.16 inc. VAT
52122-11-40G
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

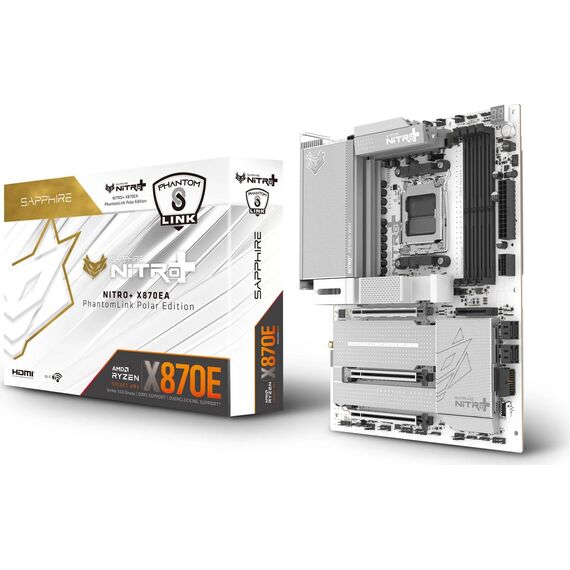

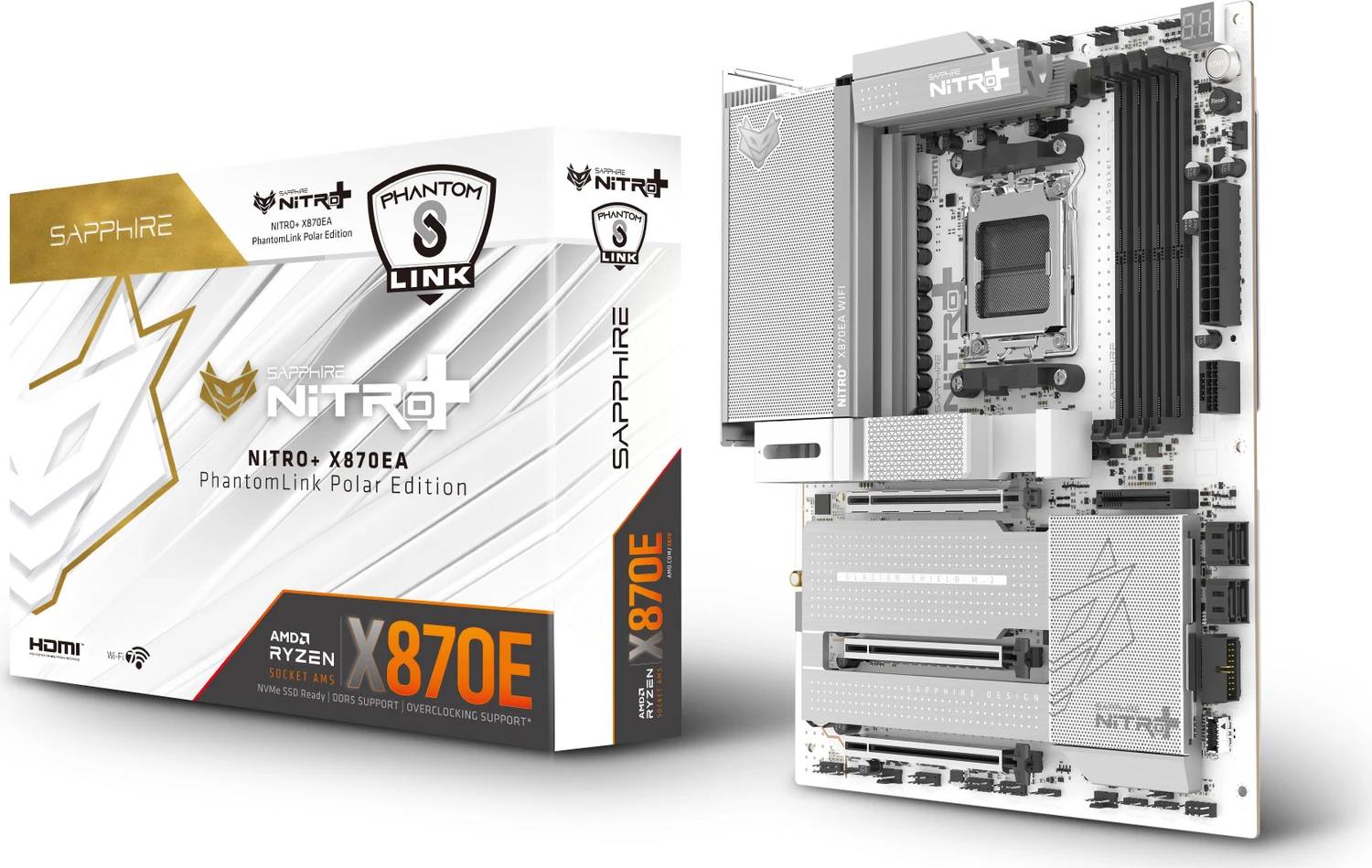

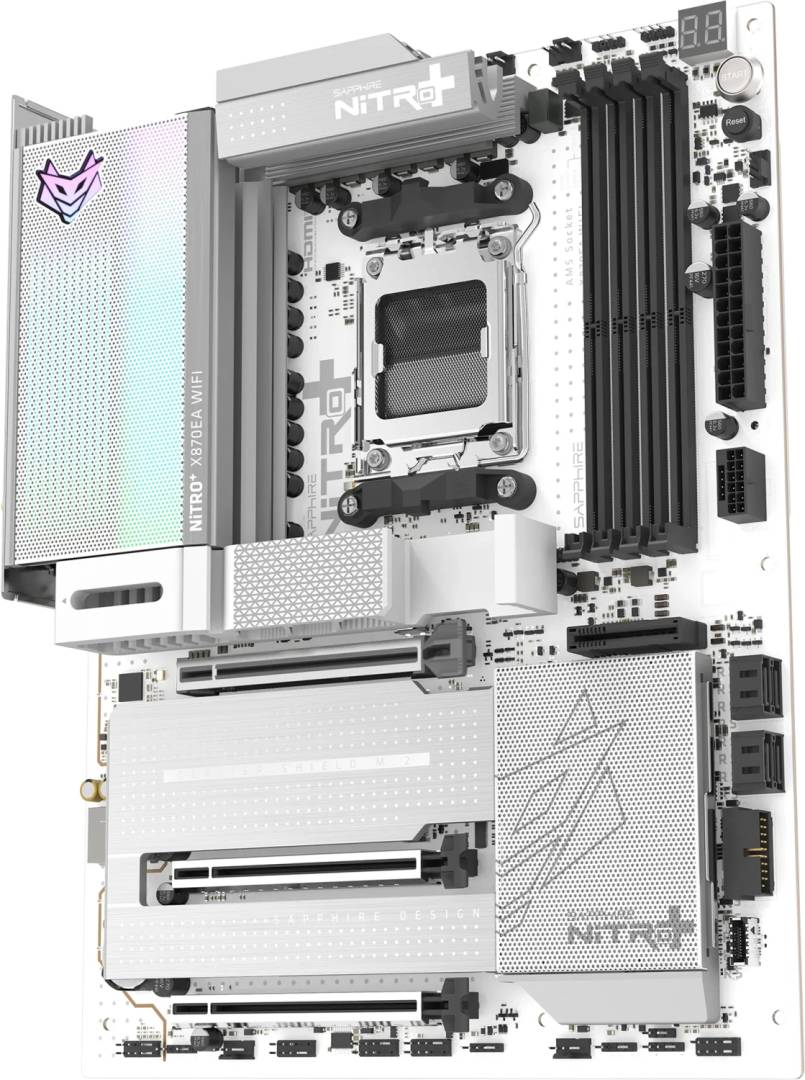

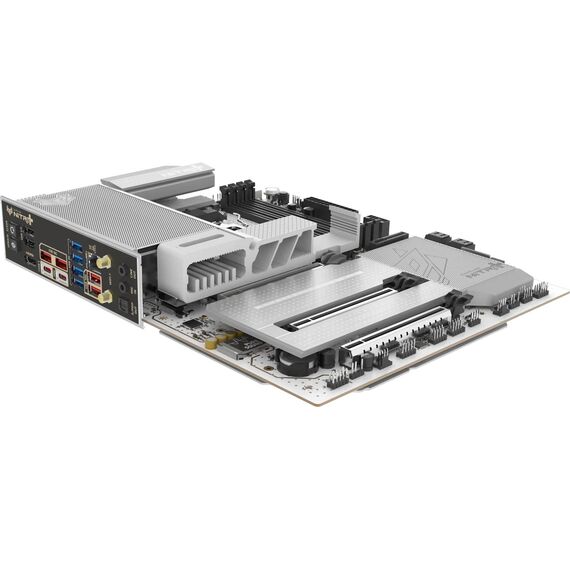

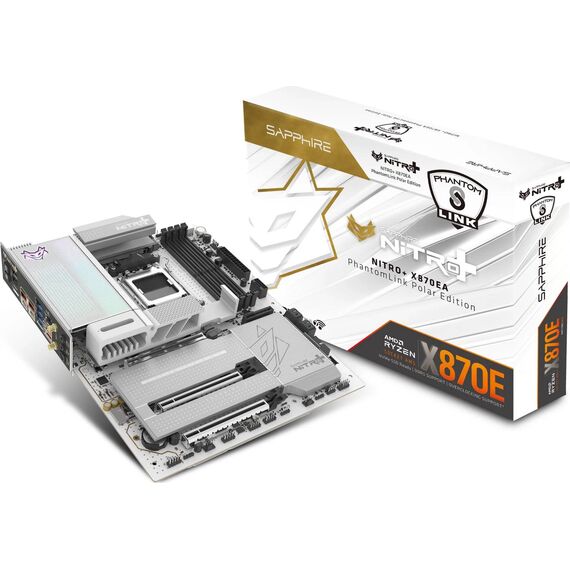

SAPPHIRE NITRO+ X870EA PhantomLink Polar Edition — AM5 X870E ATX motherboard
AMD X870E · AM5PCIe 5.0 GPU + 2× Gen5 M.2Wi-Fi 7 · 5GbE · 2× USB4PhantomLink GC-HPWR
The SAPPHIRE NITRO+ X870EA PhantomLink Polar Edition (52122-11-40G) is an ATX motherboard with the AMD X870E chipset and AM5 socket for Ryzen 9000, 8000 and 7000 desktop processors, aimed at white-themed gaming and creator builds.
It combines a 16+2+1-phase (90 A) power design, PCIe 5.0 for the graphics card and two M.2 SSDs, two USB4 40Gbps ports, Wi-Fi 7 and 5 Gb Ethernet. Its signature feature is PhantomLink: a GC-HPWR graphics power slot that lets a compatible SAPPHIRE graphics card take its power through the motherboard, with no power cable on the card.
Before you order: PhantomLink cable-free GPU power only works with GC-HPWR graphics cards such as the SAPPHIRE NITRO+ RX 9070 XT PhantomLink — any other graphics card still needs its own PCIe power cable as usual. Using M.2_1 drops the main x16 slot to PCIe 5.0 x8, and using M.2_3 disables the second x16 (Gen4 x4) slot.
What's in the Box
- 1 × SAPPHIRE NITRO+ X870EA PhantomLink Polar Edition motherboard (52122-11-40G)
- SAPPHIRE does not list the accessory bundle on its product page — ask us if you need to confirm specific items (antenna, cables, screws) before ordering
What It Means in Practice
- Drop-in platform for any current AM5 Ryzen CPU, with a long upgrade path on the AM5 socket.
- Up to four M.2 SSDs (two PCIe 5.0, two PCIe 4.0) plus four SATA ports, without extra adapters.
- Fast networking out of the box: 5 Gb Ethernet (Realtek RTL8126) and Wi-Fi 7 (320 MHz) with Bluetooth 5.4.
- Two rear USB4 40Gbps Type-C ports with DisplayPort Alt mode and 15 W charging, plus a 20Gbps front-panel Type-C header with 30 W PD.
- White Polar finish for coordinated white builds; Debug LEDs and an LED diagnostic display help troubleshoot boot problems.
What Will Not Work
- Intel processors, or AMD AM4 Ryzen CPUs (Ryzen 5000 and older)
- DDR4 memory — the board takes DDR5 only
- Cable-free GPU power with a normal graphics card — that needs a GC-HPWR (PhantomLink) card
- Micro-ATX or Mini-ITX cases — this is a full ATX (305 × 244 mm) board
Key Features
PhantomLink (GC-HPWR)
A 12V-2x6 connector on the board feeds compatible SAPPHIRE graphics cards through the slot — no visible GPU power cable.
PCIe 5.0 where it matters
PCIe 5.0 x16 for the GPU and two PCIe 5.0 M.2 slots from the CPU.
USB4 + 5GbE + Wi-Fi 7
2× USB4 40Gbps rear, 5 Gb LAN, Wi-Fi 7 and Bluetooth 5.4.
16+2+1 phases, 90 A
Robust power delivery for Ryzen 9 processors.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The NITRO+ X870EA PhantomLink Polar is for white AM5 builds that want top-tier I/O — USB4, 5GbE, Wi-Fi 7 — and SAPPHIRE’s cable-free GPU power. Pair it with DDR5 from our memory (RAM) range and plan your M.2 slots around the lane sharing.
✓ Buy it if you are building a white AM5 Ryzen system and want X870E features, or a SAPPHIRE PhantomLink graphics card
✕ Skip it if you are on AM4/DDR4 or need a Micro-ATX/Mini-ITX board
→ Also consider DDR5 desktop memory and a PCIe 5.0 M.2 SSD to use the board fully
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - sapphire - 52122-11-40G
More Details
Product Code
04:579665
EAN Code
4895106297425
Manufacturer
sapphire
