Name: Shuttle XPC cube SB860R8 Barebone PC, B860, LGA1851, DDR5, Dual 2.5GbE, 500W Gold PSU, Black
Brand: Shuttle
SKU: SB860R8
Price: 722.95 EUR
Availability: InStock

CODE (SKU):

SB860R8

€607.52

€722.95 inc. VAT

Ships from EU stock: 3 item(s)

+ −

Add to wish list Ask a question

Product Code

CR98550

EAN Code

0887993008653

Manufacturer

Shuttle

Quick Specs

Processor platform

LGA1851 Core Ultra 200, up to 125W

Memory support

4 DDR5 DIMMs, up to 192GB

Storage / expansion

4 SATA bays, 2 NVMe slots, PCIe 5.0

Power / network

500W Gold PSU, dual 2.5GbE

Delivery

Order Today...

Ships...

Delivery...

ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.

Payment options

✓ Viva Wallet

✓ Revolut

✓ Bank Deposit

Secure checkout with flexible payment methods

Trusted Tech Choice

Buying Benefits Verified

Competitive EU pricing

Delivered to Cyprus from EU stock

Local warranty support

Shuttle SB860R8: a compact cube for configurable workstation and server builds

B860 + LGA1851Up to 192GB DDR54 HDD bays500W 80 PLUS Gold

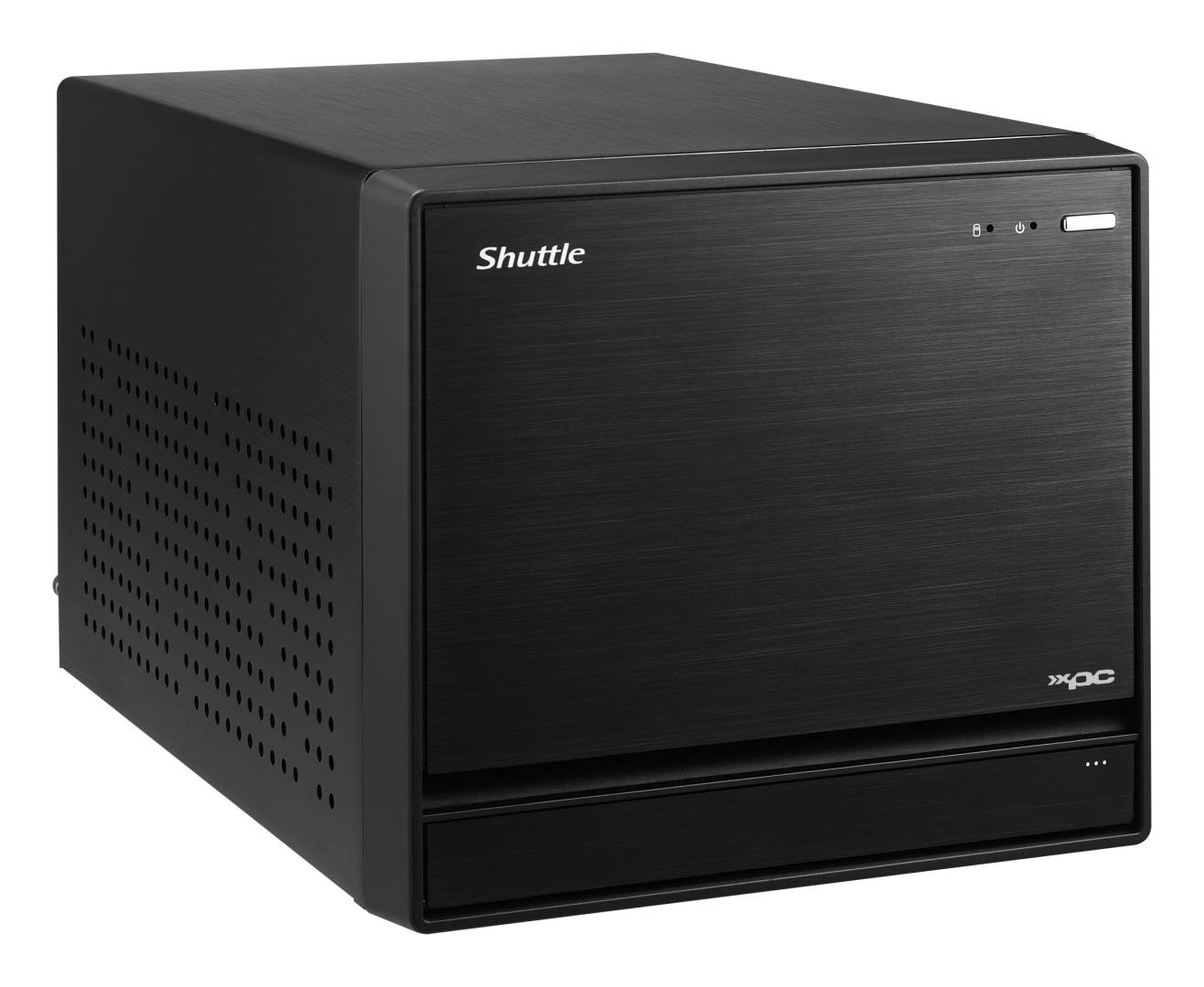

The Shuttle XPC cube SB860R8 brings workstation and mini-server expansion into a black 13.6-litre aluminium chassis. Its B860 platform supports compatible Core Ultra 200 desktop processors, four DDR5 DIMMs, four SATA hard drives and two NVMe SSDs. Dual 2.5GbE, a PCIe 5.0 x16 slot and the included 500W Gold PSU provide a flexible base; CPU, memory, drives, graphics card and operating system are separate purchases.

Compatibility — check before buying:

Select a supported LGA1851 CPU with base TDP up to 125W. Onboard display outputs require CPU-integrated graphics; F-suffix processors need a discrete GPU. Use DDR5 desktop UDIMMs and PCIe/NVMe M.2 SSDs. Check GPU size, connector requirements and total system power before ordering.

Best For

✓ Compact workstations

✓ Mini-server and multi-drive builds

✓ Multi-display office systems

Key Features

Storage for a compact server build

Four 3.5-inch bays and four SATA 6Gb/s ports support SATA RAID 0/1/5/10 or JBOD through Intel RST. Add NVMe storage through one PCIe 5.0 x4 and one PCIe 4.0 x4 M.2 slot. The optional PHD3 converts a 3.5-inch bay to two 2.5-inch drive positions.

Graphics and expansion within clear limits

The PCIe 5.0 x16 slot accepts a compatible graphics card up to 280 × 120 × 40mm and 300W maximum consumption, subject to the complete 500W system budget. A dual-slot card blocks the neighbouring PCIe 4.0 x4 expansion slot. CPU-integrated graphics supports up to four displays; one 8K screen permits only two additional 4K screens.

Networking and peripheral connections

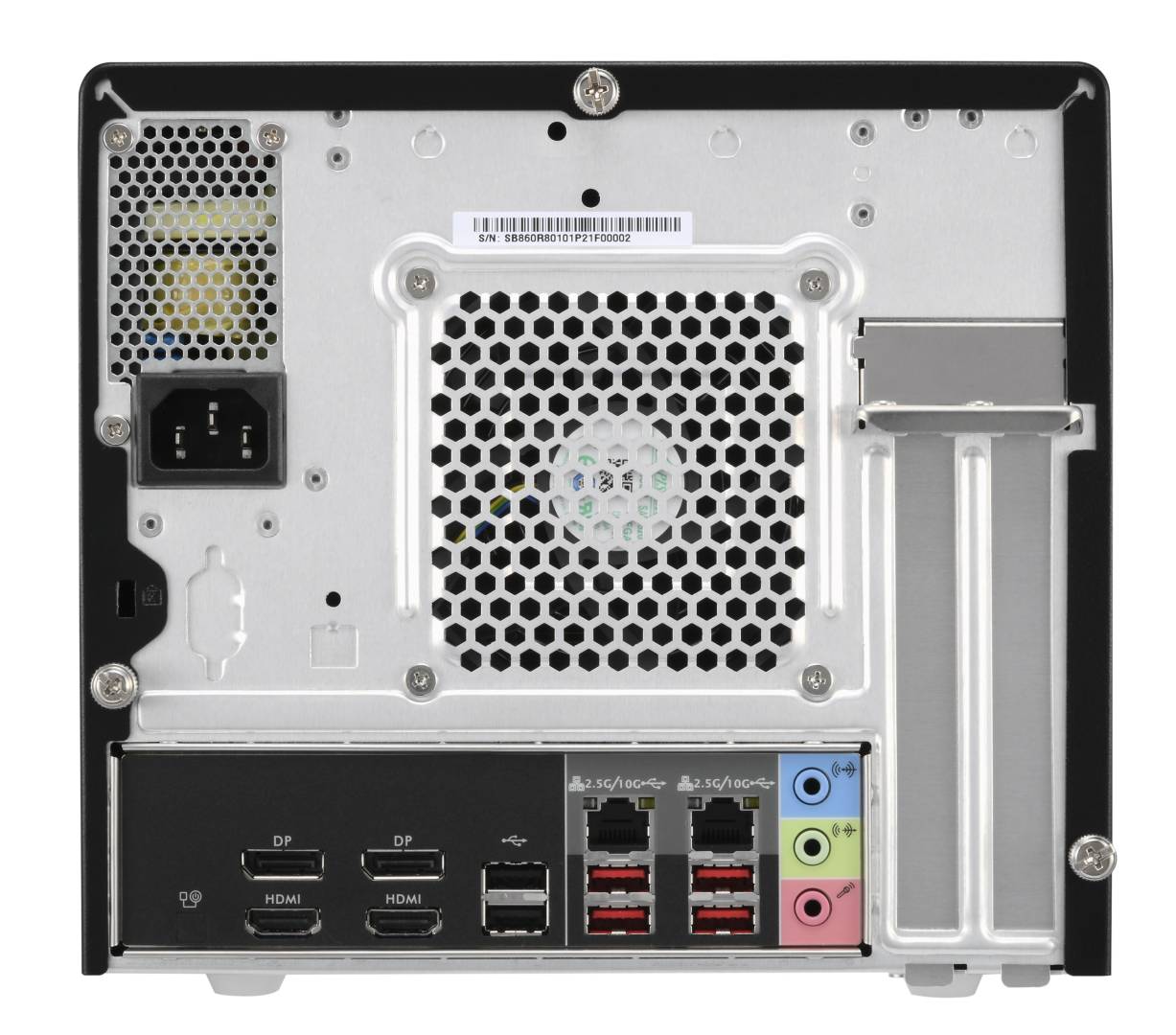

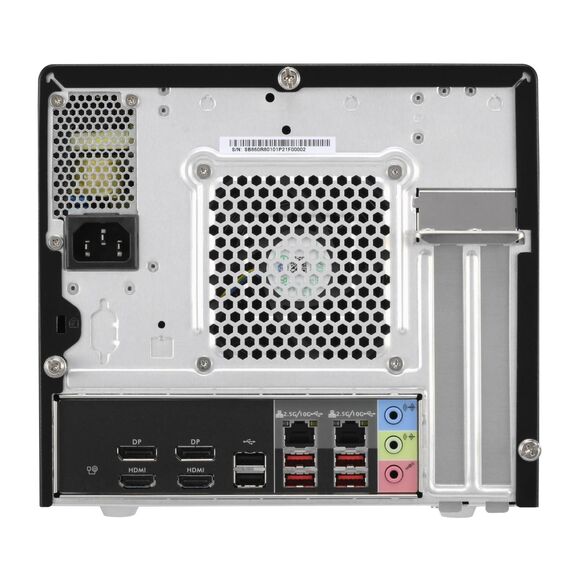

Two Intel i226-LM 2.5GbE ports support Wake-on-LAN and PXE. Ten external USB ports include four rear 10Gb/s connections and front Type-A/Type-C 5Gb/s ports. HDMI 2.1, HDMI 2.0b and two DisplayPort outputs provide CPU-dependent display connectivity.

Cooling designed around the cube

The I.C.E. cooler uses ten heat pipes, supported by front, rear and CPU/VRM fans. Shuttle approves 24/7 operation within 0–40°C with suitable components and unobstructed cooling. The front I/O door, aluminium panels and included installation accessories suit a carefully planned compact build.

Technical Specifications

Identity and supplied configuration
Brand / model	Shuttle XPC cube SB860R8
Manufacturer SKU	SB860R8
EAN / GTIN-13	0887993008653
Product type / supplied platform	Cube barebone with motherboard, I.C.E. cooling and 500W PSU; CPU, RAM, drives, graphics card and OS purchased separately
Processor, motherboard and memory
CPU socket / family	LGA1851; Intel Core Ultra 200 series 9/7/5, Arrow Lake-S
CPU power limit	Up to 125W base TDP; check exact CPU against Shuttle support list
CPU-dependent cores / NPU	Supported family offers up to 24 cores (8P + 16E) and NPU up to 13 TOPS; no CPU included
CPU overclocking	Intel K-series unlock function is not supported
Chipset	Intel B860 with passive chipset heatsink
Motherboard	Proprietary Shuttle 195 × 244mm; solid capacitors in sensitive areas
Memory sockets	4 × 288-pin DDR5 UDIMM; dual-channel support
Memory specification	DDR5-5600 (PC5-44800), 1.1V; unbuffered non-ECC, non-registered; speed depends on CPU and populated modules
Maximum / included memory	192GB maximum, up to 4 × 48GB; no RAM supplied
Graphics, displays and PCIe expansion
Integrated graphics	Intel CPU-integrated graphics with Xe cores, dependent on selected processor
F-suffix CPU requirement	F-suffix CPU has no integrated graphics; add a compatible discrete PCIe graphics card, onboard video ports inactive
Onboard video connectors	1 × HDMI 2.1; 1 × HDMI 2.0b; 2 × DisplayPort 1.4a
Maximum output resolutions	HDMI 2.1: 7680 × 4320 at 60Hz; HDMI 2.0b / DP: 4096 × 2160 at 60Hz
Simultaneous displays	Up to 4 with compatible integrated graphics; with one 8K screen, only 2 additional 4K screens supported
Graphics-card slot	1 × PCIe 5.0 x16
Additional expansion slot	1 × PCIe 4.0 x4, open-ended; obstructed by a dual-slot graphics card
Graphics-card size limit	280 × 120 × 40mm maximum (L × H × thickness), up to dual-slot
Graphics power budget	300W maximum GPU consumption from 75W slot + 75W 6-pin + 150W 8-pin; total configured system must fit 500W PSU
Storage and wireless expansion
Drive bays	4 × internal 3.5-inch; one position prepared for a 2.5-inch drive
SATA connections	4 × SATA III 6Gb/s; four SATA data cables included
SATA storage modes	Intel RST, RAID 0/1/5/10 and JBOD; drives purchased separately
M.2 SSD slot 1	M-key, PCIe 5.0 x4 NVMe; M.2 2280 only, next to graphics slot
M.2 SSD slot 2	M-key, PCIe 4.0 x4 NVMe; M.2 2242 / 2260 / 2280, next to SATA connectors
M.2 SSD interface restriction	Both SSD slots require PCIe/NVMe; M.2 SATA SSDs unsupported
Optional 2.5-inch adapter	PHD3 installs up to 2 × 2.5-inch drives in one 3.5-inch bay; adapter separate
Wireless slot	M.2 2230 E-key; PCIe 4.0 x1 and USB 2.0; optional WLN-M1 kit
Storage / wireless supplied	No HDD, SSD, Wi-Fi or Bluetooth module supplied
Networking, USB, audio and control
Wired LAN	2 × RJ45; Intel i226-LM; 100/1000/2500Mb/s each; status LEDs
Network wake / boot	Wake-on-LAN from S3/S4/S5 and PXE boot supported
Front USB ports	1 × USB 3.2 Gen 1 Type-A + 1 × Type-C, 5Gb/s each; 2 × USB 2.0 Type-A
Rear USB ports	4 × USB 3.2 Gen 2 Type-A, 10Gb/s each; 2 × USB 2.0 Type-A
External / internal USB count	10 external ports; additional internal USB 2.0 5-pin header, 2.54mm pitch
Audio codec	Realtek ALC888, 5.1-channel HD Audio
Analogue audio	Front microphone/headphones; rear line-in, line-out and microphone, shared with 5.1-channel output
Digital audio	Multichannel audio via HDMI and DisplayPort
Remote-control connector	Rear 4-pin, 2.54mm pitch: power button, Clear CMOS and +5V DC; CXP01 cable separate
Optional serial connection	Internal RS232 header, 2 × 5-pin / 2mm pitch; H-RS232 back-panel adapter separate
Fan headers / controls	3 × occupied 4-pin fan headers; front power button, blue power LED, yellow drive LED
Firmware, operating system and power
BIOS	AMI UEFI, SPI 32MB Flash-EEPROM
Firmware functions	Hardware monitoring, watchdog, power-fail resume, USB boot and firmware TPM 2.0
Hardware TPM option	Factory-fit hardware TPM available by arrangement; firmware TPM standard
Operating system support	Windows 11 64-bit and Linux 64-bit; no OS or licence supplied
Included power supply	Internal 500W Flex-ATX; 80 PLUS Gold; active PFC
PSU AC input	100–240V AC, 50–60Hz
Motherboard / CPU power plugs	2 × 10-pin and 2 × 4-pin
Graphics / drive power plugs	1 × 6-pin + 1 × 6+2-pin PCIe; 4 × SATA; 2 × Molex
Chassis, cooling and environment

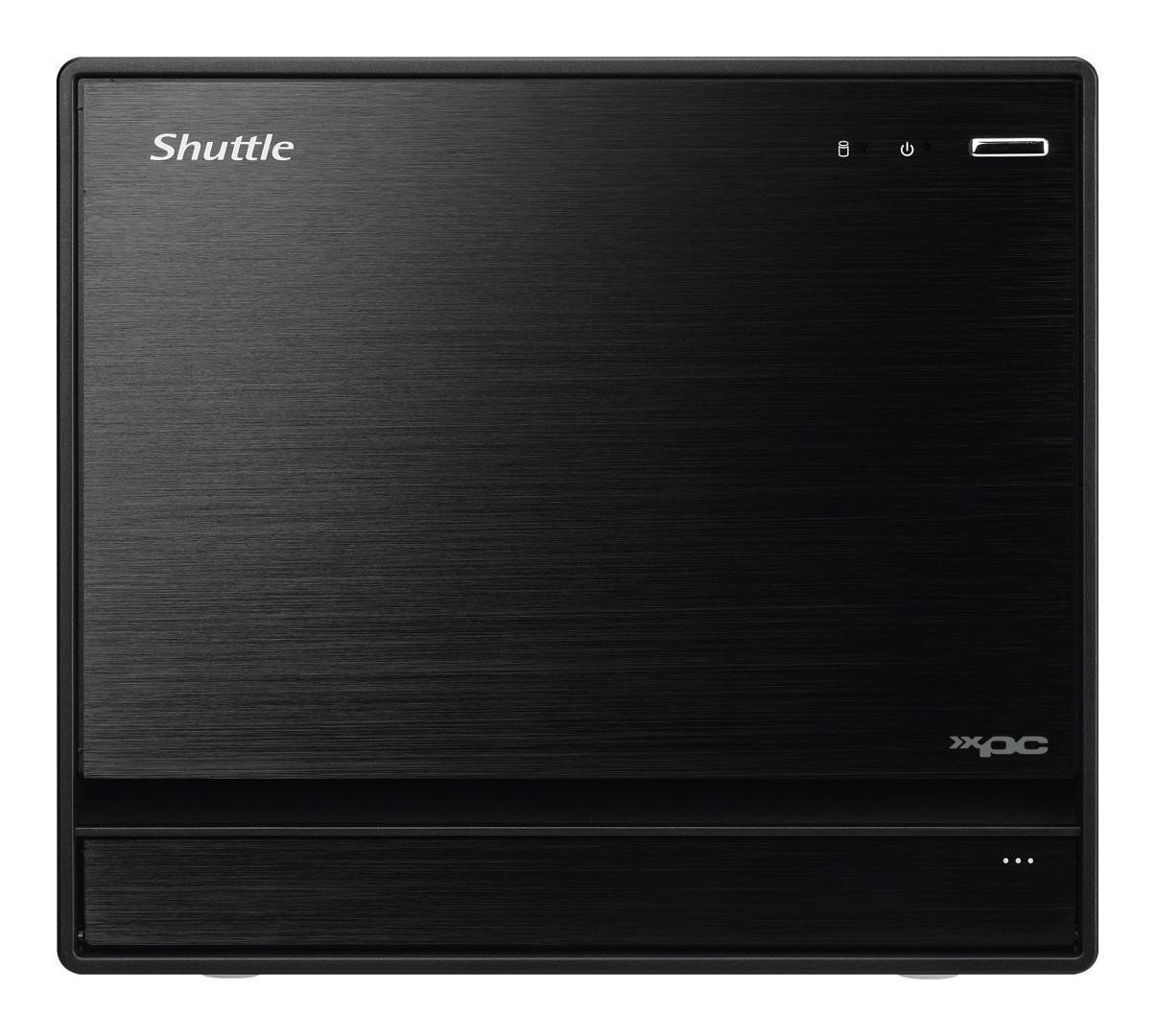

Chassis design	Black aluminium; brushed aluminium front with covered USB/audio panel
Dimensions / volume	332 × 215 × 190mm (L × W × H, without feet); 13.6 litres; 197mm high with feet
Weight	3.9kg net; 5.0kg gross
CPU cooling	Shuttle I.C.E. heatpipe system with 10 heat pipes
Cooling fans	Front intake 80 × 80 × 15mm; rear exhaust 92 × 92 × 25mm; CPU/VRM fan 92 × 92 × 25mm
Security / optional openings	Rear Kensington lock slot; serial-port perforation and 3 antenna perforations
Operating environment	0–40°C; 10–90% RH, non-condensing; manufacturer-approved 24/7 with suitable components and unobstructed cooling
Manufacturer-listed compliance	FCC, CE, BSMI, C-Tick; ETL, CB, BSMI; RoHS, Energy Star 5.0, ErP; Class B ITE
Optional accessories	WLN-M1 wireless kit, H-RS232 serial adapter, PHD3 drive adapter, CXP01 remote power cable; all separate
Included accessories	Earthed AC mains lead and 4 SATA data cables; Drive and M.2 mounting screws, 2 cable ties; CPU socket cap, heatsink compound and Phillips screwdriver; Multilingual installation guide and Windows 64-bit driver disk

What's in the Box

SB860R8 barebone with motherboard, 500W PSU and I.C.E. cooler

Earthed AC mains lead and 4 SATA data cables

Drive and M.2 mounting screws, 2 cable ties

CPU socket cap, heatsink compound and Phillips screwdriver

Multilingual installation guide and Windows 64-bit driver disk

What Will Not Work

No processor, memory, storage, graphics card or operating-system licence is included.

DDR4 and SO-DIMM memory are unsuitable; M.2 SATA SSDs are unsupported.

A dual-slot graphics card prevents use of the adjacent PCIe x4 slot.

A CPU without integrated graphics cannot use the motherboard video ports.

Do not exceed the GPU size, connector or complete system power limits.

Frequently Asked Questions

What do I need to complete the PC?

A Shuttle-supported LGA1851 processor, DDR5 UDIMM memory, compatible storage and a supported OS. Add a discrete GPU if your CPU lacks integrated graphics or your workload requires it.

Can I use four hard drives and two NVMe SSDs?

The platform provides four SATA ports/bays and two NVMe slots. Check physical drive fit, cooling and total power for the actual configuration. SATA RAID support is separate from the NVMe slots.

Can I run four screens including one 8K display?

Up to four independent screens are supported with compatible integrated graphics. With one 8K display, Shuttle limits the remaining configuration to two additional 4K screens. Display capability also depends on the CPU and cables.

Singular Expert Insight

Plan this cube around drive count, GPU size and networking. Its four HDD bays and dual 2.5GbE are useful for compact storage or workstation roles, but the component list and 500W power budget must be checked together. Account for the PCIe slot blocked by a dual-slot GPU. Ask Singular to check your configuration

Buyer’s Guide

Buy it if

You want a configurable workstation or mini-server cube with four drive bays and dual 2.5GbE.

Skip it if

You need a complete PC, a larger-than-dual-slot GPU or a chassis for full-size ATX parts.

Also consider

A configured workstation for immediate use, or suitable LGA1851 CPU, DDR5 UDIMM memory and verified compatible drives/GPU.
