Schwaiger Inline Coax Cable Joiner with Screw Terminals, for Coax Cable Ø 4–7.5 mm, Metal/Plastic, Silver

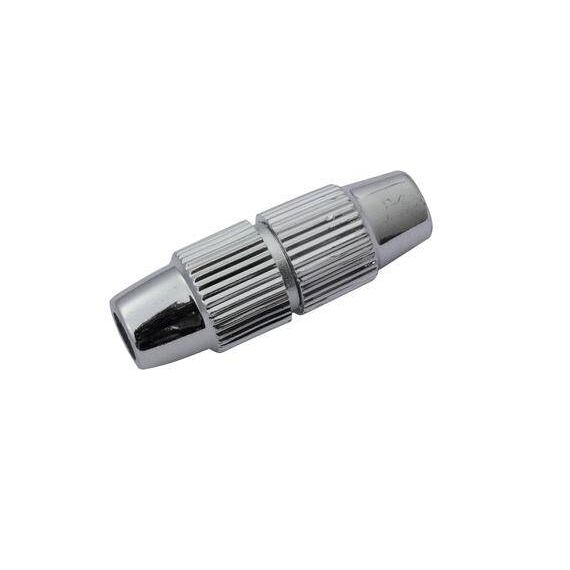

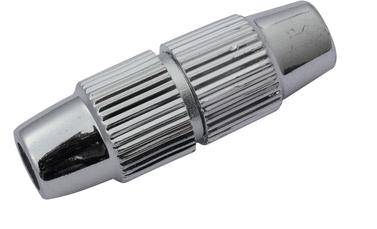

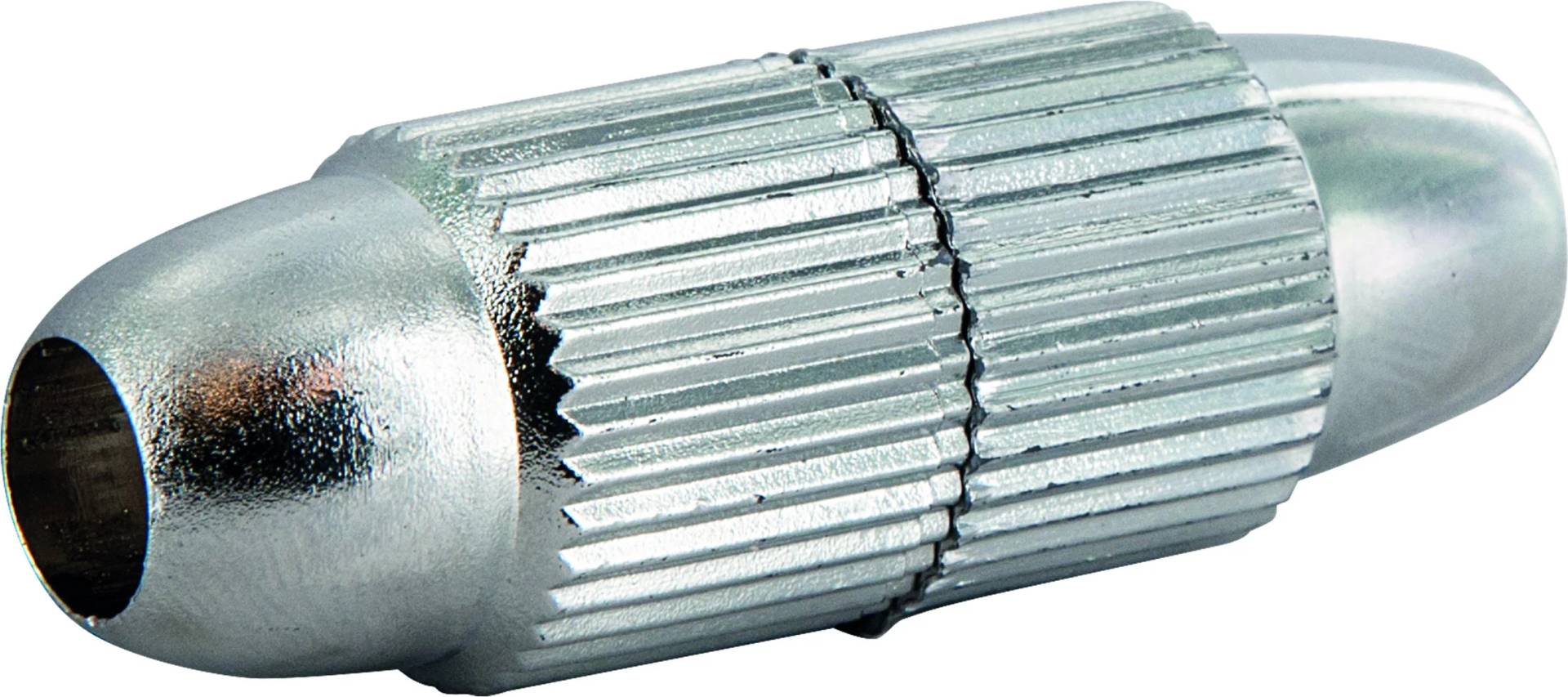

The Schwaiger KVB29 531 is an inline coax cable joiner with screw-on inner-conductor terminals, for connecting two coaxial cables with an outer diameter of 4 to 7.5 mm end to end — to repair a cut antenna cable or to extend an existing run without fitting new connectors.

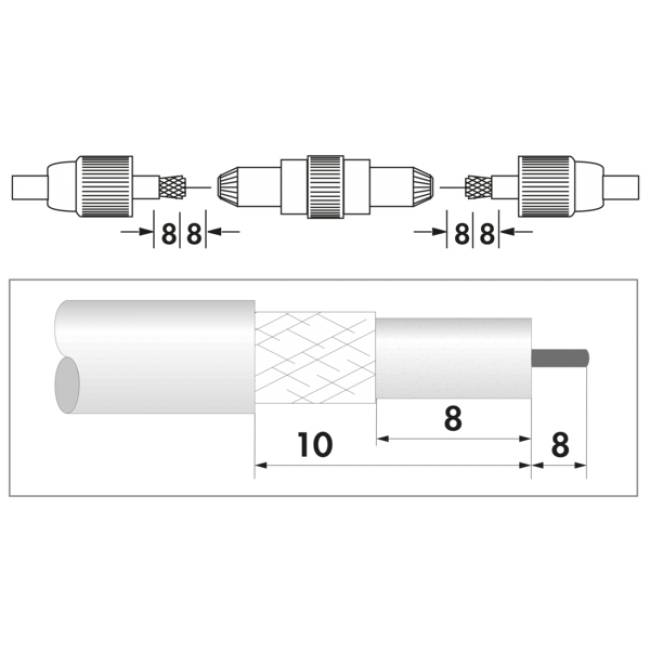

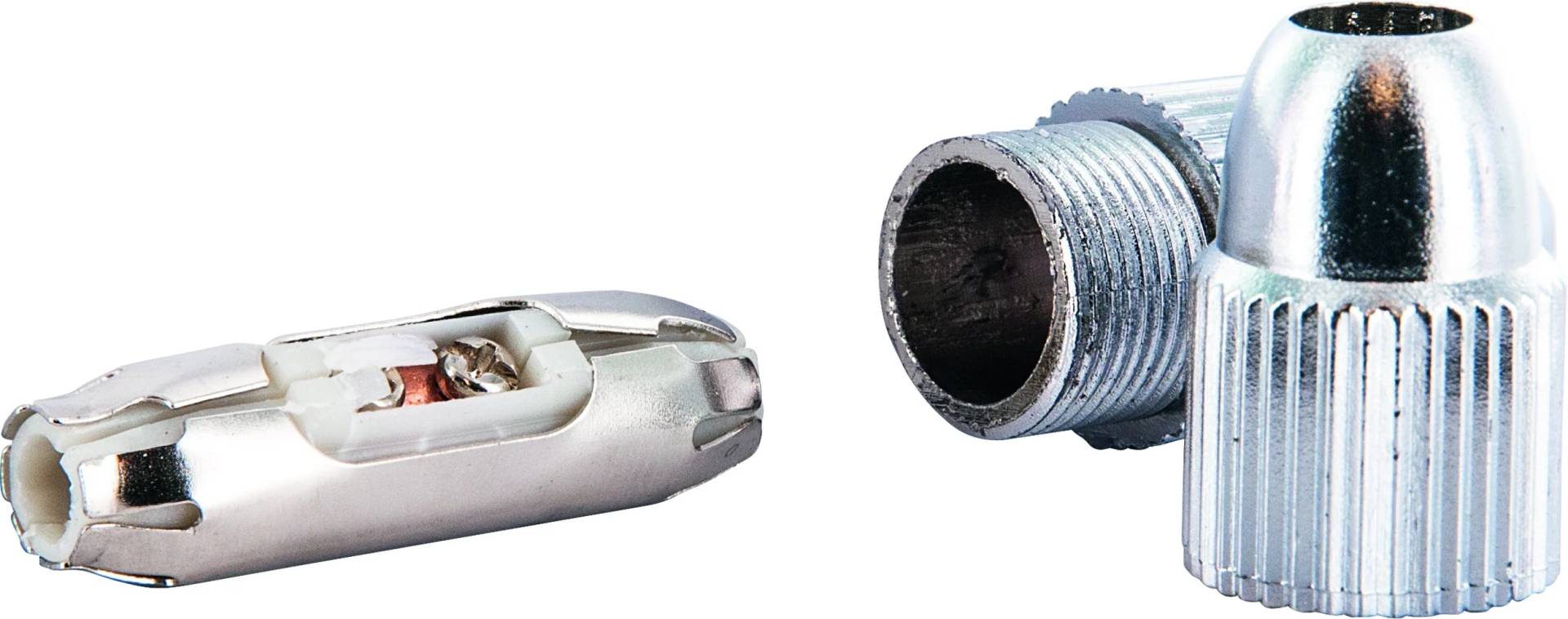

You strip both cable ends, clamp the inner conductors under the screw terminals and close the metal/plastic housing over the shields. It is a quick fix for terrestrial TV, radio and satellite coax inside a building, where replacing the whole cable would mean pulling it through walls again.

• 1 × Schwaiger coax cable joiner (blister pack)

• No soldering and no special crimp tool — a small screwdriver and a cable stripper are enough.
• Fits the common 75 Ω antenna cables used for TV and satellite in homes.
• Each joint adds a small signal loss; one joint in a run is normally not noticeable, several in series can be.
• Use indoors or in a dry, protected location.

• It is not a connector to plug into a TV or receiver — it only joins two cables to each other.
• It does not fit thin coax below 4 mm or thick trunk cables above 7.5 mm.
• It is not a splitter: it connects one cable to one cable, not to two outputs.
• It is not weatherproof — outdoors the joint must be sealed or placed in a junction box.
