Schwaiger KVBS70 531 F-Connector and Coupler Set, 3 Pieces, Screw-On F-Plugs for 7 mm Coax Cable, Silver
Brand:
Schwaiger
Schwaiger KVBS70 531 F-Connector and Coupler Set, 3 Pieces, Screw-On F-Plugs for 7 mm Coax Cable, Silver
€3.27 inc. VAT
KVBS70 531
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

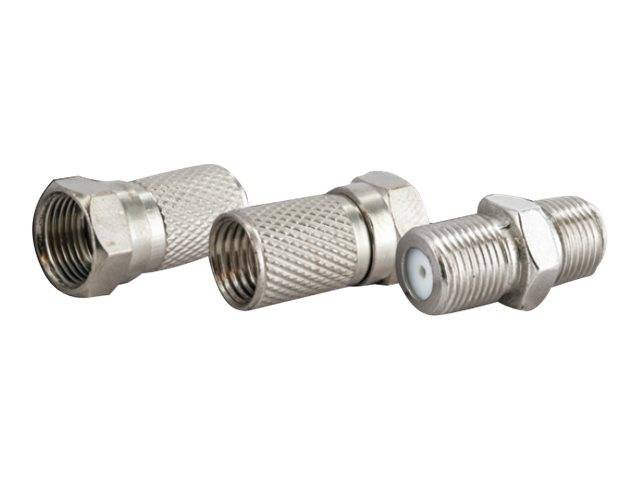

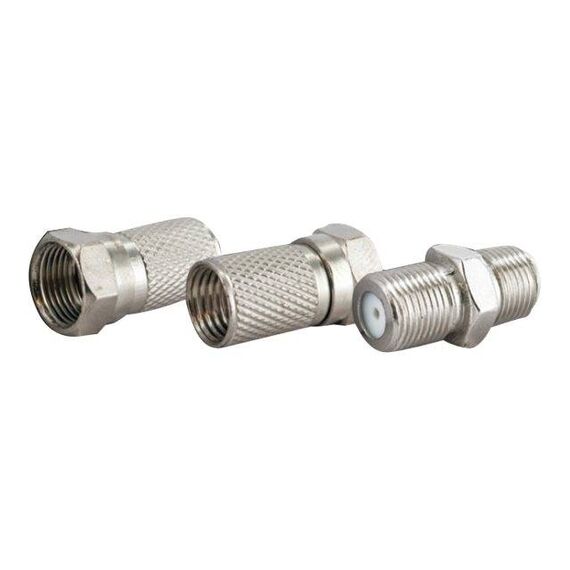

Schwaiger KVBS70 531 — F-Connector and Coupler Set for 7 mm Coax, 3 Pieces
2 × F-plug + 1 × couplerØ 7 mm coaxScrew-onSilver
The Schwaiger KVBS70 531 is a three-piece F-connector set from the STANDARD series — two screw-on F-plugs for coaxial cable with a 7 mm outer diameter plus one F-coupler (F-socket to F-socket) — for terminating or extending satellite and cable-TV coax that uses F-connectors.
The F-plugs screw directly onto the stripped cable jacket, so no crimp tool is needed. With the coupler, two cables that already end in F-plugs can be joined into one longer run.
Before you order: The plugs are sized for coax with a 7 mm outer diameter. Measure your cable first — thinner (around 5 mm) or thicker cable will not hold securely.
What's in the Box
- 3 pieces (per Schwaiger product description): 2 × screw-on F-plug, 1 × F-coupler (F-socket to F-socket)
- Blister pack — note that Schwaiger’s datasheet lists the scope of delivery as 1 coupler + 1 plug; package content is stated as 3
What It Means in Practice
- Repair or shorten a SAT cable: cut, strip, screw on a new F-plug — done in a few minutes with a knife or stripping tool.
- Extend a run: fit F-plugs on both cables and join them with the coupler.
- Screw-on F-plugs are the simplest DIY option; for outdoor runs exposed to weather, compression connectors seal better.
What Will Not Work
- Coax cable that is not 7 mm in outer diameter — the thread will not grip reliably.
- IEC (Belling-Lee) TV antenna connectors — this set is F-type only.
- Outdoor connections without weather protection — screw-on plugs are not sealed against moisture.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
F-connector failures are behind many lost satellite channels: a loose or corroded plug at the wall or LNB. A screw-on set like this is a quick indoor repair, as long as the cable really is 7 mm across. For a ready-made antenna lead with IEC ends, see our TV cables, or browse video splitters for multi-screen setups.
✓ Buy it if you need to terminate or join 7 mm SAT/cable-TV coax indoors without special tools.
✕ Skip it if your coax is a different diameter, the connection is outdoors, or your devices use IEC connectors.
→ Also consider compression F-connectors for outdoor runs, or a ready-made coax cable.
Not sure your cable is 7 mm? Send us the cable type or part number and we will check it before you order.
Features - Schwaiger - KVBS70 531
Colour
silver
More Details
Product Code
04:161174
EAN Code
4004005222333
Manufacturer
Schwaiger
