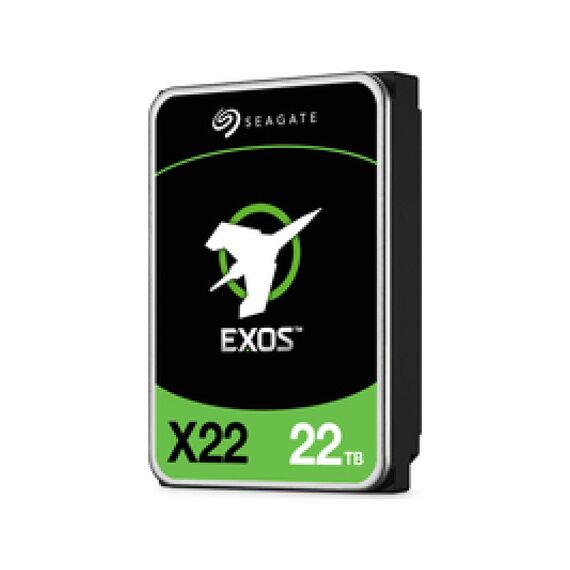

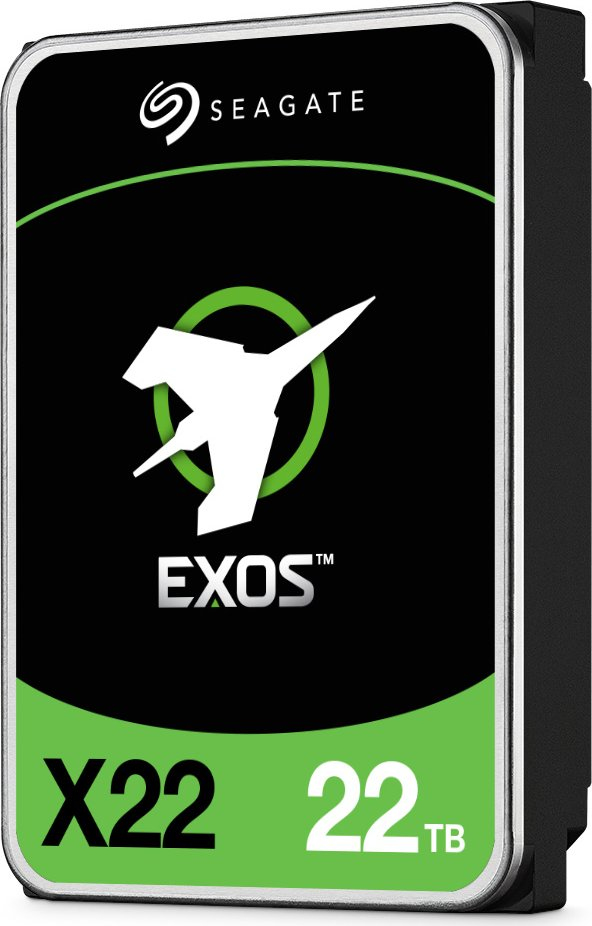

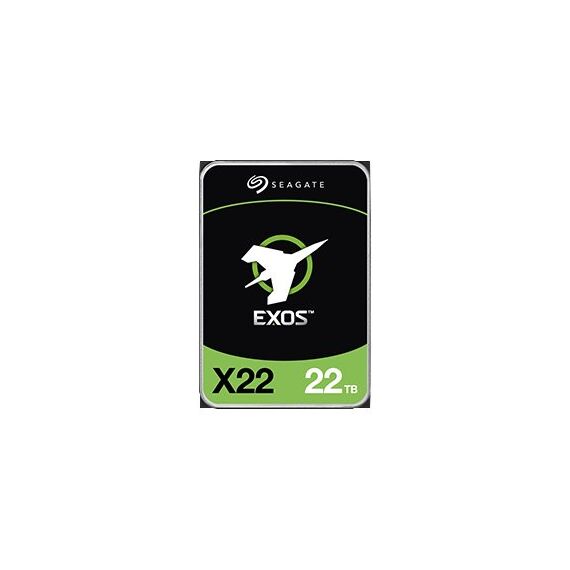

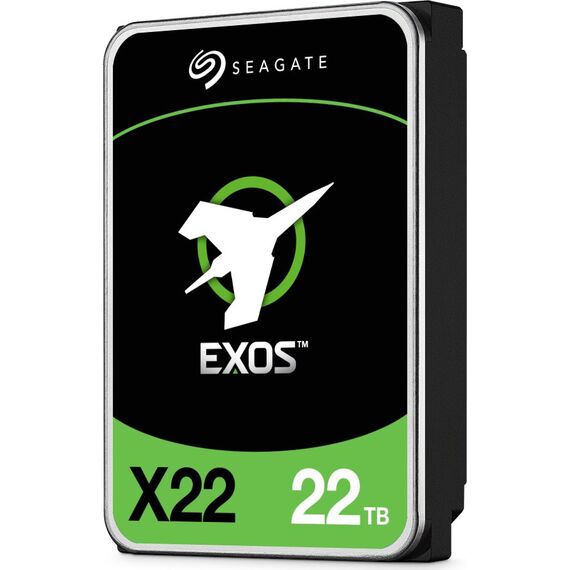

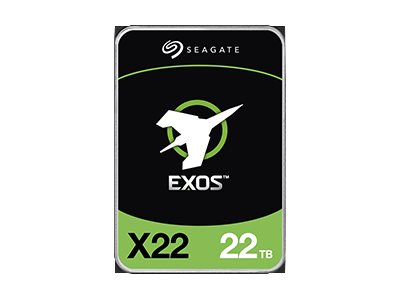

Seagate Exos X22 ST22000NM000E - Hard drive - 22 TB - internal - 3.5" - SAS 12Gb/s - 7200 rpm | ST22000NM000E
Brand: Seagate
ST22000NM000E
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Special Fetures
- Highly reliable performance with enhanced caching - making it the logical choice for cloud data center and massive scale-out data center applications
- Hyperscale SATA model tuned for large data transfers and low latency
- PowerBalance feature optimizes watts per TB
- Maximize total cost of ownership savings through lower power and weight with helium-sealed drive design
- Proven helium side-sealing weld technology for added handling, robustness, and leak protection
- Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
- Data protection and security - featuring Seagate Secure for safe, affordable, fast, and easy drive retirement
Product Specification
| Device Type | Hard drive - internal |
| Capacity | 22 TB |
| Form Factor | 3.5" |
| Interface | SAS 12Gb/s |
| Features | Protection Information (PI), Dual Port, Low Halogen, Super Parity, Hot-Plug Support, 24x7 availability, Power Choice Idle Power technology, Organic Solderability Preservative, Conventional magnetic recording (CMR), Helium Sealed-Drive Design, PowerBalance power/performance technology |
| Width | 101.85 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 680 g |
| Performance | |
| Drive Transfer Rate | 1.2 GBps (external) |
| Internal Data Rate | 285 MBps |
| Maximum 4KB Random Write | 550 IOPS |
| Maximum 4KB Random Read | 168 IOPS |
| Average Latency | 4.16 ms |
| Spindle Speed | 7200 rpm |
| Reliability | |
| MTBF | 25,000,00 hours |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^15 |
| Expansion & Connectivity | |
| Interfaces | 1 x SAS 12 Gb/s |
| Compatible Bay | 3.5" |
| Power | |
| Voltage Required | 5 - 12 V |
| Power Consumption | 5.5 Watt (average idle) ¦ 9.8 Watt (max read) ¦ 7 Watt (max write) |
| Miscellaneous | |
| Compliant Standards | RSA 3072 Firmware |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 60 °C |
| Shock Tolerance (operating) | 40 g |
| Shock Tolerance (non-operating) | 200 g |
| Vibration Tolerance (operating) | 20-1500 Hz |
| Vibration Tolerance (non-operating) | 2.27 g |
Features - Seagate - ST22000NM000E
Form Factor
- 3.5"
- Internal
Capacity
22TB
Interface
- SAS
More Details
Product Code
03:208593
EAN Code
8719706428088
Manufacturer
Seagate
