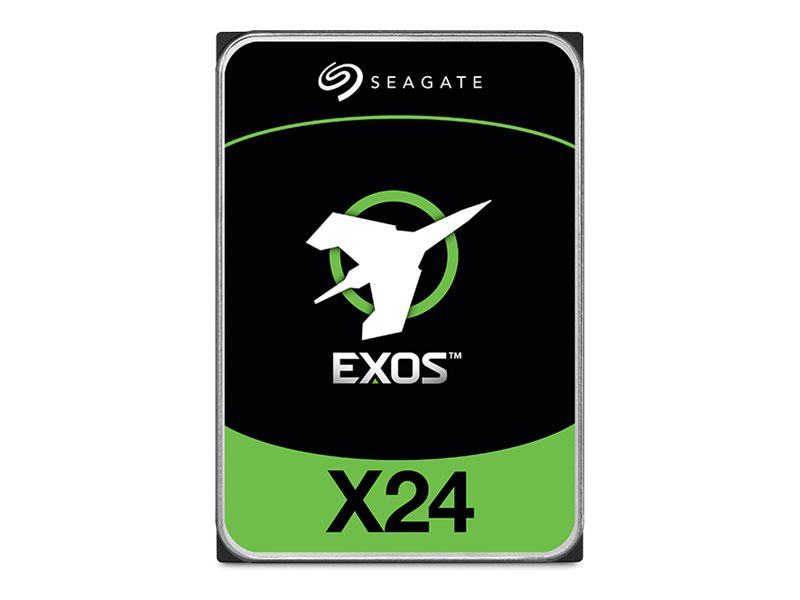

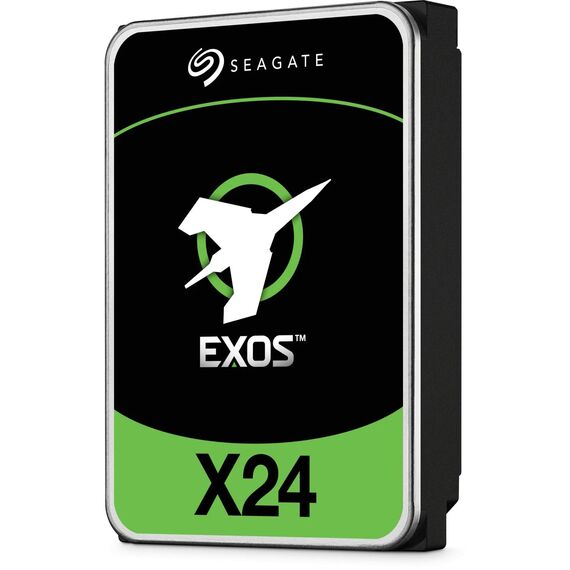

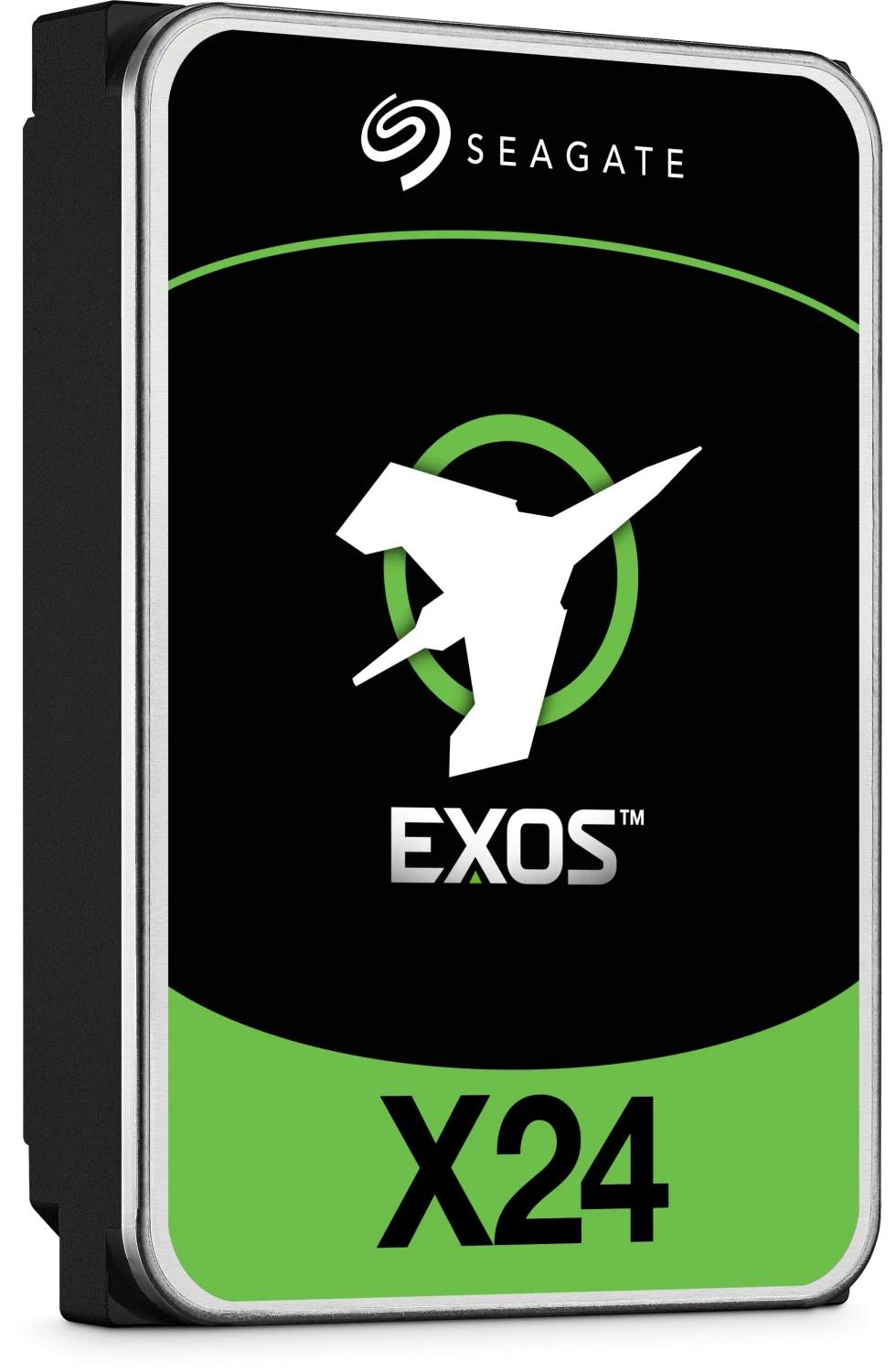

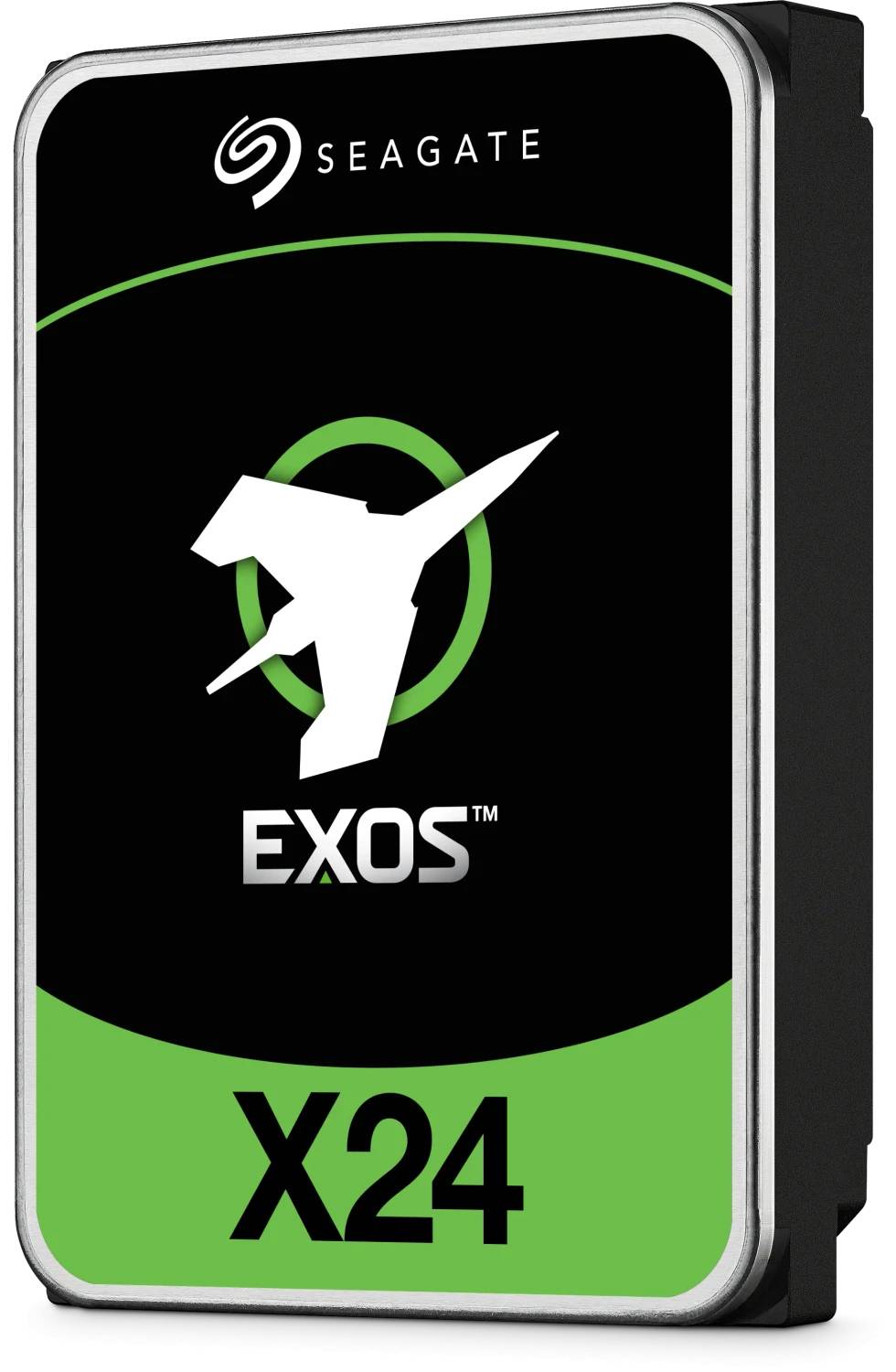

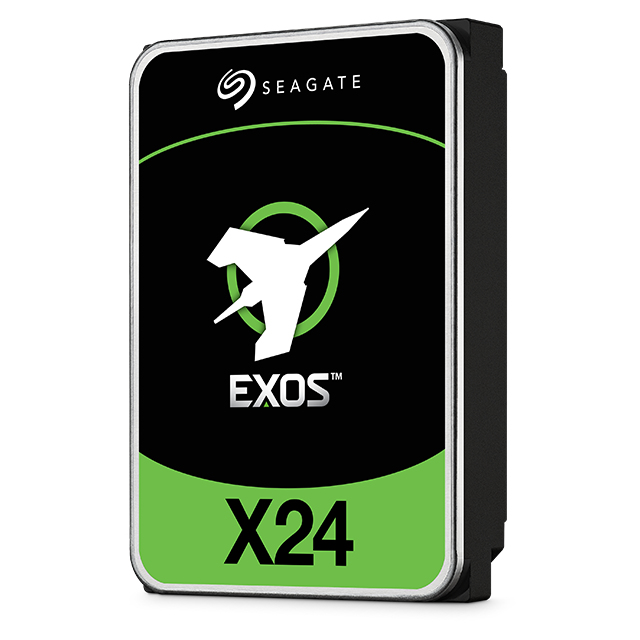

Seagate Exos X24 ST24000NM005H 24TB SED Enterprise HDD 3.5" SAS 12Gb/s 7200rpm 512MB CMR
Brand: Seagate
Seagate Exos X24 ST24000NM005H 24TB SED Enterprise HDD 3.5" SAS 12Gb/s 7200rpm 512MB CMR
€1722.35 inc. VAT
ST24000NM005H
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Seagate Exos X24 ST24000NM005H — 24TB SED SAS HDD
24 TBSAS 12 Gb/sSEDCMR · 512 MB
The Seagate Exos X24 ST24000NM005H is a 24 TB enterprise-class 3.5-inch hard drive with a native SAS 12 Gb/s interface and hardware Self-Encrypting Drive (SED) security, built for hyperscale and enterprise data centres. Its helium-sealed CMR platform spins at 7200 RPM with a 512 MB cache and delivers up to 285 MB/s sustained. Identified by part number ST24000NM005H (EAN 8719706431149), it is rated for 550 TB/year workloads and a 2.5-million-hour MTBF. Typically in stock with fast delivery across Cyprus.
Compatibility & Setup
This is a bare internal 3.5-inch drive with a SAS 12 Gb/s interface — it requires a SAS controller, HBA or SAS backplane and will NOT connect to SATA-only motherboard ports (SAS ports accept SATA drives, but not the reverse). As a Self-Encrypting Drive, hardware AES encryption is always active; to manage keys and Instant Secure Erase you need a host or controller with TCG/SED support. No mounting screws or cables are included, and it ships unformatted for initialisation in your host.
Best For
✓Hyperscale and enterprise data centres
✓SAS servers, RAID controllers and JBOD
✓Security-sensitive storage requiring SED
✓24/7 high-capacity bulk storage
✓Dual-port redundant-path SAS arrays
✓Dense multi-bay high-availability chassis
Key Features
Native SAS 12 Gb/s dual-port
A SAS-3 12 Gb/s interface with dual-port capability provides redundant data paths and high throughput for enterprise servers and high-availability JBOD arrays.
Self-Encrypting Drive (SED)
Hardware AES self-encryption with Instant Secure Erase delivers compliant data protection and lets you cryptographically wipe the drive in seconds at end of life.
Helium CMR reliability
A helium-sealed CMR (conventional magnetic recording) platform sustains consistent write performance and RAID compatibility with no SMR shingled-write penalty.
Enterprise endurance
Rated for 550 TB/year workloads, a 2.5-million-hour MTBF and a 0.35% annualised failure rate, backed by a 5-year limited warranty.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The Exos X24 is Seagate’s flagship enterprise drive, and the SAS SED ST24000NM005H targets high-availability servers that need dual-port redundancy plus hardware encryption — a step beyond single-port SATA drives like the WD Gold or Exos X24 SATA. Choose it when your chassis is SAS-based and compliance requires SED; for SATA servers or NAS, a SATA Exos or WD Gold costs less. Building out an array? Pair it with matching drives from our enterprise/server HDD range. For latency-critical tiers, an enterprise SSD is the complement.
Buyer’s Guide
Buy it if
Your server or JBOD is SAS-based and needs 24 TB per bay
You require hardware SED encryption for compliance
You want dual-port redundancy and a 5-year warranty
Skip it if
Your system only has SATA ports — choose a SATA drive
You do not need self-encryption — a standard drive costs less
You need sub-millisecond latency — choose an enterprise SSD
Also consider
Seagate Exos X24 24TB SATA for SATA systems
WD Ultrastar DC HC590 24TB SED (SATA) alternative
WD Gold 24TB for non-encrypted SATA servers
Features - Seagate - ST24000NM005H
Form Factor
- 3.5"
Capacity
24TB
Colour
grey
Interface
- SAS
More Details
Product Code
CJ17242
EAN Code
8719706431149
Manufacturer
Seagate
