Shuttle XPC All-in-One P55U3 15.6" Full HD Touch Barebone, Core i3-1315U, No RAM, No SSD, No OS

Brand:
Shuttle

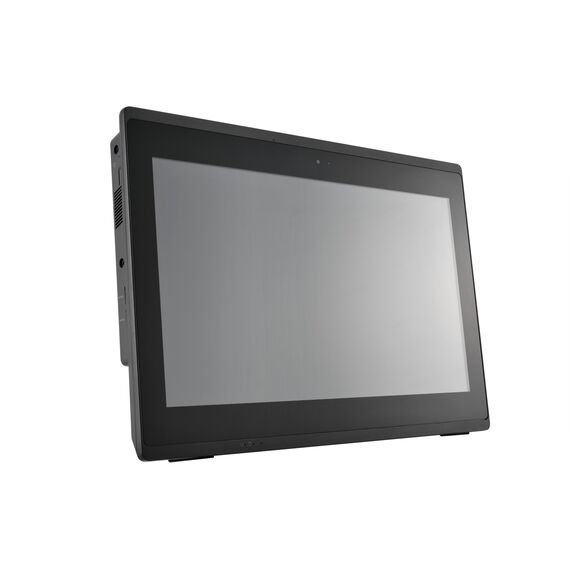

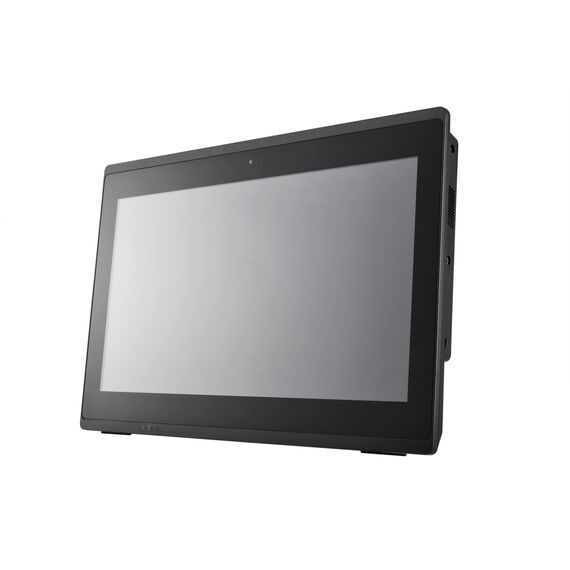

Shuttle P55U3 Core i3 All-in-One Barebone No RAM No SSD No OS
Shuttle XPC All-in-One P55U3 15.6" Full HD Touch Barebone, Core i3-1315U, No RAM, No SSD, No OS
€984.74 inc. VAT
Buy
P55U3
€827.51
€984.74 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
CPU Type
Intel Core i3
Product Code
04:533282
EAN Code
0887993007120
Manufacturer
Shuttle

Quick Specs

Processor
Intel Core i3-1315U
Display
15.6" Full HD IPS, 10-point touch
Memory Support
DDR5-5200, up to 96 GB
Configuration
Barebone No RAM No SSD No OS
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

Shuttle XPC All-in-One P55U3 - 15.6" Touch Barebone No RAM No SSD No OS

Intel Core i3-1315U Barebone Platform 2 x USB 3.2 Gen 2 Gigabit Ethernet via Intel I219V Wi-Fi 5 (802.11ac) via Realtek RTL8821CE

The Shuttle XPC All-in-One P55U3 is a 15.6" Full HD touch barebone with a soldered Intel Core i3-1315U processor, fanless cooling and an IP54-protected front panel. It is designed for installations that need an integrated touch display and support for continuous operation. Memory, storage and an operating system are not included, so these must be configured separately before use.

Compatibility Note: This is a barebone configuration: RAM, storage and an operating system are not included. Add compatible DDR5 SO-DIMM memory and M.2 storage, then install an operating system; supported options listed are Windows 11 64-bit, Windows 10 64-bit and Linux 64-bit. The processor is soldered to the mainboard. The second M.2 slot supports SATA only, unless used with the optional WWN04 4G/5G module.

What It Means in Practice

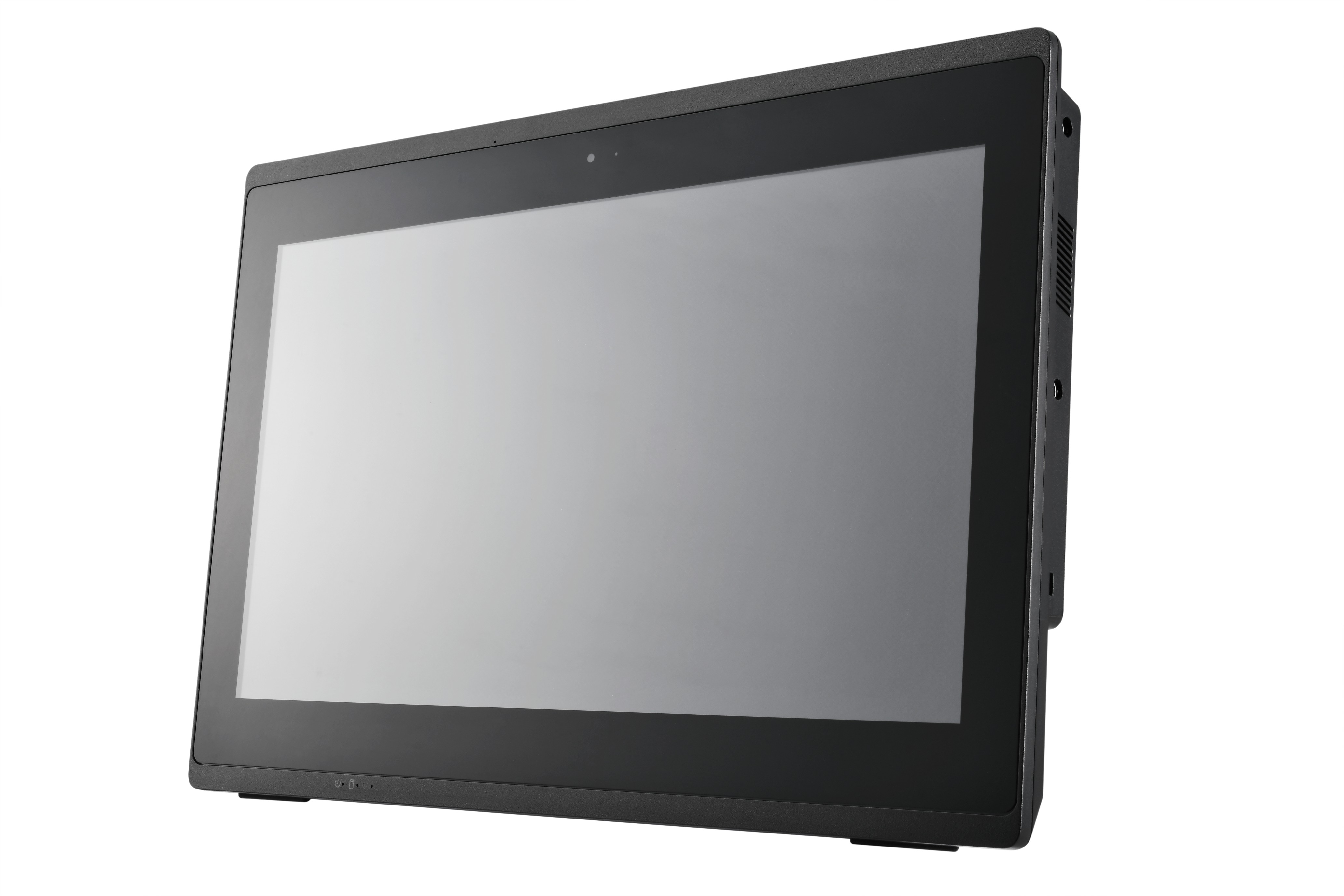

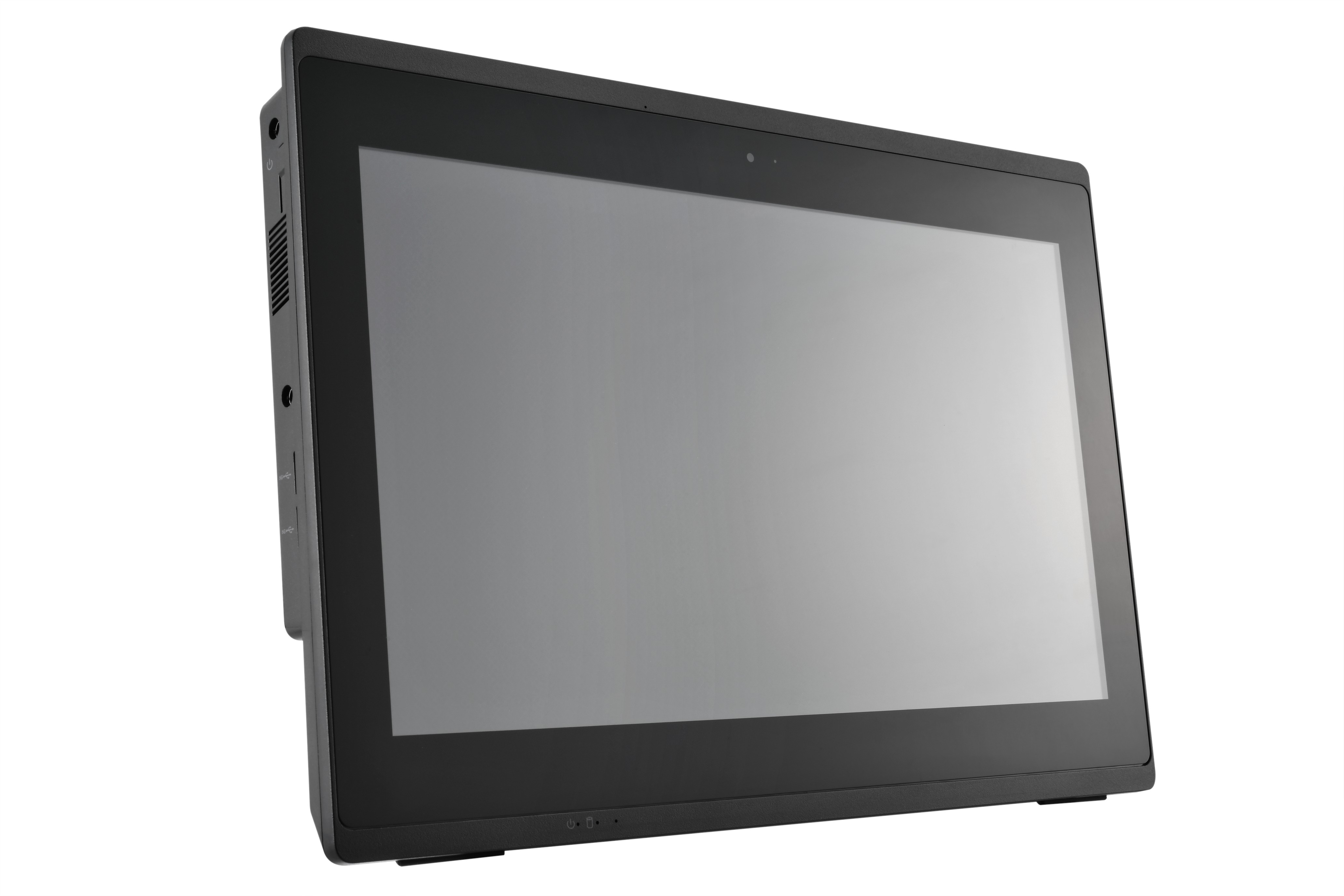

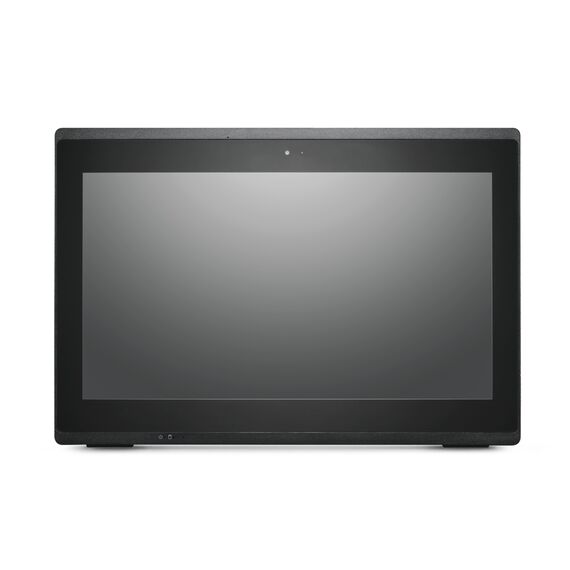

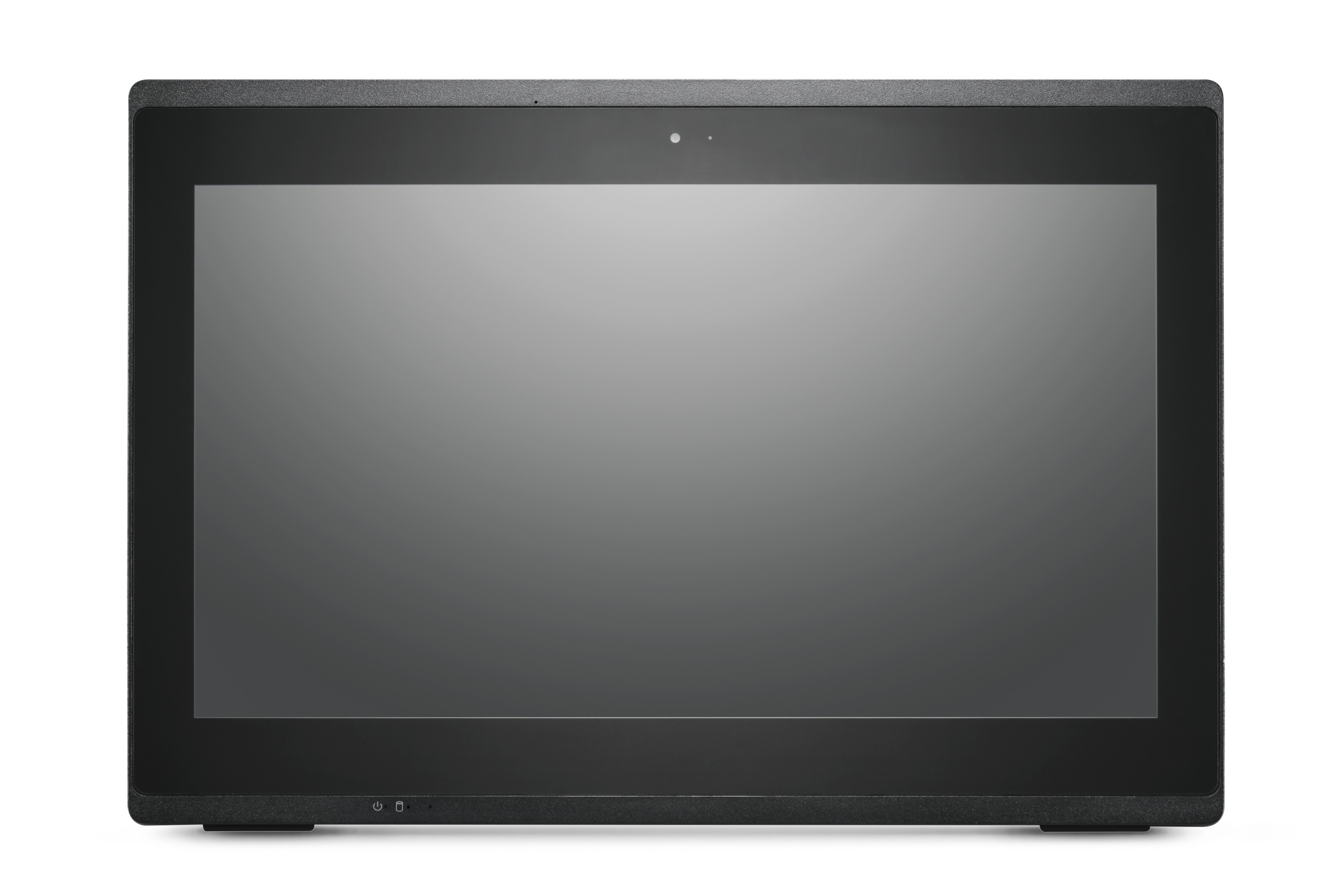

  • The 15.6-inch Full HD IPS touchscreen supports capacitive 10-point multi-touch, combining the display and touch input in the all-in-one unit.
  • Two DDR5 SO-DIMM slots support up to 96 GB of memory; the system ships without memory, so modules need to be selected separately.
  • The first M.2-2280 slot supports PCIe x4/NVMe or SATA storage. The second slot is SATA-only, or can be used with the optional WWN04 4G/5G module.

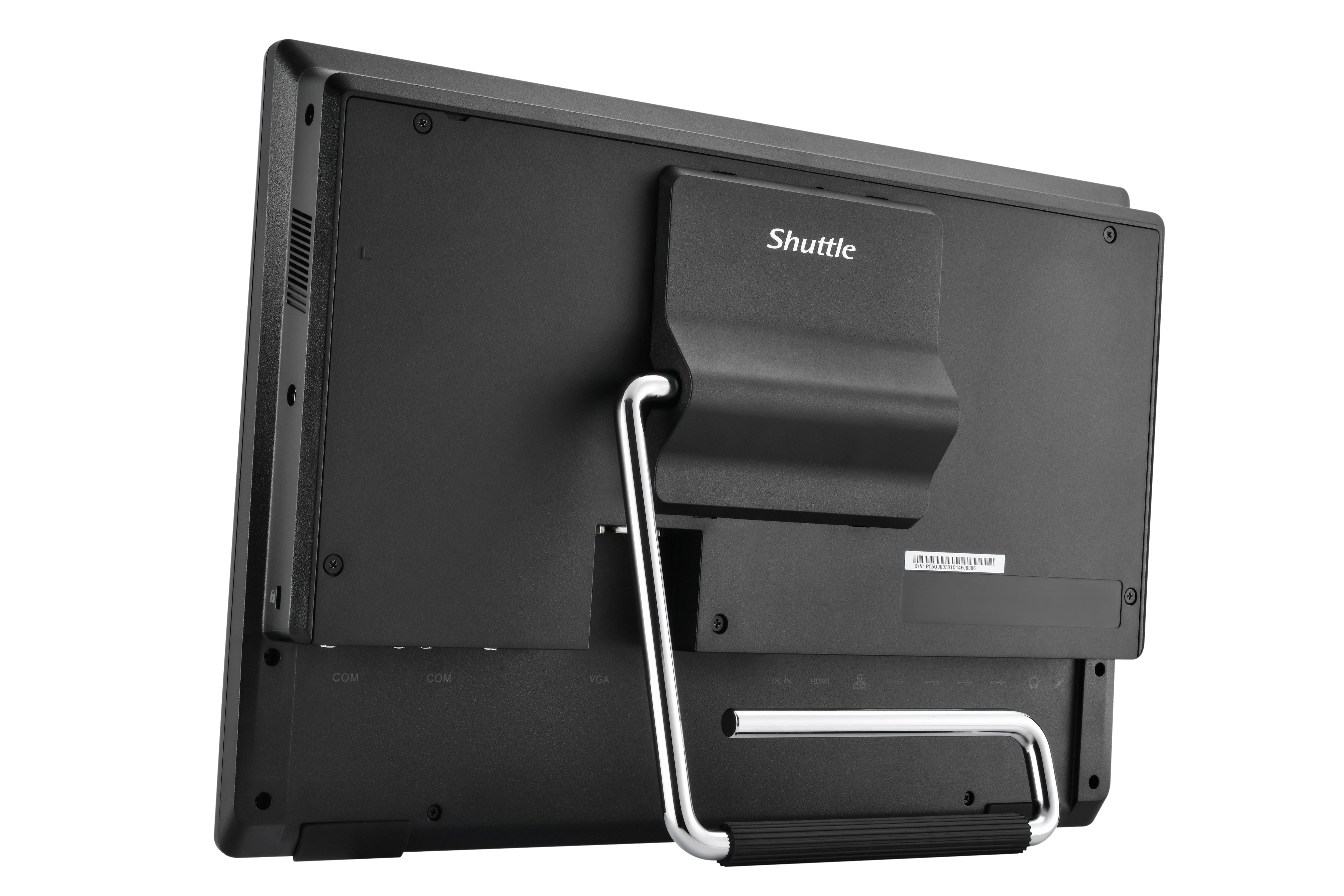

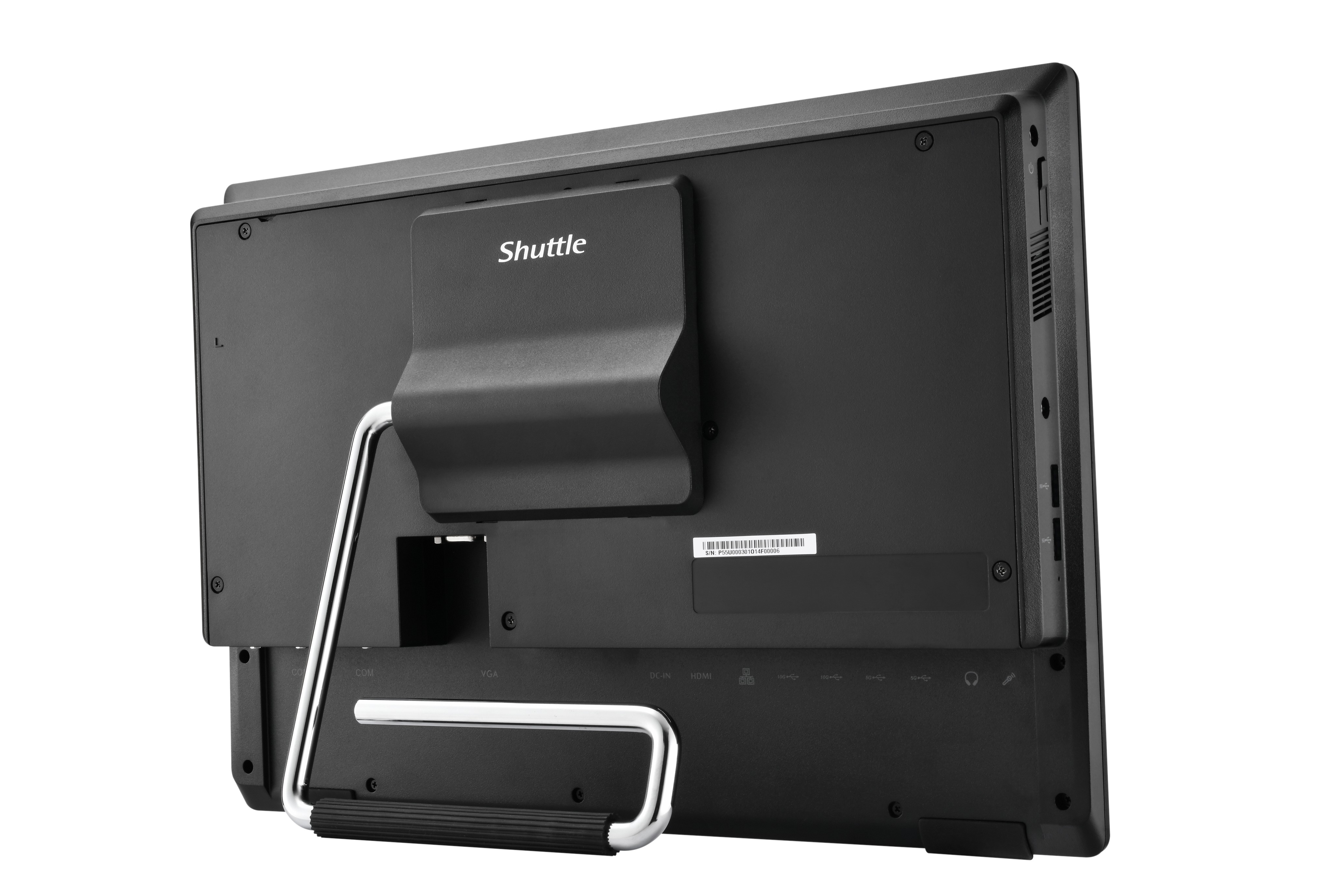

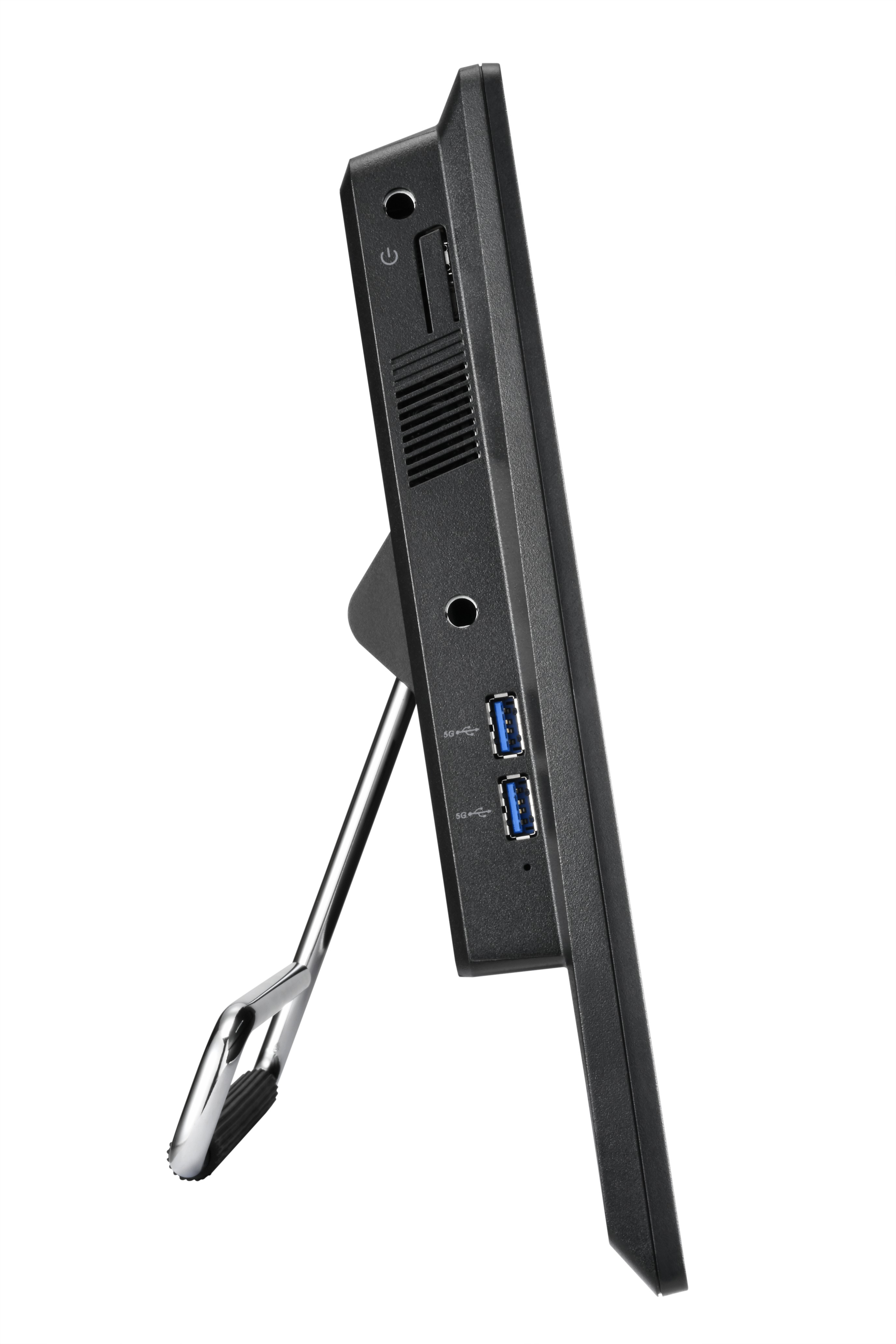

  • An installed hinged stand is specified, and 100 mm VESA mounting is supported for alternative mounting arrangements.

What Will Not Work

  • Memory is not included; DDR5 SO-DIMM modules must be installed before use.
  • Storage is not included; an M.2 drive must be added.
  • No operating system is included.
  • The processor is soldered directly to the mainboard.
  • The secondary M.2-2280 slot is SATA-only unless used with the optional WWN04 4G/5G module.
Best For
✓ A suitable option for buyers configuring a compact touch all-in-one for an installation that values fanless cooling
✓ 24/7 operation support
✓ an IP54-protected front panel or serial connectivity. It requires separate memory
✓ storage

Key Features


10-point multi-touch display
The 15.6-inch Full HD IPS panel supports capacitive 10-point touch input.

Fanless cooling
Passive heatpipe cooling provides a fanless system design.

Flexible connectivity
Includes Gigabit Ethernet, Wi-Fi 5, HDMI, VGA and two COM ports, including RS-232/422/485 support.

Protected front panel
The front panel is rated IP54 against dust and splashing water.

Technical Specifications

Product Type Barebone all-in-one PC
Model P55U3
Display 15.6" IPS LCD | Full HD 1920 x 1080 | 16:9 | 250 cd/m²
Touchscreen Capacitive 10-point multi-touch
Front Protection IP54-protected against dust and splashing water | IP54-protected front panel against dust and splashing water
Processor Intel Core i3-1315U | 13th Generation Intel Core, Raptor Lake-U | 6 cores (2 Performance-cores and 4 Efficient-cores) | 8 threads
Processor Clock Performance-cores: 1.2 GHz base, up to 4.5 GHz turbo | Efficient-cores: 0.9 GHz base, up to 3.3 GHz turbo
Processor Cache 10 MB Intel Smart Cache
Processor Base Power 15 W
Processor Package BGA1700, soldered directly to the mainboard
Integrated Graphics Intel UHD Graphics for 13th Gen Intel Processors
Memory Support 2 x DDR5 SO-DIMM slots | Up to 96 GB using 2 x 48 GB DDR5-5200 or higher-rated modules
Installed Memory Not included | barebone configuration
Storage Support 2 x M.2-2280 slots
Primary Storage Interface M.2-2280 PCIe x4/NVMe or SATA
Secondary Storage Interface M.2-2280 SATA only, or optional WWN04 4G/5G module | M.2-2280 SATA only, or optional 4G/5G module with WWN04 accessory
Installed Storage Not included
Networking Gigabit Ethernet via Intel I219V
Wireless Networking Wi-Fi 5 (802.11ac) via Realtek RTL8821CE | Two internal antennas | Wi-Fi 5 / 802.11ac via Realtek RTL8821CE, with two internal antennas
Bluetooth Bluetooth 4.2
Optional Wireless Upgrade WLN-M1 Wi-Fi 6 kit with Intel AX200 and two external antennas
Optional Cellular Connectivity WWN04 kit supports one WAN card and one Nano-SIM card | Four external antennas | WWN04 optional 4G/5G kit supporting one WAN card and one Nano-SIM card

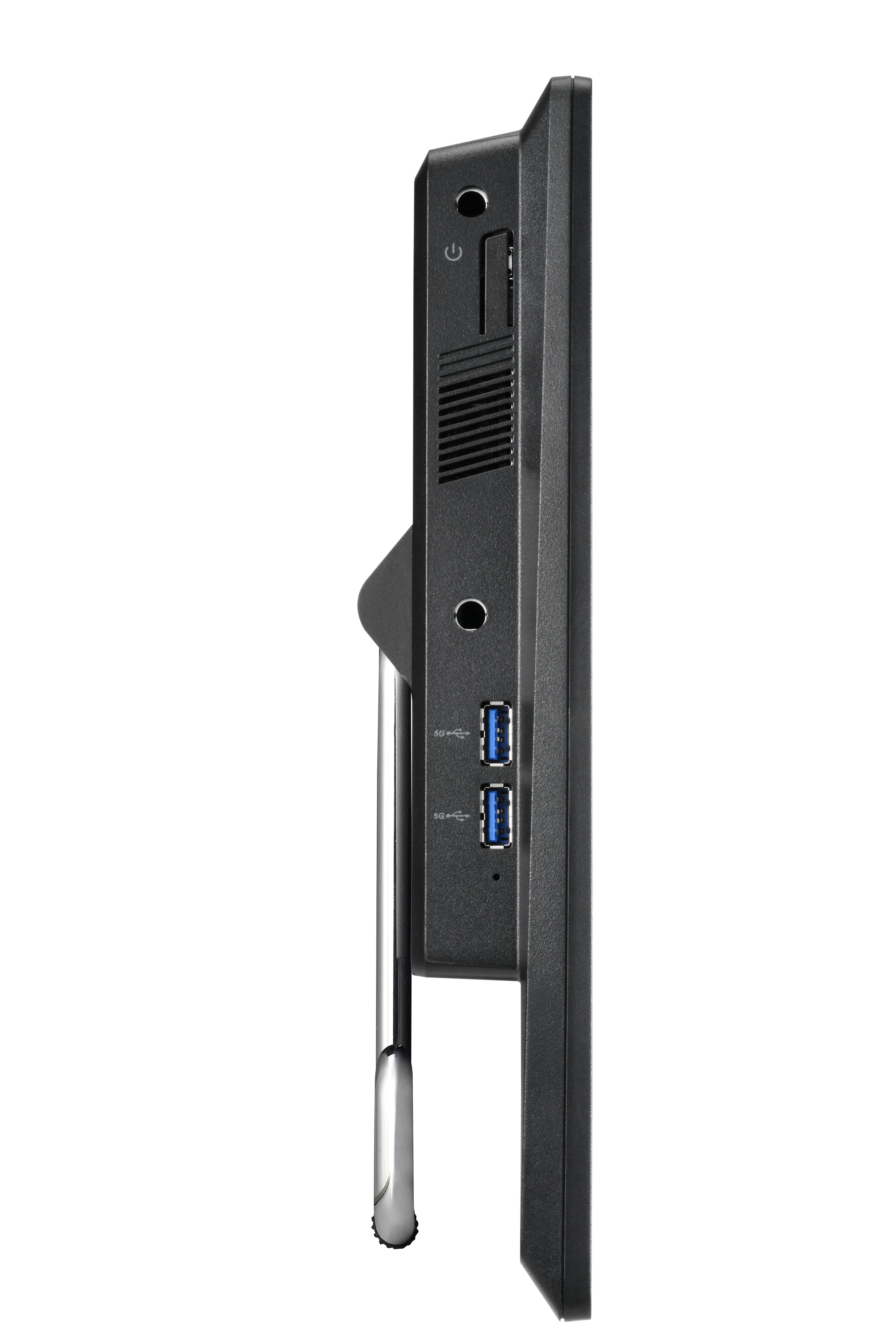

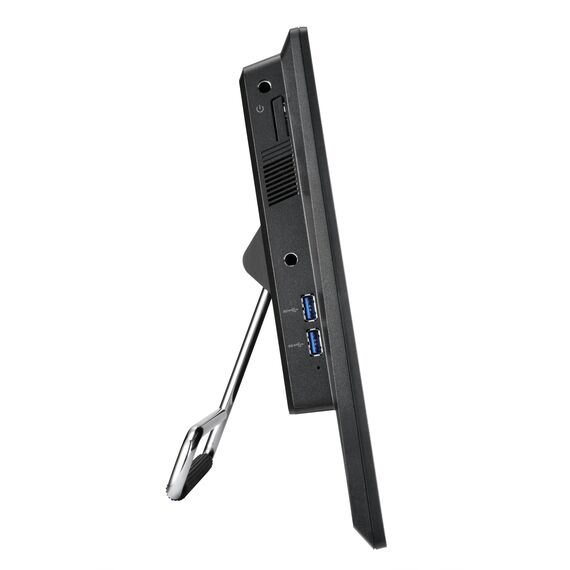

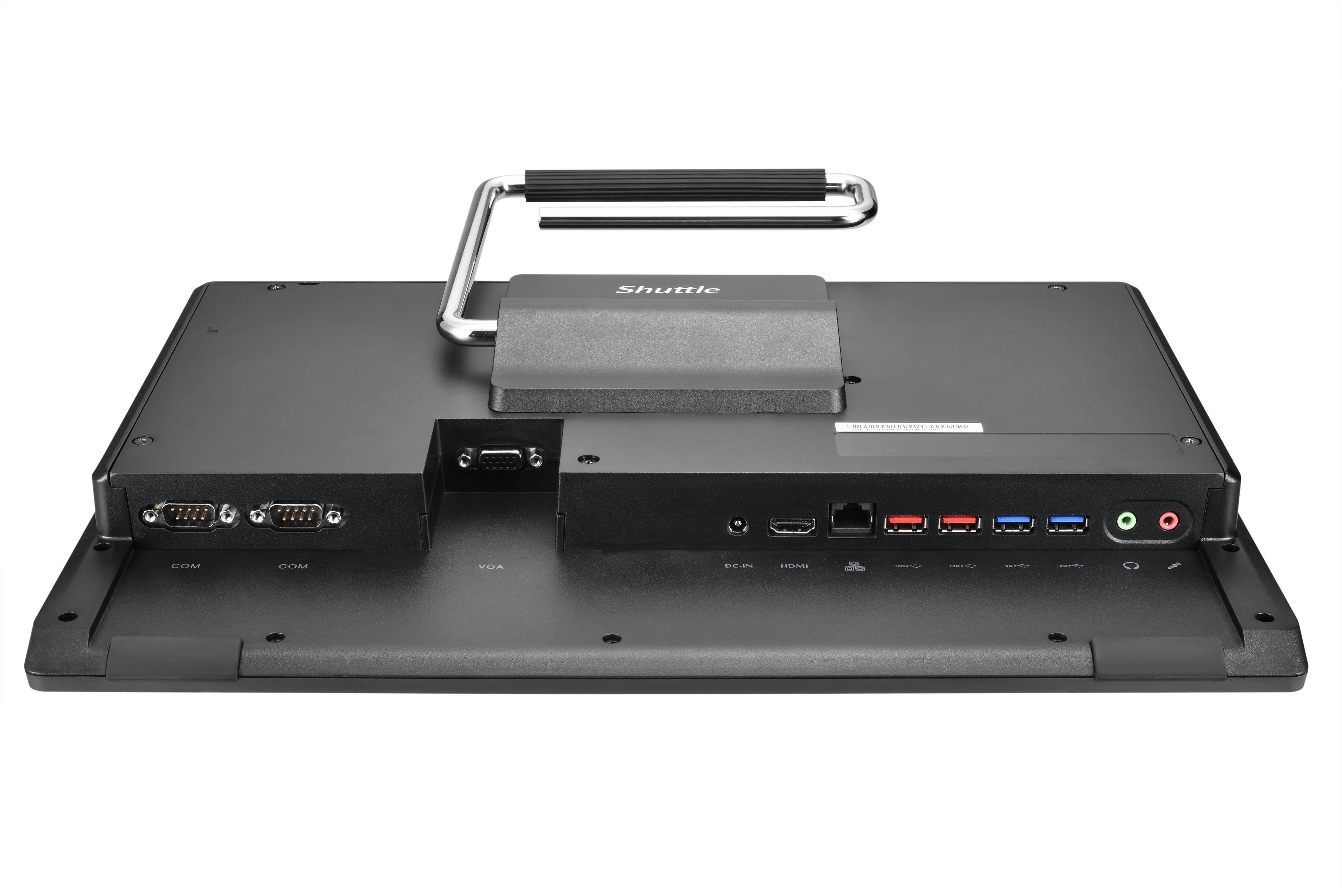

USB Ports 2 x USB 3.2 Gen 2 | 4 x USB 3.2 Gen 1 | 2 x USB 3.2 Gen 2 and 4 x USB 3.2 Gen 1
Video Outputs 1 x HDMI 2.0b | 1 x D-Sub/VGA | 1 x HDMI 2.0b and 1 x D-Sub/VGA
Serial Ports 2 x COM: RS-232 and RS-232/422/485 | 2 x COM ports: RS-232 and RS-232/422/485
Audio Two connectors for microphone and headphones | 2 x audio connectors for microphone and headphones
Webcam Integrated 2.0-megapixel Full HD webcam
Speakers 2 x 2 W integrated speakers
Microphone Integrated electret condenser microphone
Cooling Fanless passive heatpipe cooling
Continuous Operation Approved for 24/7 nonstop operation

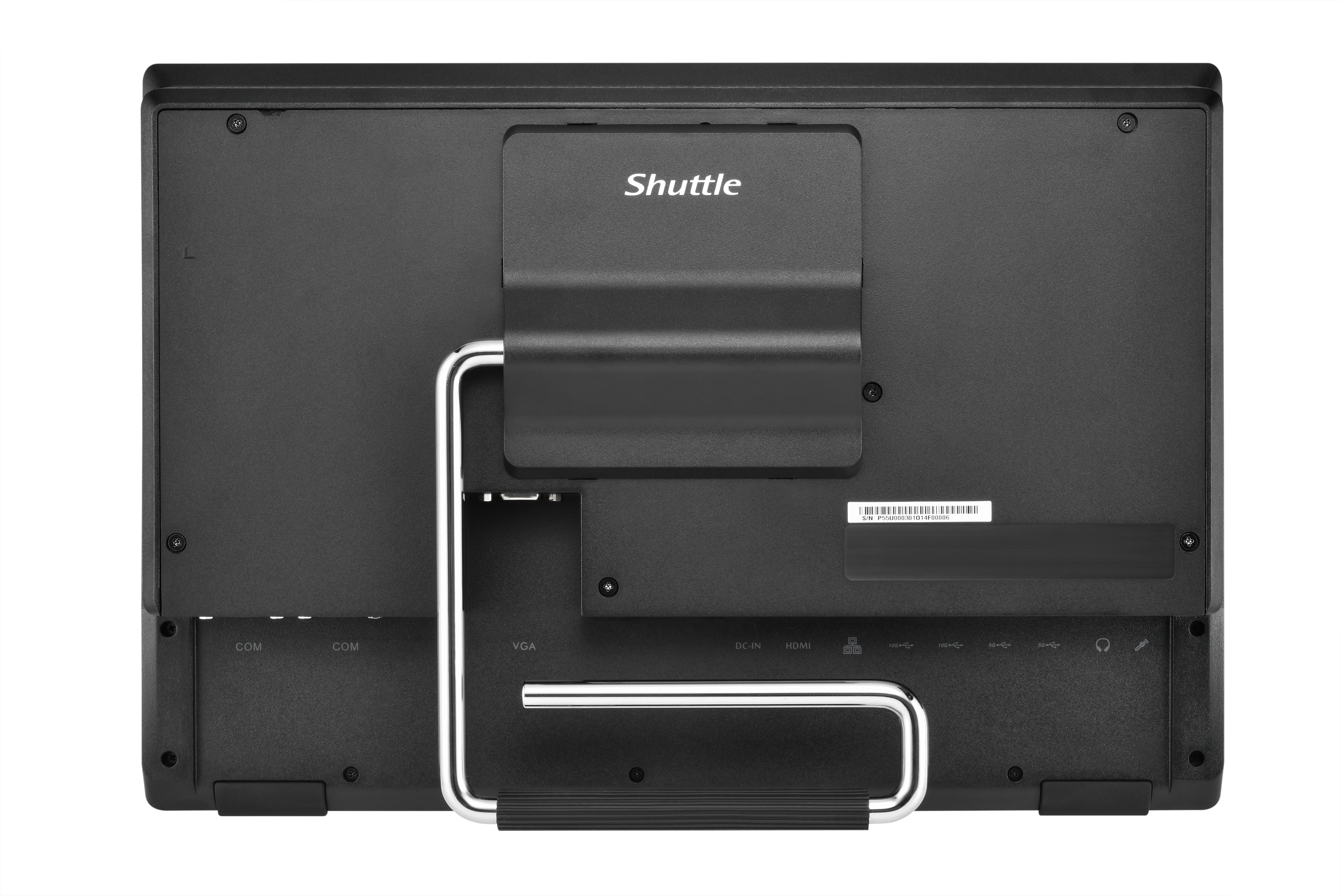

Mounting 100 mm VESA mount support | Installed hinged stand
Power Input DC input supports 12 V and 19 V
Power Supply Specification External 90 W / 19 V power adapter
Operating System None included
Supported Operating Systems Windows 11 64-bit, Windows 10 64-bit and Linux 64-bit

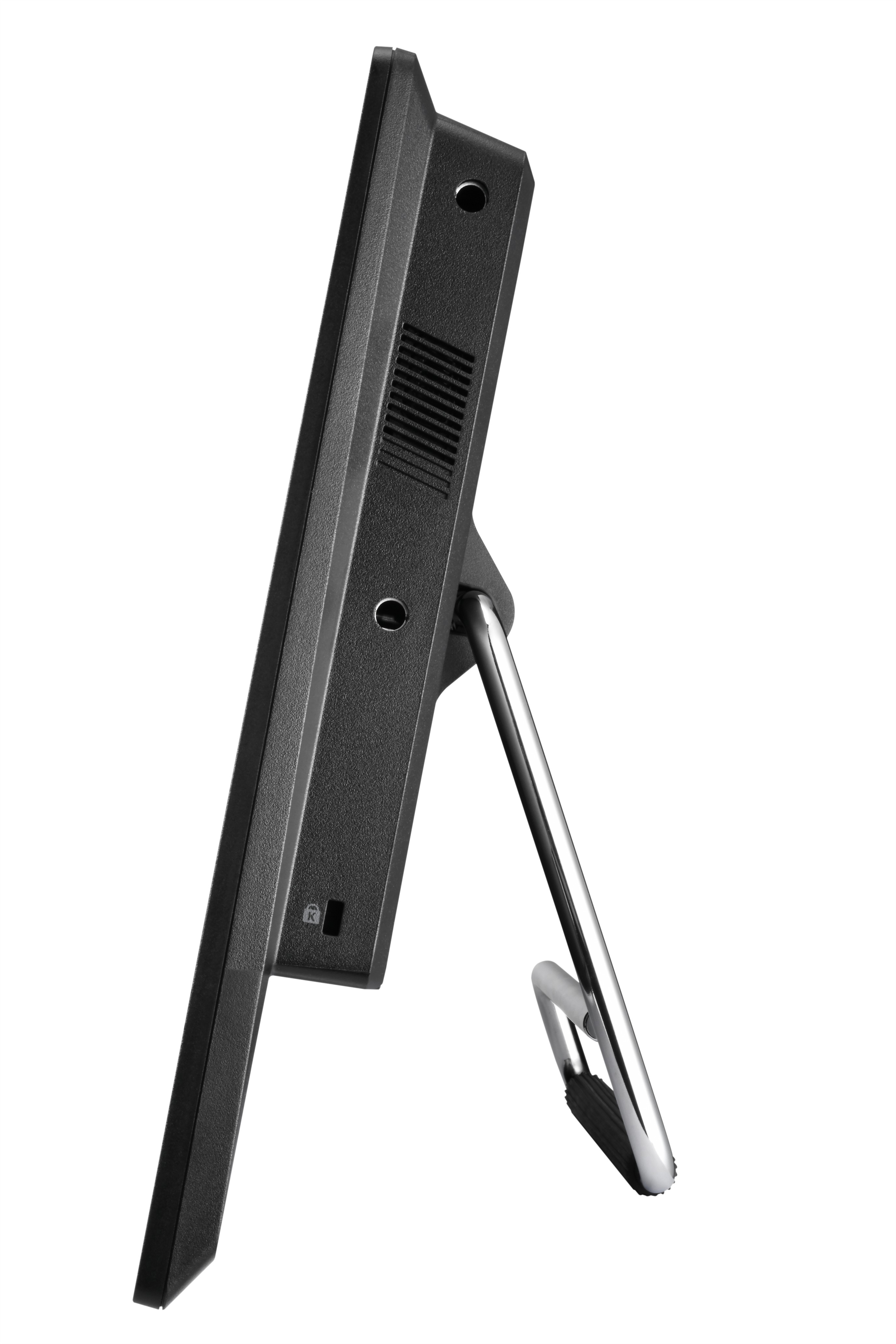

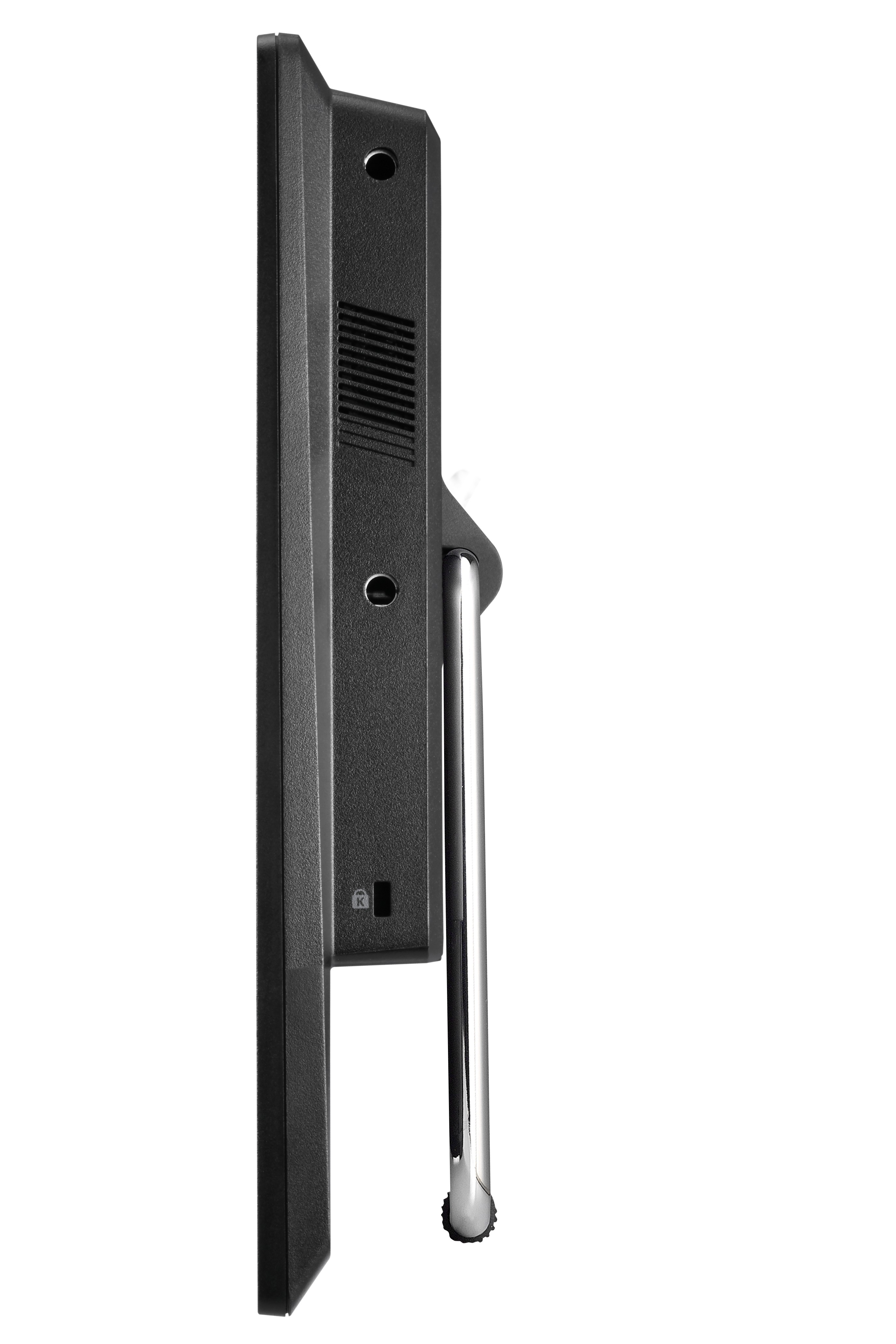

Security Provision for optional Kensington lock on the right side
Colour Black
Dimensions 393.6 x 272.5 x 39.8 mm (W x H x D)
Net Weight 3.25 kg
Display size 39.6 cm / 15.6"
Display type IPS LCD
Display resolution 1920 x 1080 pixels, Full HD
Display aspect ratio 16:9
Display brightness 250 cd/m²
Processor generation 13th Generation Intel Core | Raptor Lake-U
Processor cores 6 total: 2 Performance-cores and 4 Efficient-cores
Processor threads 8 total: 4 P-core threads and 4 E-core threads
Performance-core clock 1.2 GHz base, up to 4.5 GHz turbo
Memory type DDR5 SO-DIMM
Memory slots 2 x 262-pin SO-DIMM
Maximum memory Up to 96 GB | 2 x 48 GB DDR5-5200 or higher-rated modules
Storage Not included | barebone configuration
Storage slots 2 x M.2-2280
Optional wireless networking WLN-M1 optional Wi-Fi 6 kit with Intel AX200 and two external antennas
Power supply External 90 W / 19 V power adapter
Gross weight 4.5 kg
Operating temperature 0 to 40 °C
Warranty Not specified in inspected manufacturer sources
Kensington security Provision for optional Kensington lock on the right side
Product name Shuttle XPC All-in-One P55U3
Manufacturer Shuttle
Manufacturer part number P55U3
EAN 0887993007120
Form factor 15.6" all-in-one PC
Efficient-core clock 0.9 GHz base, up to 3.3 GHz turbo
Process technology Intel 7, 10 nm Enhanced SuperFin
Optional accessories WLN-M1 Wi-Fi 6 kit, WWN04 4G/5G kit and POV21 robust dual VESA stand
SKU / EAN P55U3 | 0887993007120

Frequently Asked Questions

Does this barebone include RAM, storage or an operating system?
No. Memory, storage and an operating system are not included and must be configured separately.
What memory and storage can be installed?
It has two DDR5 SO-DIMM slots supporting up to 96 GB, and two M.2-2280 storage slots. The primary slot supports PCIe x4/NVMe or SATA; the secondary slot supports SATA only, or the optional WWN04 4G/5G module.
Which operating systems are listed as supported?
Windows 11 64-bit, Windows 10 64-bit and Linux 64-bit are listed.
Can it be mounted using VESA?
Yes. The specifications state support for 100 mm VESA mounting; an installed hinged stand is also specified.
Singular Expert Insight
The key distinction is its combination of an integrated 15.6" 10-point touch display, fanless design and stated 24/7 nonstop operation support in a configurable barebone system.

Buyer’s Guide

Buy it if
A suitable option for buyers configuring a compact touch all-in-one for an installation that values fanless cooling, 24/7 operation support, an IP54-protected front panel or serial connectivity. It requires separate memory, storage and operating system configuration.
Skip it if
This is a barebone configuration: RAM, storage and an operating system are not included. Add compatible DDR5 SO-DIMM memory and M.2 storage, then install an operating system; supported options listed are Windows 11 64-bit, Windows 10 64-bit and Linux 64-bit. The processor is soldered to the mainboard. The second M.2 slot supports SATA only, unless used with the optional WWN04 4G/5G module.
