Shuttle XPC slim DS50U Barebone Mini PC, Celeron 7305, 8GB DDR5

Brand:
Shuttle

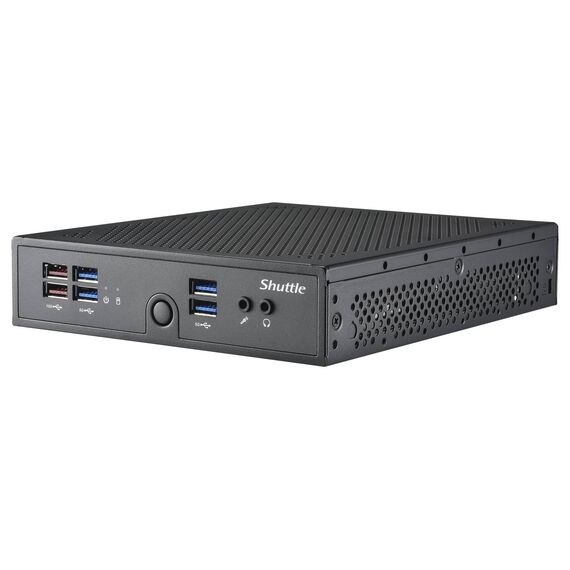

Shuttle DS50U chassis, front angled view; bundled 8GB RAM not shown
Shuttle XPC slim DS50U Barebone Mini PC, Celeron 7305, 8GB DDR5
€448.09 inc. VAT
Buy
DS50U_ Bundle_8GB
€376.55
€448.09 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
CPU Type
Intel Celeron
Product Code
04:605764
EAN Code
4046047104543
Manufacturer
Shuttle
Quick Specs
Processor
Intel Celeron 7305
Included memory
8GB DDR5 SO-DIMM
Storage
Not included
Operating system
Not included
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Shuttle DS50U Barebone Mini PC with Celeron 7305

Intel Celeron 73058GB DDR5 includedFanless cooling1GbE + 2.5GbE

The Shuttle DS50U is a compact, fanless barebone Mini PC with an integrated Intel Celeron 7305 and an included 8GB DDR5 SO-DIMM. It is not a ready-to-use complete PC: storage and an operating system are not included, so configure those before use. The exact catalog SKU is DS50U_ Bundle_8GB.

Best For: Suitable for buyers who want a compact Shuttle barebone with an integrated Celeron 7305, included 8GB DDR5 memory, fanless cooling and multiple display and network connections. Add compatible storage and an operating system before using it as a complete PC.
Before you order: This is a barebone, not a complete PC: no HDD/SSD or operating system is included, although one 8GB DDR5 SO-DIMM is included. Its fitting status is unverified. Add compatible storage and an operating system with the required drivers and licence. The CPU is integrated and soldered, so no separate CPU purchase is needed. WLAN/Bluetooth hardware, external WLAN antennas, cellular parts and the optional second-COM adapter are separate. Use it vertically with DisplayPort facing up or with the supplied VESA kit, and keep airflow and vents clear. Above 35°C, an SSD is strongly recommended over an HDD; 24/7 use with an HDD requires a drive rated for continuous operation.

What's in the Box

  • Shuttle DS50U chassis/mainboard with integrated Intel Celeron 7305 and passive cooling
  • 8GB DDR5 SO-DIMM (included; fitting status unverified)
  • External fanless 90W power adapter and AC power cord
  • Multilingual user guide
  • Two metal feet and mounting screws
  • VESA 75/100mm brackets and screws
  • 2.5-inch drive and M.2 mounting screws
  • Four thermal pads: two for M.2 SSDs and two for RAM modules
  • Windows driver DVD (not an operating system or licence)

What It Means in Practice

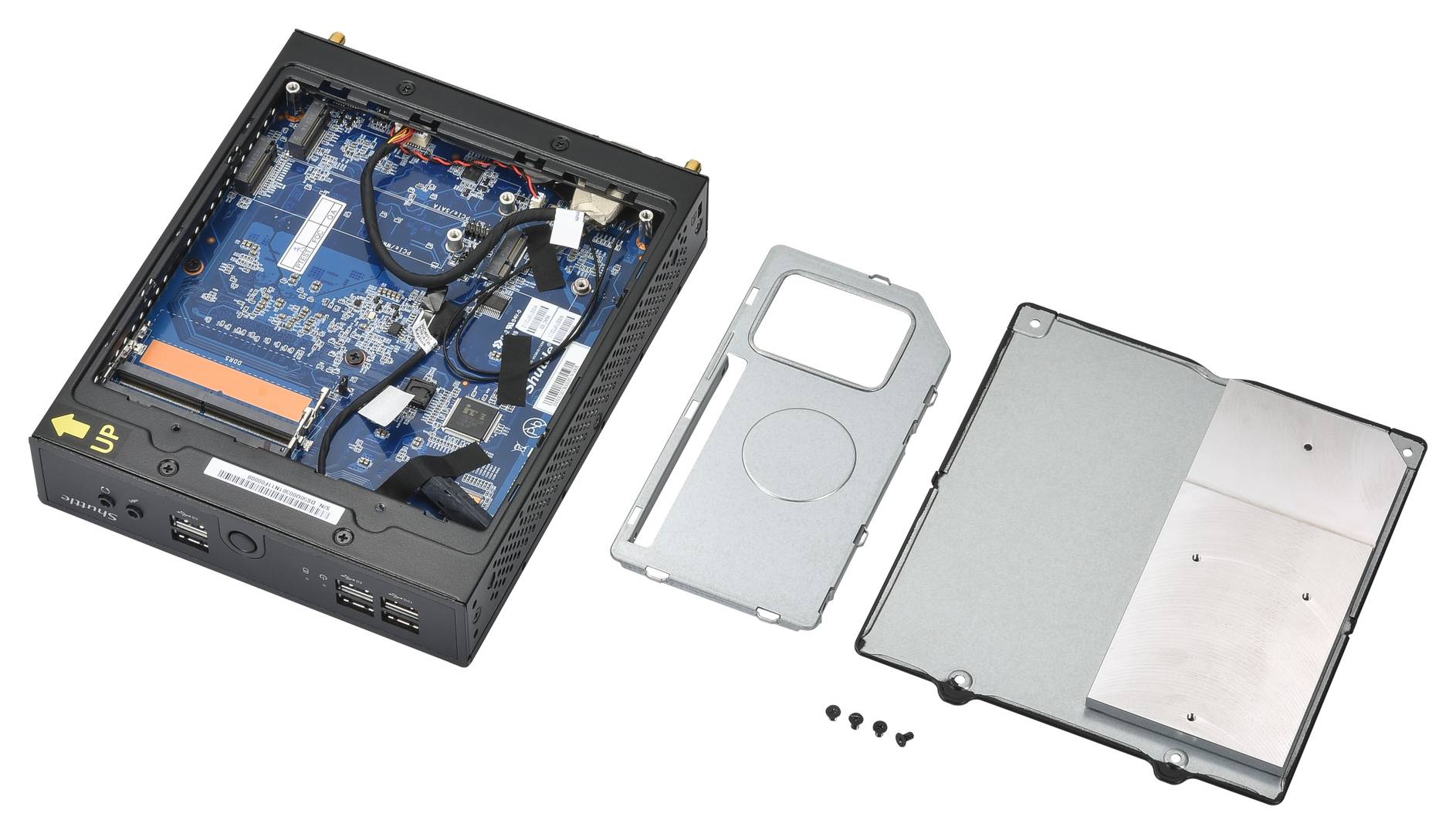

  • The included 8GB DDR5 SO-DIMM is confirmed for this bundle, but whether it is factory-fitted is not established. The system supports up to 64GB across two DDR5-4800 SO-DIMM slots; fitting may be needed.
  • Storage must be added. The 2.5-inch bay accepts one SATA drive up to 9.5mm high; supported M.2 configurations allow one PCIe 4.0 x4 NVMe SSD and one SATA M.2 SSD. Follow the manufacturer configuration table, especially if using the optional WWN04 kit.
  • Install a compatible operating system, drivers and licence separately. The supplied Windows driver DVD is not an OS or licence, and the system has no optical drive specified.
  • Use the supplied feet for the vertical position with DisplayPort facing up, or the included VESA kit behind a compatible monitor. Keep vents clear; continuous operation also requires unrestricted airflow, and any installed HDD must be rated for 24/7 use.

What Will Not Work

  • No HDD/SSD or operating system is included; a compatible storage device and OS with required drivers and licence are needed for a complete system.
  • No USB-C, Thunderbolt or USB4 device port.
  • WLAN/Bluetooth card and external WLAN antennas are not included; preinstalled antenna cables/connectors alone do not provide wireless networking.
  • Optional WWN04 cellular kit, cellular card, nano-SIM and service plan are separate; WWN04 occupies an M.2-2280 slot and changes the available SSD configuration.
  • Optional PCP11 second external RS232 port replaces VGA; both cannot be used simultaneously.
  • For 24/7 operation, vents must remain clear and airflow unrestricted; an installed HDD must itself be rated for 24/7 operation. Above 35°C, an SSD is strongly recommended instead of an HDD.
  • Do not infer factory fitting of the included RAM, or a RAM module brand or speed rating, from the bundle listing.

Key Features


8GB DDR5 SO-DIMM included
The exact bundle includes one 8GB module; factory fitting and module speed rating are not verified.

Fanless passive cooling
No cooling fan is used; provide unrestricted airflow and keep the vents clear. An optional mechanical HDD can still make noise.

Flexible display connections
DisplayPort 1.4, HDMI 2.0b and VGA support up to three independent displays, subject to displays, cables and OS.

Dual LAN
Separate 1GbE and 2.5GbE RJ45 ports support different wired network links; achieved rates depend on connected equipment and the network.

Technical Specifications

ManufacturerShuttle
ModelXPC slim DS50U
Manufacturer SKUDS50U_ Bundle_8GB
EAN4046047104543
ProcessorIntel Celeron 7305, integrated and soldered | 5 cores / 5 threads | 1 P-core at 1.1GHz and 4 E-cores at 0.9GHz | 8MB cache | 15W base processor power
GraphicsIntegrated Intel UHD Graphics, 48 EUs, up to 1.1GHz
Included memory8GB DDR5 SO-DIMM included; fitting status, module brand and speed rating unverified
Memory support2 x 262-pin DDR5-4800 SO-DIMM slots | up to 64GB total (2 x 32GB) | unbuffered, non-ECC, non-registered
StorageNo HDD or SSD included | 1 x 2.5-inch SATA bay, up to 9.5mm height, SATA 6Gbps | supported M.2-2280 combinations allow one PCIe 4.0 x4 NVMe SSD and one SATA M.2 SSD; follow the manufacturer configuration table
Wireless expansionM.2-2230E slot for optional WLAN/Bluetooth card; antenna cables preinstalled, WLAN card and external antennas not included
Cellular expansionOptional WWN04 kit and cellular card/SIM/plan are separate; WWN04 uses an M.2-2280 slot and affects SSD configuration

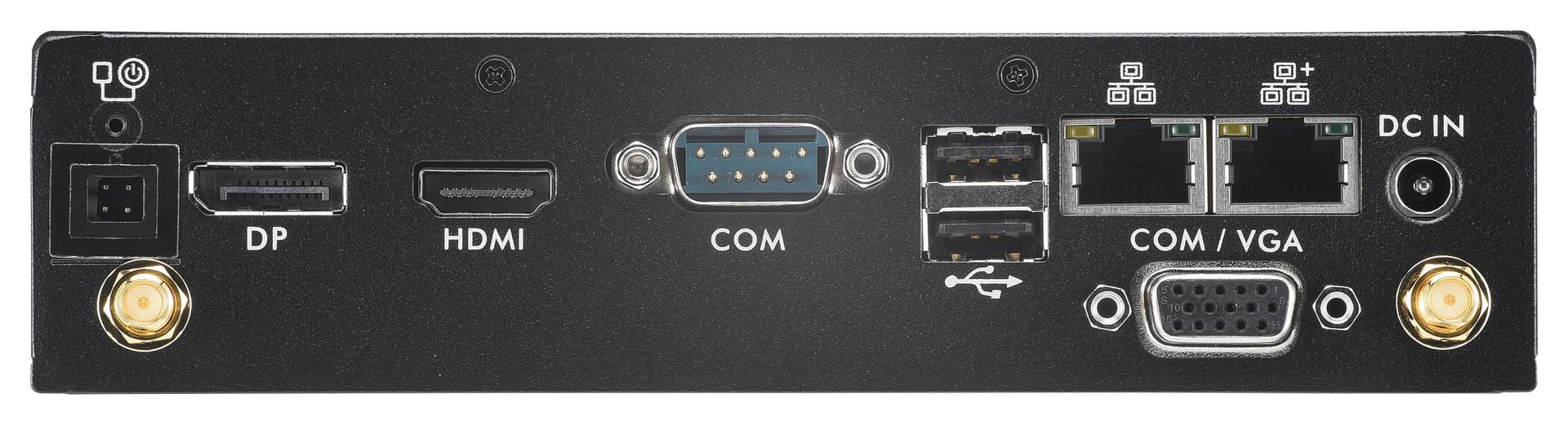

Video outputsDisplayPort 1.4, HDMI 2.0b and VGA | supports up to 3 independent displays, subject to displays, cables and OS | DisplayPort and HDMI support 4K at 60Hz
USB8 x USB-A: front 2 x USB 3.2 Gen 2 up to 10Gbps, front 4 x USB 3.2 Gen 1 up to 5Gbps, rear 2 x USB 2.0 | no USB-C, Thunderbolt or USB4 device port
Networking2 x RJ45 Intel LAN: 1 x 1GbE (i219) and 1 x 2.5GbE (i226) | PXE and Wake-on-LAN support; actual rates depend on the network and connected equipment
Serial port1 x rear DB9 COM, configurable for RS232/RS422/RS485 | BIOS mode and pin 9 setting depend on the connected device | optional second RS232 replaces VGA
AudioFront 3.5mm microphone input and headphone/line-out | digital audio via HDMI and DisplayPort | Realtek ALC888S
CoolingFanless passive heat-pipe cooling; requires unrestricted airflow and clear vents. An optional mechanical HDD may produce noise.
Operating positionsVertical on supplied metal feet with DisplayPort facing up, or behind a compatible monitor using the included VESA kit; do not block vents
ChassisBlack steel | 1.3L | 200 x 165 x 39.5mm (L x W x H) | net weight 1.6kg
Operating systemNone included; supports Windows 10/11 64-bit and Linux 64-bit with compatible components, drivers and licences
Power adapterExternal fanless 90W adapter included | output 19V DC, up to 4.74A | input 100–240V AC, 50/60Hz | computer DC input supports compatible 12V ±5% or 19V ±5% sources
Operating environment0–40°C | 10–90% relative humidity, non-condensing | for 24/7 operation, maintain free airflow and clear vents; any installed HDD must be rated for 24/7 use
Temperature guidanceAbove 35°C, manufacturer strongly recommends an SSD instead of an HDD
COM port optionOptional PCP11 provides a second RS232 port by replacing VGA; VGA and the second external COM port cannot be used simultaneously

Frequently Asked Questions

Is memory included, and is it installed?
One 8GB DDR5 SO-DIMM is included in this exact bundle. Whether it is factory-fitted is unverified; fitting may be needed.
What must I add before it is a complete PC?
Add compatible storage and an operating system with the required drivers and licence. No HDD/SSD or OS is included; the integrated Celeron 7305 is already part of the system.
Can I install two NVMe SSDs?
Do not assume so. The supported M.2 combinations allow one PCIe 4.0 x4 NVMe SSD and one SATA M.2 SSD. Follow the manufacturer configuration table; the optional WWN04 kit changes the available SSD combination.
Does it include Wi-Fi or cellular connectivity?
No WLAN card or external WLAN antennas are included. The M.2-2230E slot supports optional WLAN/Bluetooth hardware. Cellular use requires separate WWN04 kit, cellular card and SIM/service plan.
Singular Expert Insight

The exact DS50U bundle includes an 8GB DDR5 SO-DIMM together with a 90W adapter, metal feet and a VESA mounting kit. Choose compatible storage and an operating system to complete the system.

Buyer’s Guide

✓ Buy it if Suitable for buyers who want a compact Shuttle barebone with an integrated Celeron 7305, included 8GB DDR5 memory, fanless cooling and multiple display and network connections. Add compatible storage and an operating system before using it as a complete PC.
✕ Skip it if This is a barebone, not a complete PC: no HDD/SSD or operating system is included, although one 8GB DDR5 SO-DIMM is included. Its fitting status is unverified. Add compatible storage and an operating system with the required drivers and licence. The CPU is integrated and soldered, so no separate CPU purchase is needed. WLAN/Bluetooth hardware, external WLAN antennas, cellular parts and the optional second-COM adapter are separate. Use it vertically with DisplayPort facing up or with the supplied VESA kit, and keep airflow and vents clear. Above 35°C, an SSD is strongly recommended over an HDD; 24/7 use with an HDD requires a drive rated for continuous operation.
→ Also consider If you need a ready-to-use PC, consider a complete system that includes storage and an operating system. If this Shuttle is otherwise the right fit, compare configurations with the storage and wireless options you require; those components are not included here.
