Name: Shuttle XPC slim DS50U5 Fanless Mini PC Barebone, Core i5-1335U, 8GB DDR5 Included, Dual LAN 2.5GbE + Gigabit, Black
Brand: Shuttle
SKU: DS50U5_ Bundle_8GB
Price: 1049.20 EUR
Availability: InStock

CODE (SKU):

DS50U5_ Bundle_8GB

€881.68

€1,049.20 inc. VAT

Ships from EU stock: 7 item(s)

+ −

Add to wish list Ask a question

CPU Type

Intel Core i5

Intended Use

Digital Signage

Product Code

04:605766

EAN Code

4046047104550

Manufacturer

Shuttle

Quick Specs

Processor

Core i5-1335U, 10 cores / 12 threads

Memory bundle

8GB DDR5 included; install separately

Network

2.5GbE + Gigabit Ethernet

Cooling / size

Fanless, 1.3-litre chassis

Delivery

Order Today...

Ships...

Delivery...

ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.

Payment options

✓ Viva Wallet

✓ Revolut

✓ Bank Deposit

Secure checkout with flexible payment methods

Trusted Tech Choice

Buying Benefits Verified

Competitive EU pricing

Delivered to Cyprus from EU stock

Local warranty support

Shuttle DS50U5: a fanless platform with 8GB DDR5 in the box

Core i5-1335U8GB DDR5 includedFanlessDual LAN

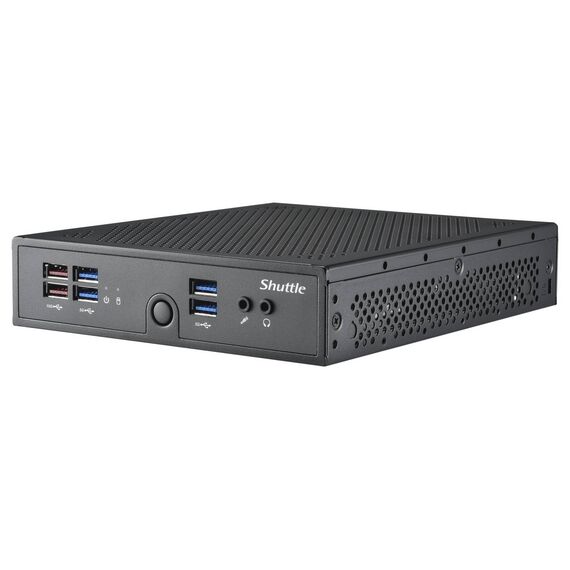

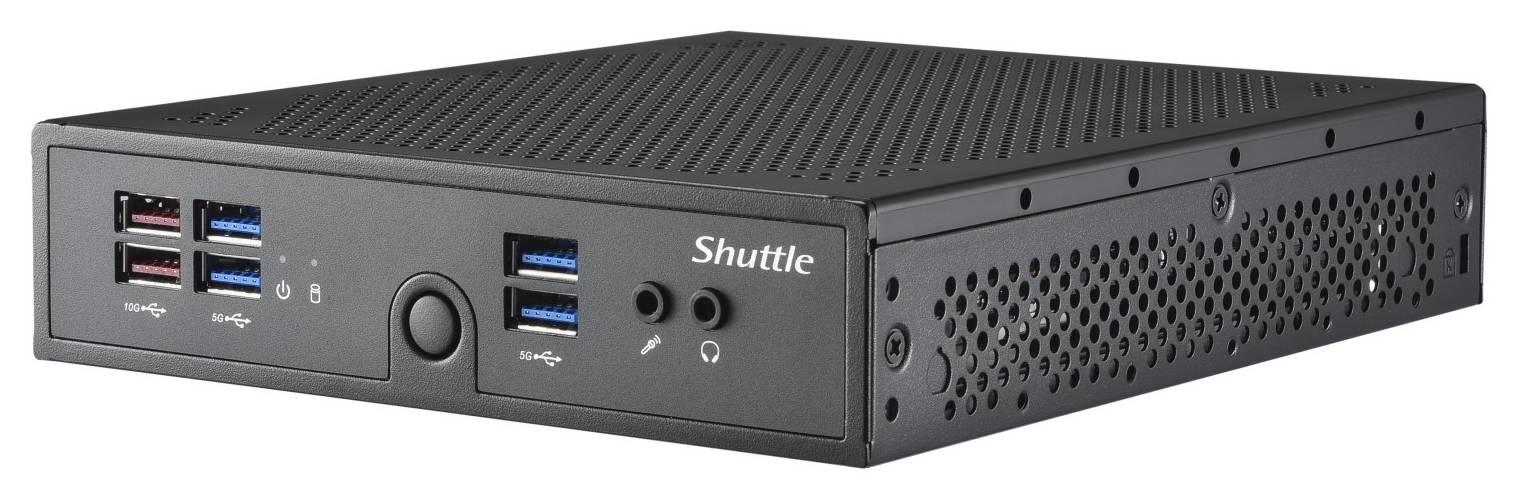

The Shuttle XPC slim DS50U5 bundle combines a passively cooled Core i5-1335U barebone with one 8GB DDR5 SO-DIMM supplied separately in the accessory box. Its black 1.3-litre steel chassis offers Gigabit and 2.5GbE networking, three display outputs and a configurable COM port for office, signage, POS and kiosk installations. Install the supplied memory, add suitable storage and an operating system, and complete the configuration for your application.

Compatibility — check before buying:

This is a barebone bundle, not a fully assembled PC. The included 8GB module needs installation; storage, an operating system and Wi-Fi/Bluetooth hardware are not included. DDR5 SO-DIMM is required, not desktop DIMM or DDR4. For two M.2 drives, plan one NVMe SSD and one SATA SSD. The supplied mains lead uses a Schuko plug: check your Cyprus socket arrangement and obtain a suitable approved lead or adapter if required.

Best For

✓ Digital signage and information displays

✓ POS, kiosks and equipment with serial interfaces

✓ Quiet office or media installations

✓ Deployments requiring two wired network connections

Key Features

Passive cooling with practical operating limits

The heatpipe cooling system uses no fan, eliminating fan noise. Shuttle approves 24/7 operation when airflow remains unobstructed and any fitted HDD is rated for continuous use. Keep ambient temperature within 0–40°C; above 35°C Shuttle recommends an SSD rather than an HDD.

A useful memory bundle, with room to expand

One 8GB DDR5 SO-DIMM comes loose in the sealed accessory box. The platform has two memory slots, supports DDR5-5200 and up to 96GB total. A suitable second module enables dual-channel operation; the 96GB figure is an upgrade limit, not memory supplied with this bundle.

Digital displays and professional connections

HDMI 2.0b and DisplayPort 1.4 support UHD/4K at 60Hz, while VGA accommodates analogue displays. Up to three independent displays are supported. Eight USB ports, two RJ45 ports and a COM port selectable between RS232, RS422 and RS485 suit peripherals and business equipment.

Choose the storage and wireless setup

Add a 2.5-inch SATA drive up to 9.5mm high, or use the supported NVMe-plus-SATA M.2 combination. An M.2 2230 slot accepts optional WLAN hardware, and the separate WWN04 kit enables mobile-broadband expansion while occupying an M.2 storage position. These accessories and drives are purchased separately.

Technical Specifications

Identification and bundle
Brand / model	Shuttle XPC slim DS50U5
Catalog SKU	DS50U5_ Bundle_8GB
Manufacturer bundle code	DS50U5_Bundle_8GB
EAN / GTIN	4046047104550
Product type	Fanless Mini PC barebone with one bundled 8GB DDR5 SO-DIMM
RAM delivery	1 × 8GB DDR5 SO-DIMM supplied loose in the sealed accessory box; installation required
Storage / operating system supplied	No storage drive or operating system included
Processor and memory
Processor	Intel Core i5-1335U, 13th generation Raptor Lake-U
Cores / threads	10 cores (2 Performance + 8 Efficient), 12 threads
Performance-core clocks	1.3GHz base; up to 4.6GHz Turbo
Efficient-core clocks	0.9GHz base; up to 3.4GHz Turbo
Cache / processor base power	12MB Intel Smart Cache; 15W processor base power, not total system consumption
CPU installation	Soldered FCBGA1744 processor; not a replaceable desktop socket CPU
Memory slots	2 × 262-pin DDR5 SO-DIMM
Supported memory specification	DDR5-5200, 1.1V, unbuffered non-ECC SO-DIMMs; higher-rated modules supported at platform limits
Maximum memory capacity	96GB total, up to 48GB per slot; additional memory purchased separately
Memory channels	Dual-channel supported with a suitable two-module configuration; the bundle supplies one module
Graphics and displays
Integrated graphics	Intel integrated graphics, Iris Xe eligible; Intel UHD branding with single-channel memory, Iris Xe requires 128-bit dual-channel memory
GPU capability / clock	80 execution units in the processor specification; dynamic frequency up to 1.25GHz

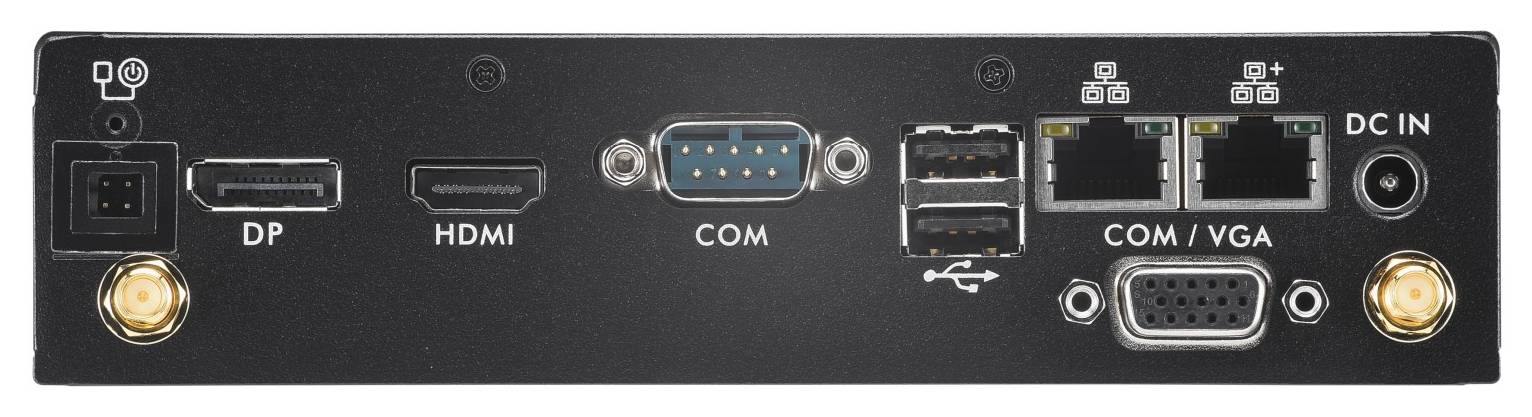

Display connections	1 × HDMI 2.0b, 1 × DisplayPort 1.4, 1 × VGA (D-Sub)
Displays / digital output	Up to 3 independent displays; HDMI and DisplayPort support UHD/4K at 60Hz, VGA is analogue
DisplayPort adapters	Passive DisplayPort-to-HDMI/DVI conversion supported with a suitable separate adapter; passive HDMI-to-DisplayPort conversion is not supported
Storage and wireless expansion
2.5-inch drive support	1 × 2.5-inch SATA HDD/SSD, maximum height 9.5mm; SATA III 6Gb/s, direct connector without separate SATA cable
M.2 storage slots	2 × M.2 2280 Key-M; supported two-drive configuration is one PCIe 4.0 x4 NVMe SSD plus one SATA M.2 SSD
Optional mobile broadband	WWN04 kit occupies one M.2 2280 position; compatible 4G/5G card and nano-SIM required separately
Wireless expansion slot	M.2 2230 Key-E, PCIe 3.0 x1 / USB 2.0; WLAN card and antennas are optional
Antenna connections	2 × RP-SMA rear connections with internal antenna cables pre-installed; antennas not included in the barebone bundle
Wi-Fi / Bluetooth accessory	Optional Shuttle WLN-M12 WLAN/Bluetooth kit with two antennas; not included
Network, USB, audio and controls
Wired networking	2 × RJ45: Intel i219 Gigabit Ethernet (10/100/1000Mb/s) and Intel i226 2.5GbE (100/1000/2500Mb/s)
Network startup	Wake-on-LAN and PXE network boot supported

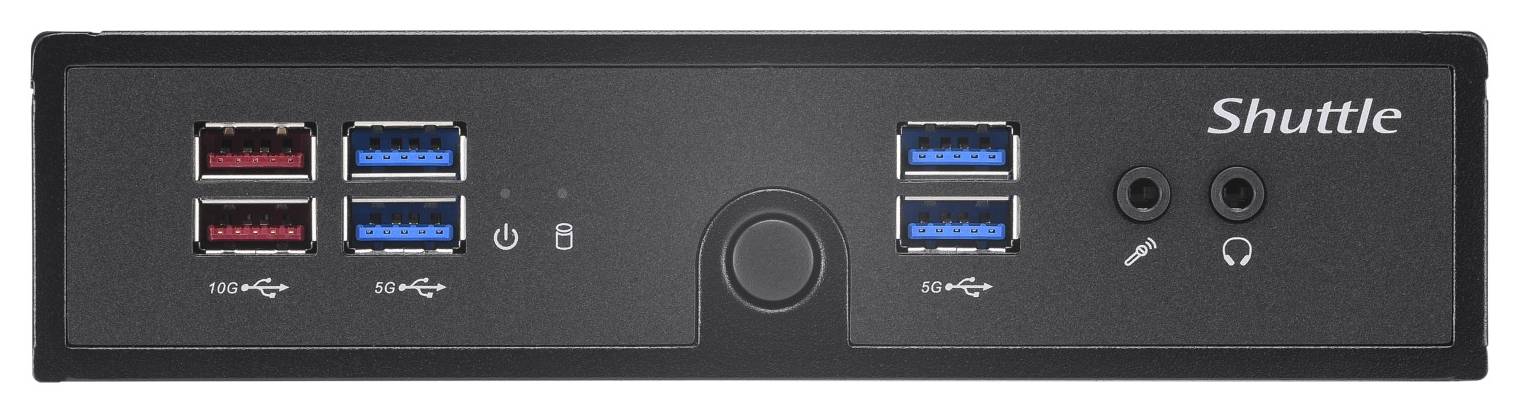

Front USB ports	2 × USB 3.2 Gen 2 up to 10Gb/s (red), 4 × USB 3.2 Gen 1 up to 5Gb/s (blue)
Rear USB ports	2 × USB 2.0 (black); 8 external USB ports in total
Audio controller	Realtek ALC888S High Definition Audio
Audio connections	Front: separate 3.5mm microphone input and two-channel headphone/line output; digital multichannel audio via HDMI/DisplayPort
Serial port	1 × external COM port, BIOS-selectable RS232/RS422/RS485; pin 9 selectable for RI, 5V or 12V via jumper
Optional second serial port	Onboard RS232 header; separate PCP11 adapter replaces the VGA connection
External control connector	Rear 4-pin connector, 2.54mm pitch, for external power button, Clear CMOS and 5V DC; optional CXP01 adapter cable
Front controls / indicators	Power button, blue power LED, yellow storage-activity LED
Firmware, power and operation
Mainboard / firmware	Proprietary Shuttle DS50U-series board; AMI UEFI BIOS, 32MB SPI EEPROM
Firmware functions	Firmware TPM 2.0, hardware monitoring, watchdog, RTC-alarm startup and boot from M.2/USB devices
Power restoration	BIOS power-on-after-failure function and hardware always-on jumper; configure using the model guide
Supplied power adapter	External fanless 90W adapter; 19V DC, up to 4.74A output
AC input	100–240V AC, 50/60Hz, maximum 1.6A
Alternative DC supply / plug	12V ±5% or 19V ±5%; barrel connector outer/inner diameter 5.5/2.5mm
Power cables	Approx. 170cm DC cable and 170cm AC cable; supplied AC lead has IEC C5 and grounded Schuko plug
RTC / CMOS battery	Built-in 3V CR2032 button cell
OS compatibility	Windows 10/11 64-bit and Linux 64-bit; installation and any required licence supplied separately
Cooling / continuous use	Passive fanless heatpipe cooling; approved for 24/7 use with unobstructed airflow and suitable continuous-duty drive if an HDD is fitted
Operating conditions	0–40°C, 10–90% relative humidity, non-condensing; Shuttle recommends an SSD instead of HDD above 35°C ambient
Physical specifications and supplied accessories
Chassis / colour	Steel chassis, black, 1.3 litres
Dimensions / barebone net weight	200 × 165 × 39.5mm (L × W × H); 1.6kg barebone net weight
Mounting / operating position	Vertical with supplied metal feet, DisplayPort facing up; supplied VESA 75 × 75 / 100 × 100mm brackets
Security / component access	Kensington lock openings; bottom cover provides access to SO-DIMMs, drive bay and M.2 modules
Optional mounting kits	DIR01 for 35mm DIN rail; PRM01 2U rack front plate for up to two compatible XPC slim systems
Cooling pads supplied	2 × RAM thermal pads and 2 × M.2 SSD thermal pads
Declared conformity	EMI: CE, FCC, BSMI, RCM, VCCI; safety: CB, BSMI, cTUVus; RoHS, Energy Star and ErP listed by Shuttle

What's in the Box

Shuttle DS50U5 barebone with soldered Core i5-1335U

1 × 8GB DDR5 SO-DIMM, loose in sealed accessory box

External 90W power adapter and grounded Schuko AC lead

Two metal feet, VESA 75/100mm brackets and mounting screws

2.5-inch drive / M.2 mounting screws and four component thermal pads

Multilingual user guide and Windows driver DVD

What Will Not Work

It cannot serve as a ready-to-use desktop before RAM installation, storage and operating-system setup.

Desktop DDR5 DIMMs and DDR4 SO-DIMMs do not fit the DDR5 SO-DIMM slots.

Do not configure two NVMe SSDs: Shuttle lists one NVMe plus one SATA M.2 SSD for two-drive operation.

Wi-Fi, Bluetooth and mobile broadband require additional compatible hardware.

The optional PCP11 second COM adapter replaces VGA, so that VGA connection is unavailable with this adapter.

Frequently Asked Questions

Are the 8GB RAM, SSD and Windows already installed?

No. The bundle includes one 8GB DDR5 SO-DIMM in the sealed accessory box for you to install. No SSD/HDD or operating system is included. Add compatible storage and install a supported OS with any necessary licence.

Does this configuration provide Iris Xe graphics?

The i5-1335U is Iris Xe eligible, but Intel requires 128-bit dual-channel memory for Iris Xe branding. Using only the single bundled module does not provide that configuration; Intel UHD branding applies to single-channel memory. The platform supports a suitable two-module upgrade.

What should I check for a 24/7 installation?

Maintain unrestricted ventilation and the specified 0–40°C ambient range. Use an HDD approved for continuous operation if fitting one; Shuttle recommends SSD storage above 35°C. Check the supplied Schuko mains lead, display connectors and optional wireless/serial accessories before deployment.

Singular Expert Insight

The value of this bundle is the fanless chassis and business connectivity with an 8GB module included, while leaving storage and software under your control. Budget for an SSD, OS setup and any wireless kit before comparing it with a complete Mini PC. A second suitable RAM module is useful when dual-channel graphics performance matters. Contact Singular for help choosing the storage, memory and deployment accessories. Ask Singular about this barebone configuration Tell us your equipment model and we can check the compatibility requirements.

Buyer’s Guide

Buy it if

You want a fanless i5 platform for signage, POS or office use, need dual wired networking or a serial port, and will install the bundled RAM plus your own storage and OS.

Skip it if

You need a fully assembled Windows PC, wireless connectivity included, a replaceable desktop processor or a dedicated graphics card.

Also consider

A fully configured Mini PC for immediate deployment, or additional compatible RAM, SSD storage and the verified optional Shuttle wireless or mounting kits for this platform.
