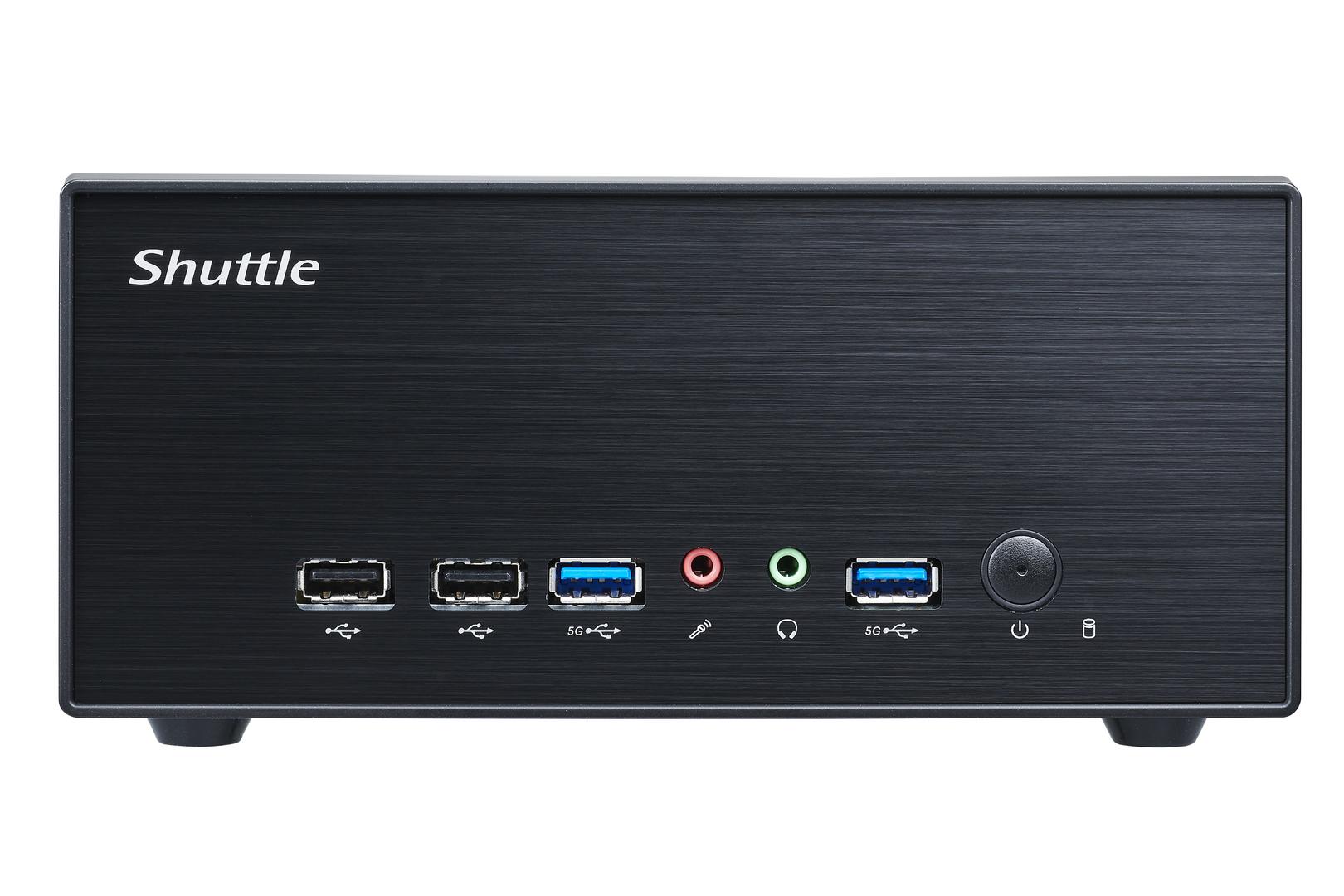

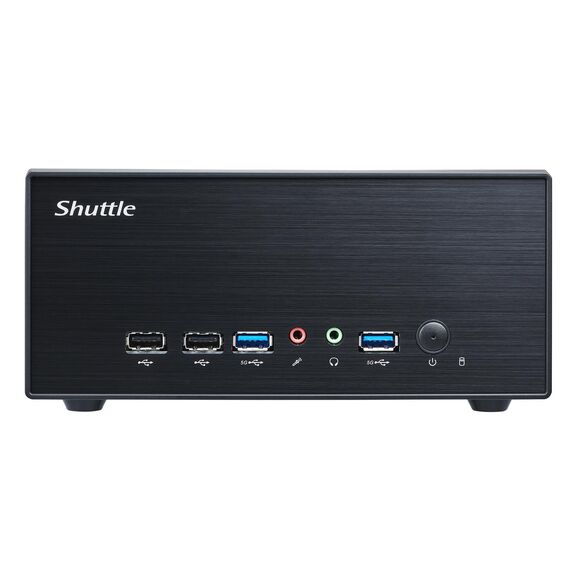

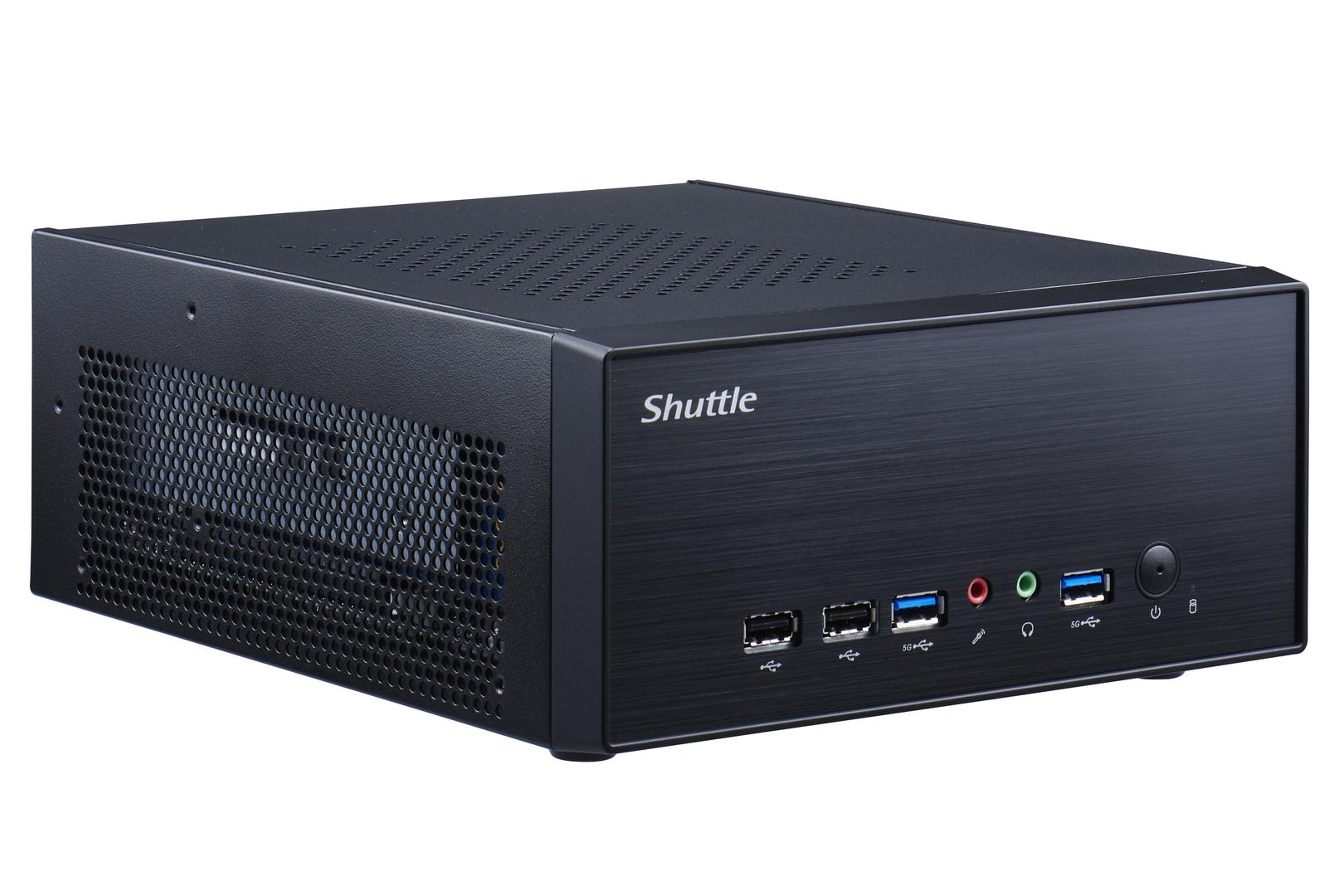

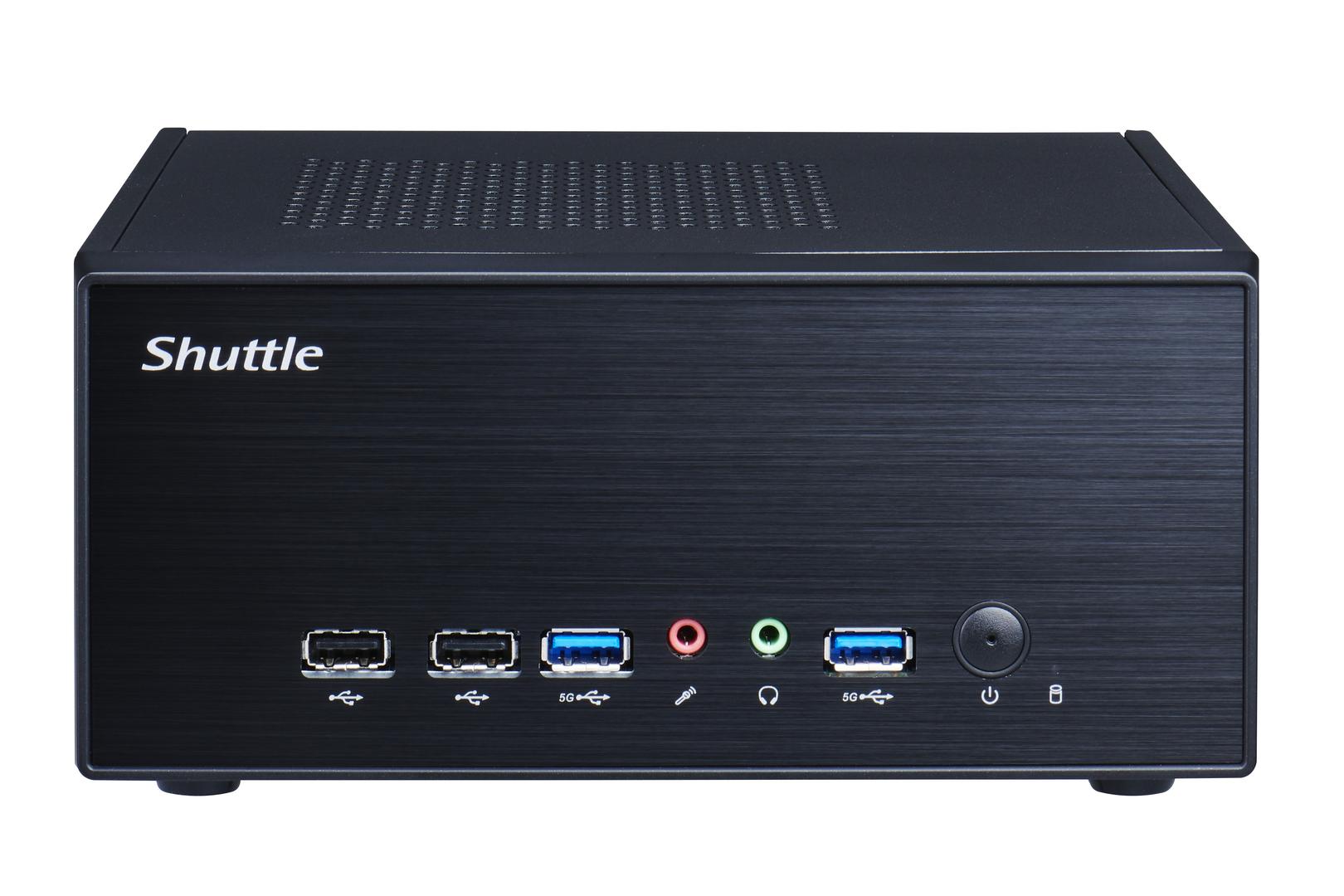

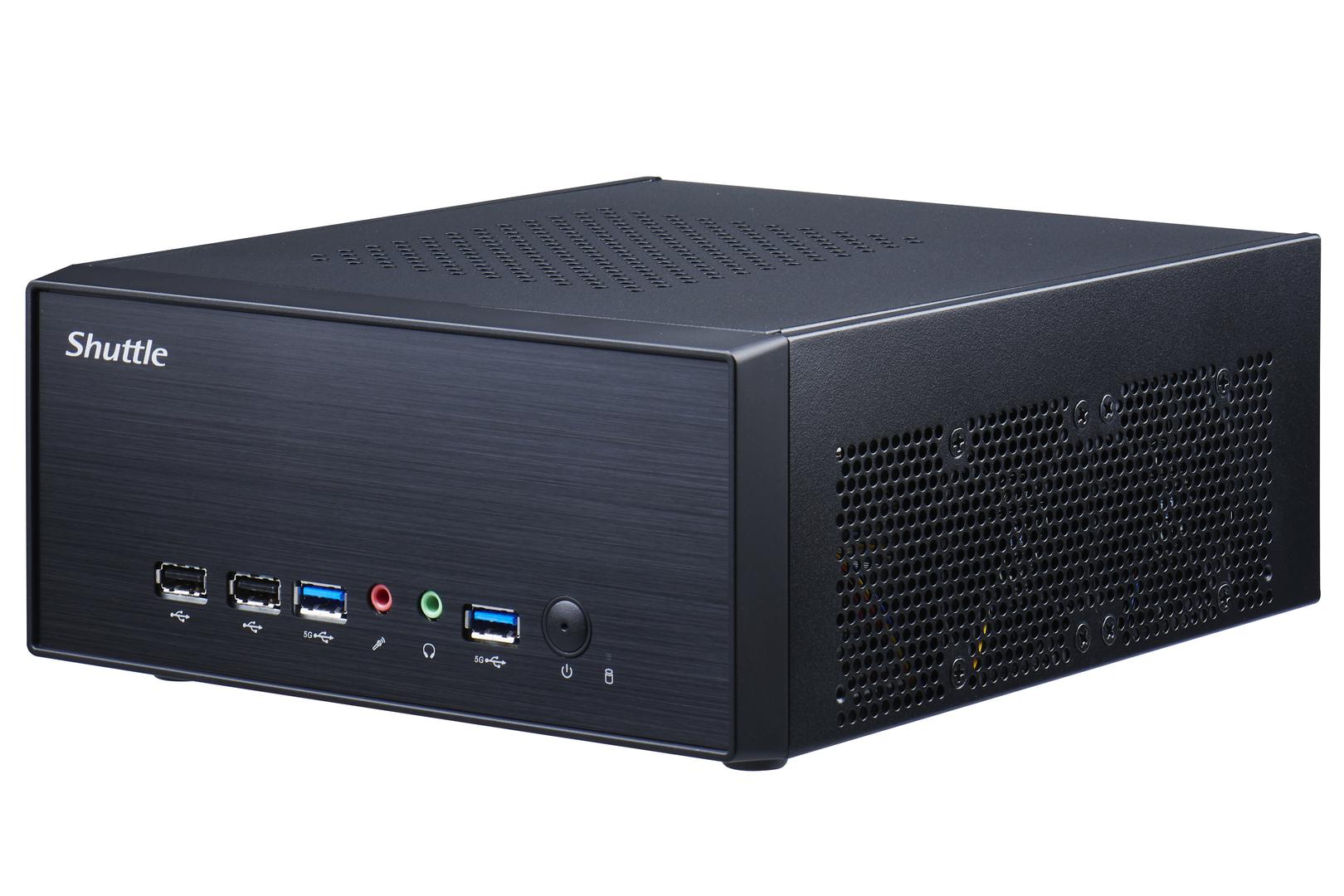

Shuttle XH610G2 Barebone Mini PC Intel H610 LGA 1700 DDR5 No CPU No RAM No SSD No OS

Brand:
Shuttle
Shuttle XP? slim XPC slim Barebone XH610G2 - S1700, Intel H610, 1
Shuttle XH610G2 Barebone Mini PC Intel H610 LGA 1700 DDR5 No CPU No RAM No SSD No OS
€488.41 inc. VAT
Buy
XH610G2
€410.43
€488.41 inc. VAT
Ships from EU stock: 7 item(s)
Compact Shuttle barebone mini PC with DDR5 support, dual LAN and rich display outputs for professional builds.
+ −
Add to wish list Ask a question
CPU Type
Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Product Code
CL99750
EAN Code
0887993006796
Manufacturer
Shuttle

Quick Specs

Processor
LGA 1700
Configuration
Barebone No CPU No RAM No SSD No OS
USB
4
Power
180 W
Product Type
PC barebone
DisplayPort Version
1.4
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

Shuttle XH610G2 Barebone Mini PC Intel H610 LGA 1700 DDR5 No CPU No RAM No SSD No OS

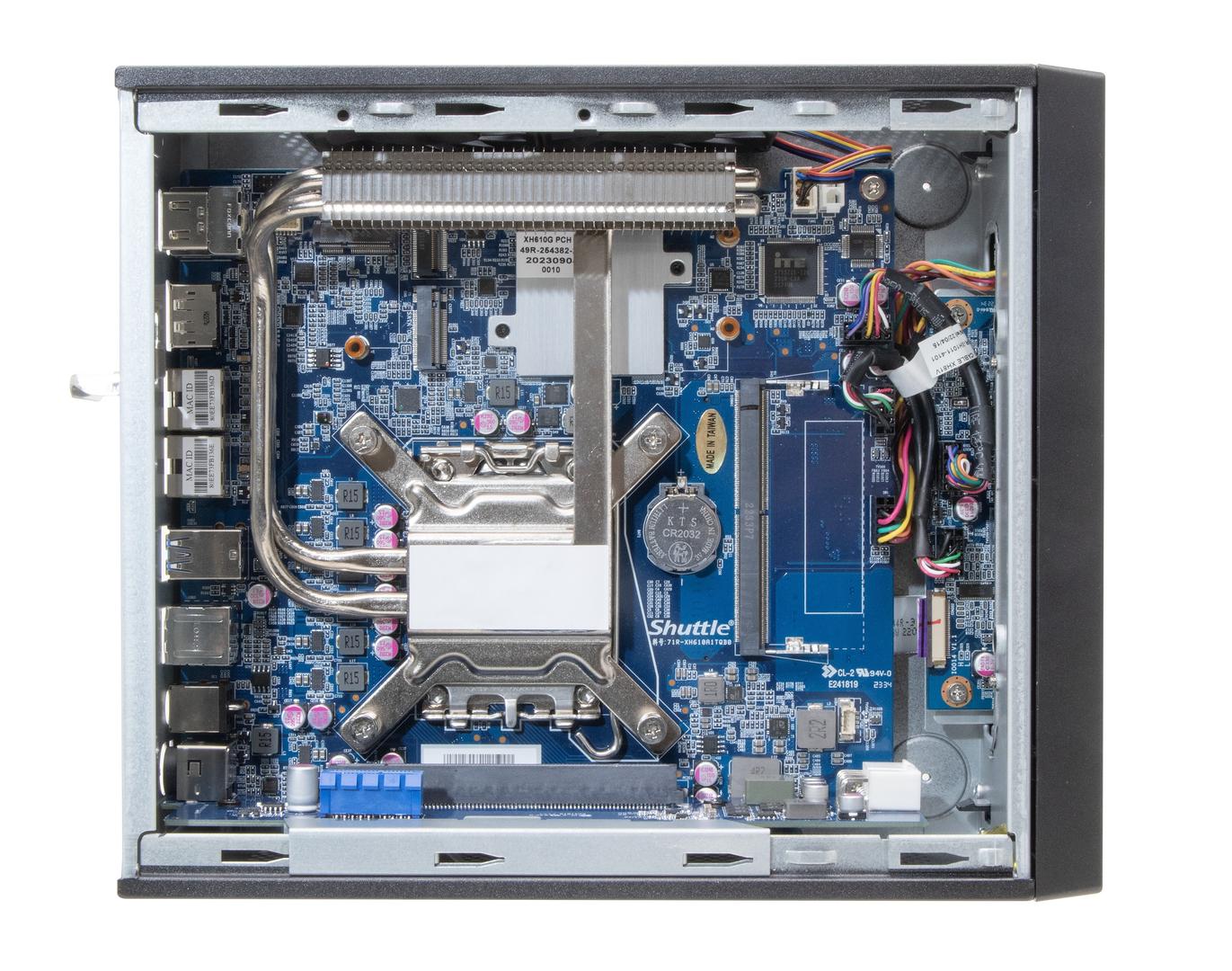

The Shuttle XH610G2 is a compact PC barebone for building a small desktop system around an Intel LGA 1700 processor. It combines an Intel H610 chipset with DDR5 SO-DIMM support, storage support for HDD and SSD, and a wide set of ports for professional use. The barebone is aimed at installations where a compact chassis, expansion flexibility and wired connectivity matter.
LGA 1700 Barebone Platform USB 4

The Shuttle XH610G2 is a compact PC barebone for building a small desktop system around an Intel LGA 1700 processor. It combines an Intel H610 chipset with DDR5 SO-DIMM support, storage support for HDD and SSD, and a wide set of ports for professional use. The barebone is aimed at installations where a compact chassis, expansion flexibility and wired connectivity matter.

Compatibility Note: This is a barebone PC with no built-in processor, RAM, SSD or operating system. Compatible parts must be added before it can be used.
Best For
✓ For installers
✓ business users who need a compact barebone platform for a custom build with wired networking
✓ multiple display outputs
✓ flexible storage options

Key Features


Flexible Barebone Build
A strong base for a tailored small form factor system: LGA 1700 platform, DDR5 support, dual LAN, NVMe and plenty of rear connectivity.

Practical Connectivity
4

Technical Specifications

Product Type PC barebone
Chassis Type Desktop
Motherboard Chipset Intel H610
Processor Socket LGA 1700
Built-in Processor No
Processor Manufacturer Intel
Supported CPUs Intel Core Gen 12/13/14 range
Memory Slots Type SO-DIMM
Memory Slots 2
Supported Memory Types DDR5-SDRAM
Supported Memory Clock Speeds 5600 MHz
Maximum Internal Memory 64 GB
Memory Channels Dual-channel
Memory Voltage 1.1 V
Non-ECC Yes
Supported Storage Drive Types HDD & SSD
Storage Drive Interface PCI Express, Serial ATA III
Storage Drive Sizes Supported 2.5, M.2
NVMe Yes
Ethernet LAN Yes
Ethernet LAN (RJ-45) Ports 2
LAN Controller Intel® I219-LM, Intel I226-LM
Wi-Fi No
Cooling Type Active
Power Supply 180 W
Power Supply Type External AC adapter
AC Input Voltage 100 - 240 V
AC Input Frequency 50/60 Hz
AC Adapter Output Voltage 19.5 V
AC Adapter Output Current 9.23 A
USB 2.0 Ports 4
USB 3.2 Gen 1 Type-A Ports 4
HDMI Ports 2
HDMI Version 2.0b
DisplayPorts 1
DisplayPort Version 1.4
Microphone In Yes
Headphone Outputs 1
DC-in Jack Yes
On-board Graphics Card Yes
Trusted Platform Module (TPM) Yes
TPM Version 2.0
Audio Output Channels 7.1 channels
Audio Chip Realtek ALC888S
Built-in Speaker(s) No
On/off Switch Yes
LED Indicators Yes
Product Colour Black
Width 250 mm
Depth 200 mm
Height 95 mm
Weight 2.98 kg
Package Weight 3.49 kg
Windows Operating Systems Supported Windows 11
Linux Operating Systems Supported Yes
Power Cord Included Yes
AC Adapter Included Yes
Quick Start Guide Yes
Drivers Included Yes
Sustainability Certificates ENERGY STAR, ErP
Compliance Certificates BSMI, CB, CE, FCC, RCM, RoHS, UKCA, VCCI, cTUVus
Country of Origin China
SKU / EAN XH610G2 | 0887993006796

Frequently Asked Questions

Is this a complete ready-to-use PC?
This is a barebone PC with no built-in processor, RAM, SSD or operating system. Compatible parts must be added before it can be used.
Singular Expert Insight
A strong base for a tailored small form factor system: LGA 1700 platform, DDR5 support, dual LAN, NVMe and plenty of rear connectivity.

Buyer’s Guide

Buy it if
For installers and business users who need a compact barebone platform for a custom build with wired networking, multiple display outputs and flexible storage options.
Skip it if
This is a barebone PC with no built-in processor, RAM, SSD or operating system. Compatible parts must be added before it can be used.
