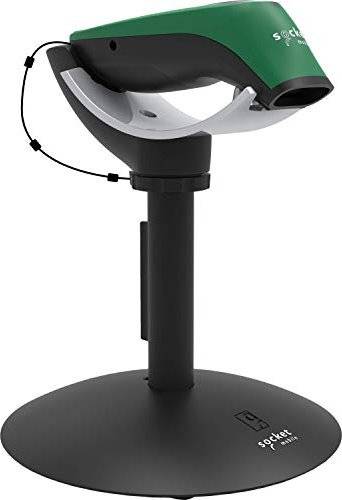

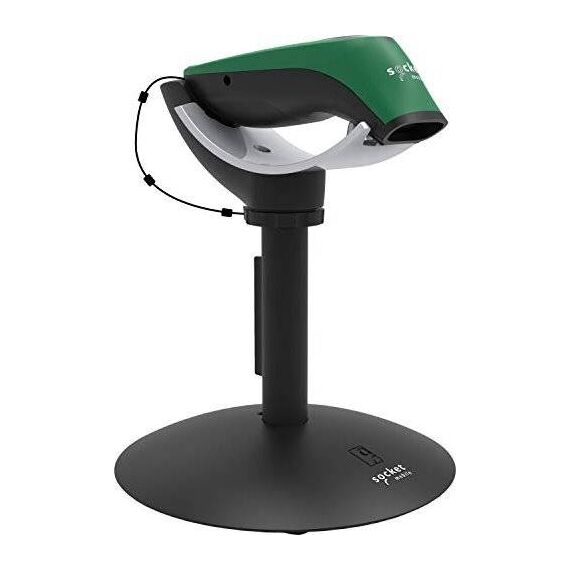

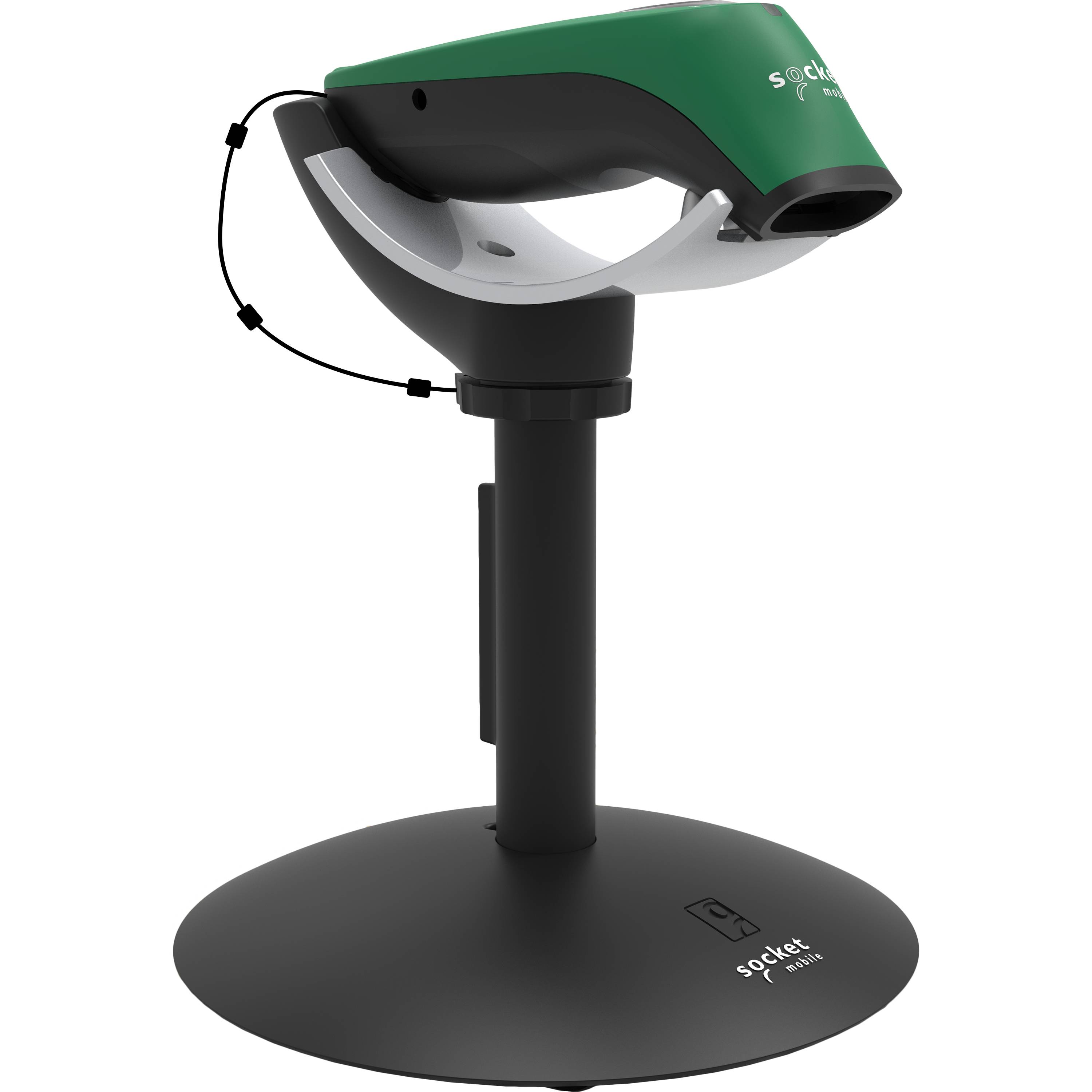

Socket Mobile SocketScan S740 Bluetooth 1D/2D Scanner with Charging Stand, Green

Brand:
SOCKET MOBILE
Socket Mobile SocketScan S740 Green Bluetooth 1D 2D Scanner with Charging Stand
Socket Mobile SocketScan S740 Bluetooth 1D/2D Scanner with Charging Stand, Green
€562.11 inc. VAT
Buy
CX3533-2135
€472.36
€562.11 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
Product Code
Y340602
EAN Code
0758497114945
Manufacturer
SOCKET MOBILE
Features
Bluetooth, Wireless

Quick Specs

Capture
1D/2D, paper and screens
Wireless
Bluetooth 2.1 + EDR · up to 10 m
Package
Scanner + charging stand
Power
2 × AA NiMH · charging USB cable
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Bluetooth 1D/2D scanning with an included presentation stand

1D / 2DBluetoothStand includedGreen

The green Socket Mobile SocketScan S740 CX3533-2135 is a Bluetooth barcode-scanning bundle for a retail or service counter. It includes one S740 scanner, a charging stand for presentation use, two rechargeable AA NiMH batteries, a USB charging cable and wrist strap. It reads supported 1D/2D codes on paper and screens and supports OCR/MRZ workflows with suitable software. A compatible host and receiving application are required; the scanner does not independently validate identity documents or age.

Before you order:
Check the exact host, Bluetooth profile, keyboard layout and application. HID sends keyboard-style input; application modes need suitable software integration. The supplied cable charges the scanner and does not turn it into a USB data scanner.

What's in the Box

  • 1 × green S740 CX3533-2135 scanner with 2 rechargeable 2000 mAh AA NiMH batteries.
  • 1 × charging stand, 1 × USB cable and 1 × wrist strap.
  • Receiving host/application and any separate wall power adapter must be provided as needed.

What It Means in Practice

  • Pair the scanner with the host using the mode supported by the application, open the receiving field and scan. Your POS or inventory software interprets the data and performs the transaction.
  • For example, scan a product’s printed barcode, then a supported QR code displayed on a customer’s phone. The software must understand both workflows.
  • Configure Auto (Presentation) Mode and position the scanner in the included stand to scan presented codes without pressing the trigger. Lift it out for handheld tasks. The stand charges it; data still travels by Bluetooth.

What Will Not Work

  • This is not a standalone inventory terminal or payment reader; the host application supplies the business functions.
  • OCR and barcode capture do not validate document authenticity or enforce age rules. Those functions depend on the receiving software and its supported document formats.

Key Features


Paper and screen codes
A 1D/2D imager handles supported printed labels and electronic barcodes.

Bluetooth host connection
Class 2 Bluetooth 2.1 + EDR supports HID and application profiles with compatible hosts.

Clear user feedback
LEDs, sound and vibration help the operator confirm scanning and connection status.

Barcode and OCR workflows
The S740 family supports OCR/MRZ capture for compatible applications; document processing remains a host-software function.

Technical Specifications

EXACT CONFIGURATION
MPN CX3533-2135
EAN 0758497114945
Scanner / stand colours Green scanner; black/white stand
Package 1 × S740, 1 × Charging Stand, USB cable, wrist strap; 2 × AA NiMH included
Charging connection USB-C charging stand with USB-C to USB-C cable
SCANNING
Engine Omnidirectional 1D/2D imager
Media Paper and electronic screens
Scan angle 44.5° horizontal × 33.5° vertical
Aimer LED pointer
Default 1D formats Bookland EAN, Codabar, Code 128, Code 39, Code 93, EAN/JAN-13, EAN/JAN-8, GS1-128, GS1 DataBar Expanded, Limited, Omnidirectional, Interleaved 2 of 5, ISBT 128 UDI, Trioptic, UPC-A, UPC-E
Default 2D formats Aztec, Composite, Data Matrix, GS1 Data Matrix, GS1 QR, Han Xin, MaxiCode, MicroPDF417, Micro QR, PDF417, QR
Additional formats Code 11, Matrix 2 of 5, MSI; Australian Post, Japan Postal, Mailmark, Netherlands KIX, UK Postal, US Planet, US Postnet, USPS 4CB
OCR support MRZ; OCR-A, OCR-B, OCR USC, passport, MICR E13B; software/configuration dependent
TYPICAL DECODE DISTANCES
Code 39, 5 mil 5.5–11.5 cm
Data Matrix, 10 mil 4–10 cm
UPC/EAN, 13 mil 5.5–28 cm
Code 128, 15 mil 5.5–38 cm
QR, 15 mil 4–20 cm
Distance conditions Depends on barcode size, symbology and label medium
Format configuration Some supported formats require enabling; verify your labels
WIRELESS AND HOST
Bluetooth Class 2, version 2.1 + EDR
Encryption 56-bit
Range Up to 10 m, host/environment dependent
Profiles HID, SPP, MFi-SPP; host-dependent availability
Host platforms Apple iOS, Android, Windows; Mac OS in HID mode; verify app/profile
Setup / integration Socket Mobile Companion; CaptureSDK-integrated applications
BATTERY AND PHYSICAL
Batteries 2 × rechargeable AA (LR6) NiMH, 2000 mAh, replaceable
Charge time Approximately 6 hours
Standby reference Over 20 hours
Battery conditions Runtime depends on scanning duty cycle, light, temperature and battery age
Dimensions, manufacturer diagram 5.2 × 1.4 × 1.6 in
Trigger life 1 million actuations
Controls Scan button and power button; on-screen keyboard control in HID
Feedback Battery, Bluetooth and scan LEDs; beep and vibration
ENVIRONMENT AND SUPPORT
Ambient light 0–100000 lux
Operating temperature 0°C to 45°C
Storage temperature −40°C to 70°C
Humidity 95% at 60°C, non-condensing
Drop reference 4 ft onto linoleum
Manufacturer warranty 1 year included, subject to Socket Mobile terms
LED safety IEC/EN 62471, Exempt Group

Frequently Asked Questions

What is included in CX3533-2135?
One green S740, charging stand, two rechargeable AA NiMH batteries, USB cable and wrist strap.
Does the charging cable transfer scanned data?
The cable is for charging. Scanned data is sent through the configured Bluetooth connection to the receiving host.
Can it read QR from a phone?
Yes, supported QR codes on screens can be read. Your receiving application must support the intended use.
Singular Expert Insight
Choose this bundle when hands-free presentation scanning and charging at the counter is useful. Confirm the USB power source, host profile and application before deployment. Compare other readers: Barcode scanners at Singular

Buyer’s Guide

✓

Buy it if

 you need Bluetooth 1D/2D scanning with the included presentation stand.
✕

Skip it if

 you need industrial sealing, standalone software or a USB data scanner.
→

Also consider

 the dock bundle if your preferred counter arrangement differs.
Confirm label samples, application support and charging accessories with Singular.
