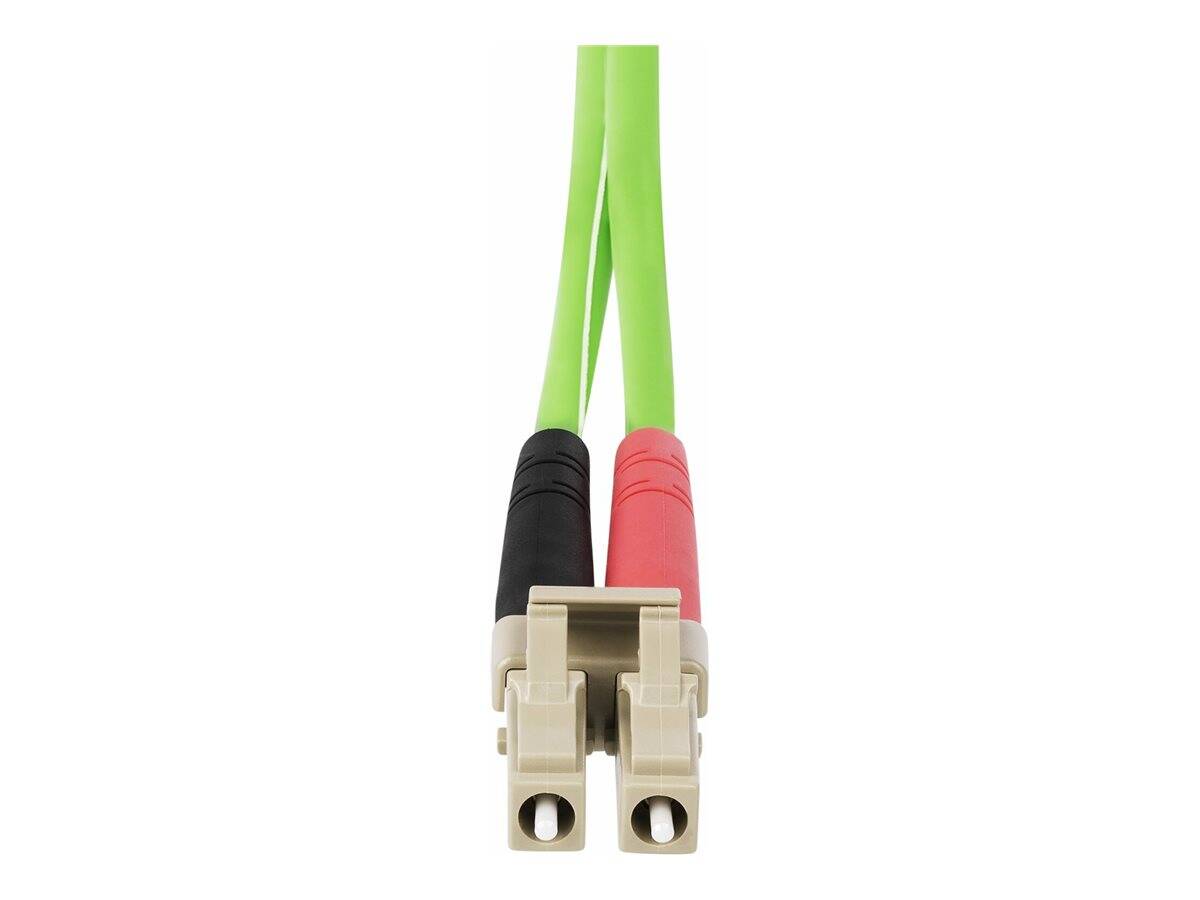

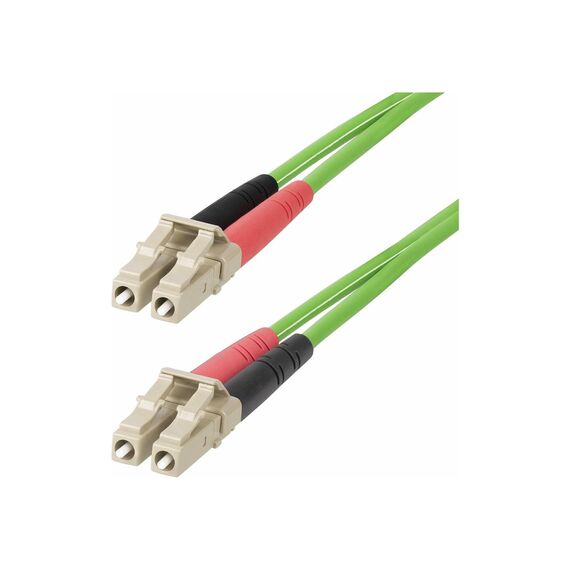

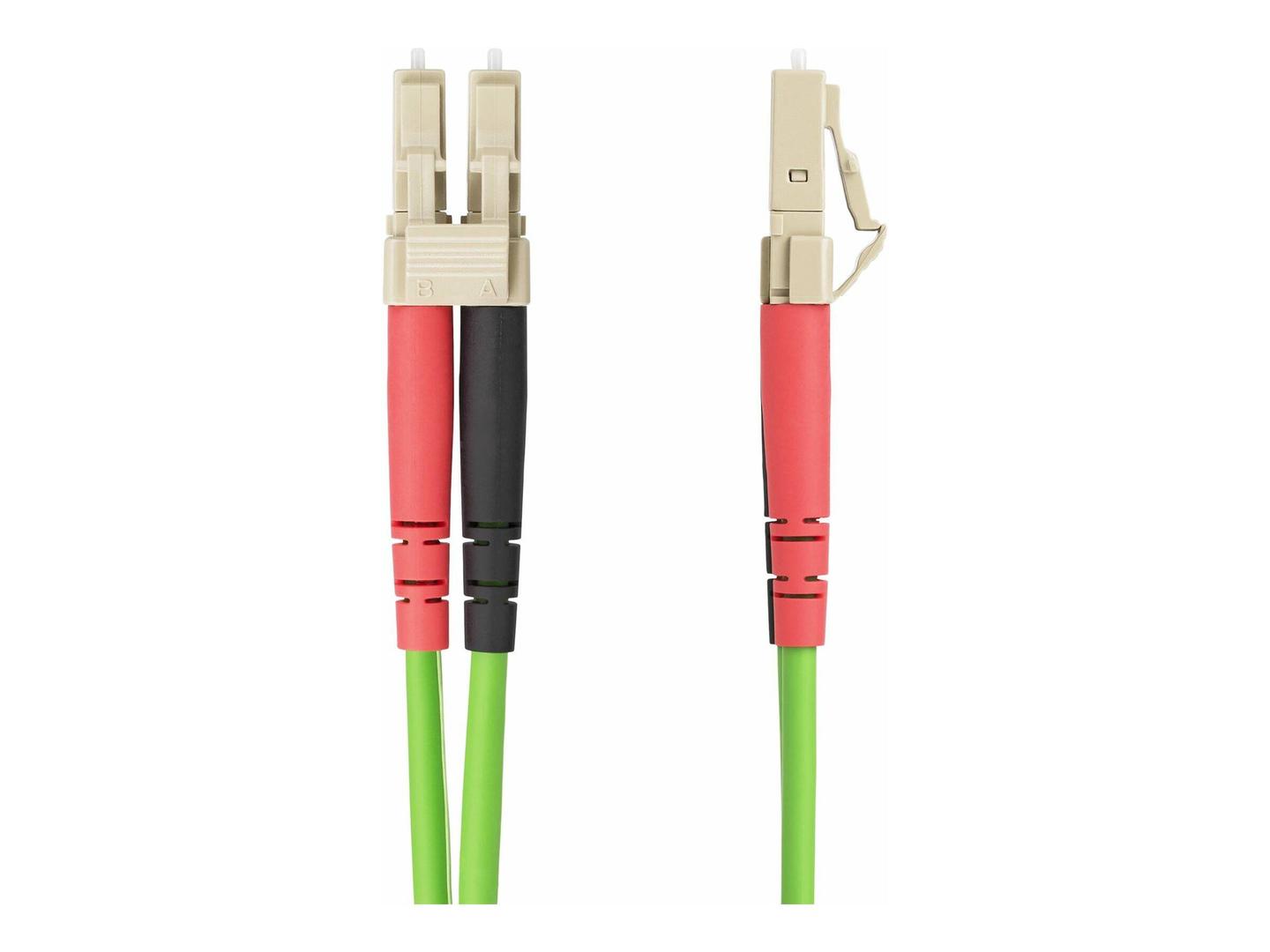

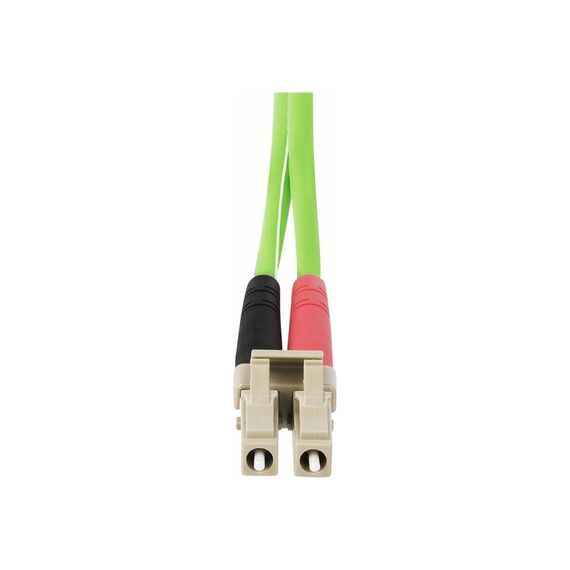

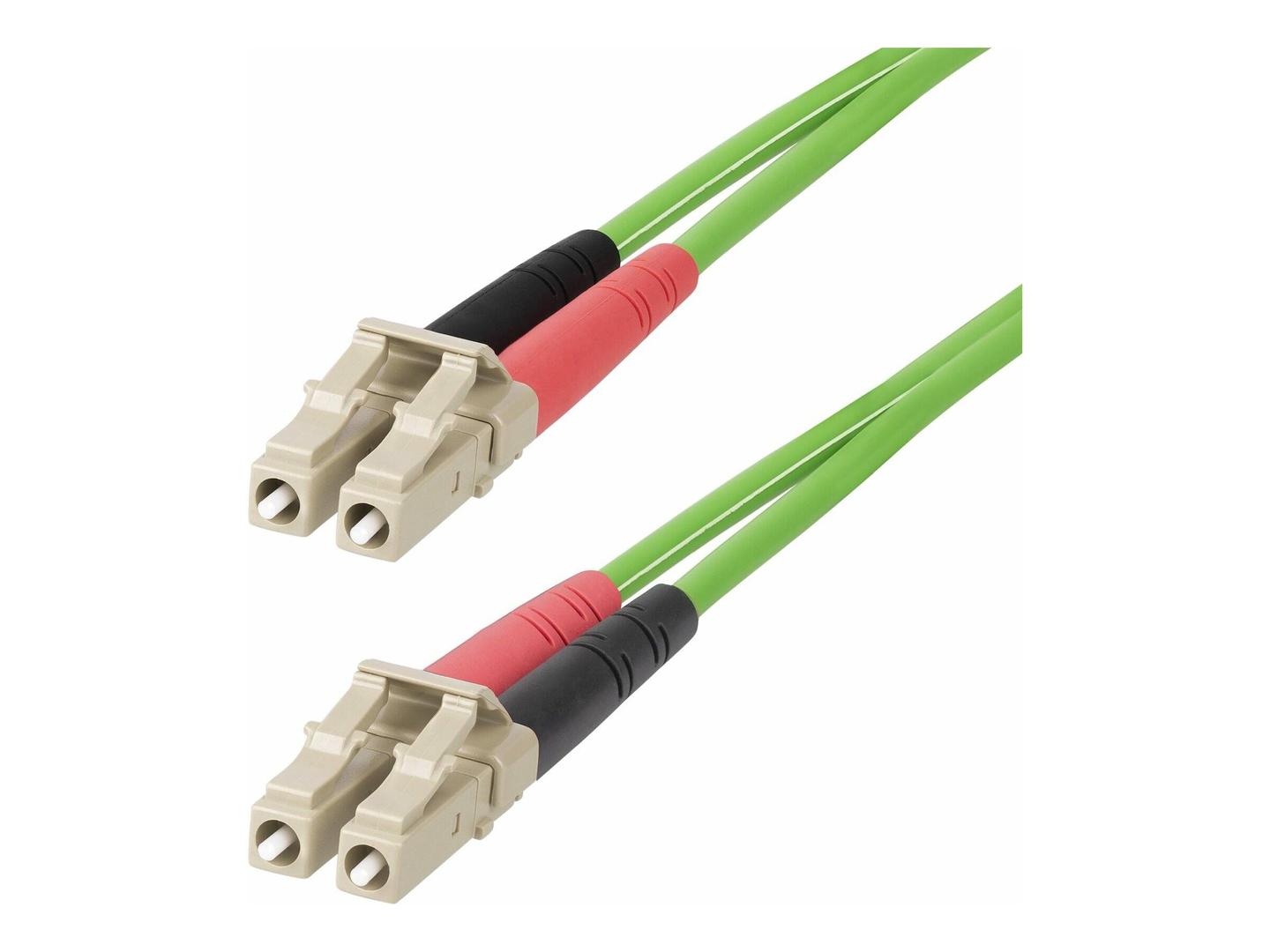

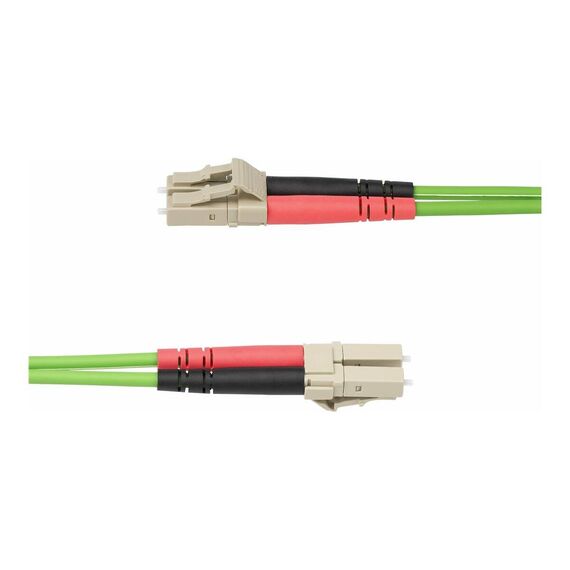

StarTech.com LCLCL-10M-OM5-FIBER 10 m OM5 Duplex Multimode Fibre Cable, LC/UPC, Up to 100 Gbps

Brand:
StarTech.com
StarTech.com 10m (30ft) LC to LC (UPC) OM5 | LCLCL-10M-OM5-FIBER
StarTech.com LCLCL-10M-OM5-FIBER 10 m OM5 Duplex Multimode Fibre Cable, LC/UPC, Up to 100 Gbps
€62.08 inc. VAT
Buy
LCLCL-10M-OM5-FIBER
€52.17
€62.08 inc. VAT
Ships from EU stock: 13 item(s)
+ −
Add to wish list Ask a question
Product Code
CI91372
EAN Code
0065030900959
Manufacturer
StarTech.com

Quick Specs

Data Transfer Rate
Up to 100 Gbps
Product Type
Cable
Colour
Green
Product Type
Network patch cable
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

StarTech.com OM5 10 m Duplex Fibre Cable - LC/UPC and 100 Gbps

The StarTech.com LCLCL-10M-OM5-FIBER is a 10 m OM5 laser-optimised multimode duplex fibre optic patch cable for network connections. With LC/UPC connectors at both ends, support for up to 100 Gbps and compatibility with 10G, 40G and 100G networks, it suits fibre switches, servers, SANs and compatible SFP+, QSFP+ and QSFP28 equipment.
Up to 100 Gbps Cable Green Network patch cable

The StarTech.com LCLCL-10M-OM5-FIBER is a 10 m OM5 laser-optimised multimode duplex fibre optic patch cable for network connections. With LC/UPC connectors at both ends, support for up to 100 Gbps and compatibility with 10G, 40G and 100G networks, it suits fibre switches, servers, SANs and compatible SFP+, QSFP+ and QSFP28 equipment.

Best For
✓ A suitable choice for network
✓ Data-centre installations using OM5 multimode fibre
✓ LC/UPC connections
✓ Compatible 10G

Key Features


Commercial Fit
The main advantage is the combination of OM5 LOMMF construction, LC/UPC duplex connectivity and support for up to 100 Gbps. Its extended 850-953 nm support is designed for SWDM applications, while compatibility with OM4 and OM3 10G networks adds installation flexibility.

Data Transfer Rate
Data Transfer Rate: Up to 100 Gbps

Colour
Colour: Green

Attenuation
Attenuation: <2.4 dB/km

Technical Specifications

Product Type Network patch cable
Cable Type OM5 duplex multimode fibre optic cable
Fibre Type Laser-optimised multimode fibre (LOMMF)
Length 10 m
Connector 1 2 x LC/UPC multimode male
Connector 2 2 x LC/UPC multimode male
Data Transfer Rate Up to 100 Gbps
Network Compatibility 10G, 40G and 100G networks
Backward Compatibility OM4 and OM3 10G networks
Core and Cladding Diameter 50 / 125 micron
Wavelength 840 / 953 / 1300 nm
Supported Wavelengths 850-953 nm VCSEL sources and 1300 nm LEDs
Supported Multiplexing SWDM
Cable Diameter 2.9 mm
Jacket Material Low Smoke Zero Halogen (LSZH)
Sheathing Flame-retardant LSZH with low smoke and zero halogen emissions
Reinforcement Aramid sheathing
Colour Green
Connector Polishing UPC
Polarity Colour-coded connectors
Fibre Alignment Precision-manufactured ceramic ferrules
Insertion Loss ≤0.3 dB
Attenuation <2.4 dB/km
Return Loss ≥30 dB
Modal Bandwidth at 850 nm 4700 MHz.km
Modal Bandwidth at 953 nm 2470 MHz.km
Bend Radius 3-6 cm
Bend Performance Bend insensitive with high resistance to microbending
Testing Each cable individually tested for insertion-loss performance
Insertion-Loss Standard Meets or exceeds TIA/EIA-568 industry standard
Compliant Standards RoHS, TIA/EIA-568
Compatible Equipment Fibre switches, servers, SANs, SFP+, QSFP+ and QSFP28 modules
Warranty Limited lifetime warranty
SKU / EAN LCLCL-10M-OM5-FIBER | 0065030900959

Frequently Asked Questions

What should I know before buying?
Check that both connected devices use compatible multimode fibre interfaces with LC/UPC connectors. The stated network speeds depend on the connected equipment, modules and network configuration; this cable is specified for 10G, 40G and 100G networks.
What is it compatible with?
10G, 40G and 100G networks
What are the key specifications?
Data Transfer Rate: Up to 100 Gbps | Colour: Green | Product Type: Network patch cable
Singular Expert Insight
The main advantage is the combination of OM5 LOMMF construction, LC/UPC duplex connectivity and support for up to 100 Gbps. Its extended 850-953 nm support is designed for SWDM applications, while compatibility with OM4 and OM3 10G networks adds installation flexibility.

Buyer’s Guide

Buy it if
A suitable choice for network and data-centre installations using OM5 multimode fibre, LC/UPC connections and compatible 10G, 40G or 100G equipment. It is also relevant where SWDM support and LSZH sheathing are important.
Skip it if
Check that both connected devices use compatible multimode fibre interfaces with LC/UPC connectors. The stated network speeds depend on the connected equipment, modules and network configuration; this cable is specified for 10G, 40G and 100G networks.
Also consider
If your installation only requires standard OM3 or OM4 10G connectivity and does not need the OM5 or SWDM positioning, a compatible OM3 or OM4 cable may be a simpler alternative.
