18U Hinged Wall-Mount Network Cabinet
18U, 19″6–40.6 cm depth90 kgHinged rear access

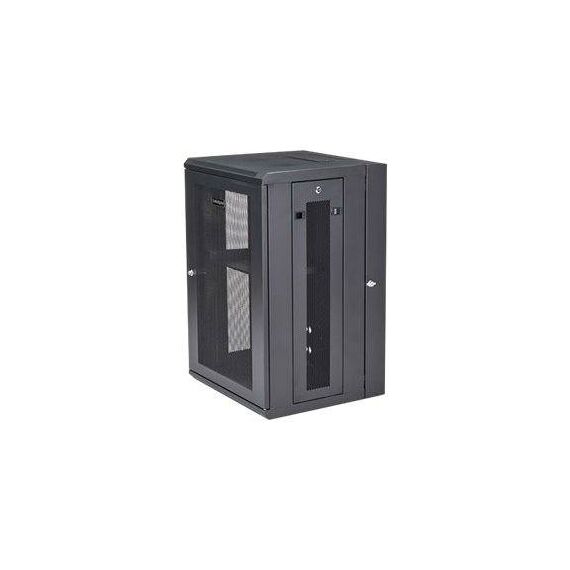

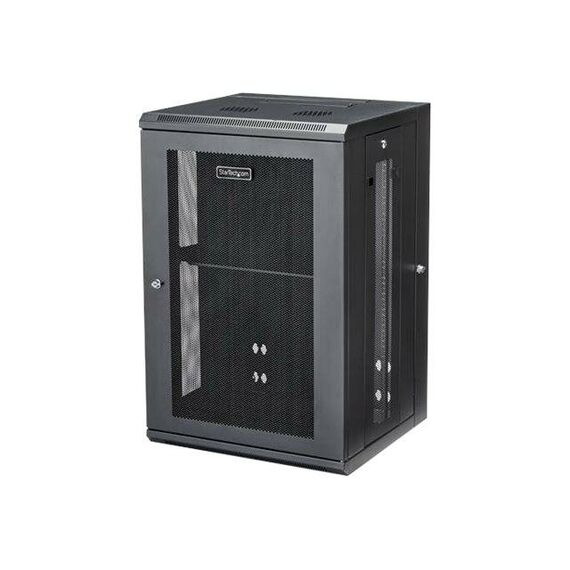

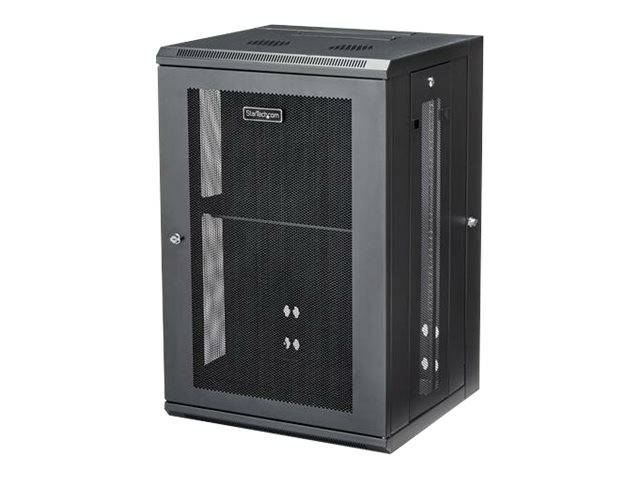

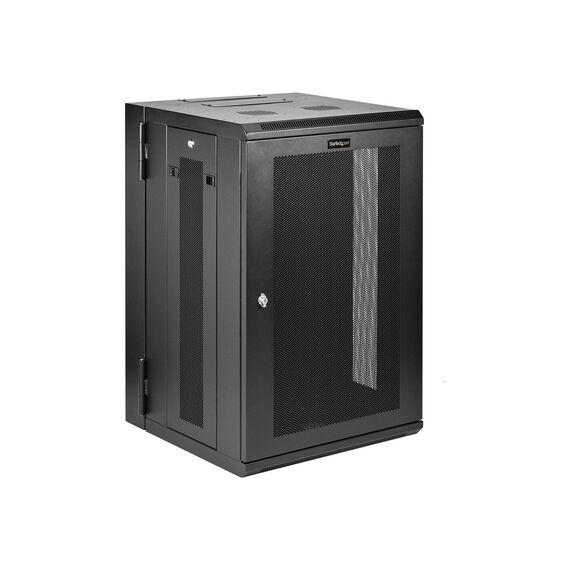

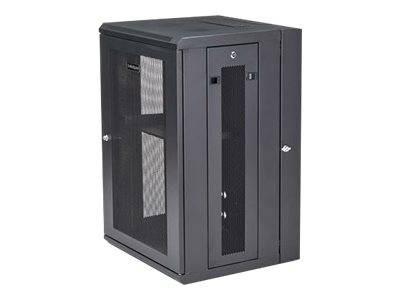

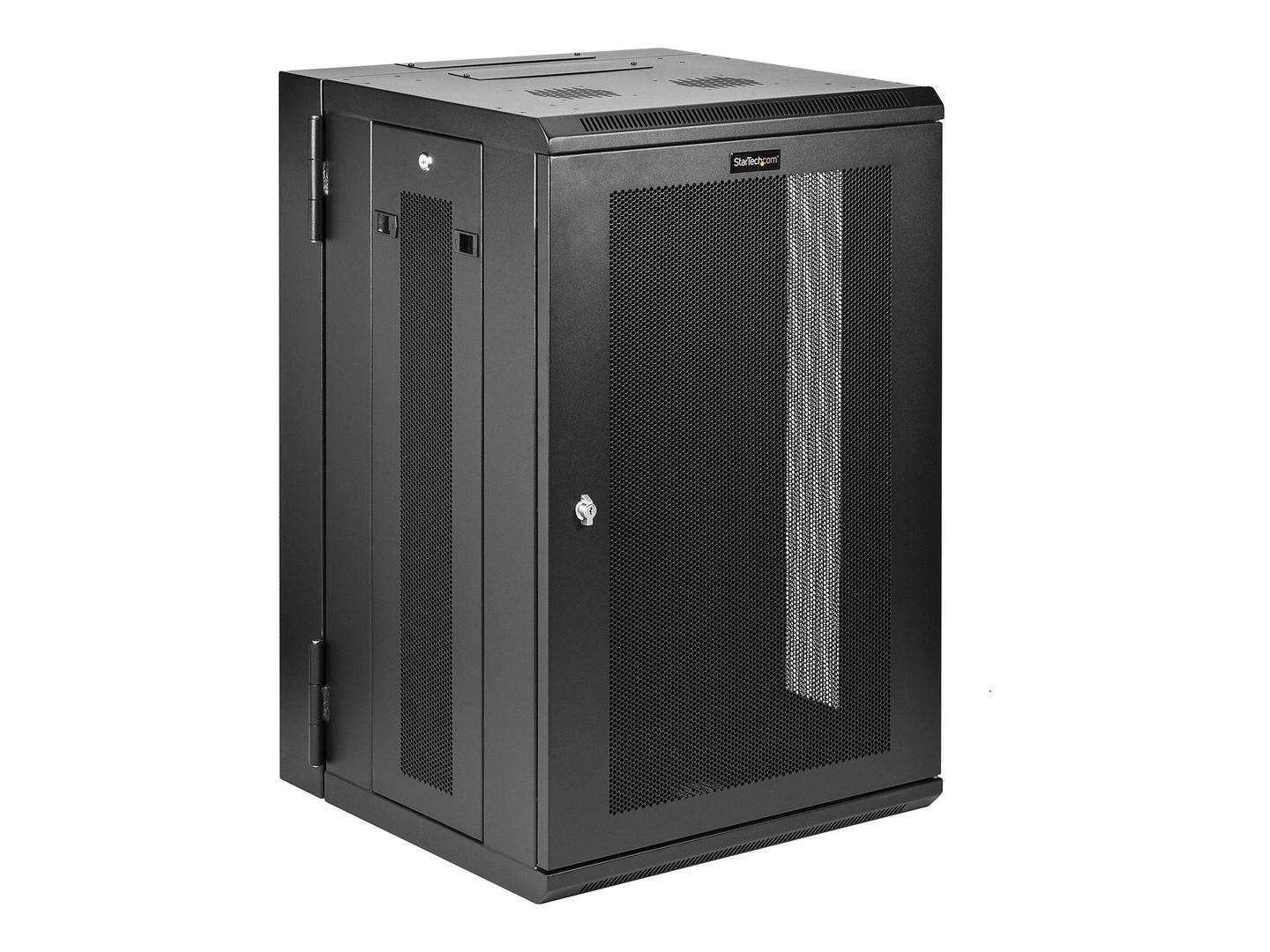

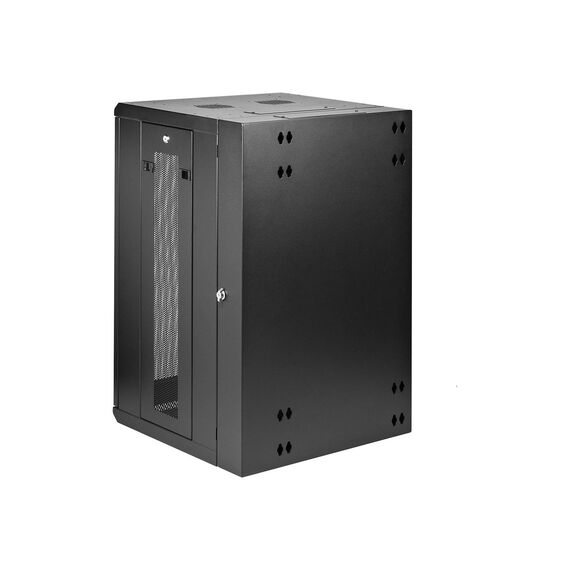

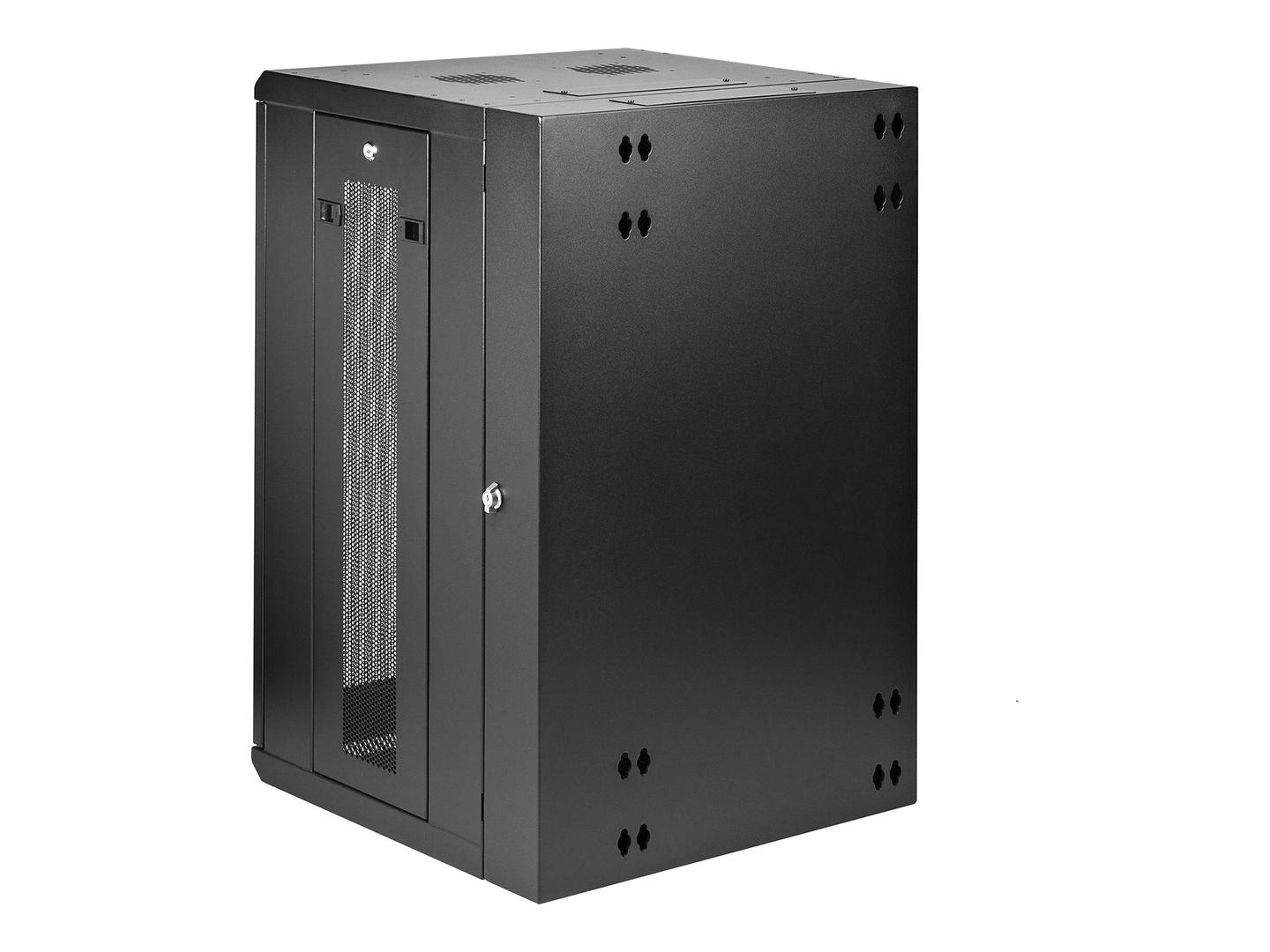

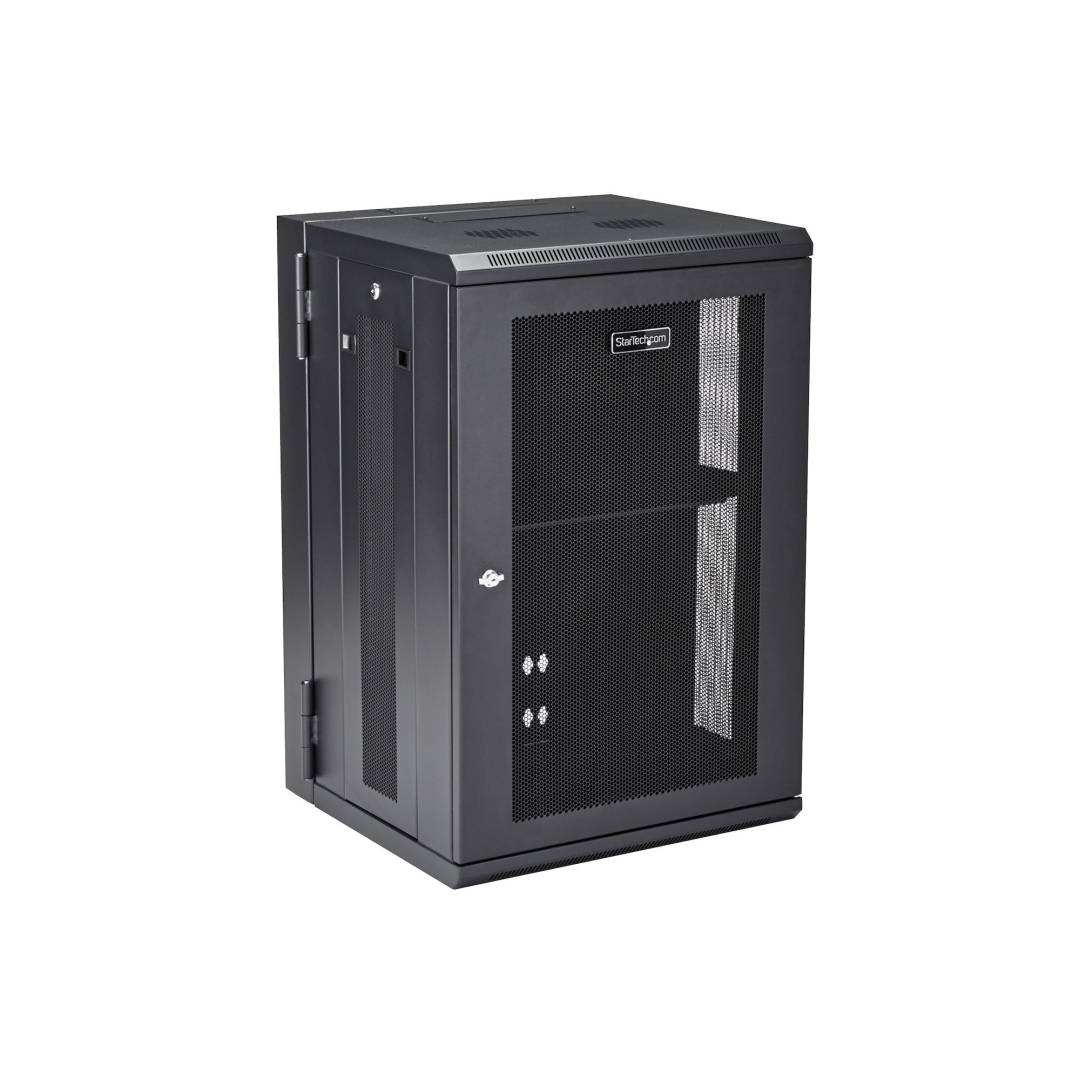

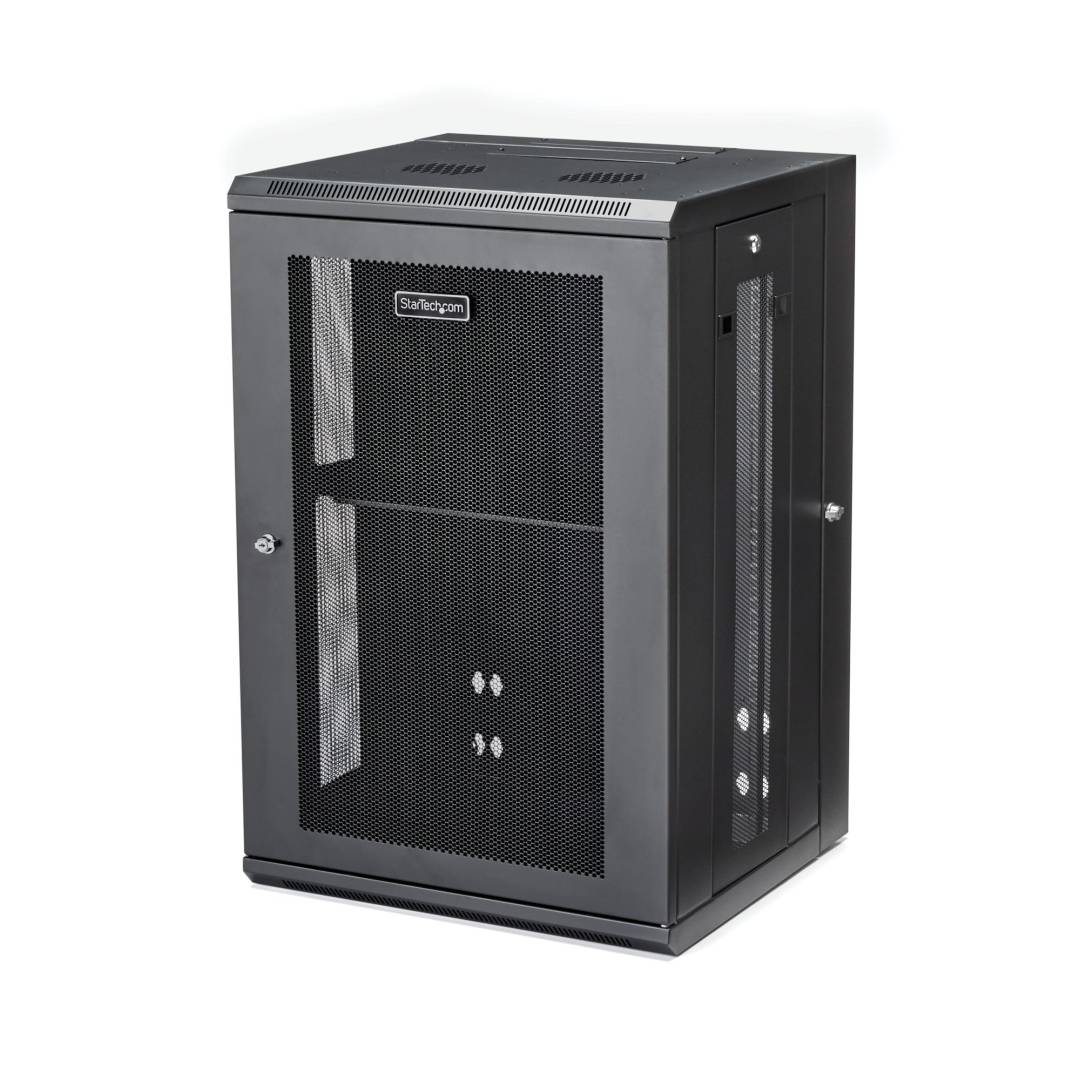

The StarTech.com RK1820WALHM is an 18U, 19″ hinged wall-mount network cabinet with four mounting posts. The cabinet swings out from its wall frame on hinges, so you reach the back of the equipment without taking anything down. The rails adjust from 6 to 40.6 cm of mounting depth, with square and threaded holes and U markings, and the cabinet carries up to 90 kg of equipment. The steel mesh front door and the mesh side panels lock with keys, there is room for four optional 120 mm fans, and a grounding lug is fitted. It arrives fully assembled with a 1U shelf. In practice it gives a full office network stack a lockable home on the wall.
Compatibility — check before buying:
Maximum equipment depth 40.6 cm, even though the cabinet itself is 55 cm deep — full-depth servers will not fit. Heavy on the wall: the cabinet alone weighs 67.7 kg, plus up to 90 kg of equipment, so it needs a structural wall and anchors rated for the total; anchors are not included. Leave room for the cabinet to swing open. Send us the models of the devices you want to install and we check depth, height and weight for you.
Best For
✓ Complete office network stacks
✓ Patch panels and several switches
✓ Firewalls, routers and NVRs
✓ Comms rooms without floor space
✓ Schools and branch offices
✓ Sites that need rear access on the wall
Key Features

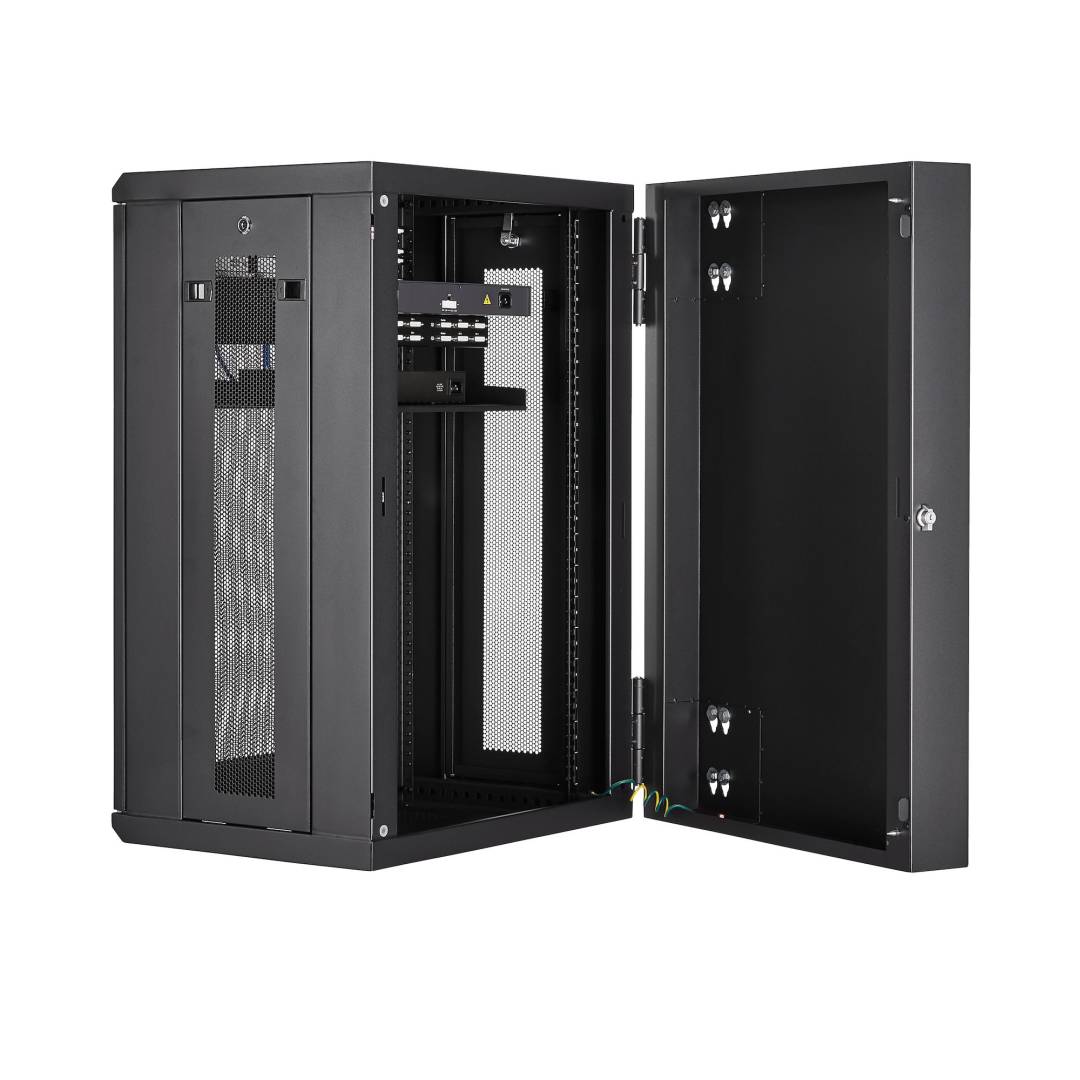

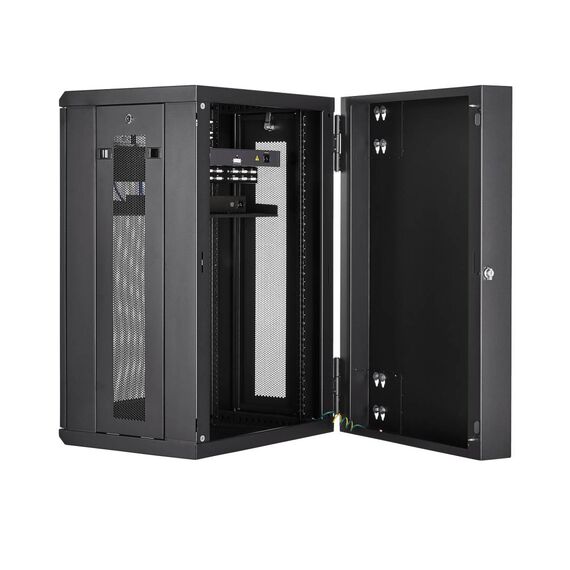

Hinged for rear access
The cabinet swings out from the wall frame for cabling at the back.
18U of space

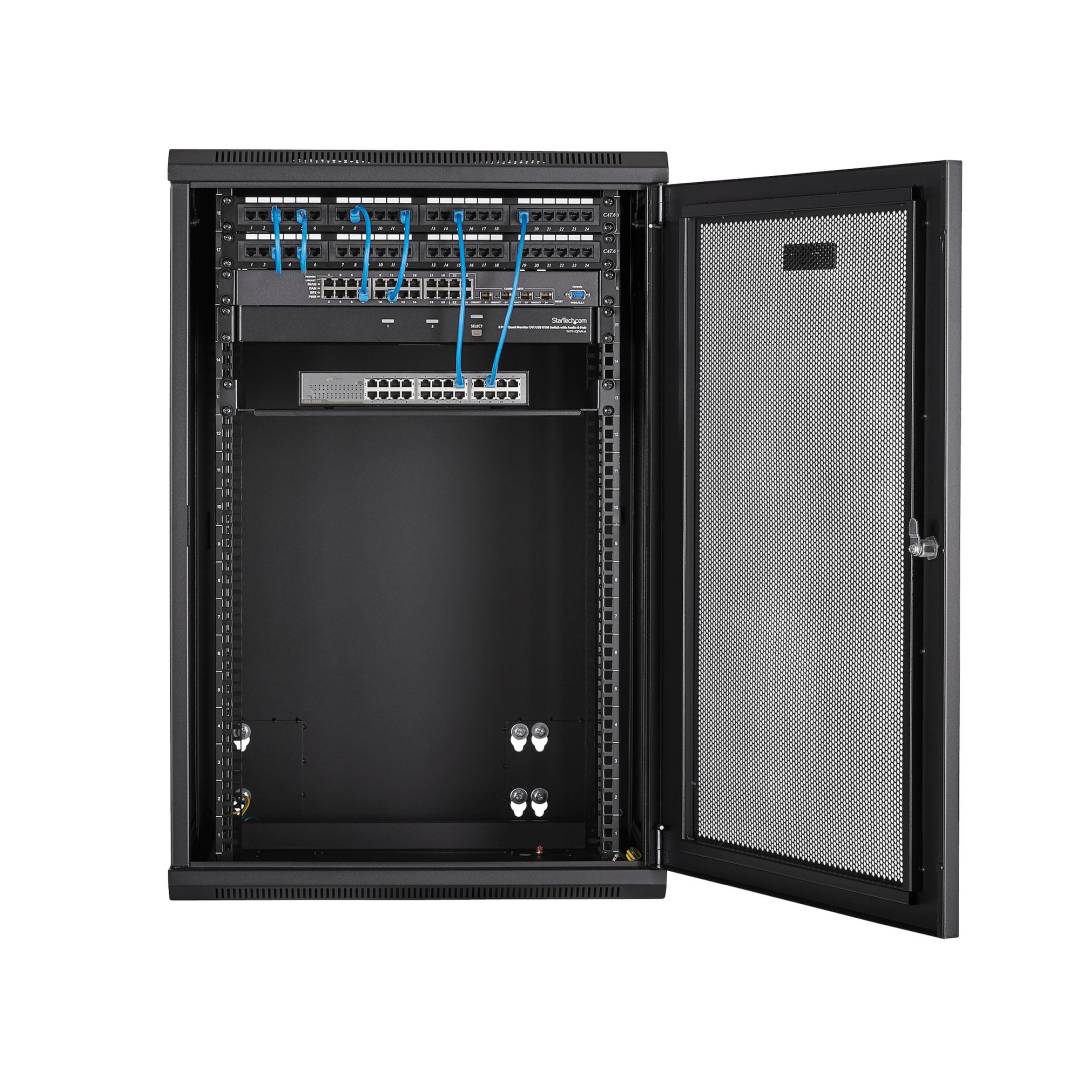

Room for patch panels, switches, a firewall and an NVR.
Lockable
Mesh front door and side panels with keys.
Ready to hang

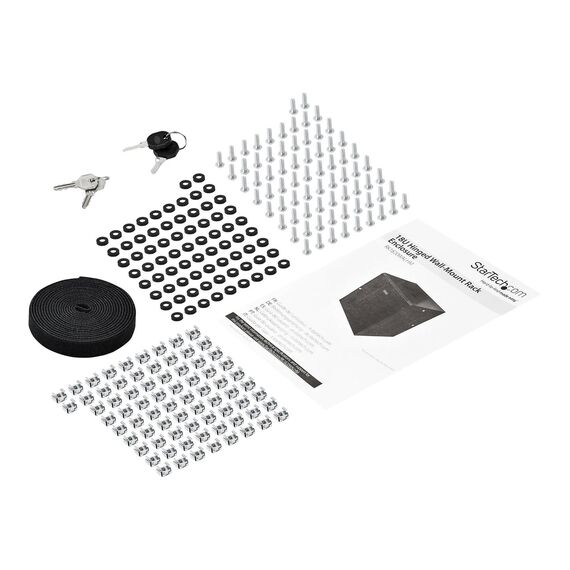

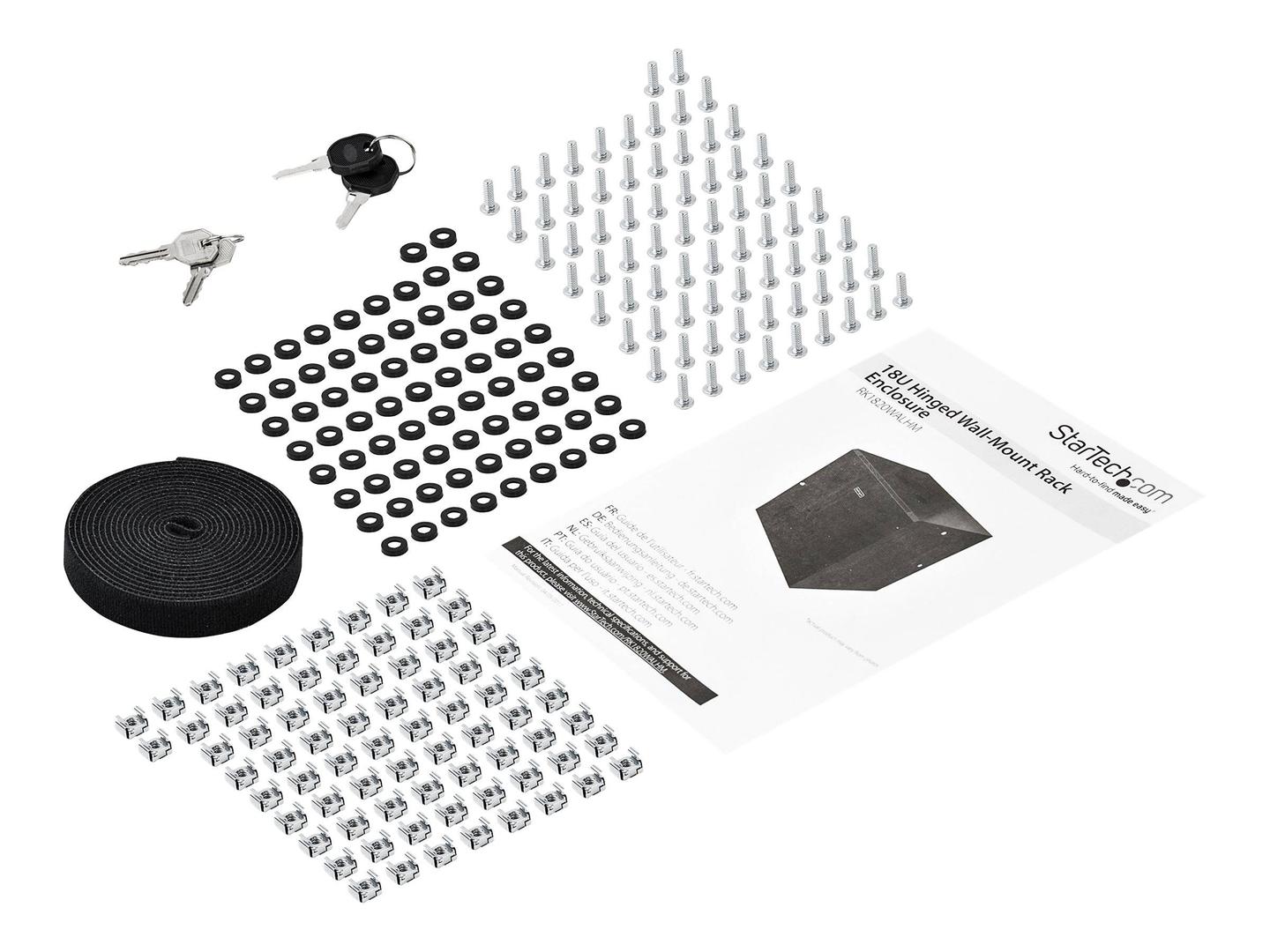

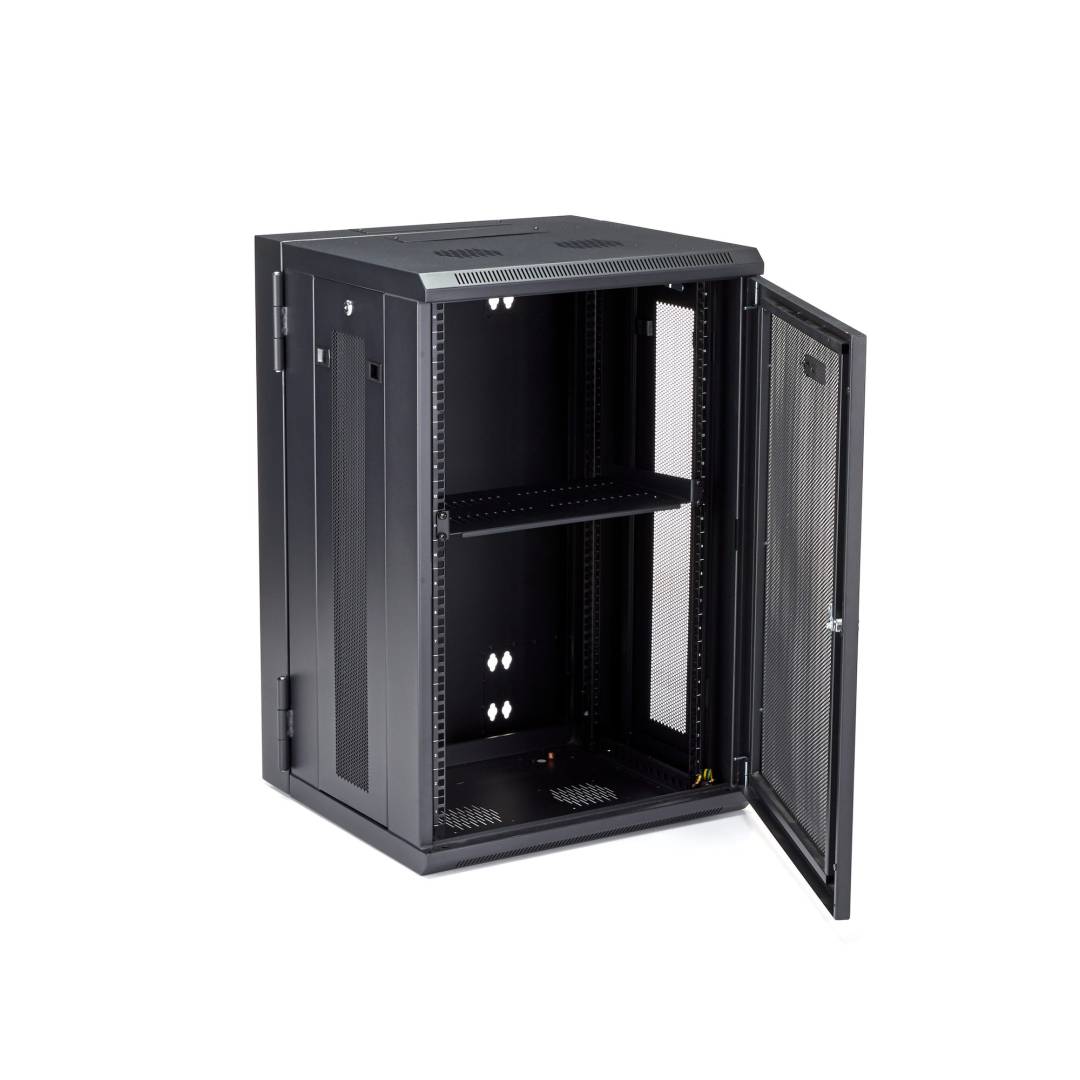

Fully assembled with a 1U shelf, 75 cage nuts and screws.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
An 18U wall cabinet is a big load on a wall — plan the anchors with your installer before ordering, and fill it from the bottom up. If the site has floor space, a floor cabinet is easier to install. For switches, see our switches; for other sizes, browse our racks and cabinets. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.
Buyer’s Guide
Buy it if
You need a large, lockable wall cabinet with rear access and devices up to 40.6 cm deep.
Skip it if
Your wall cannot carry about 160 kg, or your devices are deeper than 40 cm.
Also consider
StarTech.com RK1232WALHM — 12U hinged wall cabinet, up to 60.9 cm deep.
Features - StarTech.com - RK1820WALHM
Colour
black
More Details
Product Code
V934112
EAN Code
0065030870061
Manufacturer
StarTech.com
