StarTech.com 1U Rack Cable Lacing Bar for 19-Inch Racks, Adjustable Depth 40-96 mm, Powder-Coated Steel, Black
Brand:
StarTech.com
StarTech.com 1U Rack Cable Lacing Bar for 19-Inch Racks, Adjustable Depth 40-96 mm, Powder-Coated Steel, Black
€31.96 inc. VAT
12S-CABLE-LACING-BAR
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
StarTech.com 1U Cable Lacing Bar with Adjustable Depth — Black
1U lacing bar40–96 mm depth8.5 mm lacing pointsHardware included

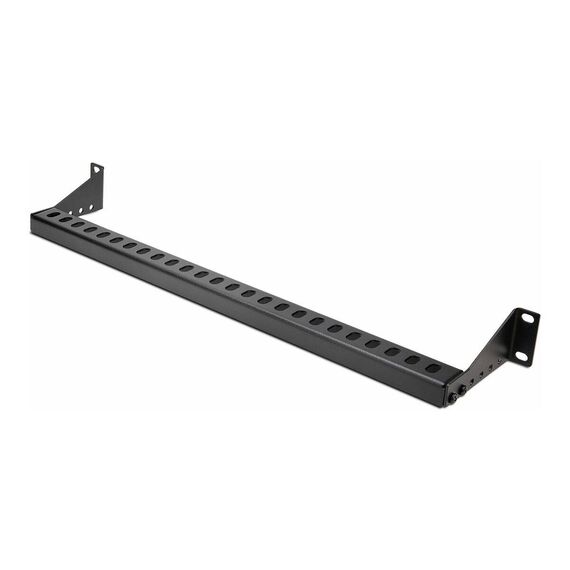

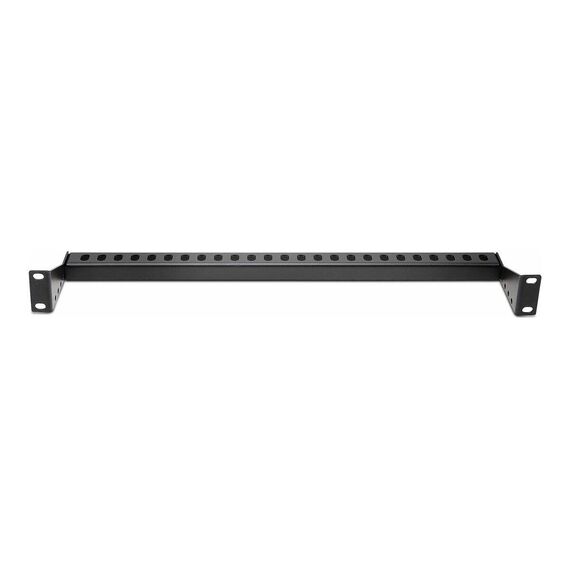

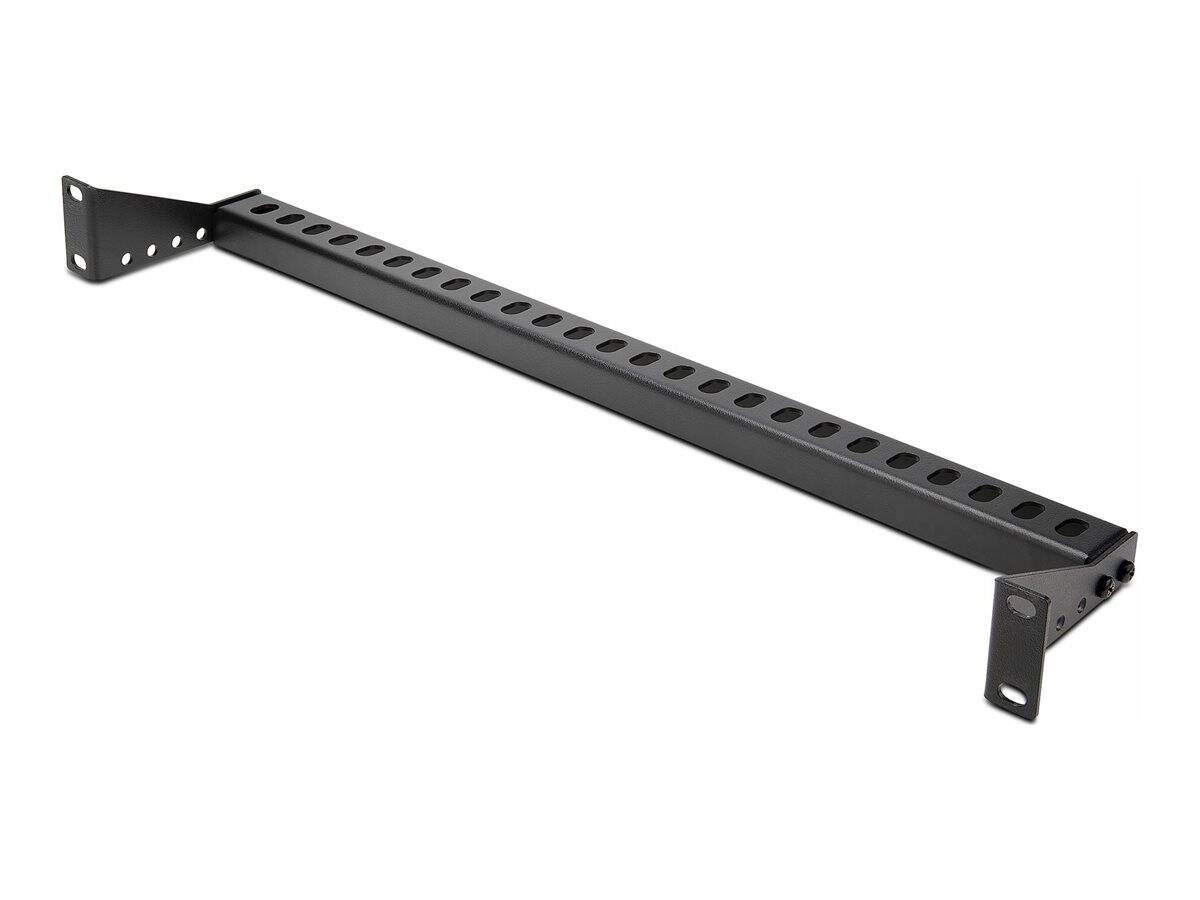

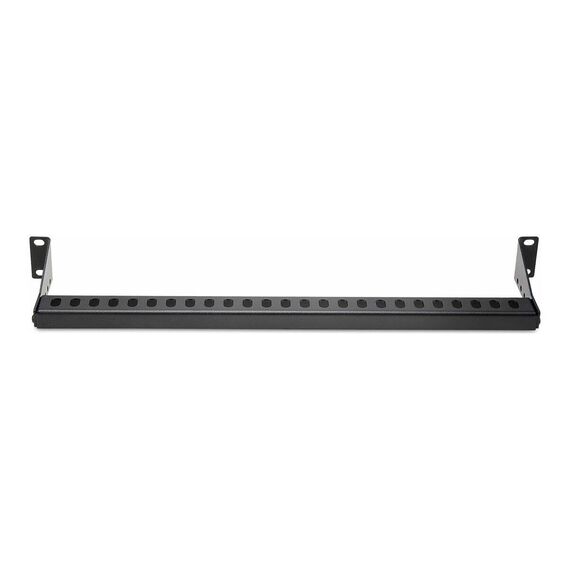

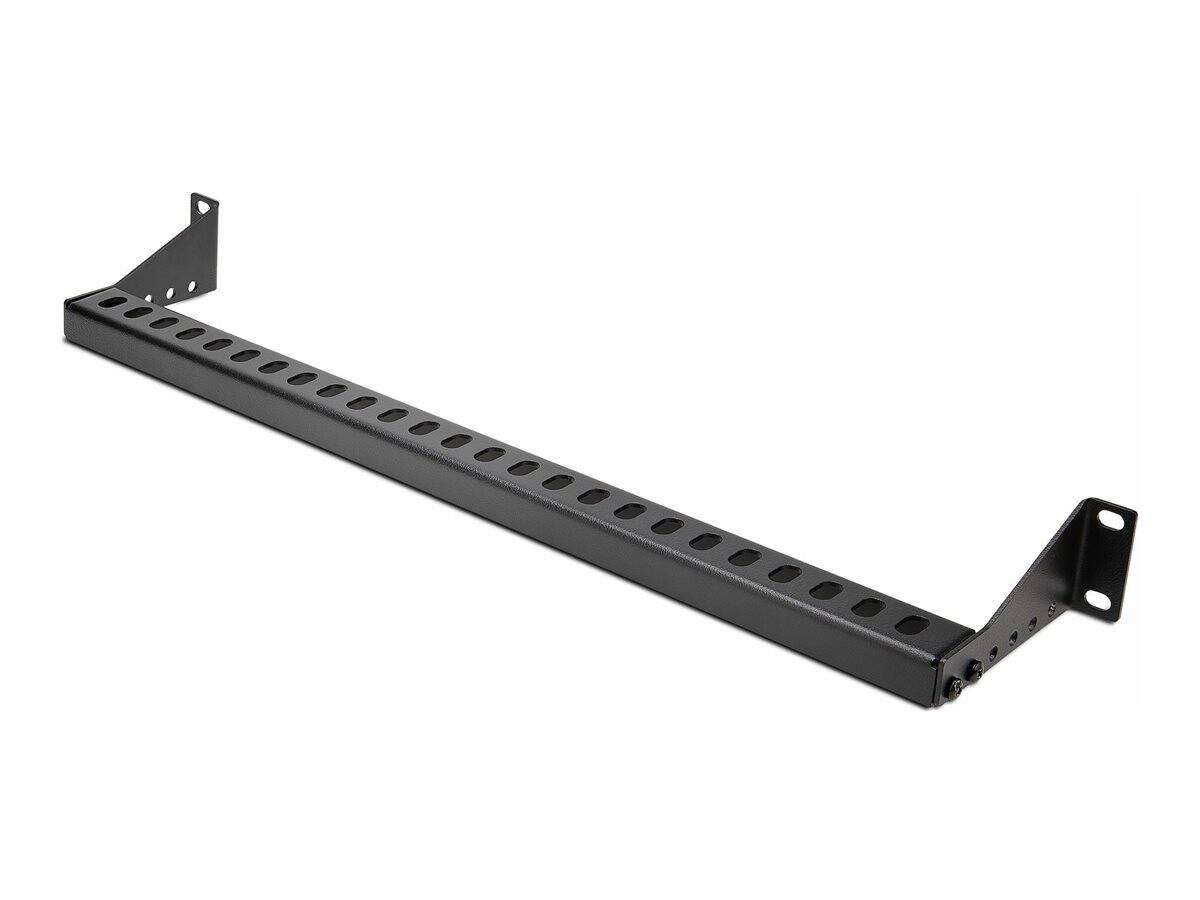

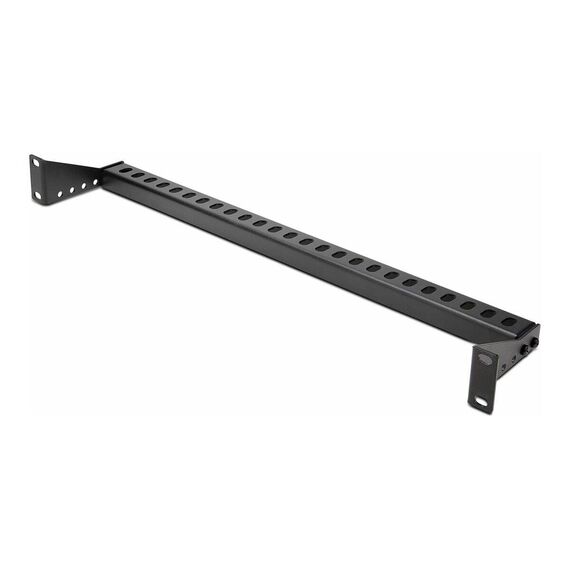

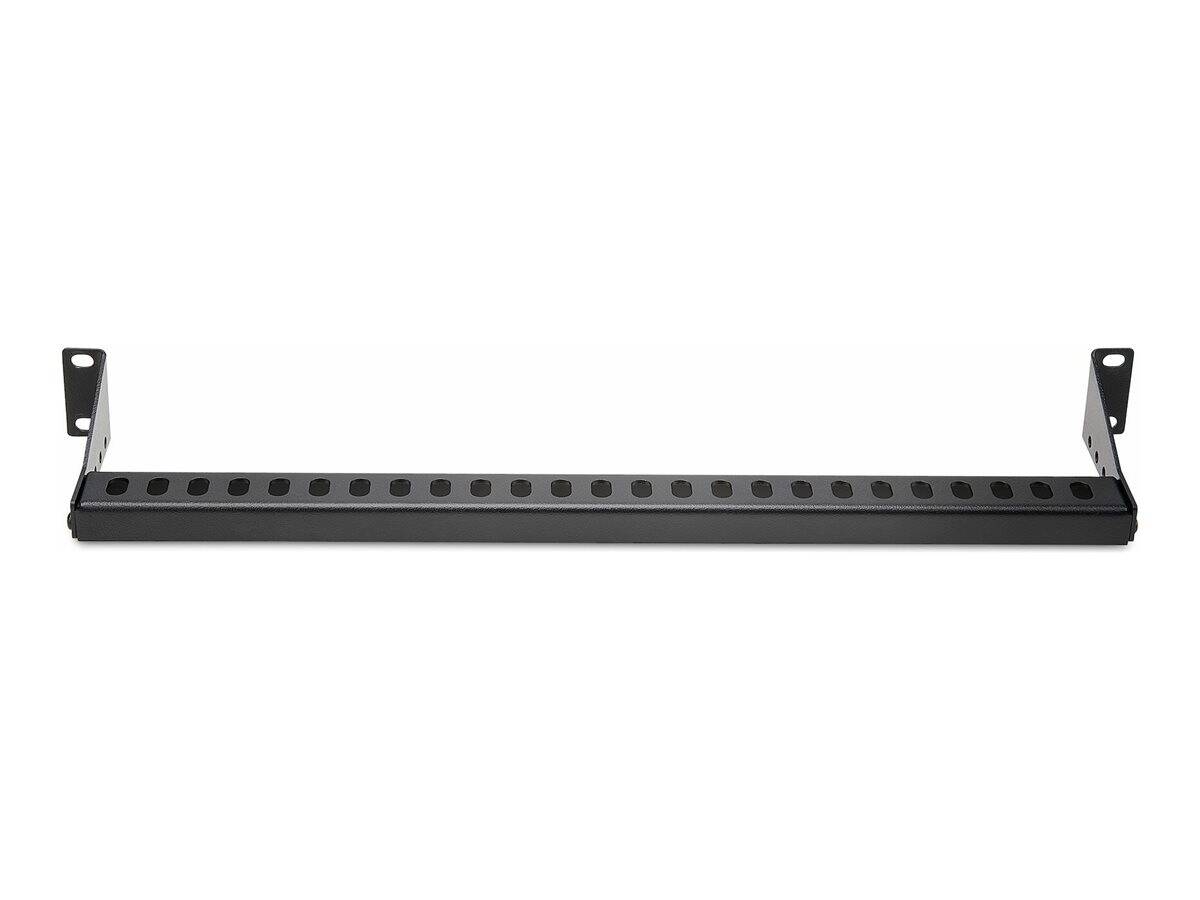

The StarTech.com 12S-CABLE-LACING-BAR is a 1U horizontal cable lacing bar for 19-inch racks and cabinets. It gives patch cords, power cables and fibre a fixed support point in front of or behind a patch panel, switch or PDU, so the connectors are not carrying the weight of the cables.

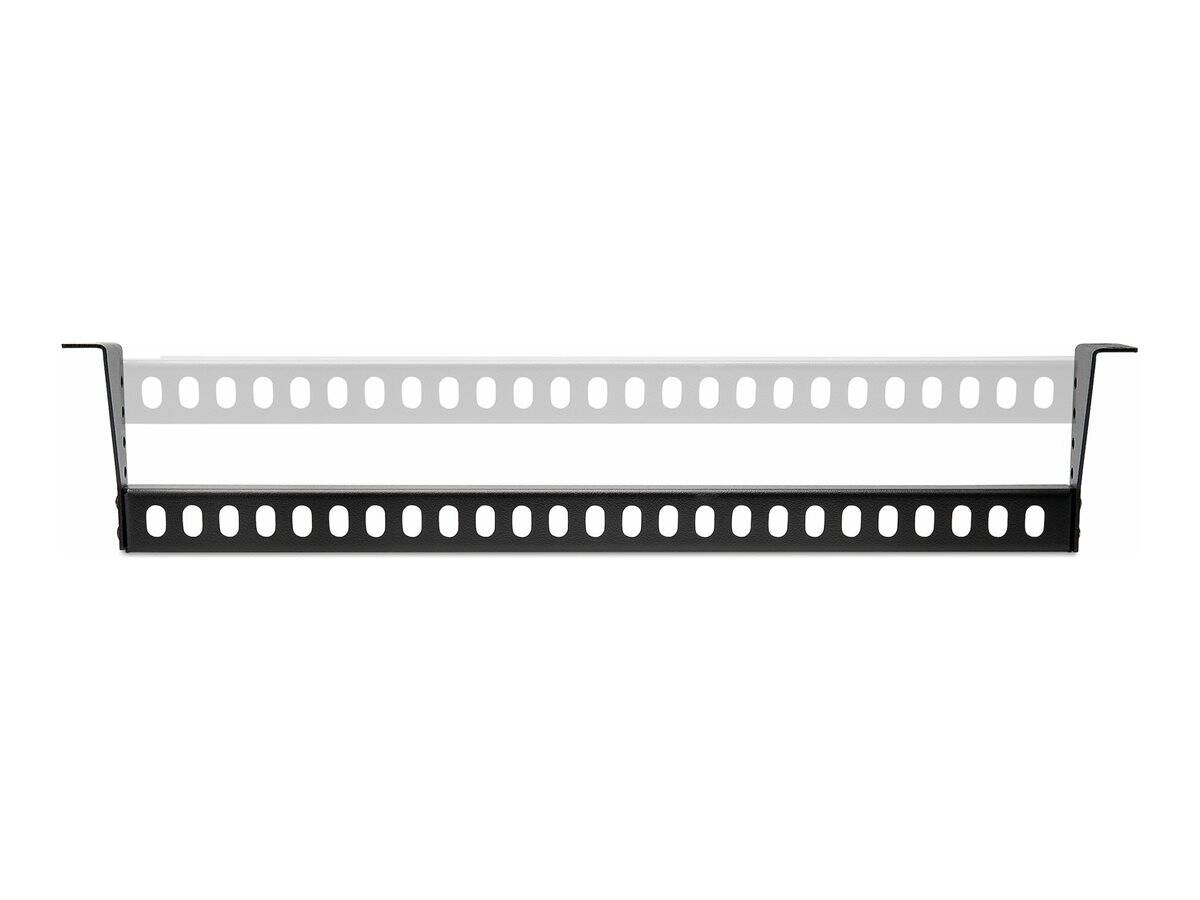

The depth is adjustable from 40 to 96 mm relative to the rack posts, and the bar can be mounted facing inwards or outwards. Lacing points are spaced 8.5 mm apart for cable ties or hook-and-loop straps. It is made of black powder-coated SPCC steel and follows EIA/ECA-310-E.
What's in the Box
- 1 × 1U cable lacing bar
- 4 × M6 screws, 4 × M6 cage nuts, 4 × M6 plastic washers
- 4 × M4 screws
- Quick-start guide
What It Means in Practice
- Takes the weight of cable bundles off switch and patch-panel ports
- Adjustable depth lines up the bar with the connectors of the device it serves
- Inward or outward mounting fits the space available in front of or behind the rails
- Close lacing points let you tie each cable group neatly
What Will Not Work
- It does not close the rack gap — it is an open bar, not a brush or blanking panel
- Cable ties or hook-and-loop straps are not included
- Not for 10-inch racks
- StarTech.com does not publish a load rating; it is for cable support, not for devices
Key Features
Adjustable depth
40–96 mm from the rack posts.
Dual-mode mounting
Install facing inwards or outwards.
8.5 mm lacing points
Dense tie points for tidy bundles.
Complete hardware
M6 screws, cage nuts and washers included.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A lacing bar is the part that keeps a rack serviceable years later: cables are tied to the bar, not hanging from the ports. The adjustable depth of this StarTech.com bar makes it easy to align with switches and patch panels. Combine it with brush panels and cable rings from our rack accessories.
✓ Buy it if you want strain relief and neat cable dressing behind patch panels or switches in a 19-inch rack.
✕ Skip it if you need to close a gap in the rack front — choose a brush or blanking panel.
→ Also consider a 1U brush panel or cable management rings for vertical routing.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - StarTech.com - 12S-CABLE-LACING-BAR
Colour
black
More Details
Product Code
CJ12999
EAN Code
0065030901680
Manufacturer
StarTech.com
