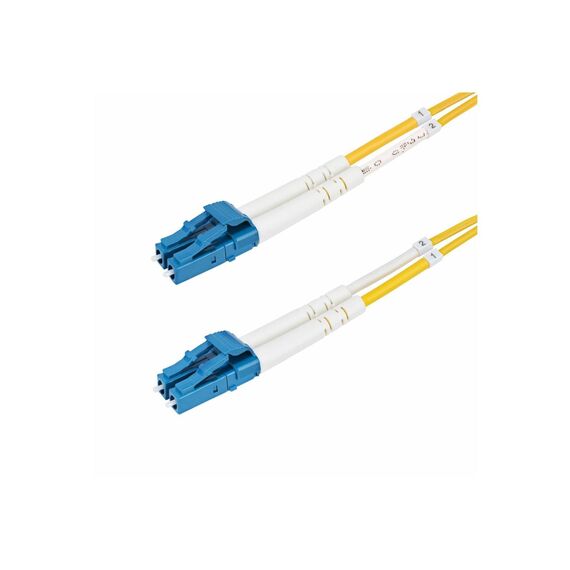

StarTech.com SMDOS2LCLC20M 20m OS2 Single-Mode Duplex Fibre Optic Cable, LC/UPC to LC/UPC, Yellow

Brand:
StarTech.com
StarTech.com 20m (65.6ft) LC to LC (UPC) OS2 Sing | SMDOS2LCLC20M

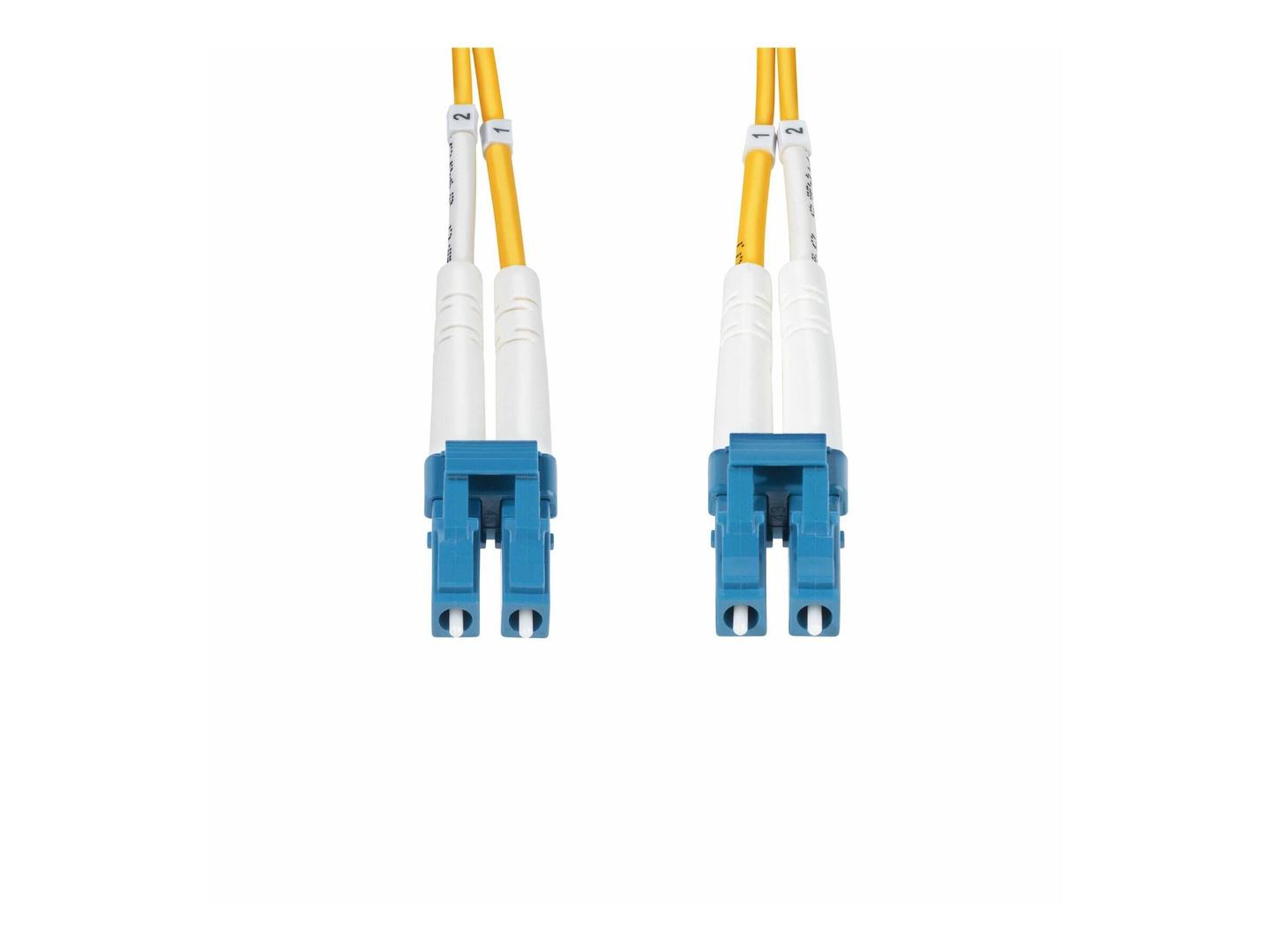

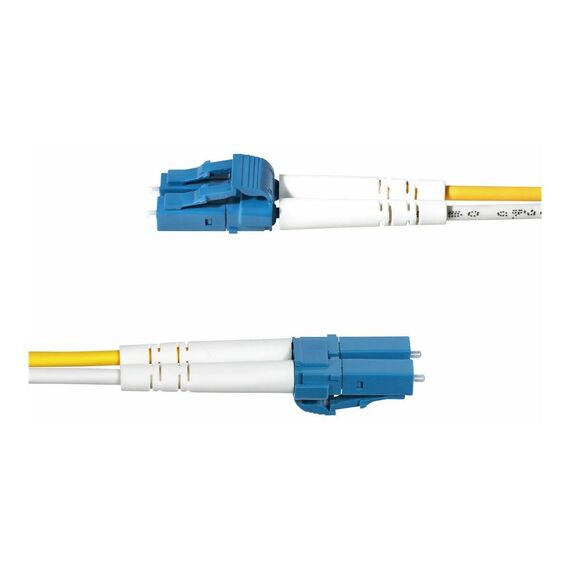

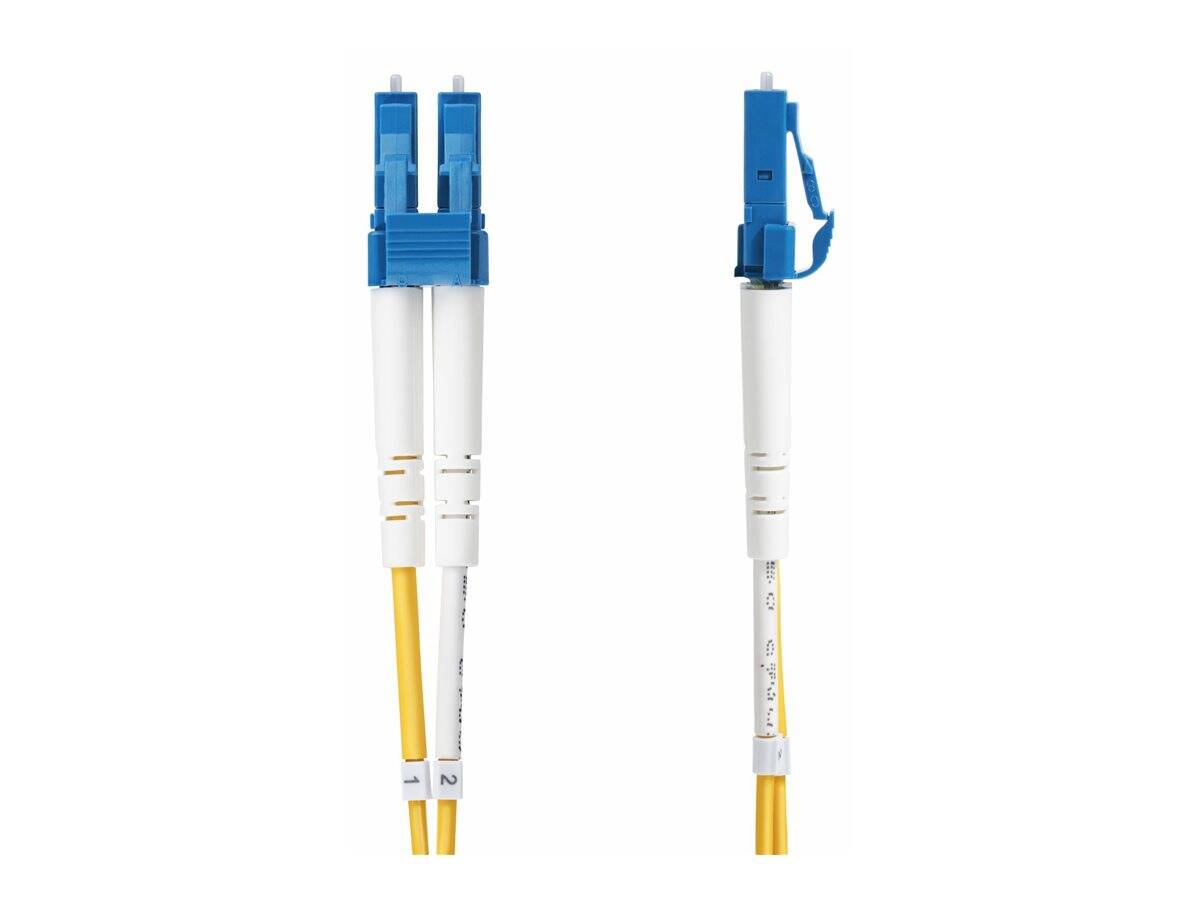

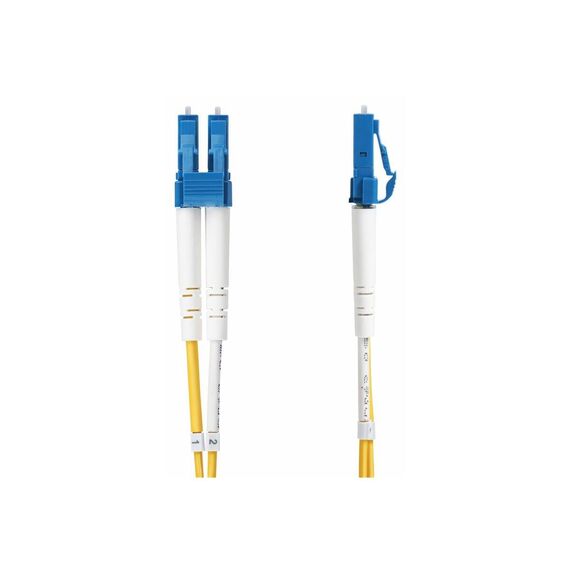

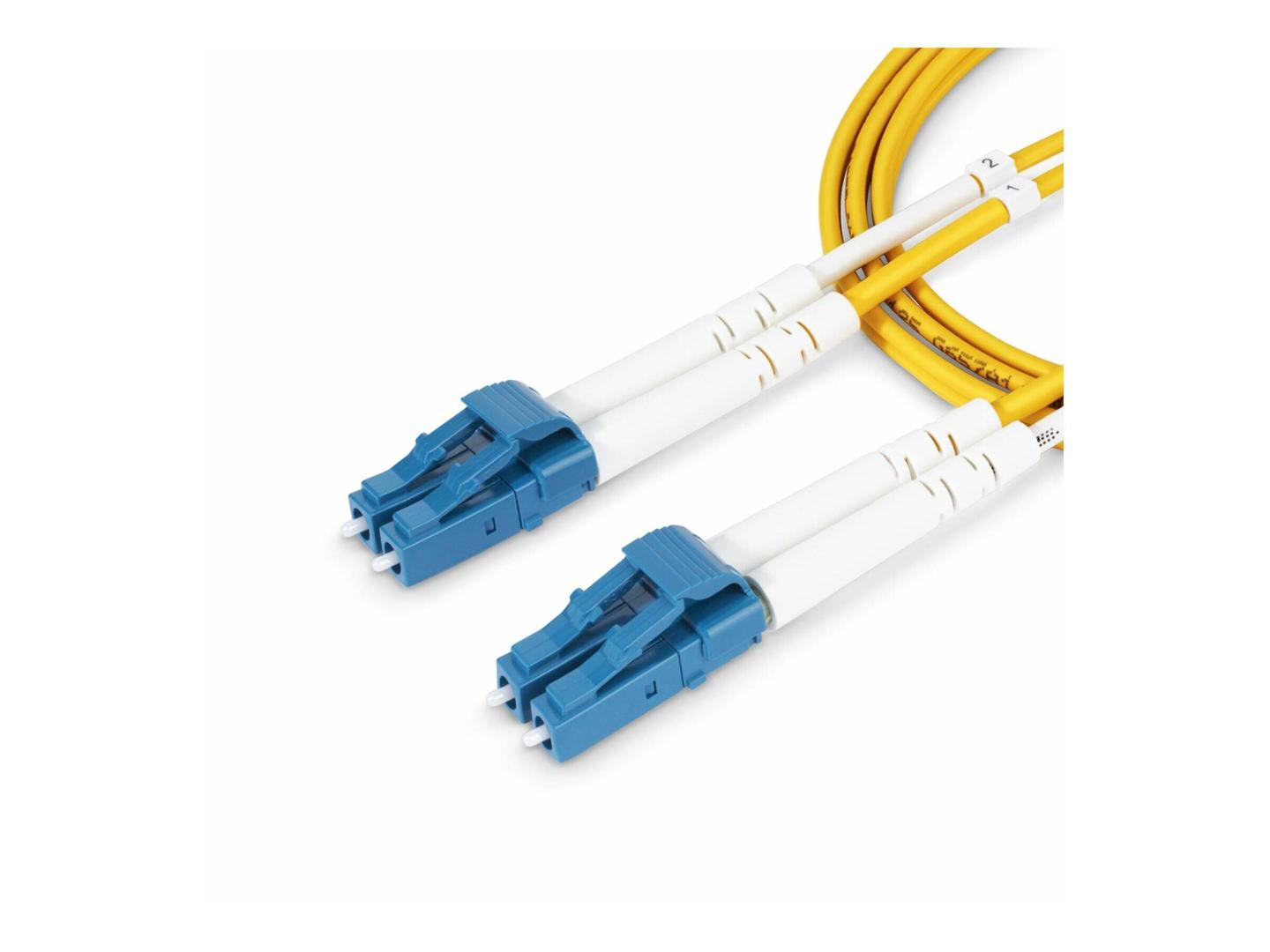

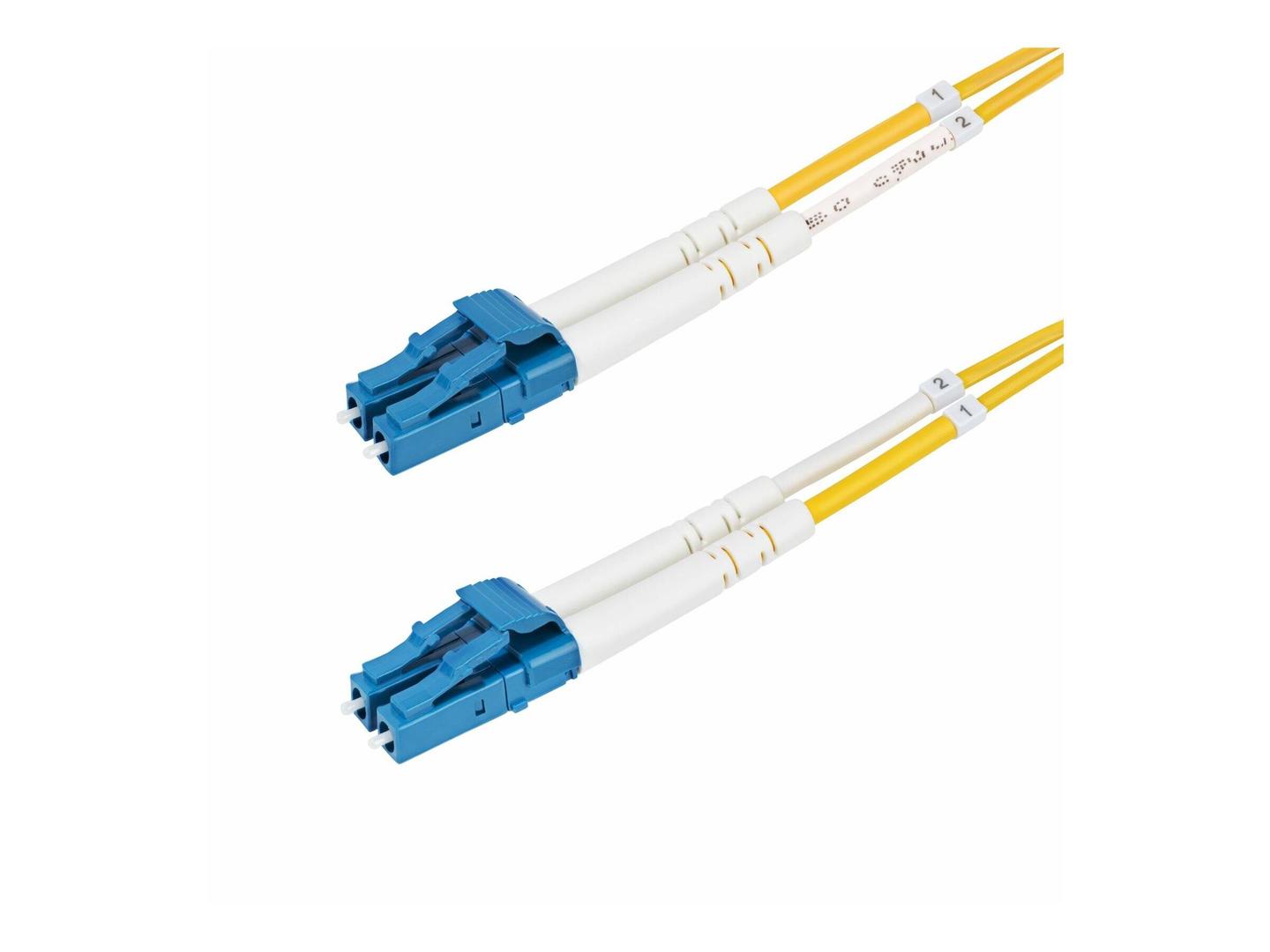

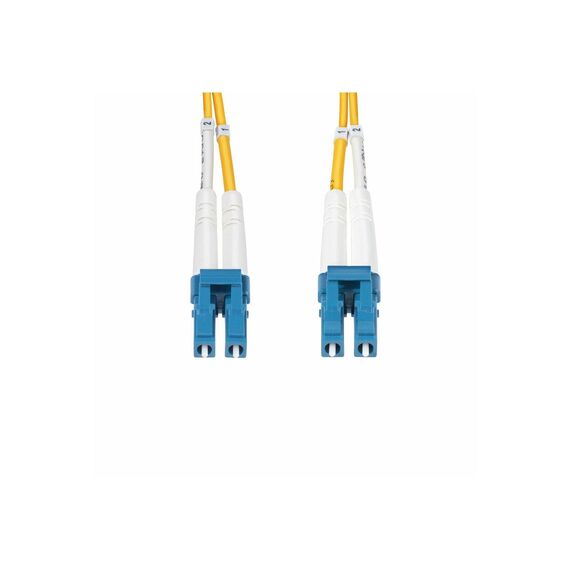

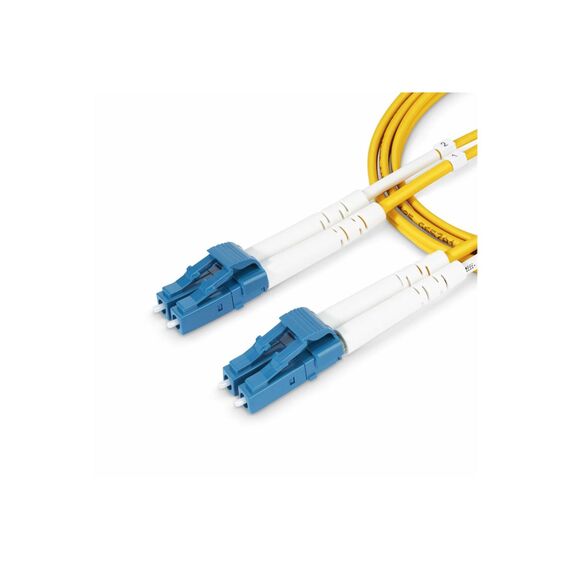

StarTech.com SMDOS2LCLC20M 20m OS2 Single-Mode Duplex Fibre Optic Cable, LC/UPC to LC/UPC, Yellow
€51.74 inc. VAT
Buy
SMDOS2LCLC20M
€43.48
€51.74 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
Product Code
CJ93835
EAN Code
0065030901789
Manufacturer
StarTech.com

Quick Specs

Product Type
Cables & Adapters
Colour
Yellow
Application
Network
Bending Radius
10 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

StarTech.com 20m OS2 Duplex Fibre Optic Cable - LC/UPC Connectivity

The StarTech.com SMDOS2LCLC20M is a 20-metre OS2 single-mode duplex fibre optic patch cable with LC/UPC connectors at both ends. It is designed for network connections between servers, switches and data centre equipment, supporting up to 10Gbps and CWDM across the 1260-1625nm wavelength range.
Cables & Adapters Yellow Network 10 mm

The StarTech.com SMDOS2LCLC20M is a 20-metre OS2 single-mode duplex fibre optic patch cable with LC/UPC connectors at both ends. It is designed for network connections between servers, switches and data centre equipment, supporting up to 10Gbps and CWDM across the 1260-1625nm wavelength range.

Best For
✓ A practical choice for network installers, data centre teams

Key Features


Commercial Fit
The main advantage is the combination of a 20-metre reach, OS2 single-mode fibre, LC/UPC connectors and support for up to 10Gbps with a broad 1260-1625nm wavelength range for suitable network installations.

Colour
Colour: Yellow

Application
Application: Network

Bending Radius
Bending Radius: 10 mm

Technical Specifications

Cable Type OS1/OS2 single-mode duplex fibre optic patch cable
Length 20 m
Connectors 2 x LC/UPC single-mode male at each end
Maximum Data Rate Up to 10 Gbps
Wavelength 1260-1625 nm
CWDM Support Coarse Wavelength Division Multiplexing
Core / Cladding Diameter 9 / 125 micron
Compatibility 1260-1625nm laser-optimised sources | backward compatible with OS1 networks
Insertion Loss Below 0.3 dB
Return Loss 55 dB
Bending Radius 10 mm
Cable Diameter 2 mm
Jacket Material Low Smoke Zero Halogen (LSZH)
Reinforcement Aramid fibre reinforced
Features Halogen-free | colour-coded connectors | ceramic ferrule | bend insensitive
Supported Standards ITU-T G652.D/G657.A1 | IEC60703-2-50 type B1.3/B6.a1
Application Network
Colour Yellow
Compliant Standards WEEE | EMI
Warranty Limited lifetime warranty
Condition New
Product Type Cables & Adapters
SKU / EAN SMDOS2LCLC20M | 0065030901789

Frequently Asked Questions

What should I know before buying?
Check that the connected equipment uses compatible LC/UPC single-mode ports and supports the required OS2 or OS1 connection. The cable has male LC/UPC connectors at both ends and a 10mm minimum bending radius.
What is it compatible with?
Coarse Wavelength Division Multiplexing
What are the key specifications?
Colour: Yellow | Product Type: Cables & Adapters | Application: Network
Singular Expert Insight
The main advantage is the combination of a 20-metre reach, OS2 single-mode fibre, LC/UPC connectors and support for up to 10Gbps with a broad 1260-1625nm wavelength range for suitable network installations.

Buyer’s Guide

Buy it if
A practical choice for network installers, data centre teams and businesses that need a 20-metre LC/UPC-to-LC/UPC single-mode duplex connection for compatible fibre networking equipment.
Skip it if
Check that the connected equipment uses compatible LC/UPC single-mode ports and supports the required OS2 or OS1 connection. The cable has male LC/UPC connectors at both ends and a 10mm minimum bending radius.
