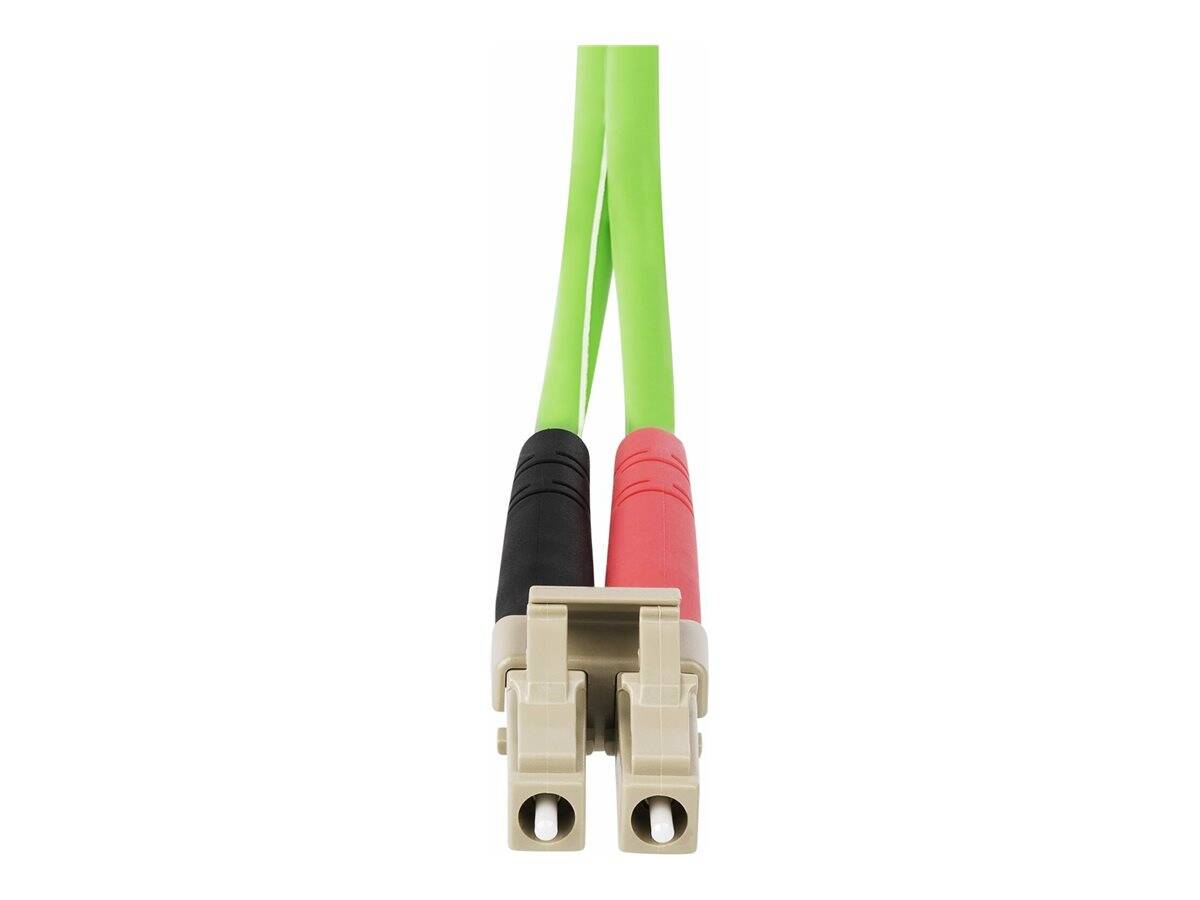

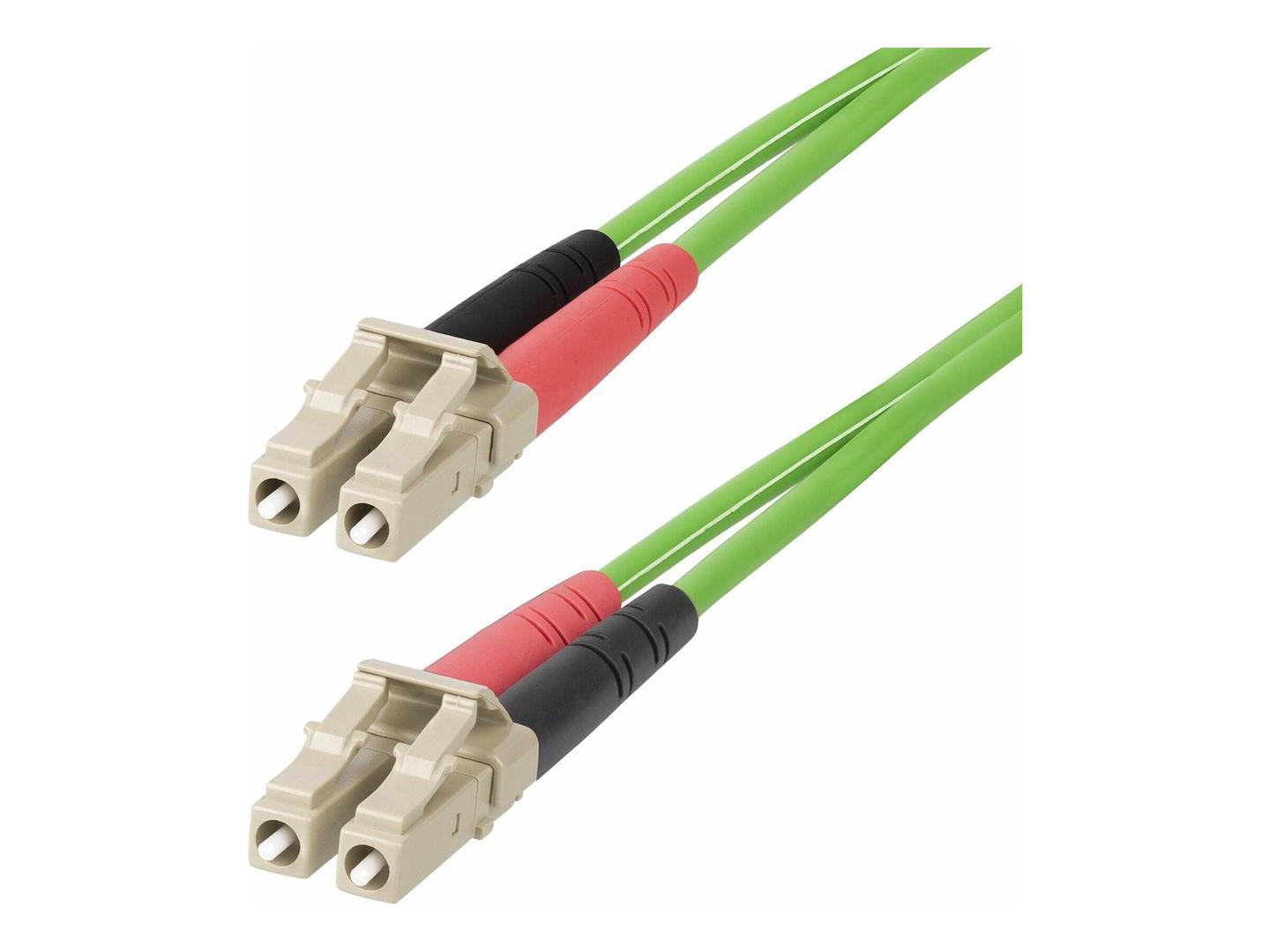

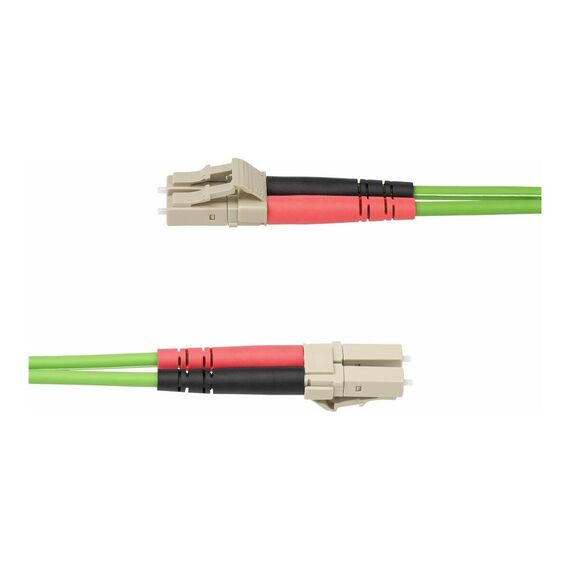

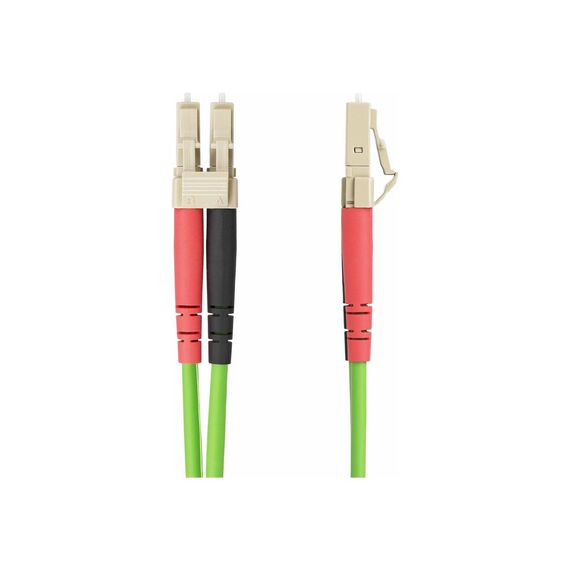

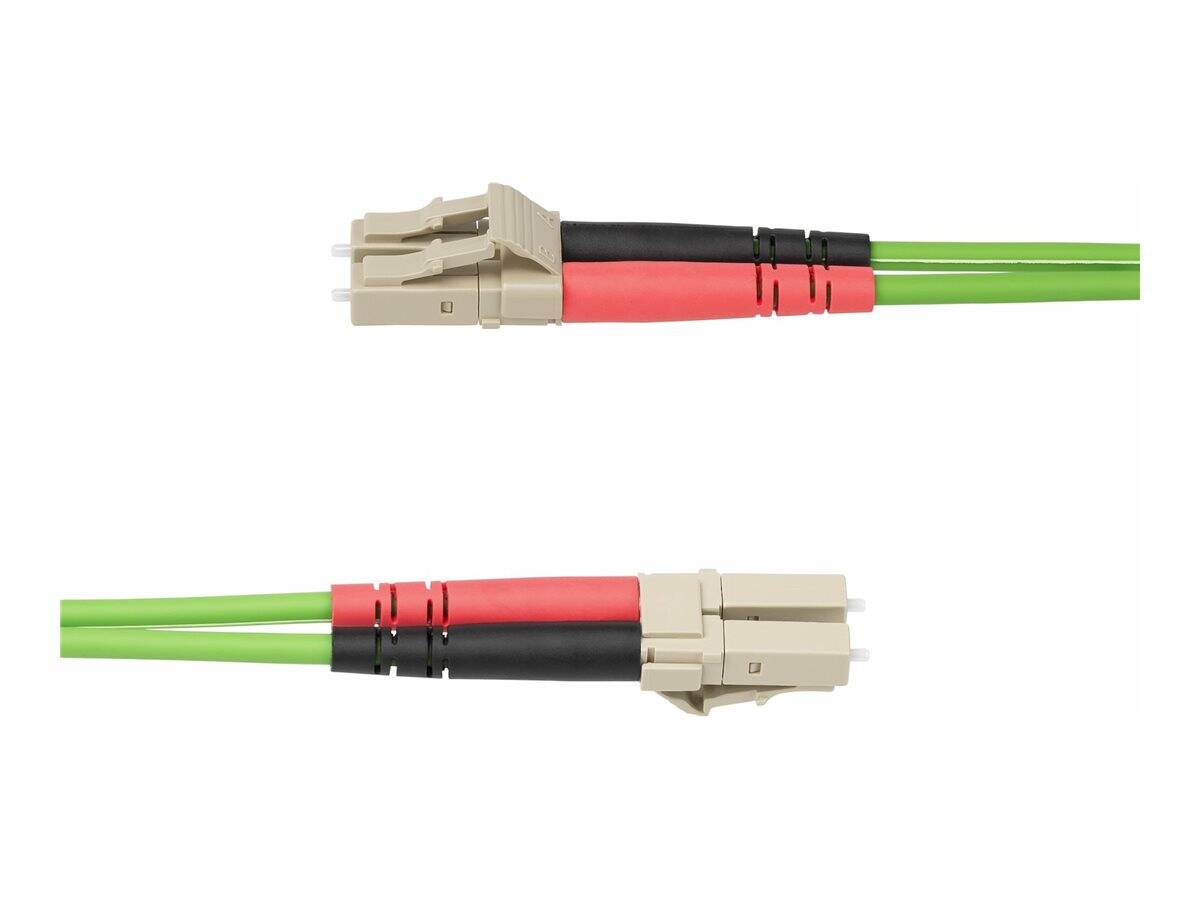

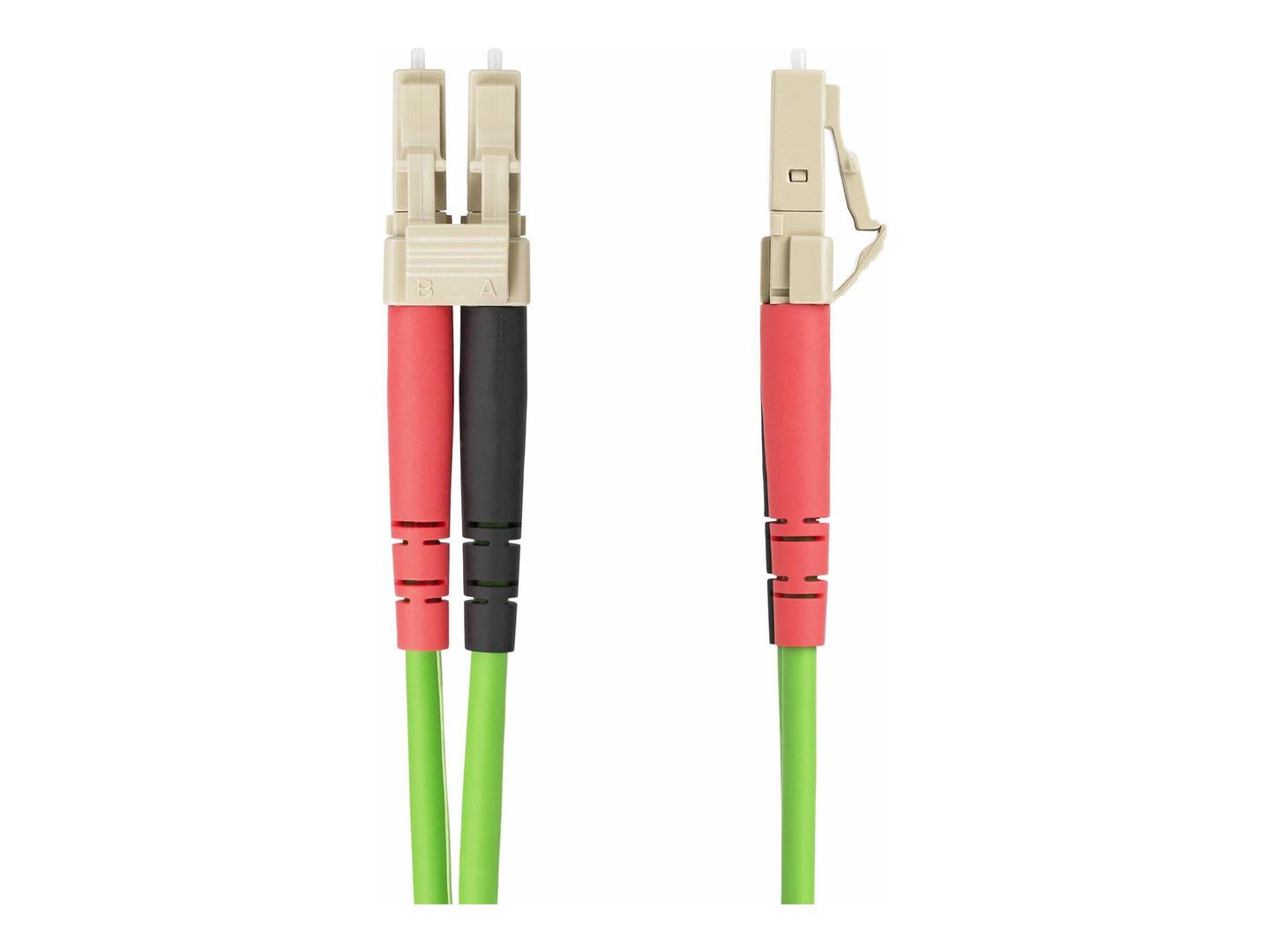

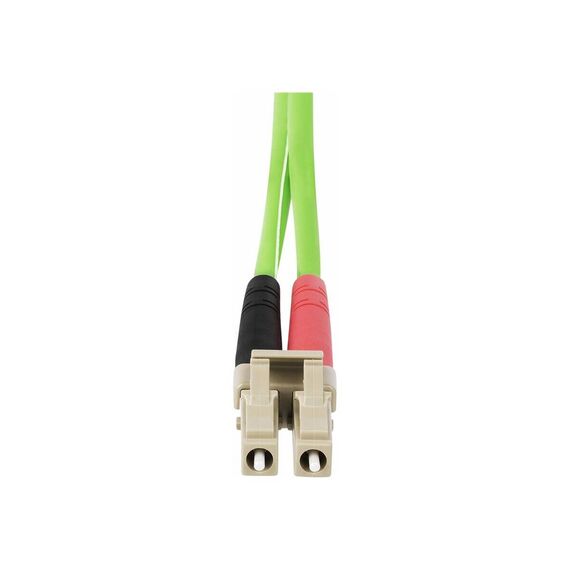

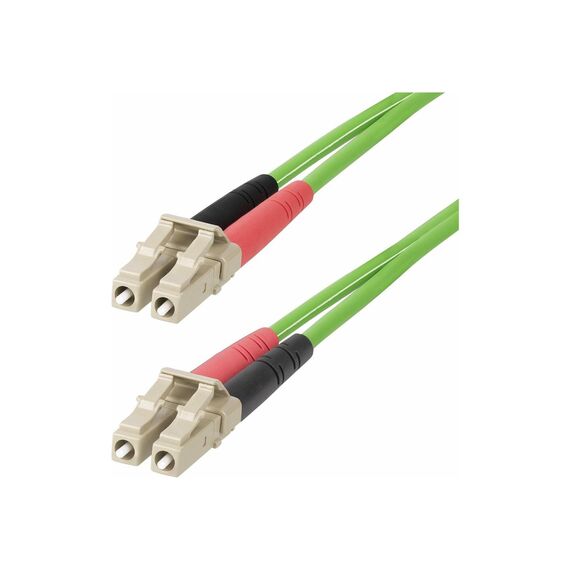

StarTech.com LCLCL-2M-OM5-FIBER 2m OM5 LC/UPC Duplex Multimode Fibre Cable, Green

Brand:
StarTech.com
StarTech.com 2m (6ft) LC to LC (UPC) OM5 Mul | LCLCL-2M-OM5-FIBER
StarTech.com LCLCL-2M-OM5-FIBER 2m OM5 LC/UPC Duplex Multimode Fibre Cable, Green
€27.93 inc. VAT
Buy
LCLCL-2M-OM5-FIBER
€23.47
€27.93 inc. VAT
Ships from EU stock: 23 item(s)
+ −
Add to wish list Ask a question
Product Code
CI91373
EAN Code
0065030900225
Manufacturer
StarTech.com

Quick Specs

Product Type
Cable
Colour
Green
Supported Data Transfer Rate
Up to 100Gbps
Supported Network Speeds
10G, 40G and 100G
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

StarTech.com LCLCL-2M-OM5-FIBER - 2m OM5 Duplex Fibre Cable

The StarTech.com LCLCL-2M-OM5-FIBER is a 2m OM5 laser-optimised multimode duplex fibre optic patch cable with LC/UPC connectors at both ends. It is designed for compatible fibre switches, servers, SANs and SFP+, QSFP+ or QSFP28 modules, supporting 10G, 40G and 100G network applications in a green, LSZH-sheathed cable.
Cable Green Up to 100Gbps 10G, 40G and 100G

The StarTech.com LCLCL-2M-OM5-FIBER is a 2m OM5 laser-optimised multimode duplex fibre optic patch cable with LC/UPC connectors at both ends. It is designed for compatible fibre switches, servers, SANs and SFP+, QSFP+ or QSFP28 modules, supporting 10G, 40G and 100G network applications in a green, LSZH-sheathed cable.

Best For
✓ A suitable choice for network installers
✓ IT teams building or upgrading compatible multimode fibre links for 10G
✓ 40G or 100G connectivity, including data-centre, server
✓ Switch applications

Key Features


Commercial Fit
The main advantage is the combination of OM5 multimode fibre, LC/UPC connectors and support for up to 100Gbps, with OM4 and OM3 backward compatibility for suitable network infrastructure.

Supported Data Transfer Rate
Supported Data Transfer Rate: Up to 100Gbps

Supported Network Speeds
Supported Network Speeds: 10G, 40G and 100G

Colour
Colour: Green

Technical Specifications

Product Type Cable
Network Cable Type OM5 patch cable
Technology Duplex fibre optic
Fibre Type OM5 laser-optimised multimode fibre (LOMMF)
Length 2m
Connector Configuration LC/UPC multimode male to LC/UPC multimode male
Connectors 2 x LC/UPC multimode male at each end
Supported Data Transfer Rate Up to 100Gbps
Supported Network Speeds 10G, 40G and 100G
Wavelength Support 850-953nm VCSEL and 1300nm LED
Backward Compatibility Compatible with OM4 and OM3
Core and Cladding Diameter 50 / 125 micron
Jacket Material Low Smoke Zero Halogen (LSZH)
Cable Construction Bend-insensitive zipcord with Aramid sheathing
Cable Diameter 2.9mm
Bend Radius 3-6cm
Modal Bandwidth at 850nm 4700MHz.km
Modal Bandwidth at 953nm 2470MHz.km
Insertion Loss ≤0.3dB
Return Loss ≥30dB
Attenuation <2.4dB/km
Connector Finish LC/LC UPC polishing
Connector Features Precision-manufactured ceramic ferrules | colour-coded connectors for polarity
Application Compatibility Fibre switches, servers, SANs, SFP+, QSFP+ and QSFP28 modules
Testing Individually tested for insertion-loss performance
Industry Standard Compatibility TIA/EIA-568
Safety Characteristics Flame-retardant LSZH sheathing emits little vapour and toxic fumes when exposed to extreme heat or fire
Compliance RoHS
Colour Green
Warranty Limited lifetime warranty
SKU / EAN LCLCL-2M-OM5-FIBER | 0065030900225

Frequently Asked Questions

What should I know before buying?
Check that the connected equipment uses compatible multimode fibre ports and LC/UPC interfaces. This is a 2m duplex cable, and OM5 compatibility should be confirmed for the intended network modules and application.
What is it compatible with?
Up to 100Gbps
What are the key specifications?
Supported Data Transfer Rate: Up to 100Gbps | Supported Network Speeds: 10G, 40G and 100G | Colour: Green
Singular Expert Insight
The main advantage is the combination of OM5 multimode fibre, LC/UPC connectors and support for up to 100Gbps, with OM4 and OM3 backward compatibility for suitable network infrastructure.

Buyer’s Guide

Buy it if
A suitable choice for network installers and IT teams building or upgrading compatible multimode fibre links for 10G, 40G or 100G connectivity, including data-centre, server, SAN and switch applications.
Skip it if
Check that the connected equipment uses compatible multimode fibre ports and LC/UPC interfaces. This is a 2m duplex cable, and OM5 compatibility should be confirmed for the intended network modules and application.

Features - StarTech.com - LCLCL-2M-OM5-FIBER

Colour
green
Length
2m
More Details
Product Code
CI91373
EAN Code
0065030900225
Manufacturer
StarTech.com
