StarTech.com WALLMOUNT8 — 8U Wall-Mount Network Rack, 35 cm Deep
8U · 19 inch35 kg capacity34.9 cm mounting depthShips assembled

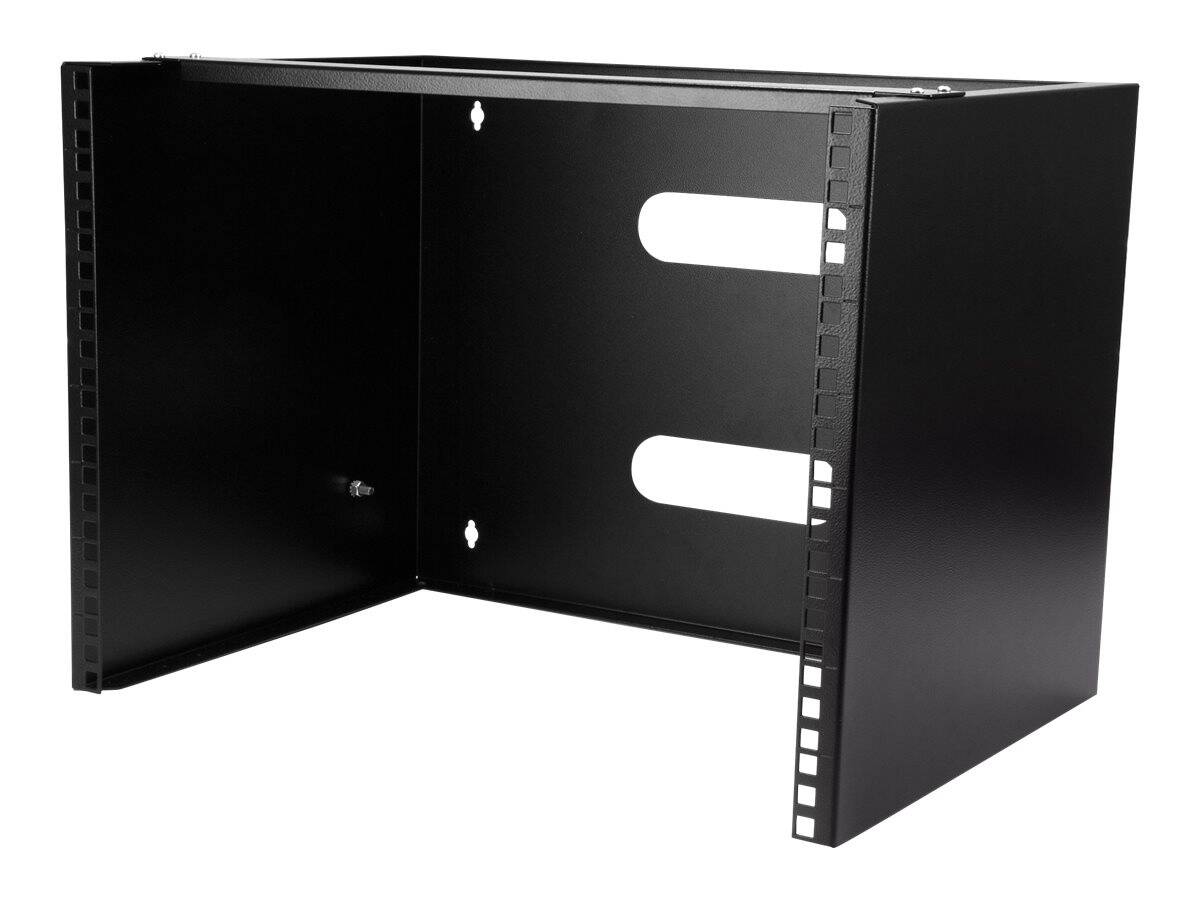

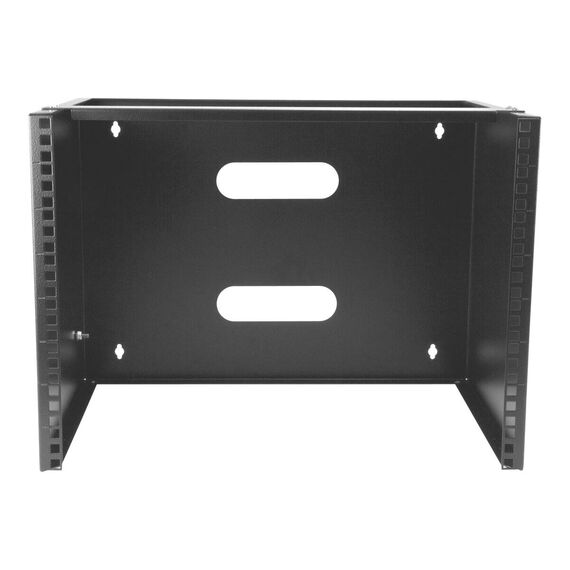

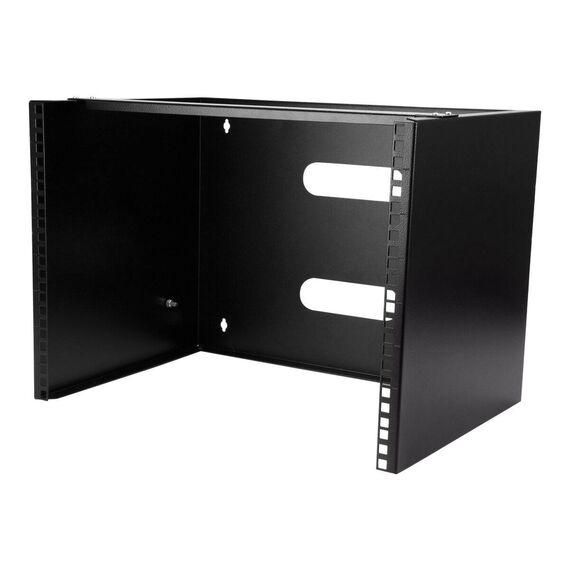

The StarTech.com WALLMOUNT8 is an 8U, 19 inch 2-post open-frame bracket that mounts on a wall and holds patch panels, network switches and other shallow IT equipment up to 35 kg. Its low-profile 34.9 cm mounting depth makes it a compact termination point for small offices, shops and classrooms.

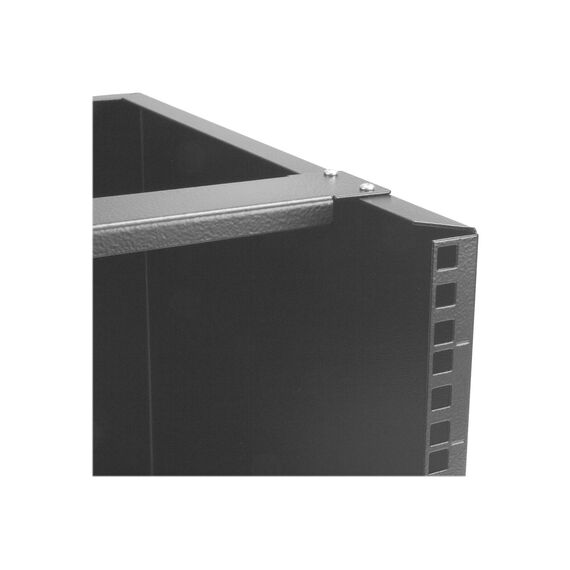

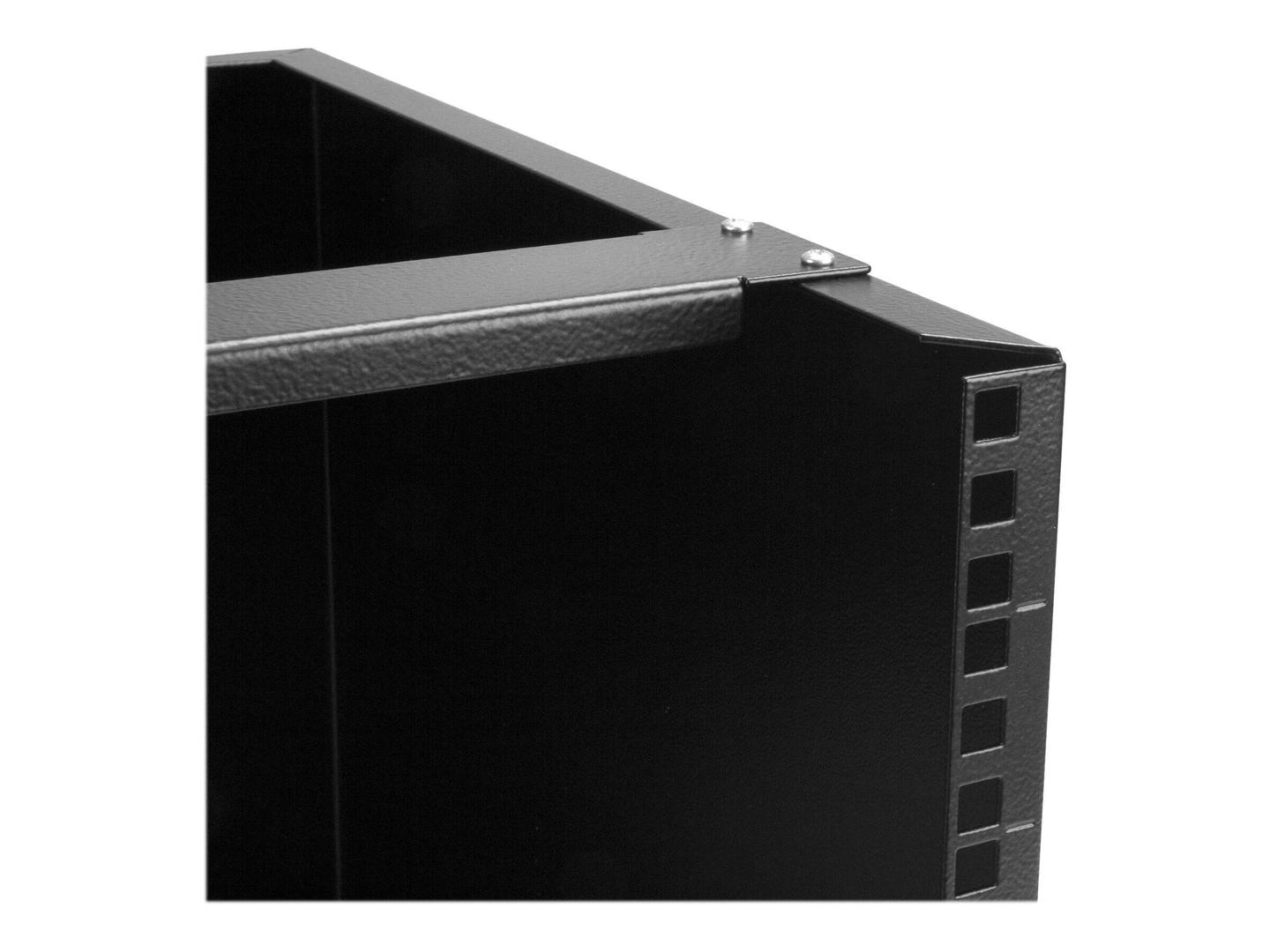

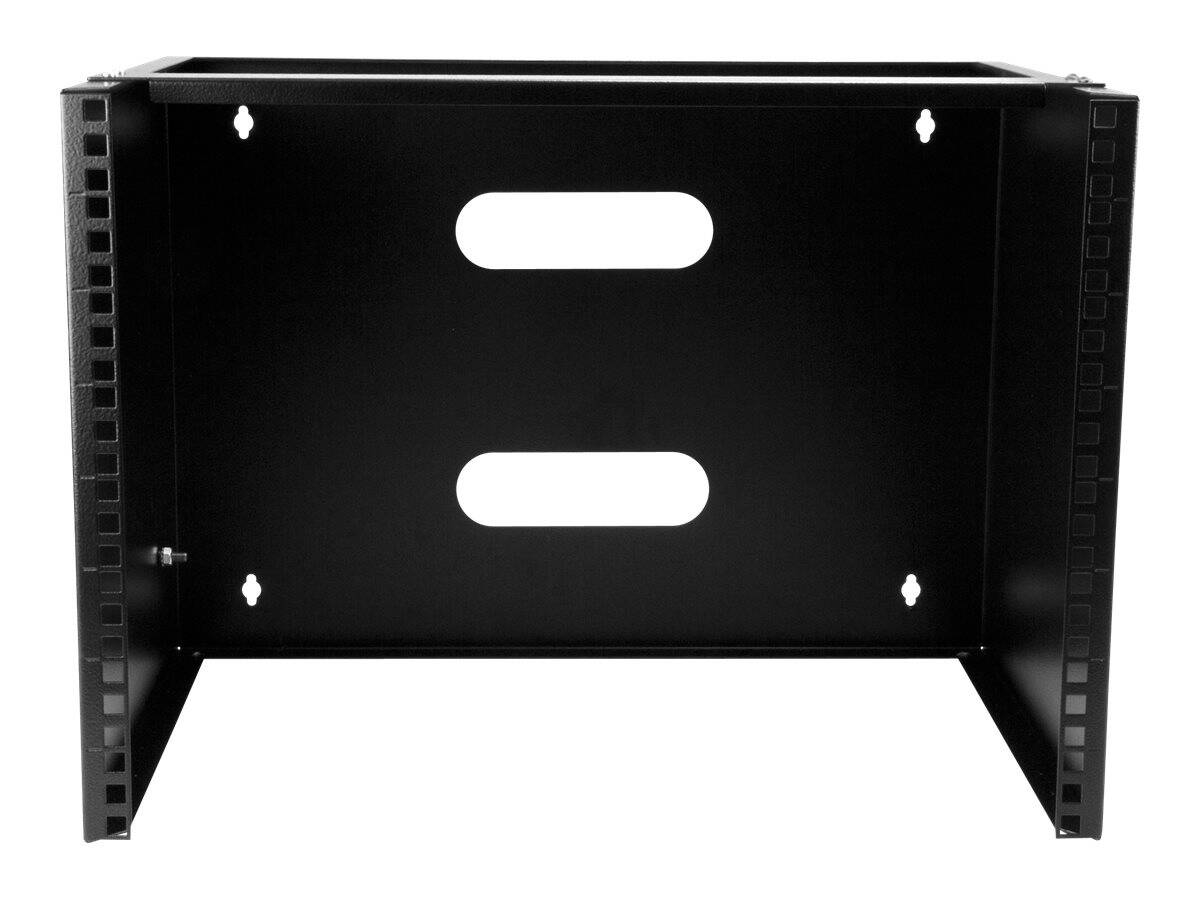

The steel frame is black, conforms to EIA/ECA-310-E, uses square-hole rails with M5 cage nuts, and ships already assembled with a stabilising bracket. A rear opening allows cables to come straight out of the wall, and the wall holes are spaced 16 inches apart.
Before you order: Despite some distributor listings, this is an open bracket, not a cabinet: there is no door, lock, glass or side panel. StarTech.com lists the capacity as 35 kg in its specification table (36 kg in other texts) — plan for 35 kg. For a lockable enclosure, choose a wall-mount cabinet instead.

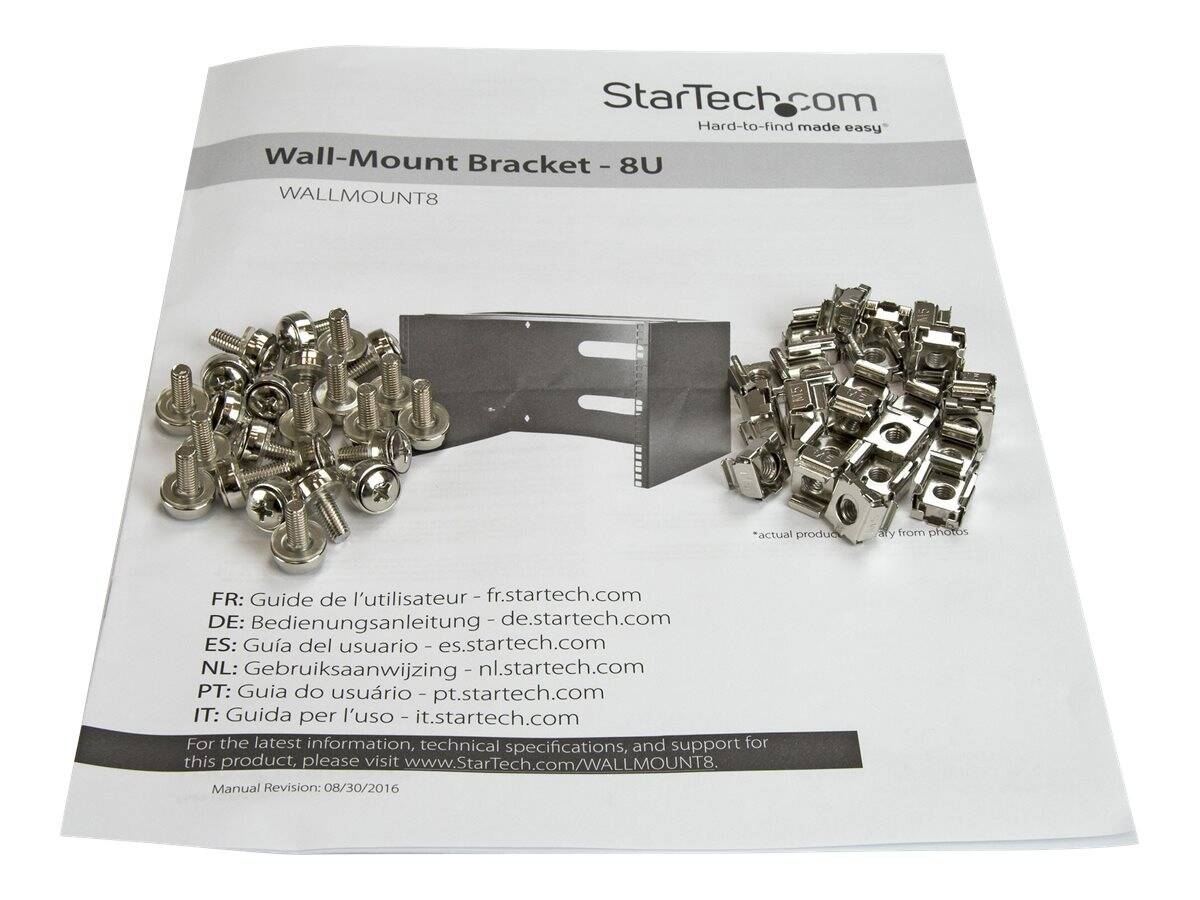

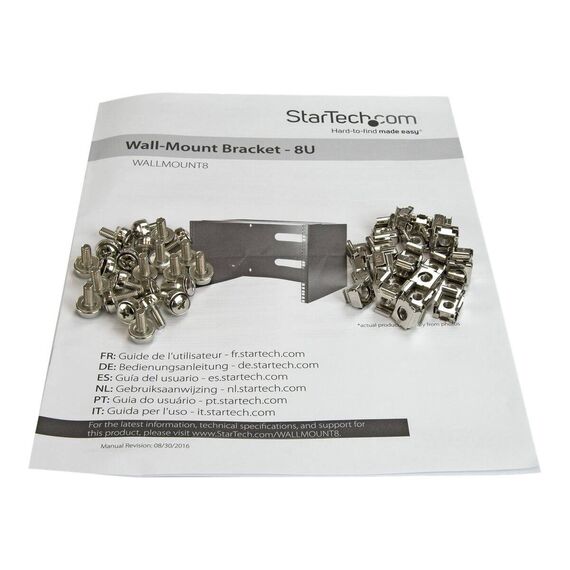

What's in the Box
- 1 × 8U wall-mount bracket (assembled)
- 24 × M5 cage nuts and 24 × M5 screws with washers
- 1 × M6 K-nut
- 6 × wood screws
- 1 × instruction manual
What It Means in Practice
- 8U on the wall: typically two patch panels, a 24-port switch, a router and a cable manager.
- Up to 34.9 cm of mounting depth — deep enough for most wall-mount switches.
- Arrives assembled; mount it and start installing equipment.
- Open design gives easy front and side access and free airflow.
What Will Not Work
- No door, lock or side panels — not suitable for public or dusty areas.
- Full-depth servers and UPS units will not fit.
- The supplied wood screws may not suit your wall; plasterboard or masonry needs proper anchors.
- The wall must support at least four times the loaded weight, per StarTech.com.
Key Features
Low-profile depth
34.9 cm maximum mounting depth for shallow equipment.
Ships assembled
No frame assembly needed on site.

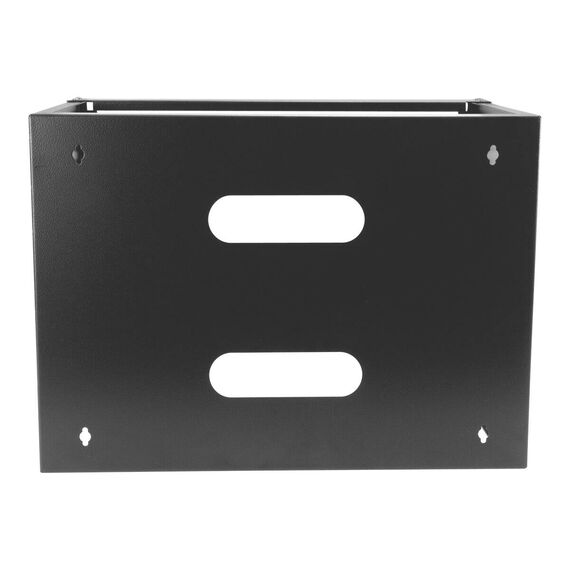

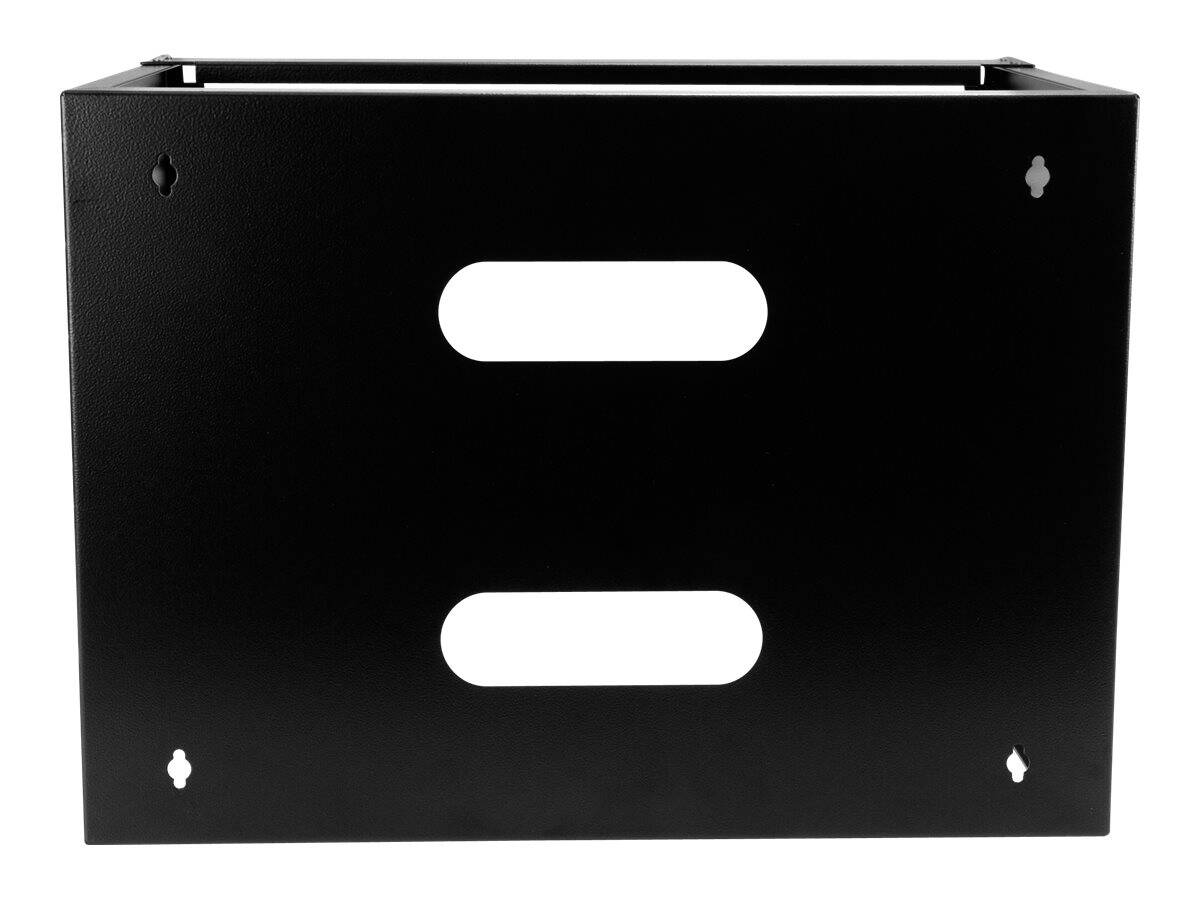

Rear cable access
Opening at the back for cables coming out of the wall.
Hardware included
24 cage nuts and screws for equipment mounting.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The WALLMOUNT8 is the quick, low-cost way to get 8U of rack space on a wall in a secure room. If the equipment must be locked away, this is the wrong product — go for a wall cabinet. For patch panels, shelves and cable managers, see our rack accessories.
✓ Buy it if you need a compact, assembled 8U wall rack for patch panels and a switch in a secure room.
✕ Skip it if you need a lockable enclosure or more than 35 kg of equipment.
→ Also consider StarTech.com RK15WALLO for 15U and 90 kg on the wall.
Tell us the devices you want to mount and your wall type; we will check depth, weight and fixings before you order.
Features - StarTech.com - WALLMOUNT8
Colour
black
More Details
Product Code
V933863
EAN Code
0065030866750
Manufacturer
StarTech.com
