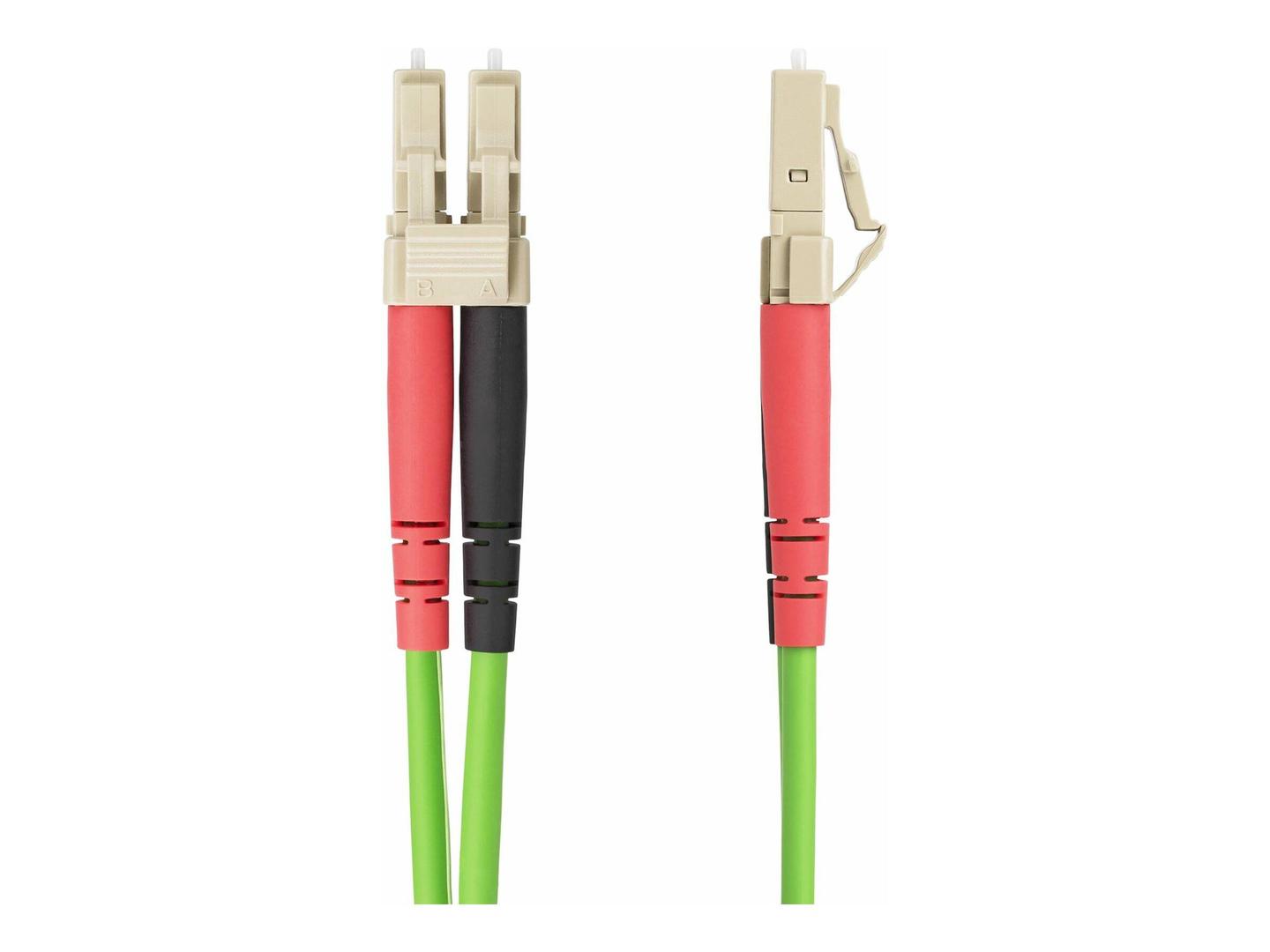

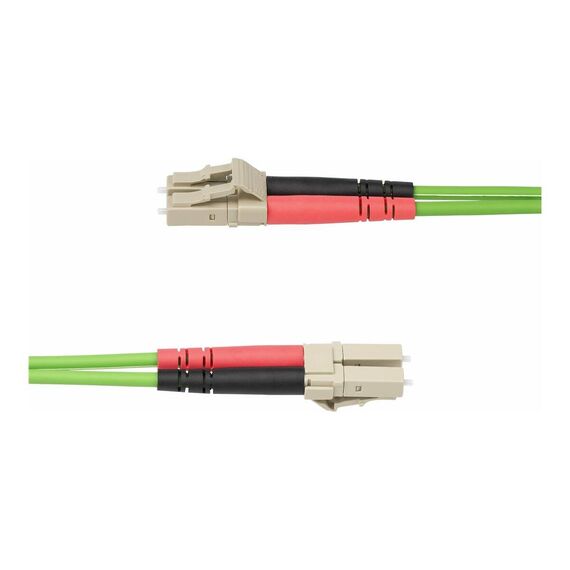

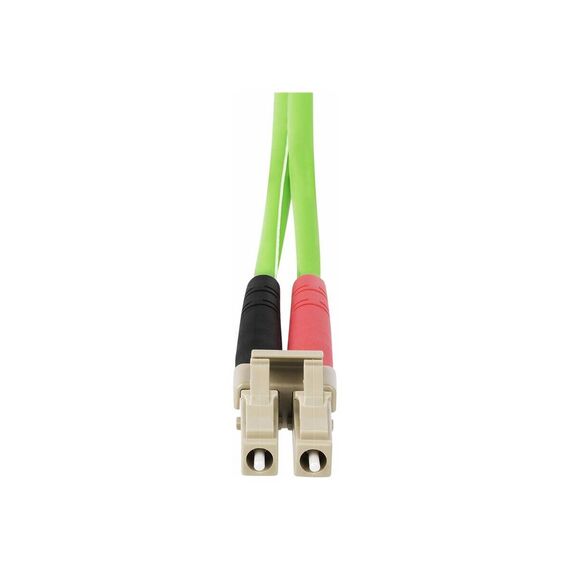

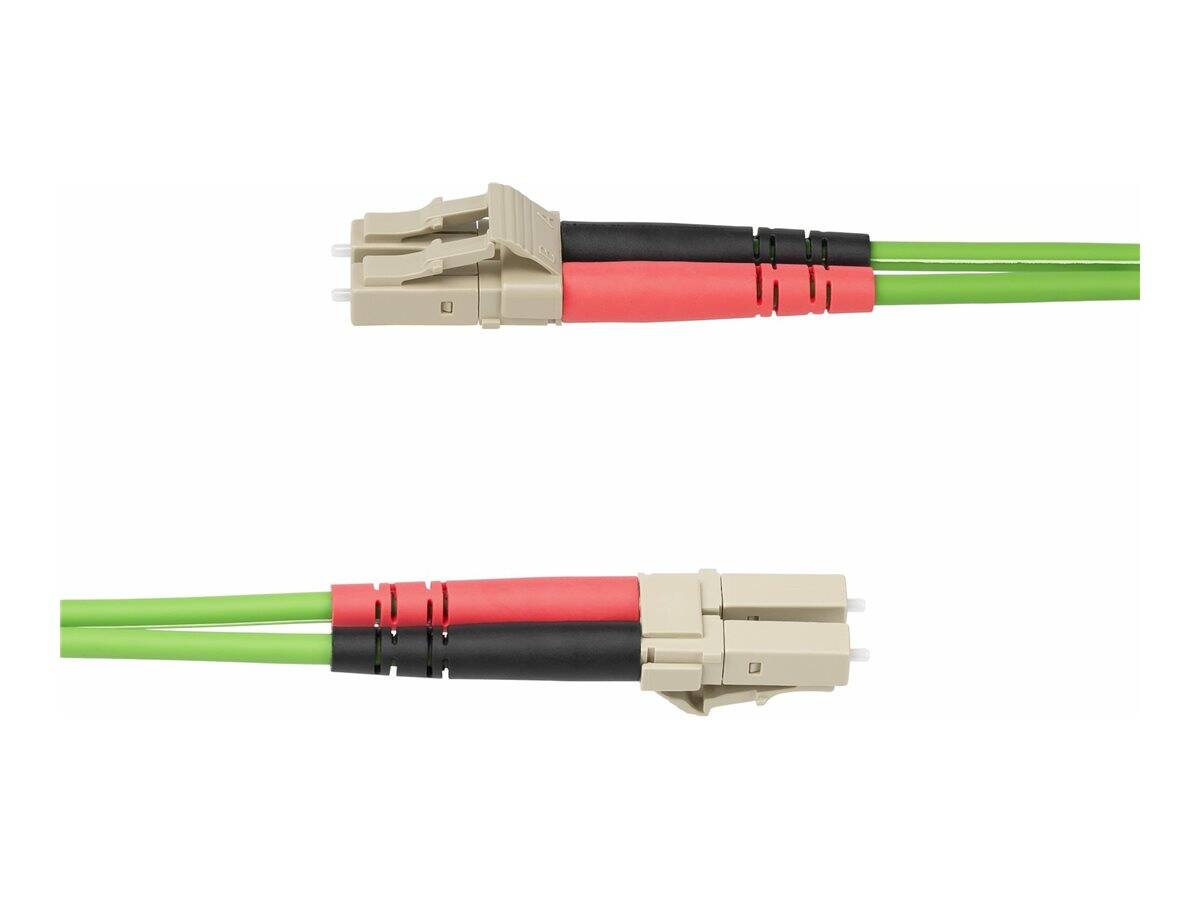

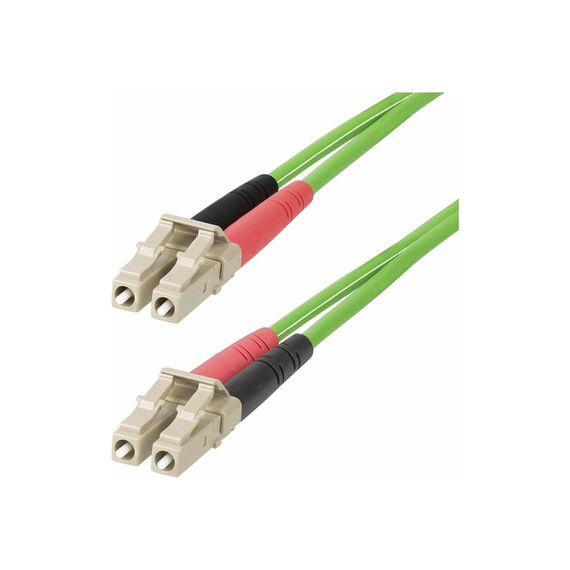

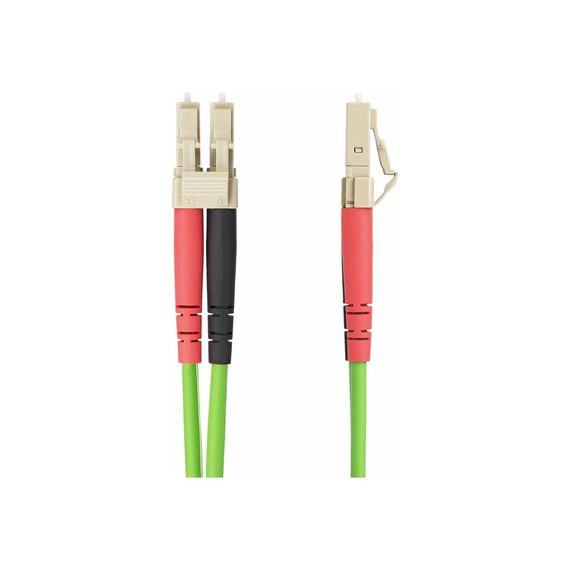

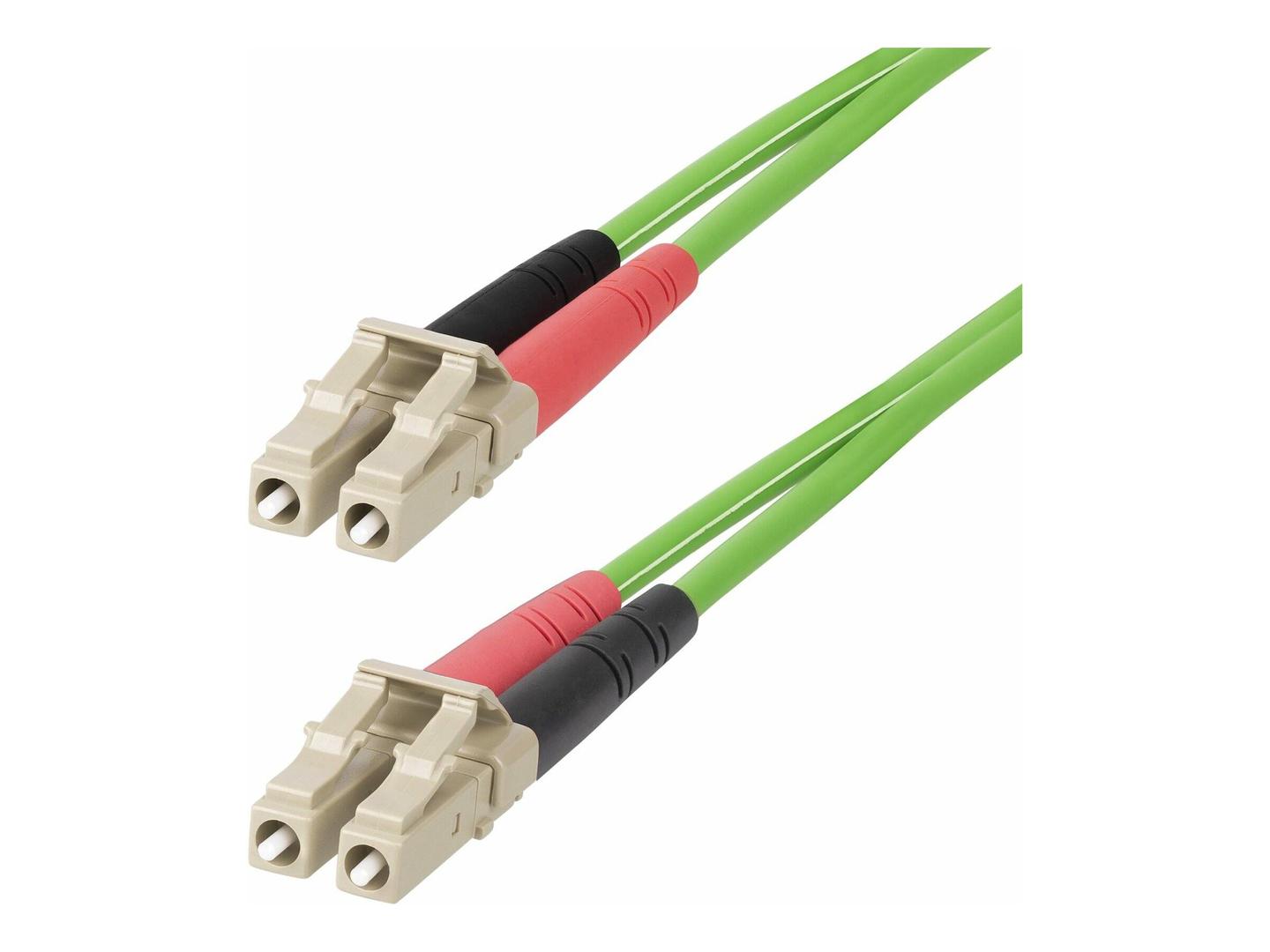

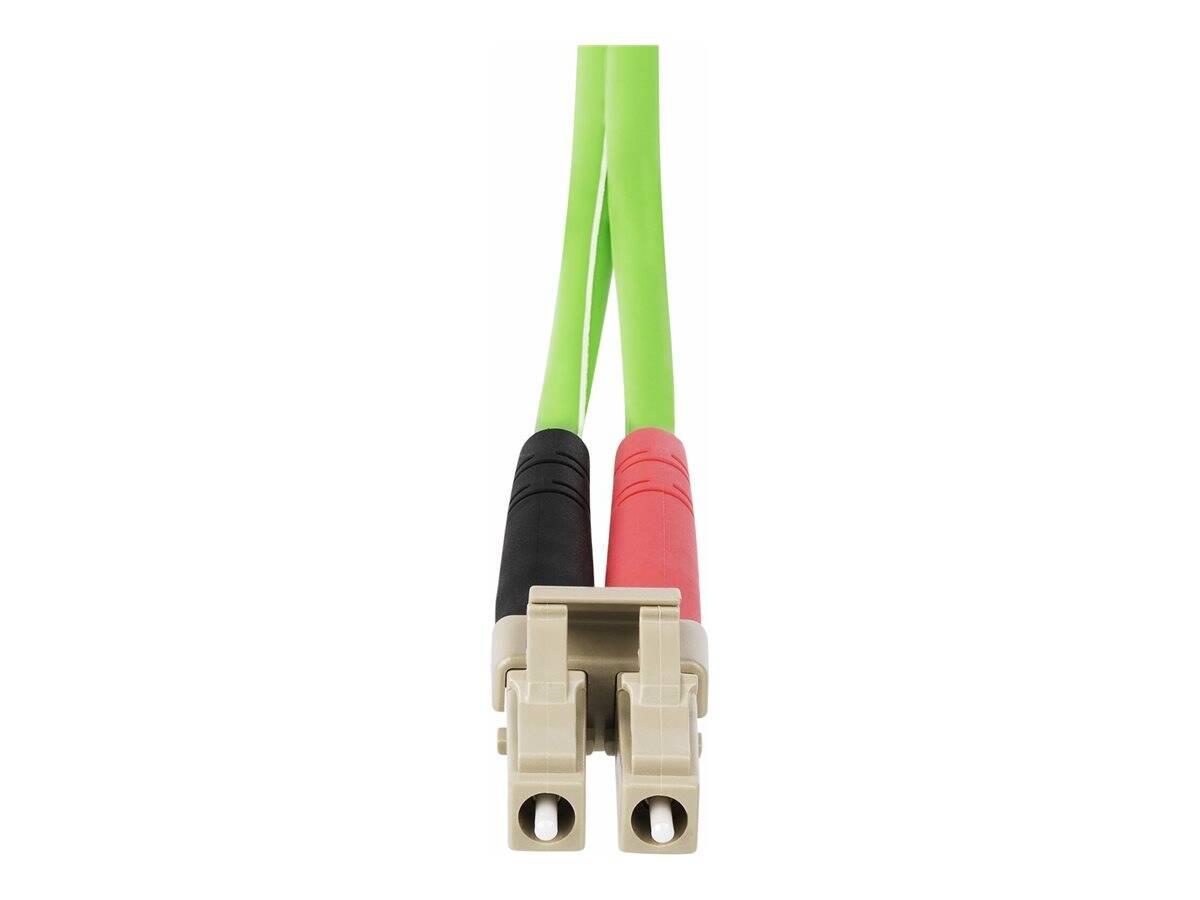

StarTech.com LCLCL-5M-OM5-FIBER, 5 m OM5 LC/UPC Duplex Multimode Fibre Cable, Green

Brand:
StarTech.com
StarTech.com 5m (15ft) LC to LC (UPC) OM5 Mu | LCLCL-5M-OM5-FIBER
StarTech.com LCLCL-5M-OM5-FIBER, 5 m OM5 LC/UPC Duplex Multimode Fibre Cable, Green
€39.94 inc. VAT
Buy
LCLCL-5M-OM5-FIBER
€33.56
€39.94 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
CI91378
EAN Code
0065030902540
Manufacturer
StarTech.com

Quick Specs

Product Type
Patch cable
Colour
Green
Attenuation
<2.4 dB/km
Bending Radius
3-6 cm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

StarTech.com OM5 5 m LC/UPC Duplex Fibre Cable

The StarTech.com LCLCL-5M-OM5-FIBER is a 5 m duplex multimode fibre patch cable with LC/UPC connectors and laser-optimised OM5 fibre. It is designed for suitable fibre switches, servers, SANs and SFP+, QSFP+ or QSFP28 modules, with support for high-speed 10, 40 and 100 Gbps network links.
Patch cable Green <2.4 dB/km 3-6 cm

The StarTech.com LCLCL-5M-OM5-FIBER is a 5 m duplex multimode fibre patch cable with LC/UPC connectors and laser-optimised OM5 fibre. It is designed for suitable fibre switches, servers, SANs and SFP+, QSFP+ or QSFP28 modules, with support for high-speed 10, 40 and 100 Gbps network links.

Best For
✓ A suitable choice for network installers
✓ IT teams connecting compatible multimode fibre switches, servers
✓ SANs or SFP+
✓ QSFP+

Key Features


Commercial Fit
The main reason to choose this cable is its OM5 multimode construction with extended 850-953 nm support, 10/40/100 Gbps capability, LSZH sheathing and backward compatibility with OM4 and OM3 10G networks.

Colour
Colour: Green

Attenuation
Attenuation: <2.4 dB/km

Bending Radius
Bending Radius: 3-6 cm

Technical Specifications

Product Type Patch cable
Network Cable Type OM5 patch cable
Technology Duplex fibre optic
Fibre Type Laser-optimised multimode fibre (LOMMF)
Core / Cladding Diameter 50 / 125 micron
Length 5 m
Connectors 2 x LC/UPC multi-mode male at each end
Supported Data Rates 10 / 40 / 100 Gbps
Compatibility Backward compatible with OM4 and OM3 10G networks
Wavelength 840 / 953 / 1300 nm
VCSEL Support 850-953 nm
LED Support 1300 nm
Modal Bandwidth at 850 nm 4700 MHz·km
Modal Bandwidth at 953 nm 2470 MHz·km
Insertion Loss ≤0.3 dB
Return Loss ≥30 dB
Attenuation <2.4 dB/km
Bending Radius 3-6 cm
Cable Diameter 2.9 mm
Jacket Material Low Smoke Zero Halogen (LSZH)
Sheathing Flame-retardant LSZH with aramid reinforcement
Features Halogen-free | bend insensitive | up to 100 Gbps data transfer rate
Ferrules Ceramic
Polishing LC/LC UPC ends
Polarity Colour-coded connectors
Compliant Standards RoHS
Colour Green
Warranty Limited lifetime warranty
SKU / EAN LCLCL-5M-OM5-FIBER | 0065030902540

Frequently Asked Questions

What should I know before buying?
Check that the connected equipment uses compatible multimode fibre and LC/UPC interfaces. This is a duplex OM5 patch cable, so connector type, fibre standard and required cable length should be confirmed before ordering.
What is it compatible with?
10 / 40 / 100 Gbps
What are the key specifications?
Colour: Green | Product Type: Patch cable | Attenuation: <2.4 dB/km
Singular Expert Insight
The main reason to choose this cable is its OM5 multimode construction with extended 850-953 nm support, 10/40/100 Gbps capability, LSZH sheathing and backward compatibility with OM4 and OM3 10G networks.

Buyer’s Guide

Buy it if
A suitable choice for network installers and IT teams connecting compatible multimode fibre switches, servers, SANs or SFP+, QSFP+ and QSFP28 modules over a 5 m run.
Skip it if
Check that the connected equipment uses compatible multimode fibre and LC/UPC interfaces. This is a duplex OM5 patch cable, so connector type, fibre standard and required cable length should be confirmed before ordering.
