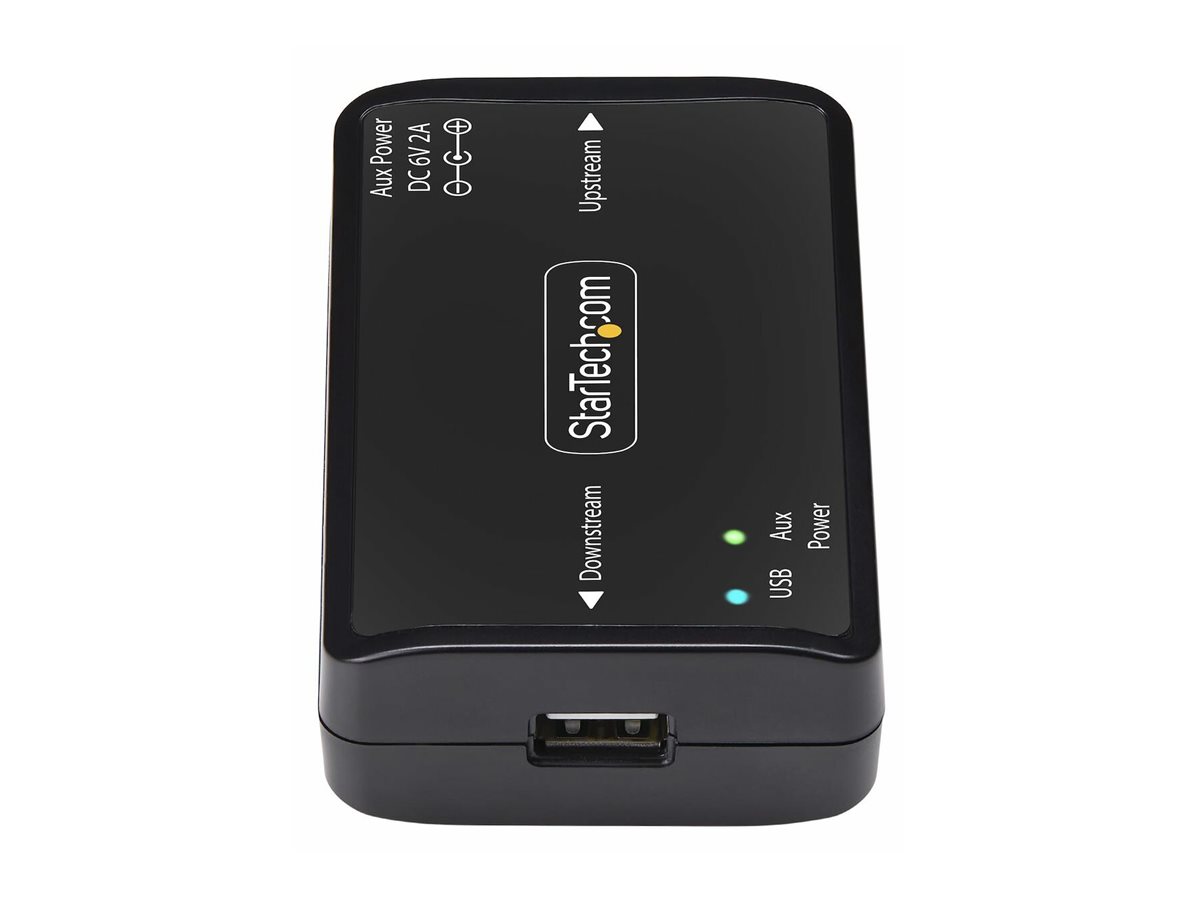

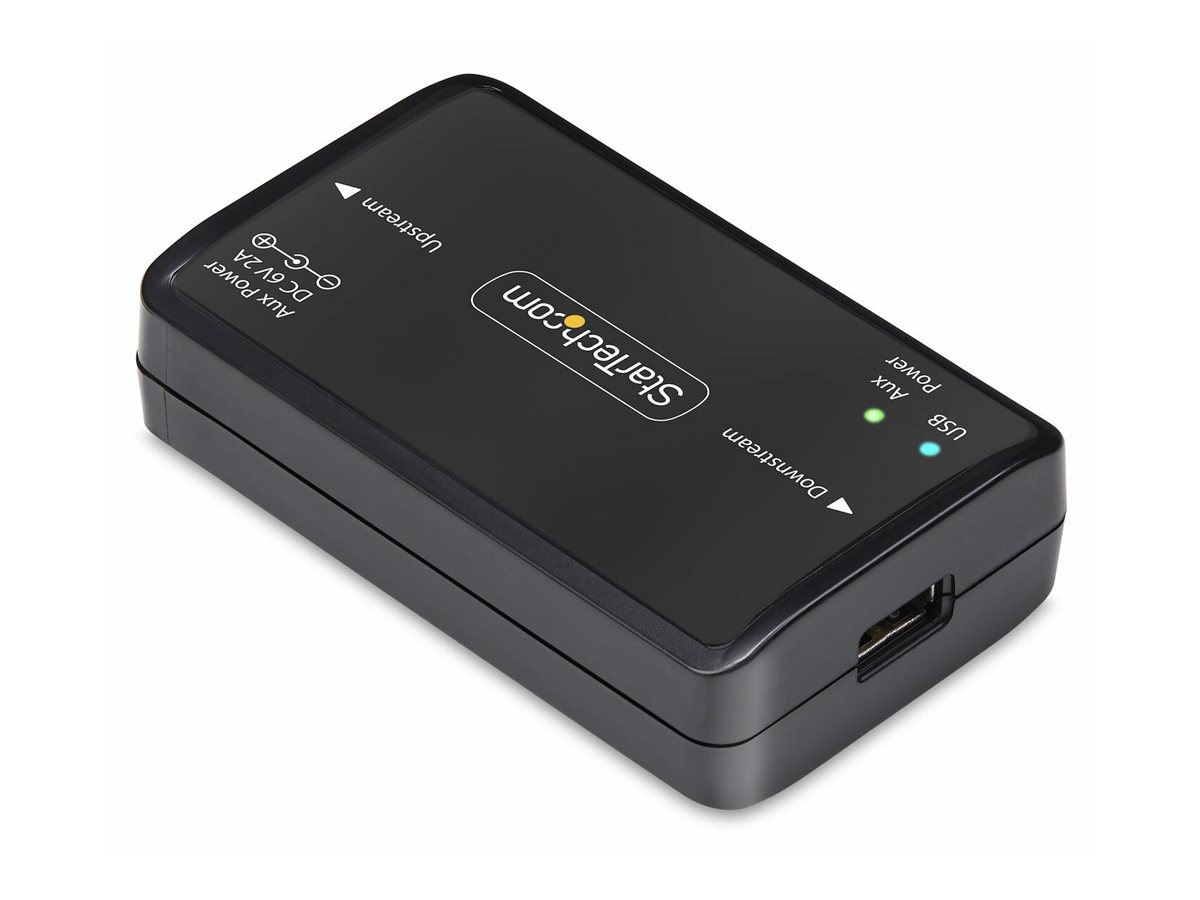

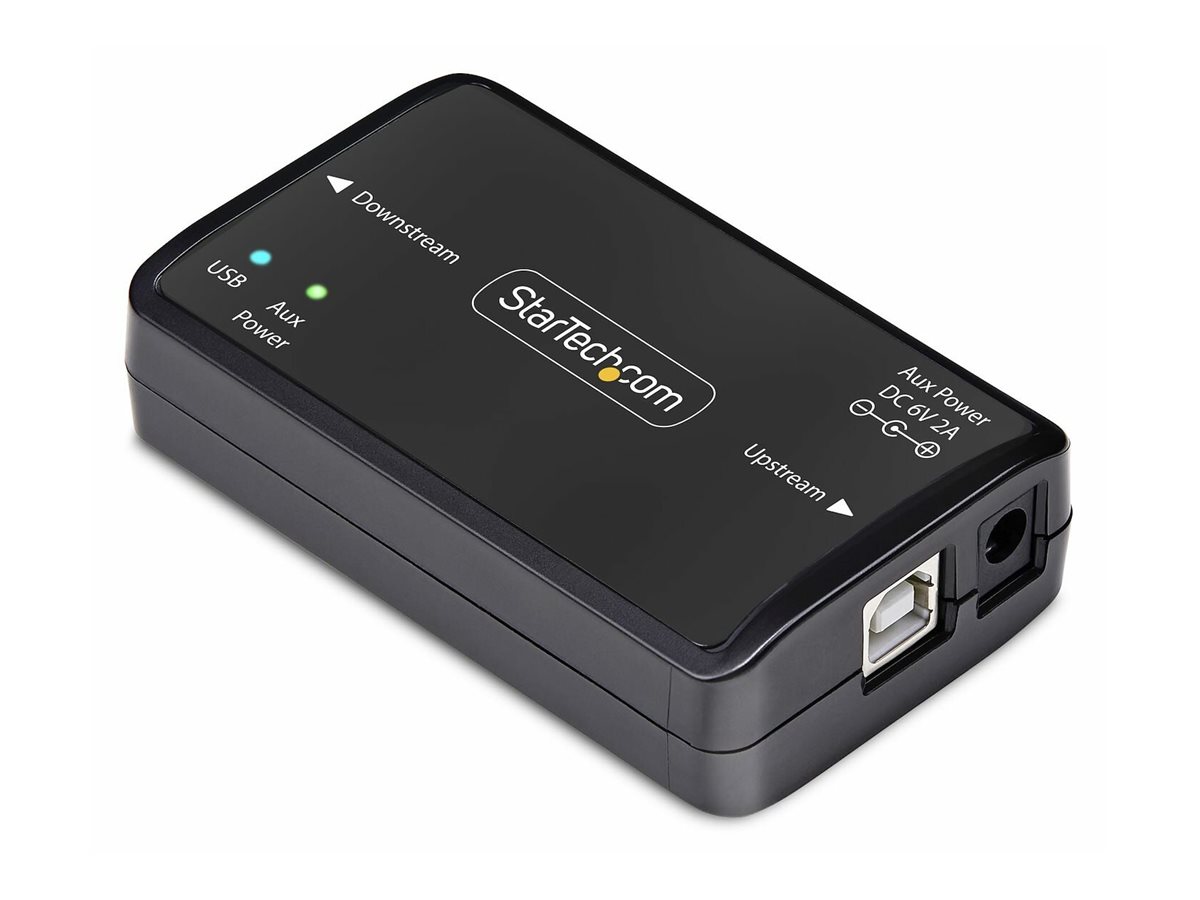

StarTech.com U1-USB-ISOLATOR USB Galvanic Isolator 6kV, USB 2.0/1.1, DIN Rail Mount

Brand:
StarTech.com
StarTech.com USB Galvanic Isolator 6KV, Electri | U1-USB-ISOLATOR
StarTech.com U1-USB-ISOLATOR USB Galvanic Isolator 6kV, USB 2.0/1.1, DIN Rail Mount
€99.09 inc. VAT
Buy
U1-USB-ISOLATOR
€83.27
€99.09 inc. VAT
Ships from EU stock: 9 item(s)
+ −
Add to wish list Ask a question
Product Code
CL97621
EAN Code
0065030909464
Manufacturer
StarTech.com

Quick Specs

Interfaces
1 x USB - 4 pin USB Type A
Product Type
Surge isolator - external
Colour
Black
Power Connector
Type M barrel plug
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

StarTech.com USB Galvanic Isolator 6kV - USB 2.0/1.1 Protection

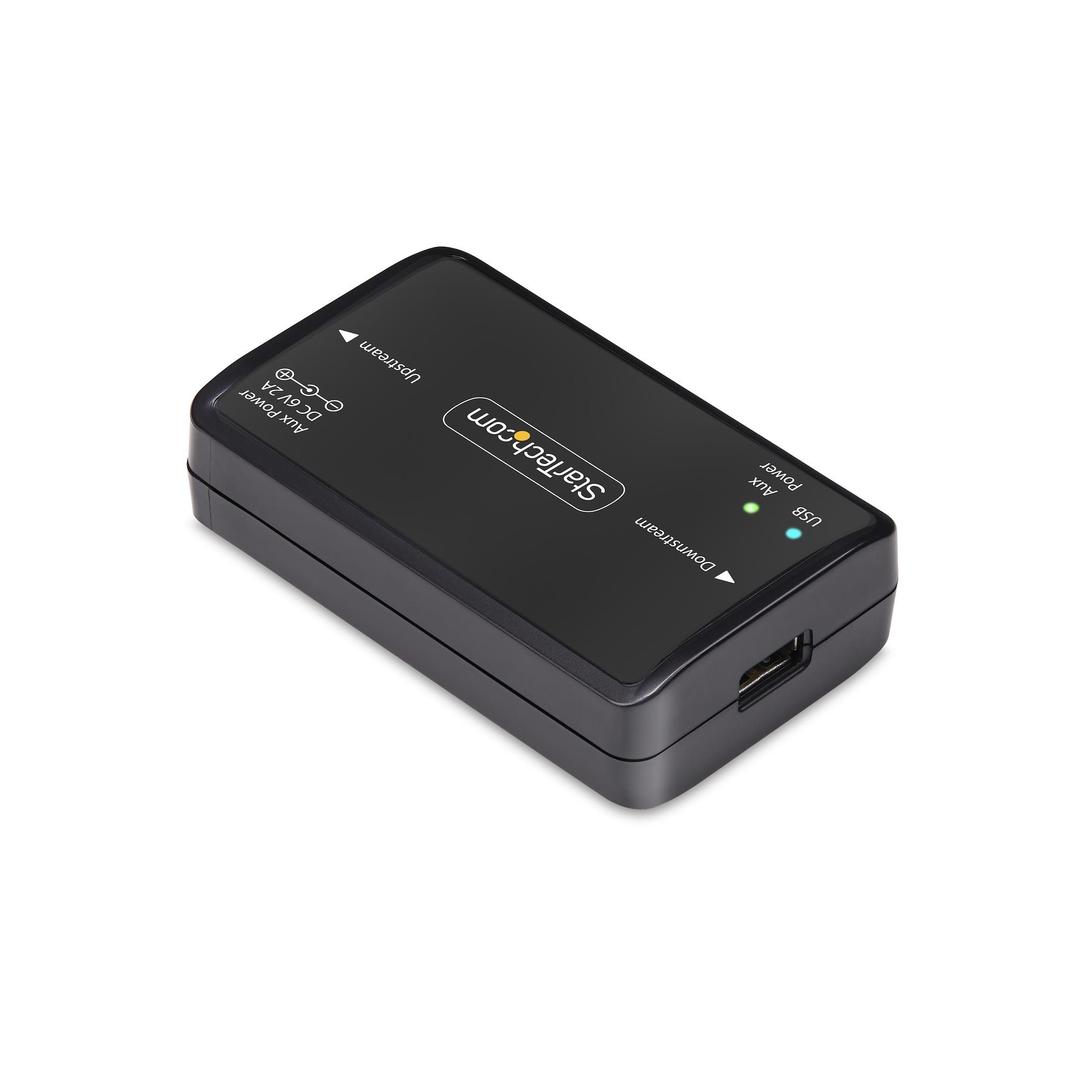

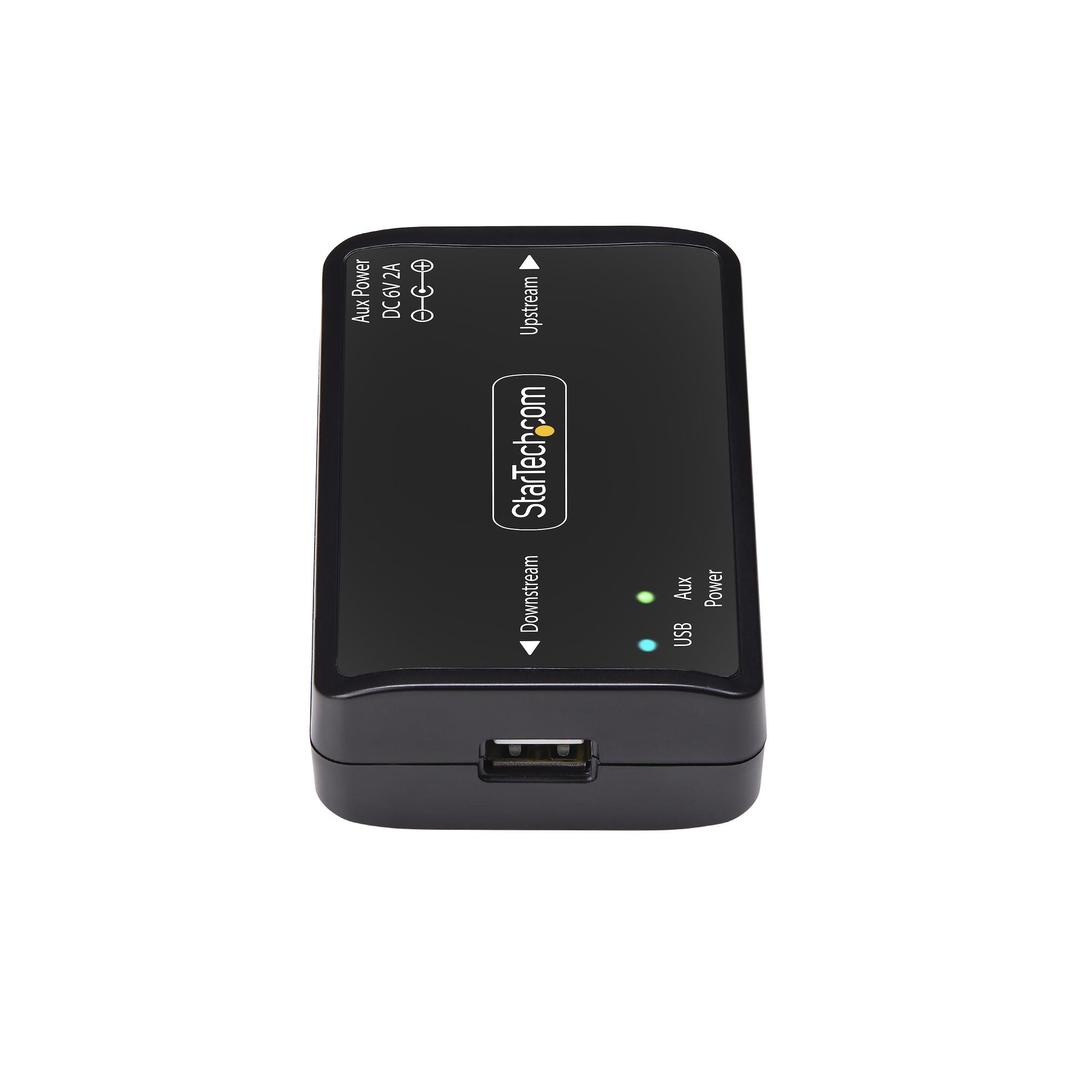

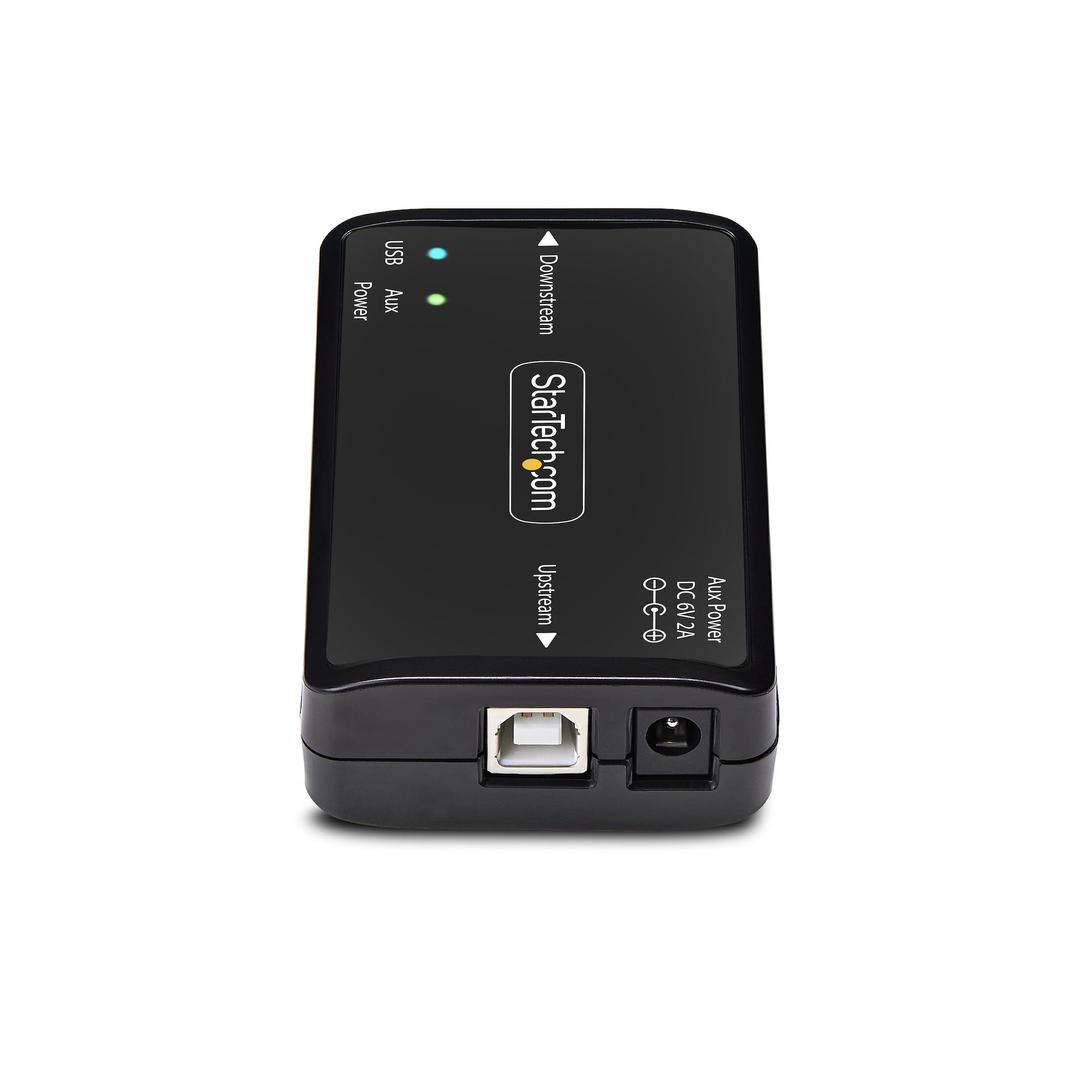

The StarTech.com U1-USB-ISOLATOR is an external USB galvanic isolator designed to protect sensitive computers and USB devices from voltage spikes, ground loops and electrical interference. It supports USB 2.0 and USB 1.1 connections, includes a USB-B to USB-A cable, and can be installed on a DIN rail or used as a standalone unit.
1 x USB - 4 pin USB Type A Surge isolator - external Black Type M barrel plug

The StarTech.com U1-USB-ISOLATOR is an external USB galvanic isolator designed to protect sensitive computers and USB devices from voltage spikes, ground loops and electrical interference. It supports USB 2.0 and USB 1.1 connections, includes a USB-B to USB-A cable, and can be installed on a DIN rail or used as a standalone unit.

Best For
✓ USB Cables & Adapters shoppers
✓ Customers comparing confirmed specifications
✓ Business or home setups needing a grounded configuration
✓ Buyers who want clear model-level details

Key Features


Commercial Fit
The main reason to choose this model is its 6000 V DC galvanic isolation combined with USB 2.0/1.1 support, LED status indicators and flexible DIN rail or standalone installation.

Interfaces
1 x USB Type-A, 4-pin | 1 x USB Type-B, 4-pin | 1 x USB - 4 pin USB Type A | 1 x USB - 4 pin USB Type B

Power Connector
Power Connector: Type M barrel plug

Mounting
DIN rail mount or standalone external installation

Technical Specifications

Product Type External surge isolator | Surge isolator - external
USB Standard USB 2.0 and USB 1.1
USB Data Rate USB 2.0: 12 Mbps | USB 1.1: 1.5 Mbps
Interfaces 1 x USB Type-A, 4-pin | 1 x USB Type-B, 4-pin | 1 x USB - 4 pin USB Type A | 1 x USB - 4 pin USB Type B
Electrical Isolation 6000 V DC isolation for up to 1 minute
Maximum Spike Voltage 6000 V
ESD Protection 15 kV air | 8 kV contact
Output Voltage 5 V
Output Current 250 mA
Optional Output Current 500 mA with external power adapter

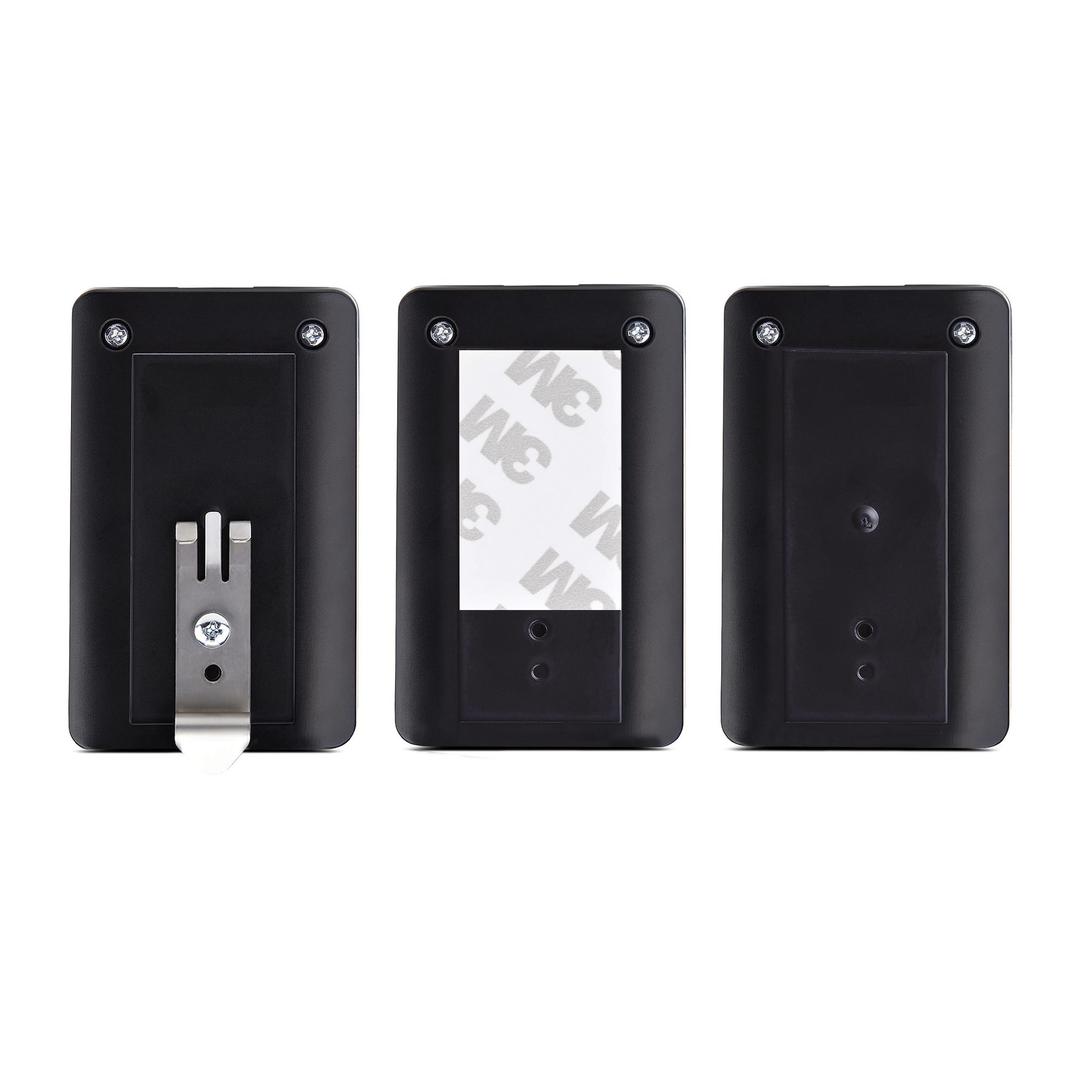

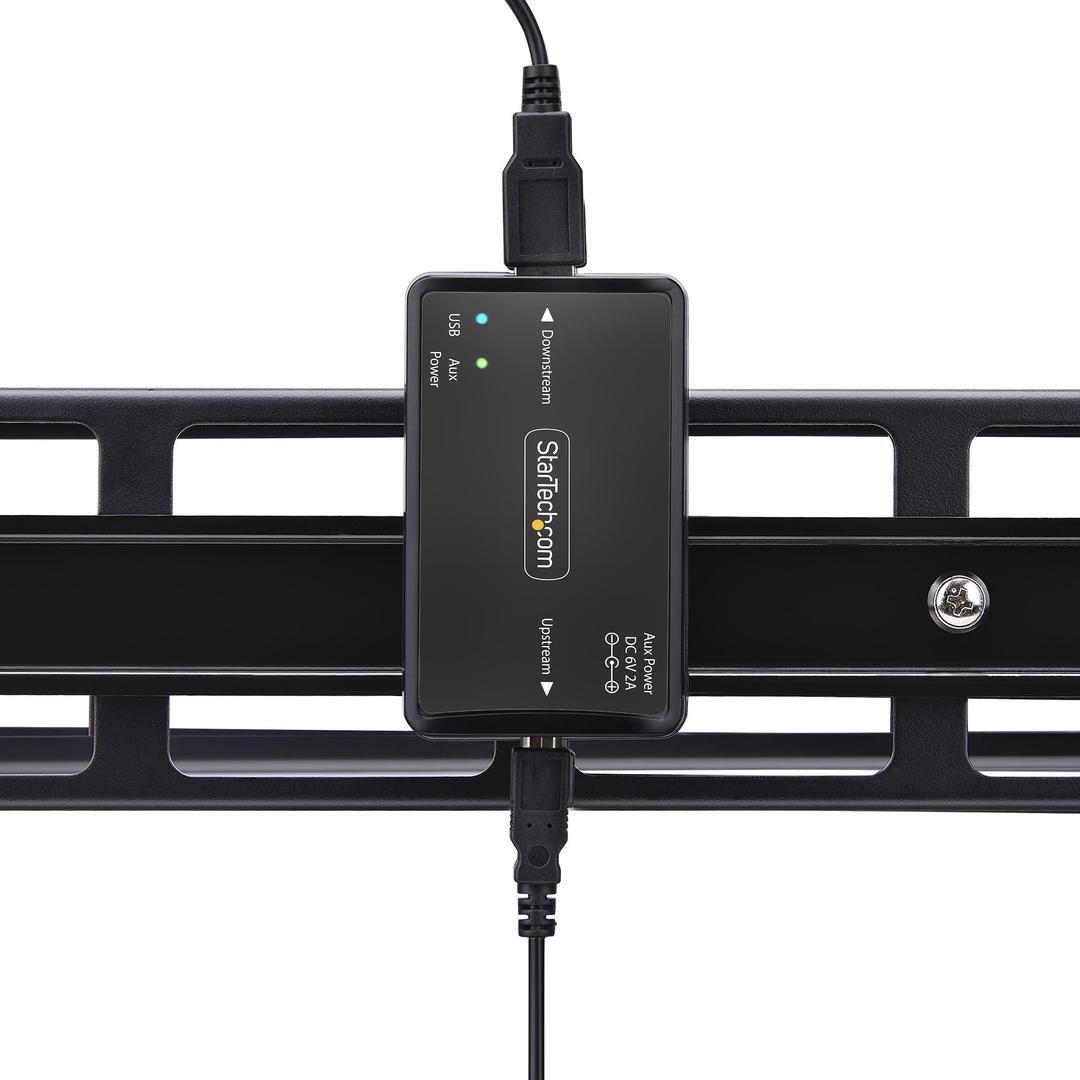

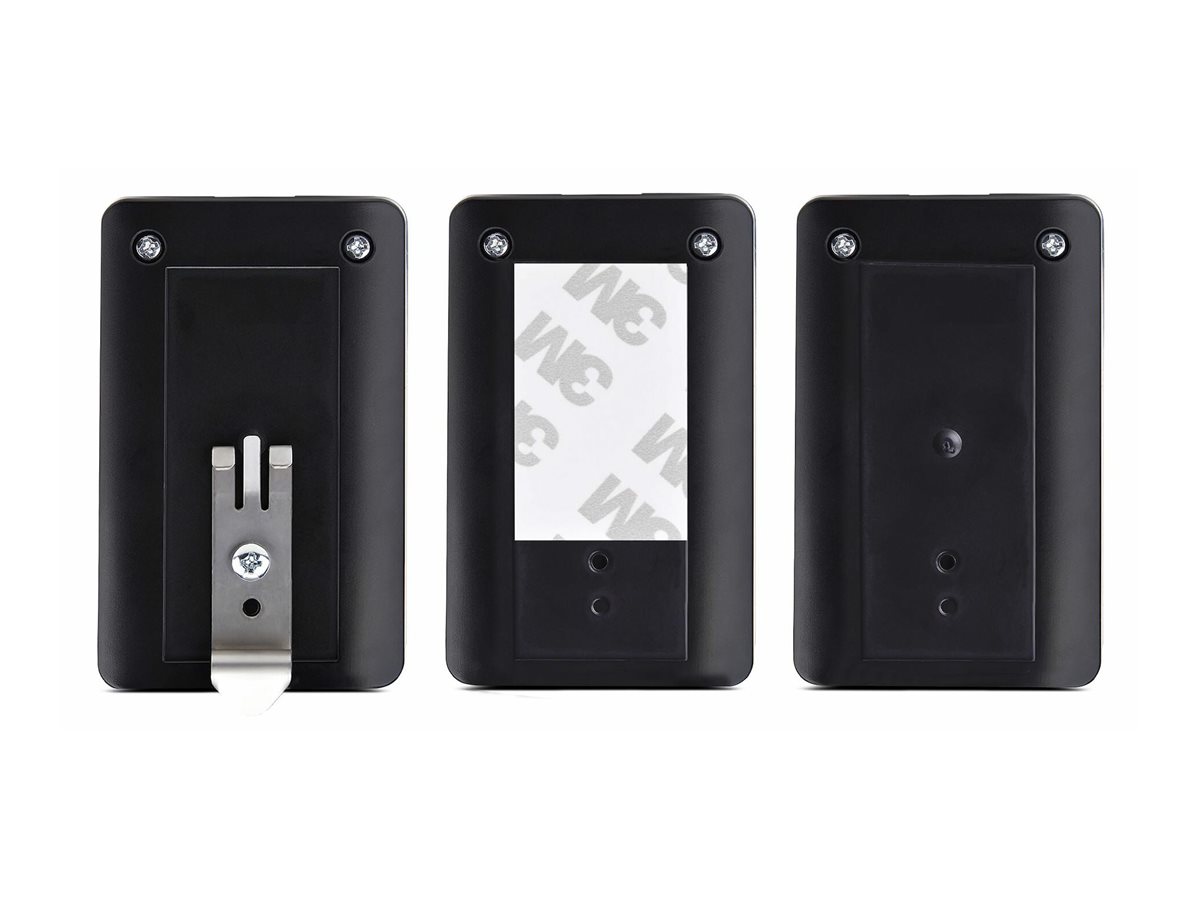

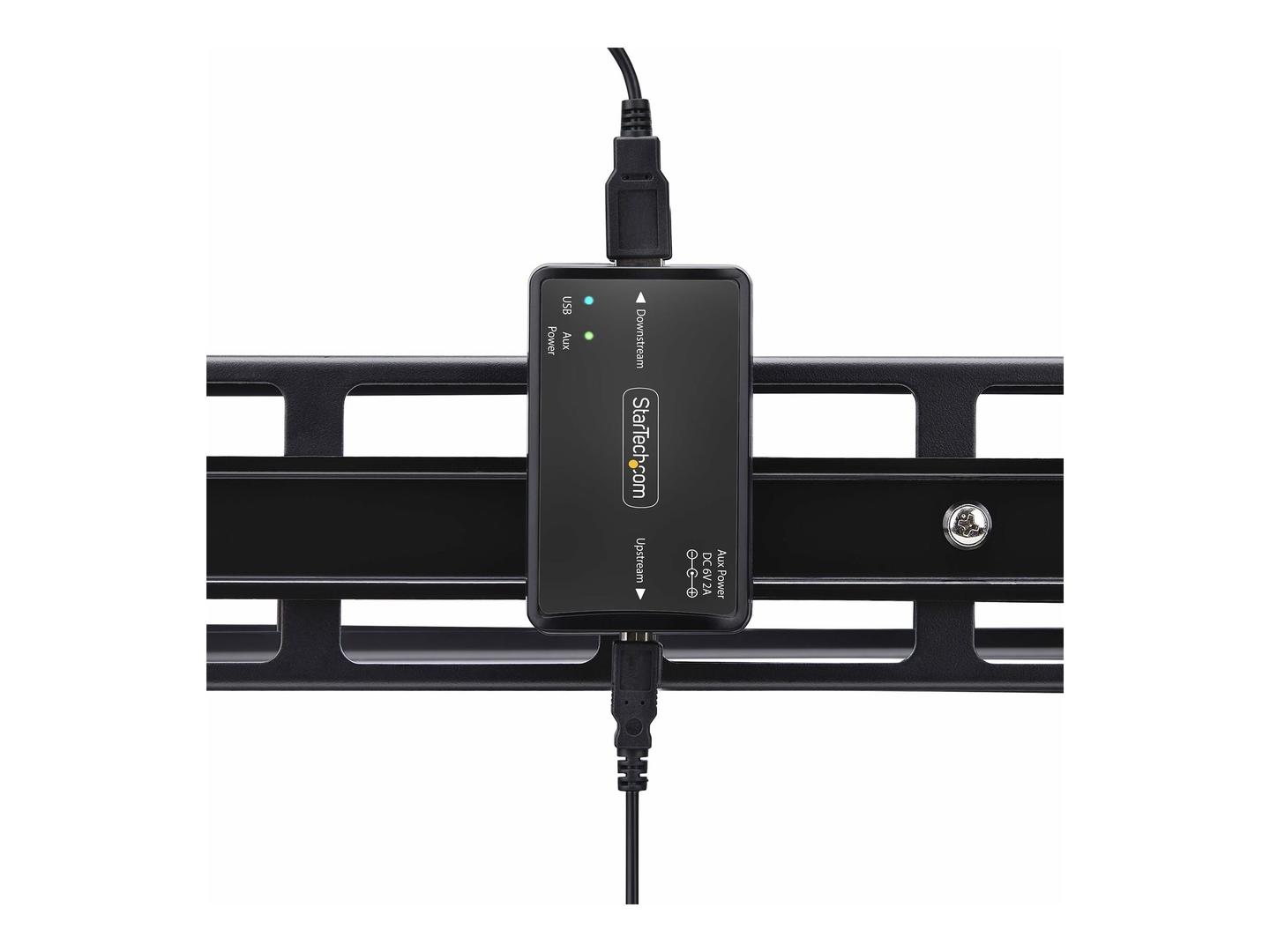

Mounting DIN rail mount or standalone external installation

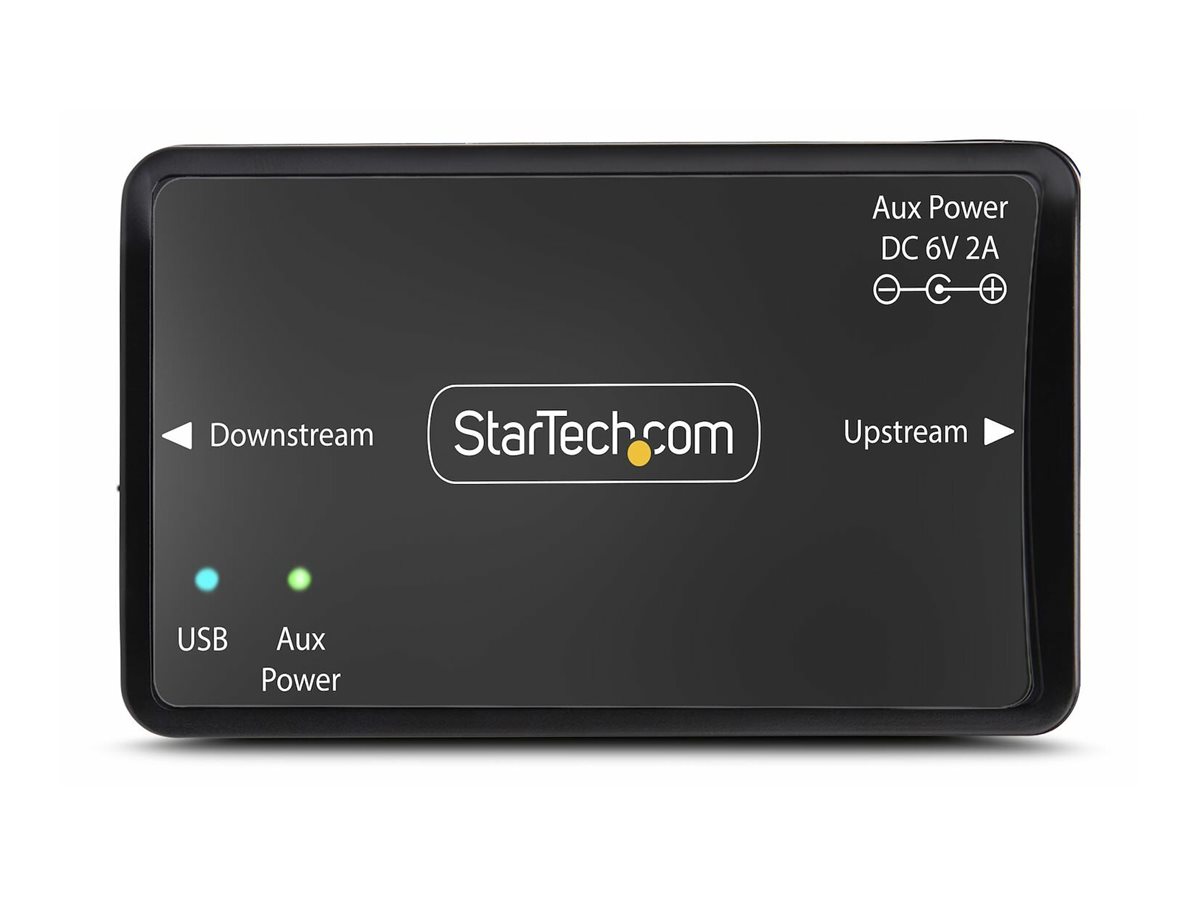

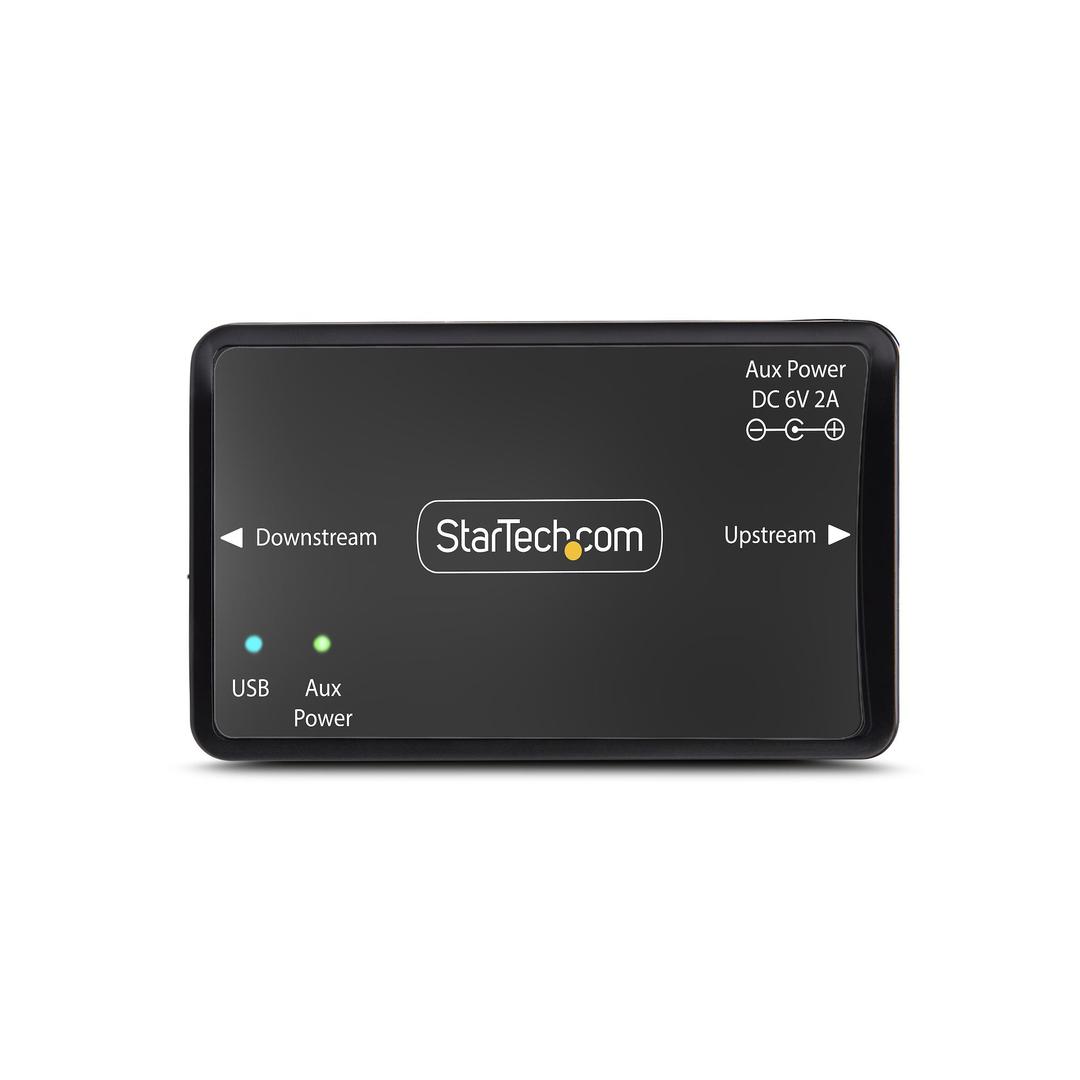

Status Indicators LED status indicators

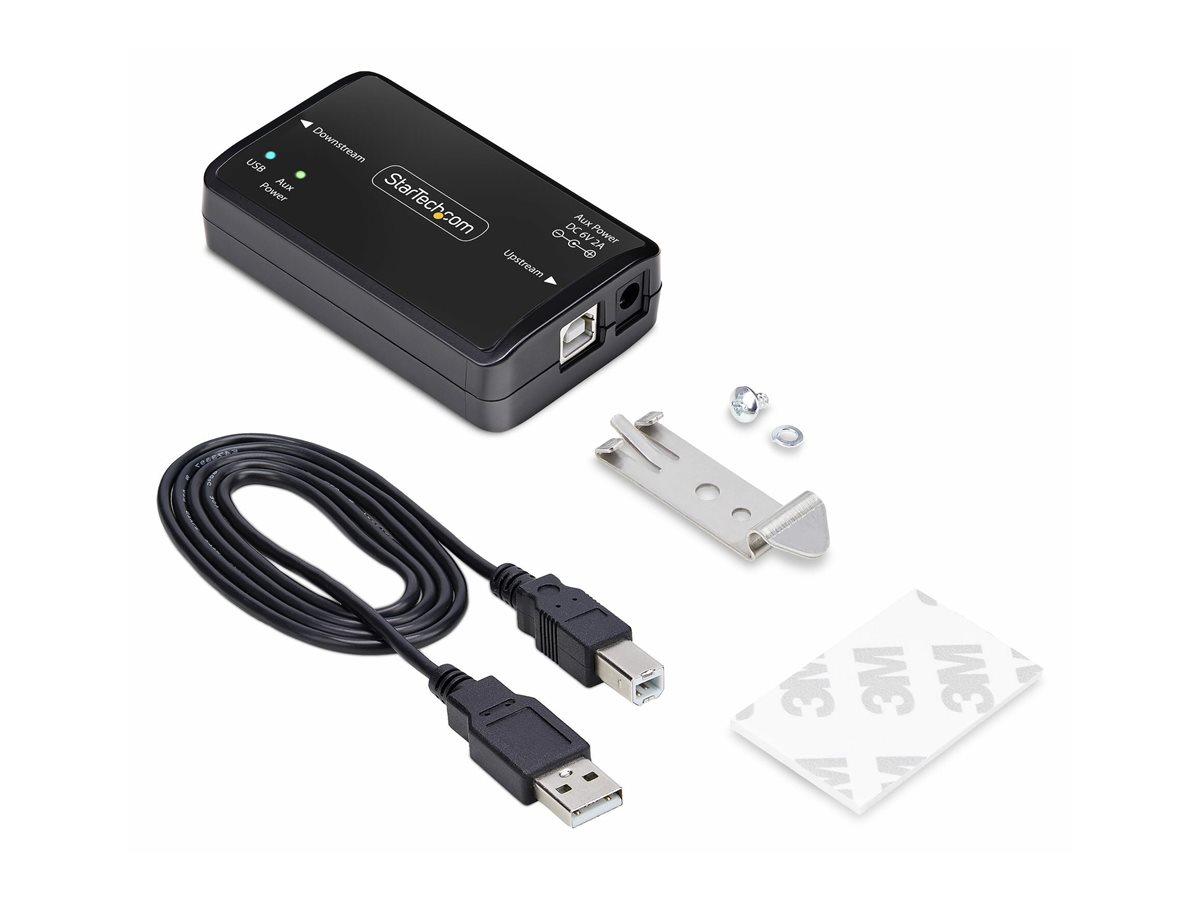

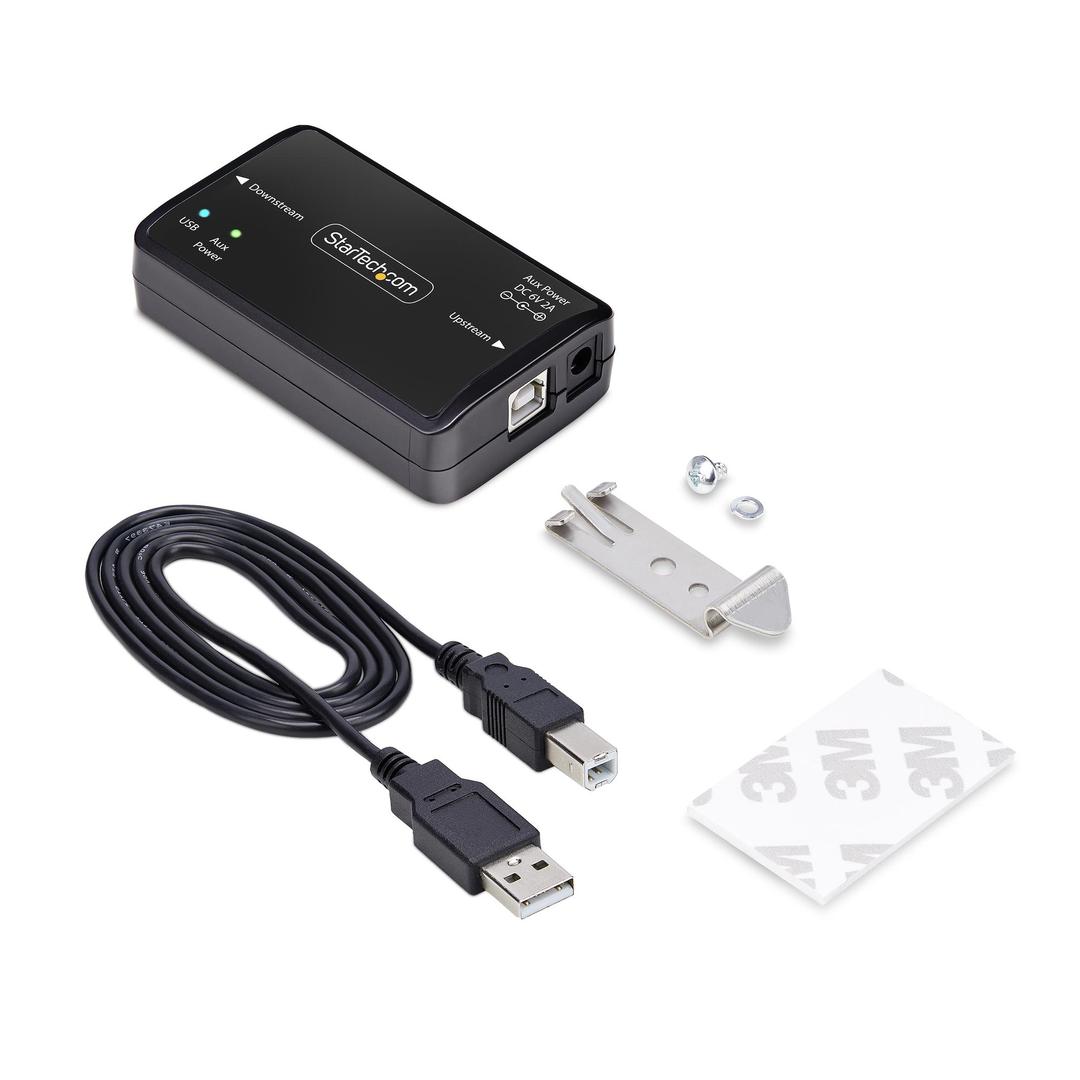

Included Cable 3 ft (0.9 m) USB-B to USB-A cable

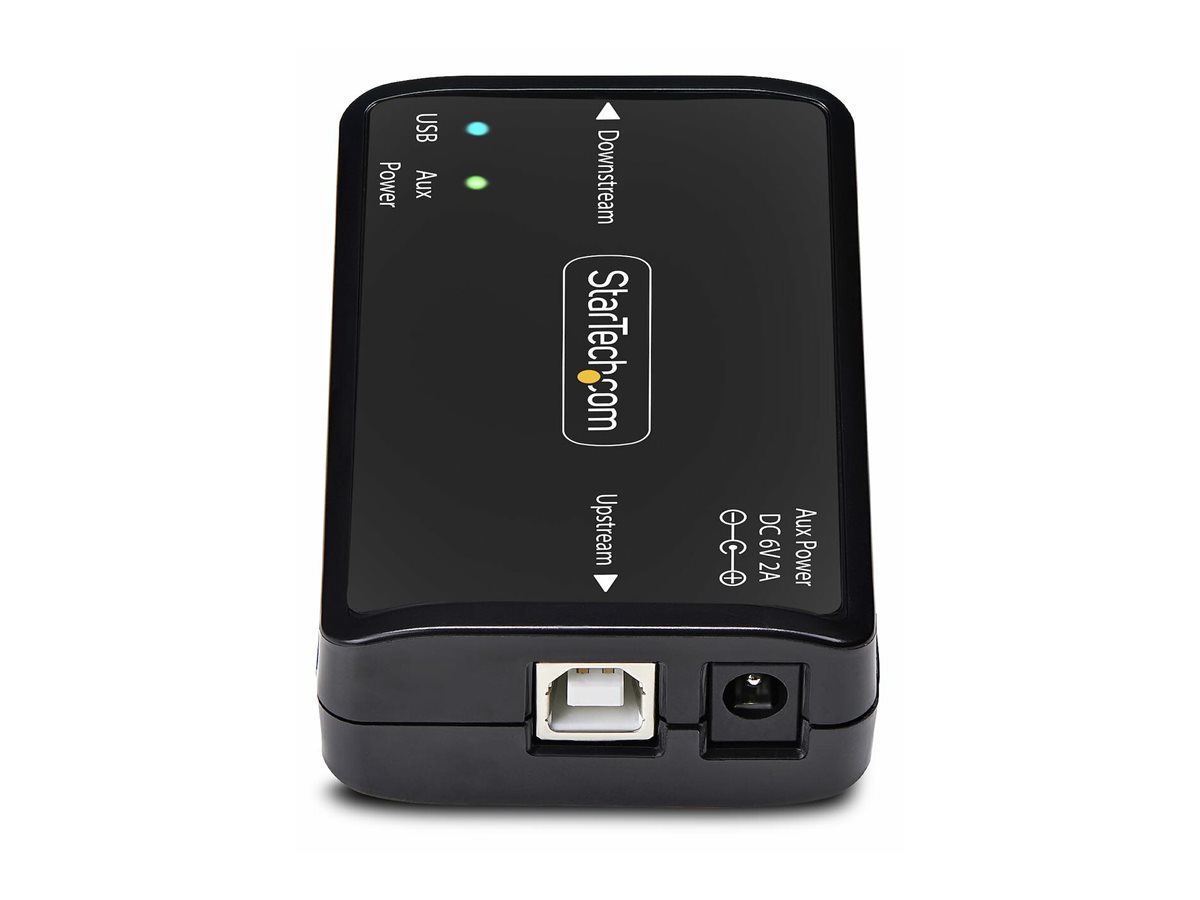

Power Connector Type M barrel plug
Housing Material UL-rated PC-ABS housing, ABS and PC 94V-0
Compliance IP40 | FCC | Plug and Play | CE/LVD | IEC/EN 62368-1 | TAA Compliant
Operating Temperature -30 °C to 75 °C
Dimensions 89 mm width | 55 mm depth | 24 mm height
Colour Black
Warranty Limited warranty - 2 years
SKU / EAN U1-USB-ISOLATOR | 0065030909464

Frequently Asked Questions

What should I know before buying?
This is an isolator rather than a high-speed USB hub or expansion device. USB 2.0 data is limited to 12 Mbps, standard output current is 250 mA, and the optional 500 mA output requires an external power adapter.
What connectivity does it offer?
1 x USB Type-A, 4-pin | 1 x USB Type-B, 4-pin | 1 x USB - 4 pin USB Type A | 1 x USB - 4 pin USB Type B
What are the key specifications?
Interfaces: 1 x USB Type-A, 4-pin | 1 x USB Type-B, 4-pin | 1 x USB - 4 pin USB Type A | 1 x USB - 4 pin USB Type B | Power Connector: Type M barrel plug | Mounting: DIN rail mount or standalone external installation
Singular Expert Insight
The main reason to choose this model is its 6000 V DC galvanic isolation combined with USB 2.0/1.1 support, LED status indicators and flexible DIN rail or standalone installation.

Buyer’s Guide

Buy it if
A practical choice for users connecting USB equipment in environments where voltage spikes, ground loops or electrical interference are a concern, particularly where DIN rail installation or a wide operating temperature range is useful.
Skip it if
This is an isolator rather than a high-speed USB hub or expansion device. USB 2.0 data is limited to 12 Mbps, standard output current is 250 mA, and the optional 500 mA output requires an external power adapter.
