StarTech.com HB31C5A2CME — 7-Port Industrial USB 10 Gbps Hub with Power Adapter and DIN Kit
7 ports at 10 Gbps5x USB-A + 2x USB-C65 W adapter and DIN kit included12 W charging, 40 W total
The StarTech.com HB31C5A2CME is the seven-port industrial 10 Gbps hub that comes complete: a steel case with a DIN mounting kit, five USB-A and two USB-C ports, a 65 W adapter wired to a terminal block, locking host cables for USB-C and USB-A computers, and 40 W of charging across the ports. It is for machine vision, logging and test benches that outgrew a four-port hub.
Compatibility — check before buying:

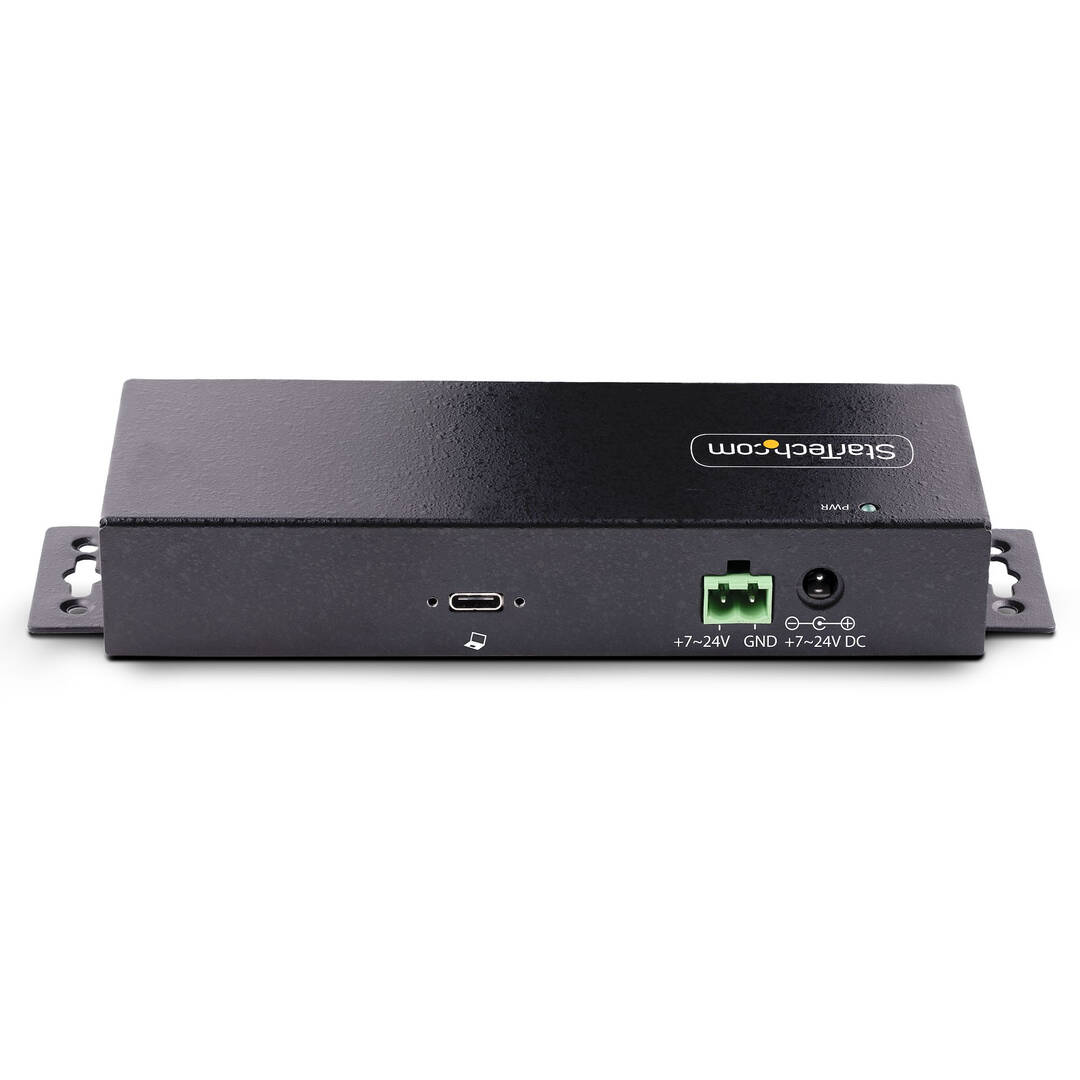

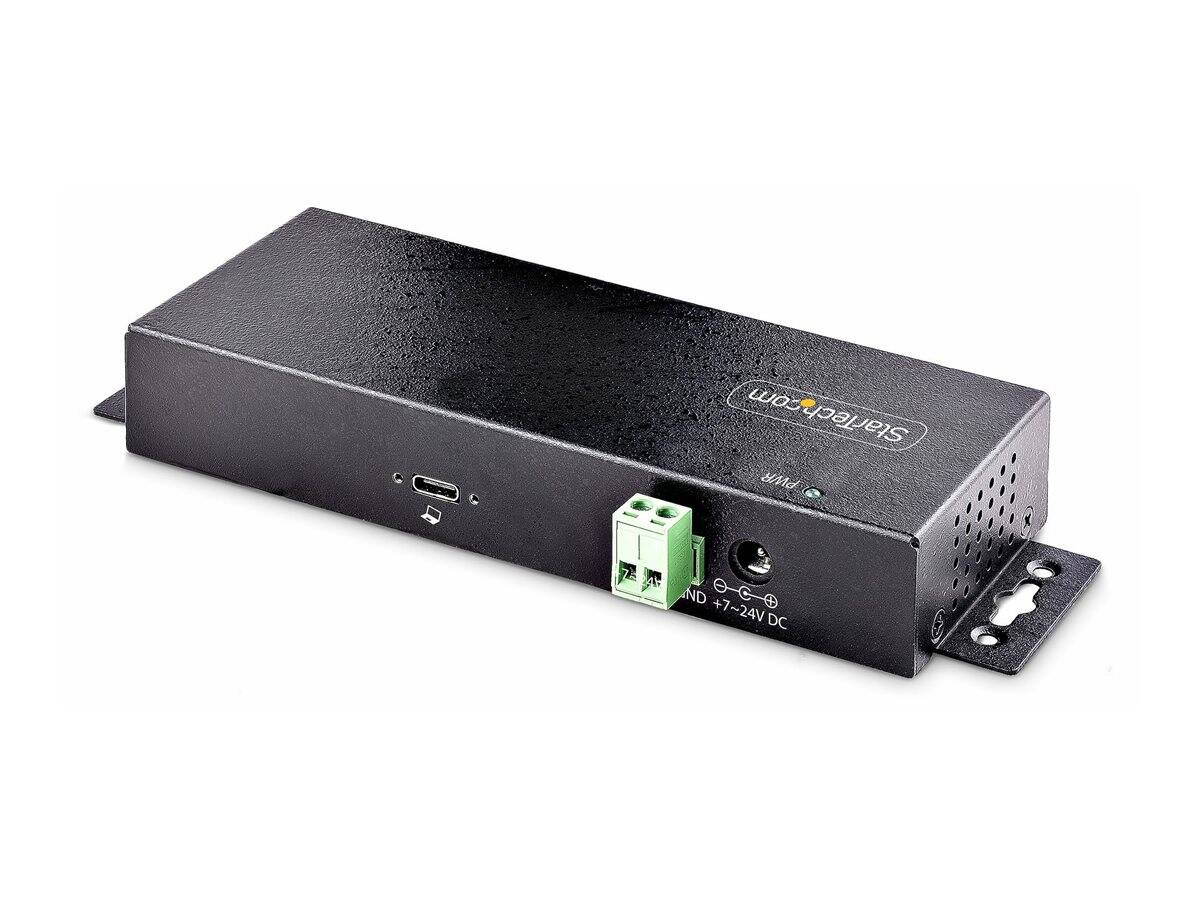

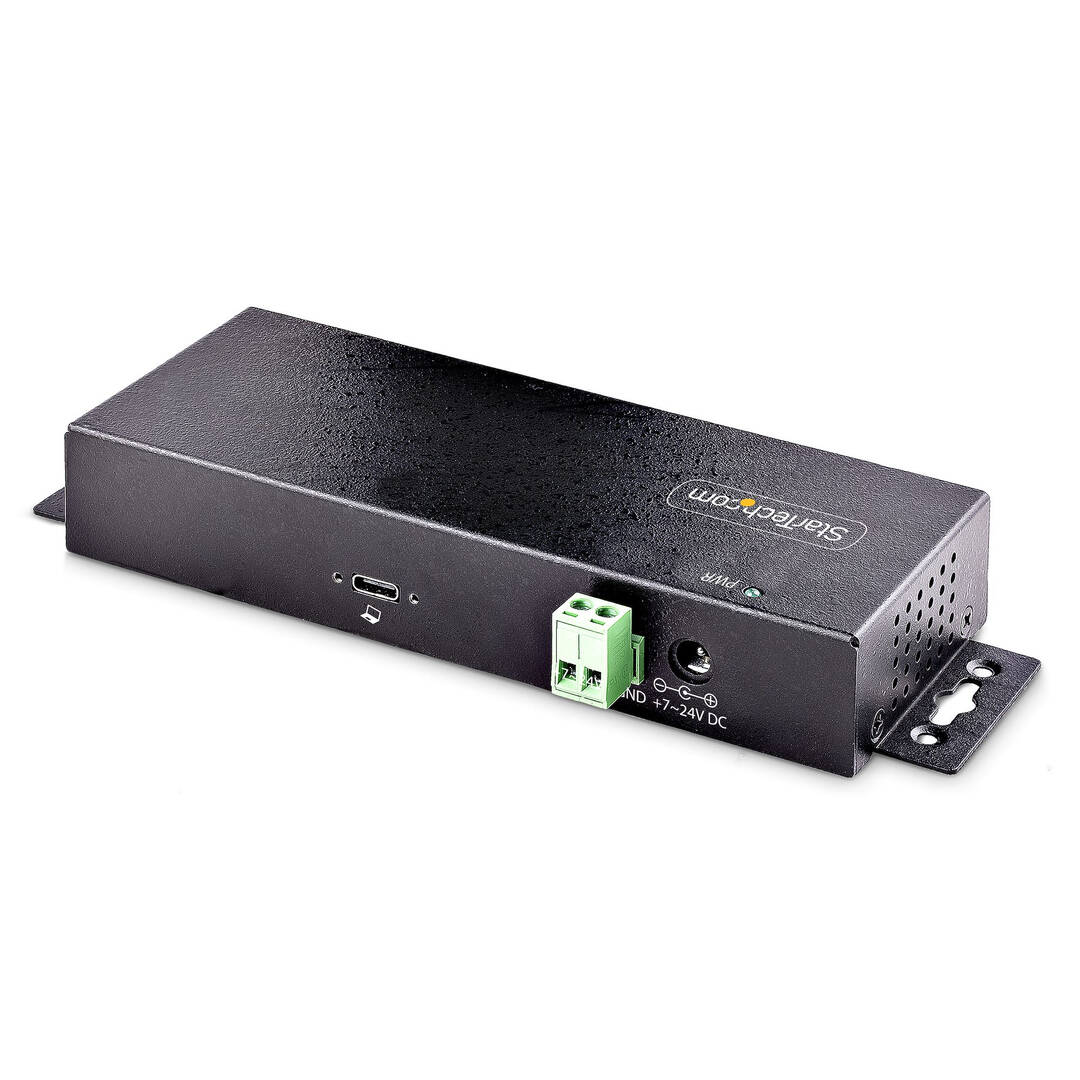

The two USB-C ports are data and charging only — no Power Delivery to a laptop, no video. Bandwidth is 10 Gbps shared across the seven ports. StarTech quotes 12 W (2.4 A) on any port but a 40 W total draw, so seven phones at 12 W at once is not possible. The adapter connects through the 2-wire terminal block; the same block accepts a 7–24 V DC panel supply instead. Operating range 0–55 °C.
Best For
✓ Machine vision with several USB 3 cameras
✓ Data logging to USB-C SSDs at 10 Gbps
✓ Test benches with USB-A and USB-C instruments
✓ Kiosks and terminals in metal enclosures
✓ Cabinets on DIN rail with a 12 or 24 V rail
✓ Mixed USB-A and USB-C host PCs
Key Features
Seven 10 Gbps ports

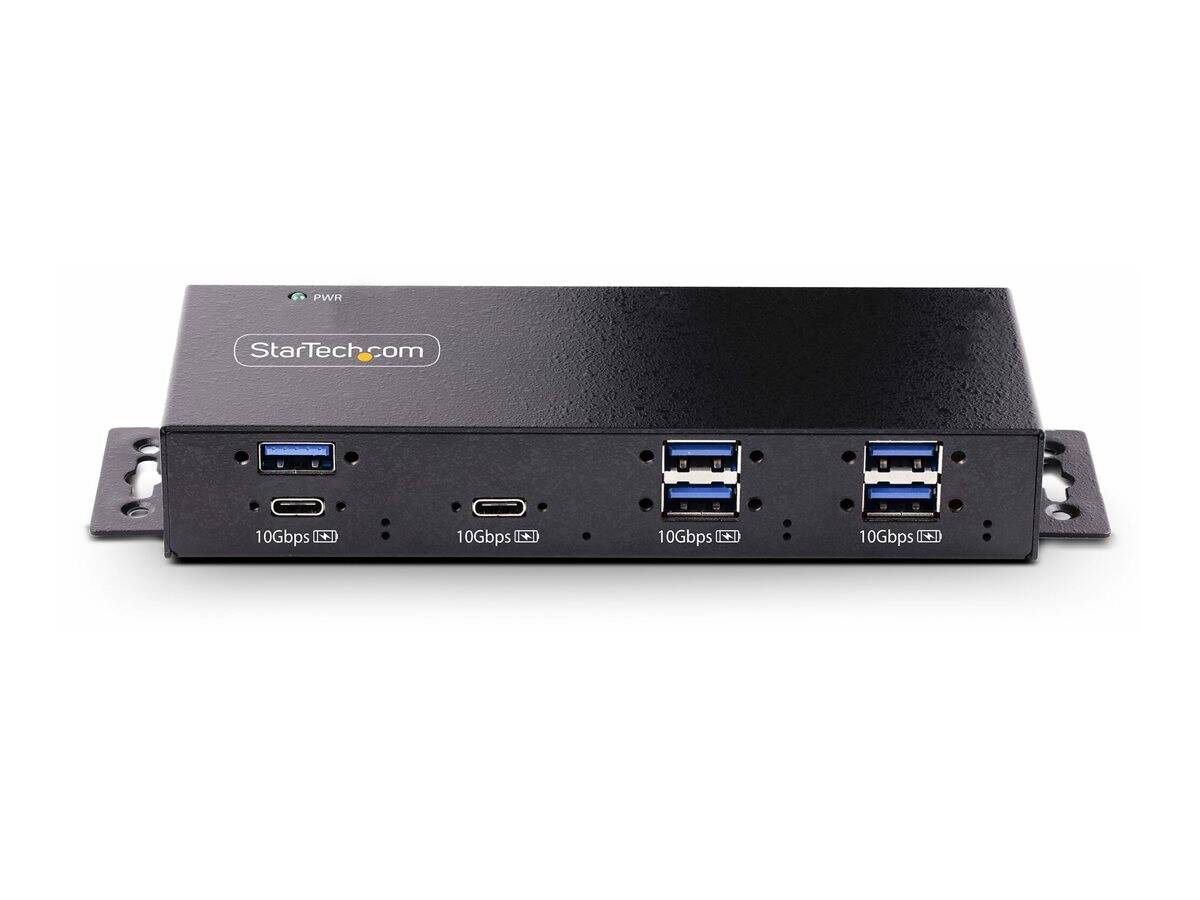

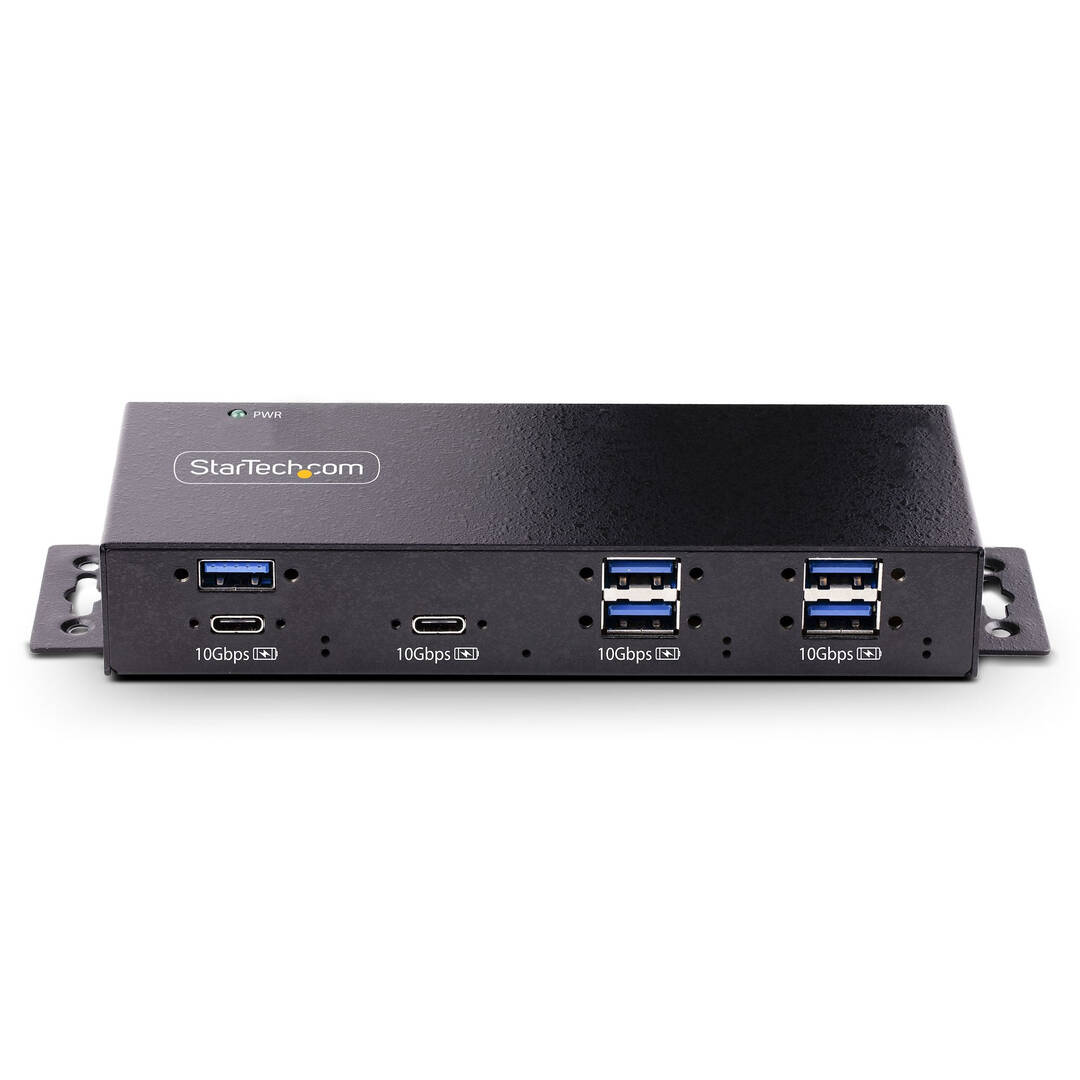

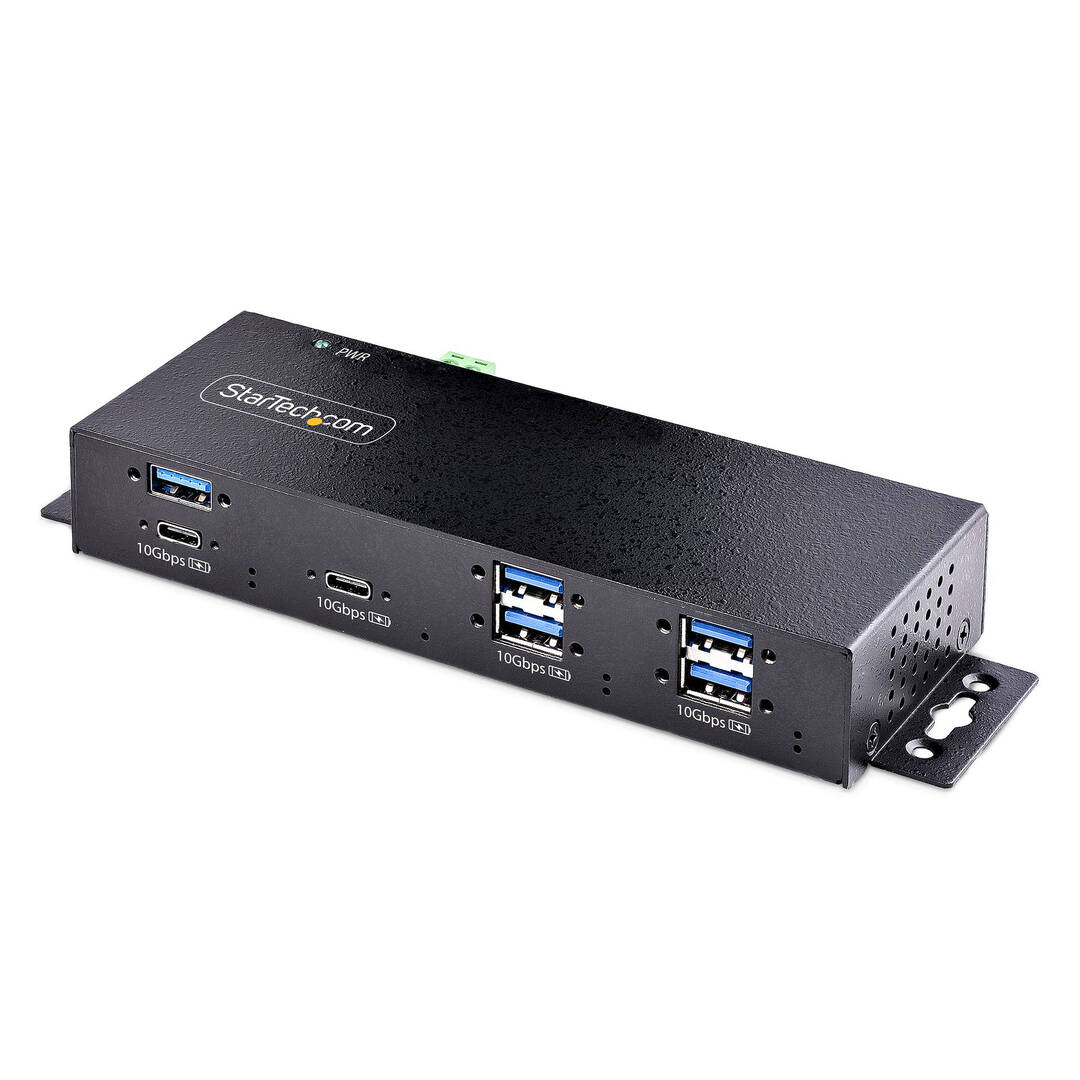

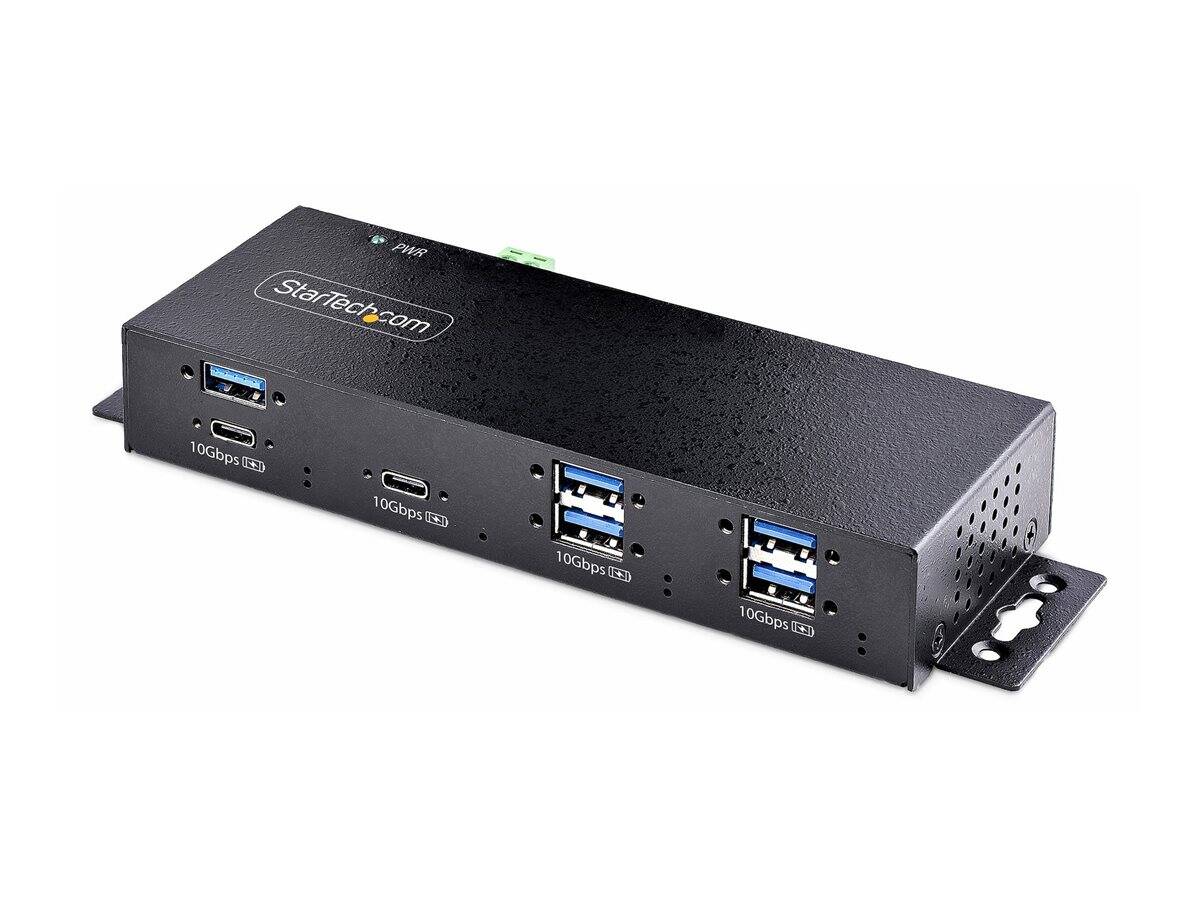

Five USB-A and two USB-C at USB 3.2 Gen 2 on a VIA VL822 controller, backwards compatible with USB 3.0, 2.0 and 1.x; 1 m locking USB-C-to-C and USB-A-to-C host cables included.
Powered for the bench or the panel

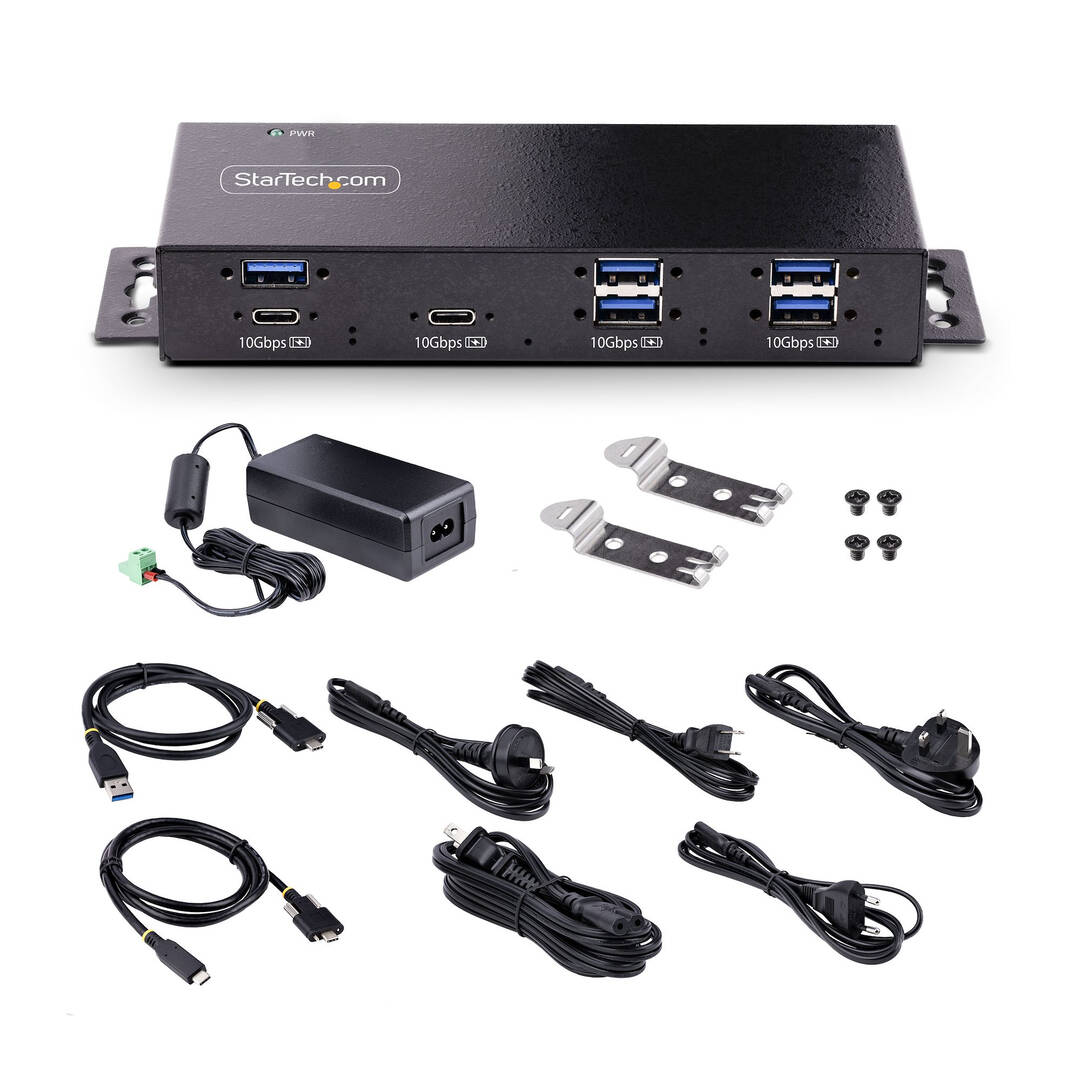

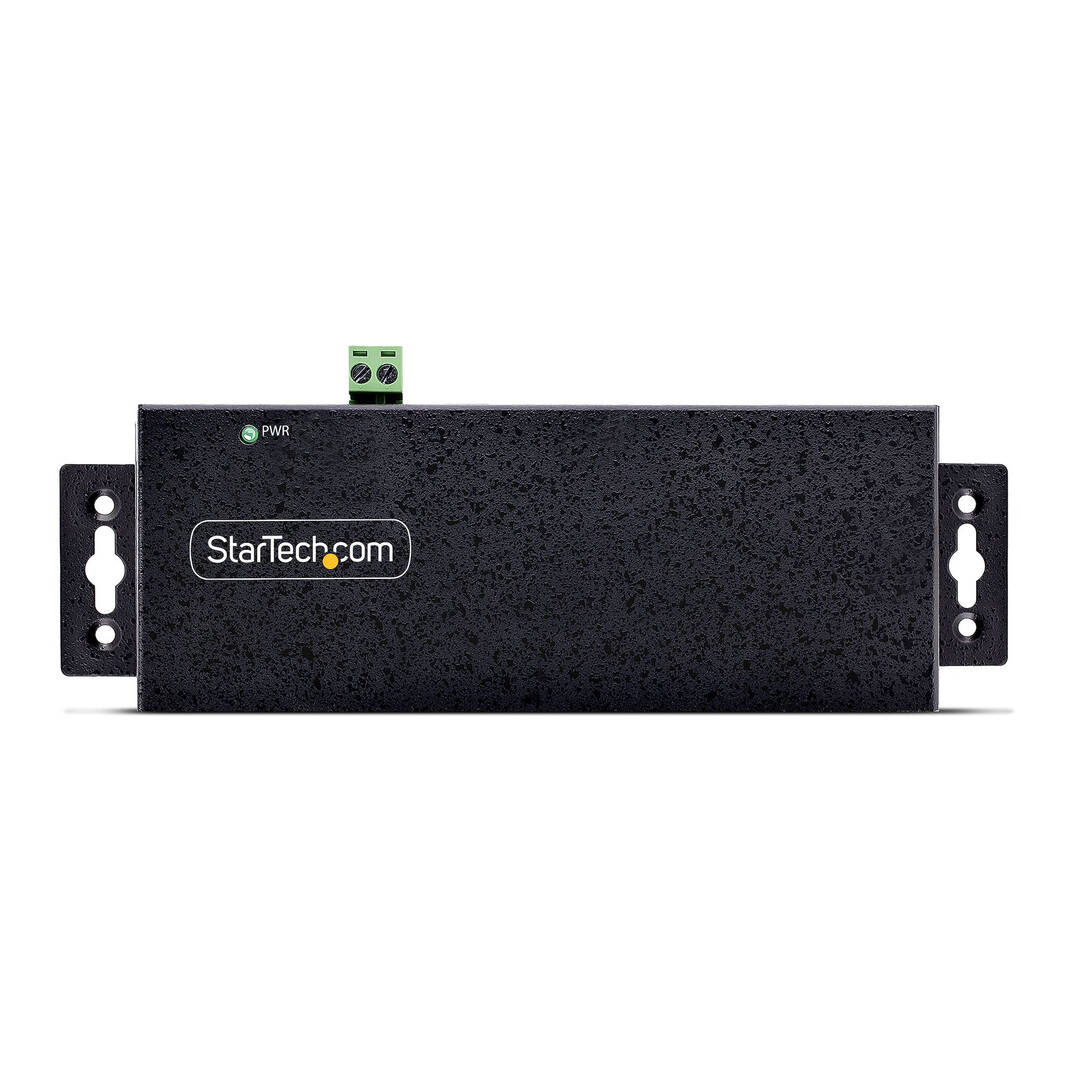

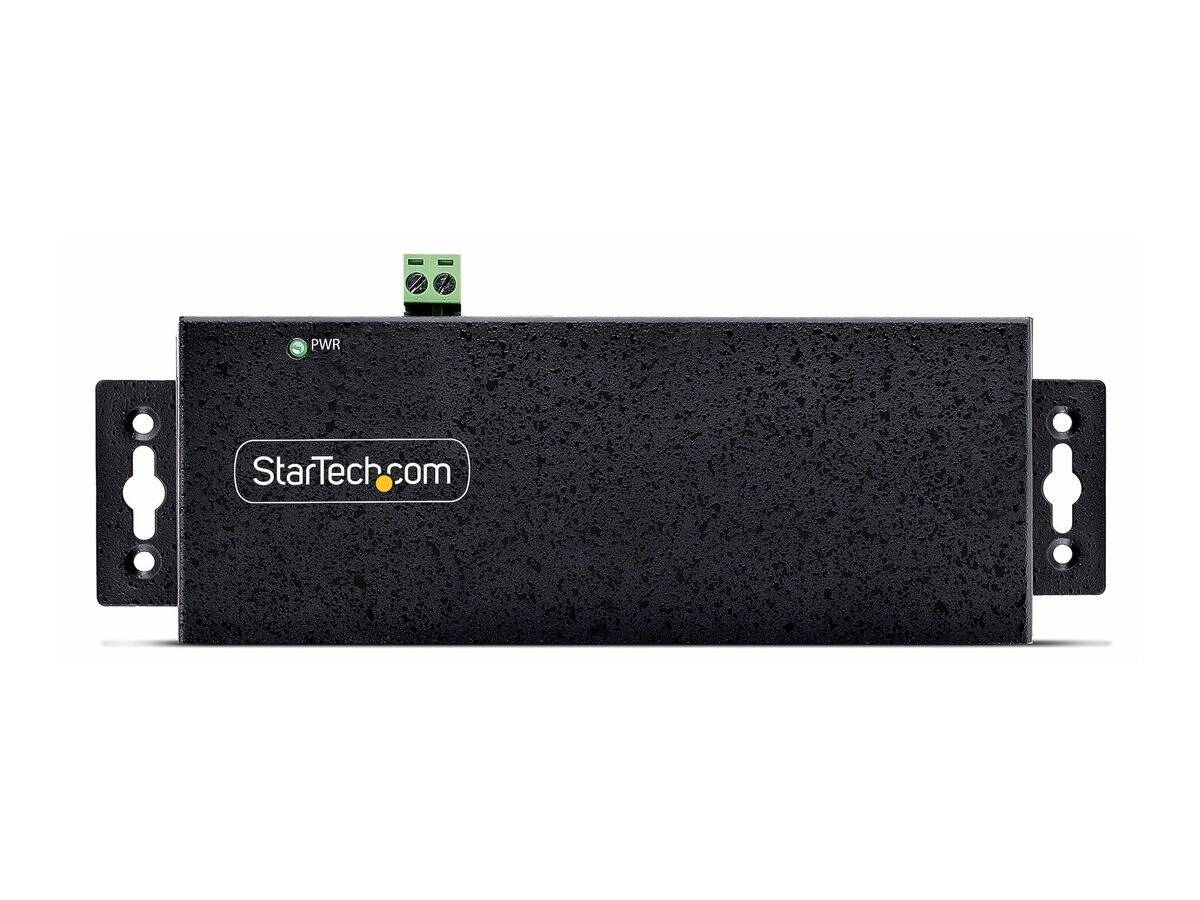

A universal 65 W (20 V / 3.25 A) adapter with NA/JP, UK, EU and ANZ plugs feeds the terminal block, or wire 7–24 V DC from the cabinet; 12 W BC 1.2 charging on any port up to 40 W total.
Mount and protect

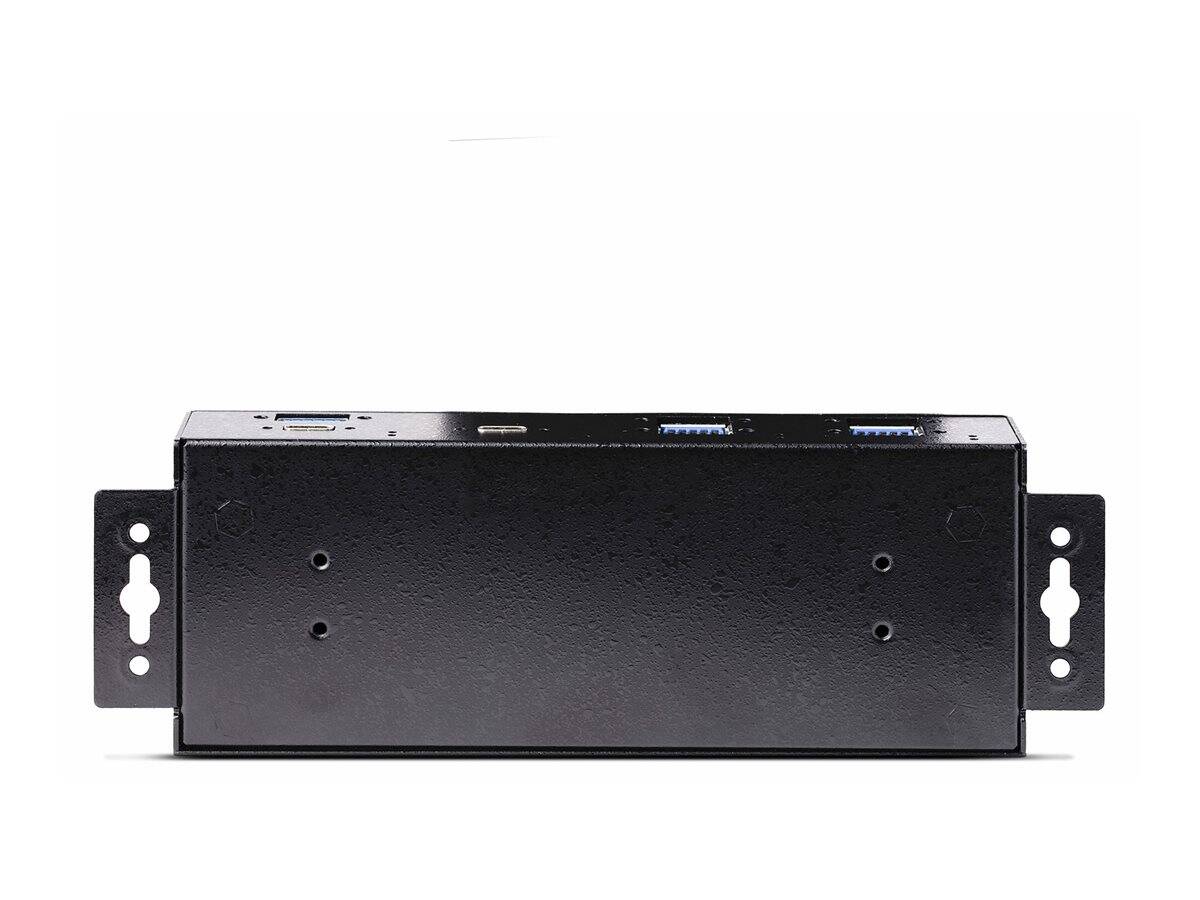

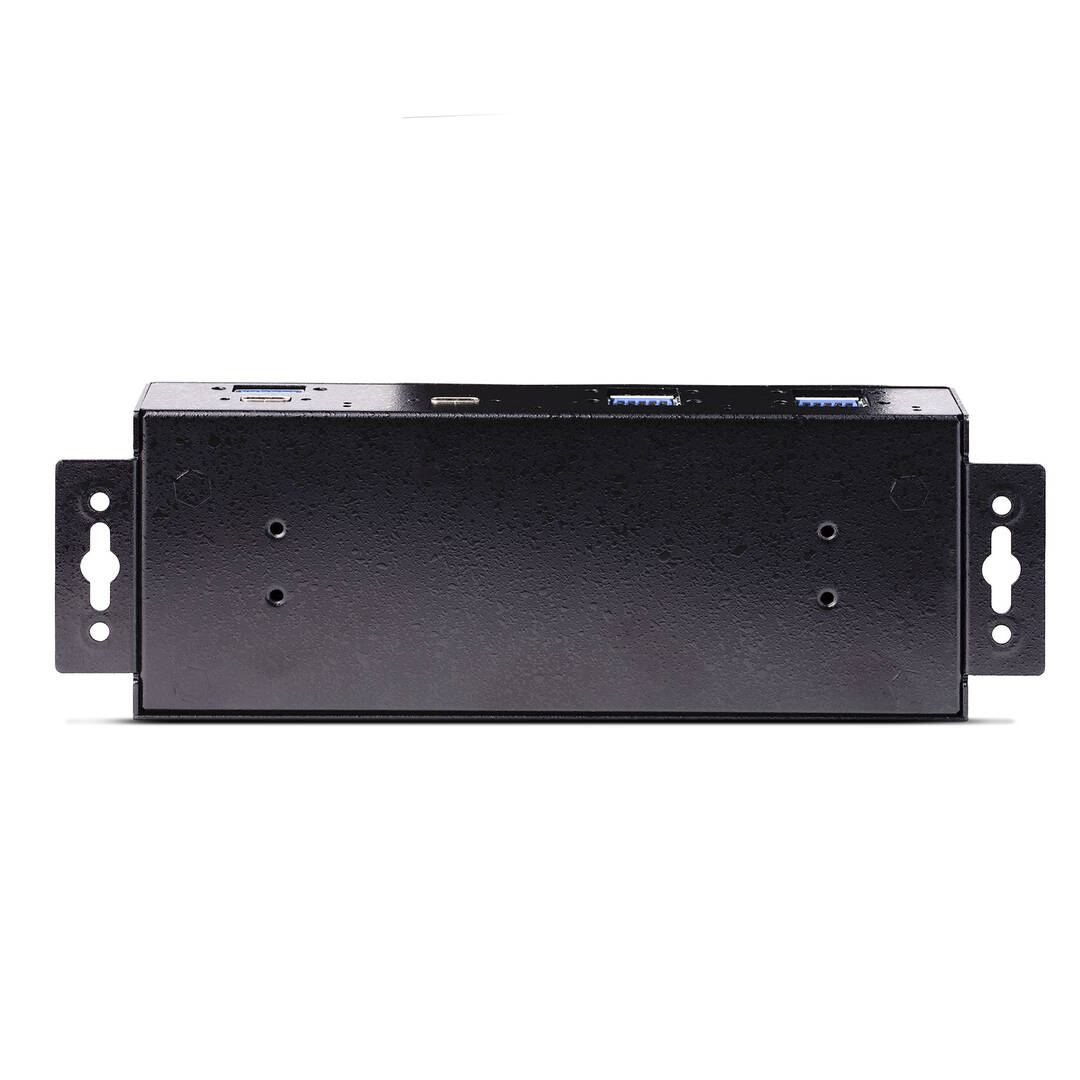

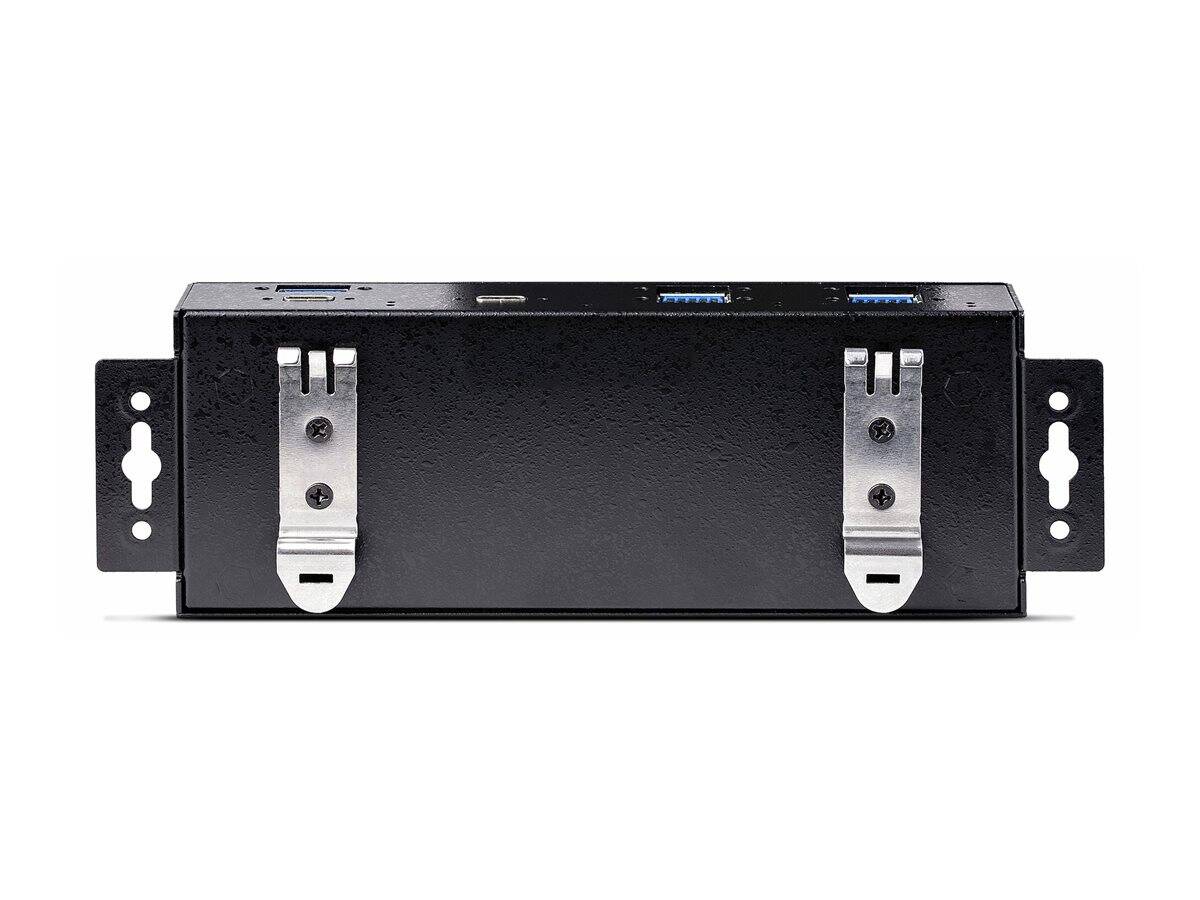

Steel enclosure, built-in ears plus a DIN mounting kit, ±15 kV air / ±8 kV contact ESD and 350 W surge protection, 163,021-hour MTBF; TAA compliant.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
This is the top industrial hub on the page for port count at 10 Gbps, and the only one of the HB31 family with a DIN kit in the box; the four-port HB31C3A1CME and HB31C2A2CME are the smaller versions without it. For a desk rather than a cabinet, the 10G8A2CS gives ten 10 Gbps ports in plastic. See them side by side in our USB hubs range, and load the ports from our external SSDs. Not sure your computer, cabinet supply or cable fits? Tell us the model and we check it before you order.
Buyer’s Guide
Buy it if
You need seven locking 10 Gbps ports in a steel DIN-rail case with the adapter, terminal block and both host cables included.
Skip it if
You need Power Delivery to the host, video, or more than about 40 W of device charging.
Also consider
HB31C3A1CME / HB31C2A2CME for four ports; 10G8A2CS-USB-C-HUB for ten ports on a desk.
