Product Features
- Intel i210 series network card

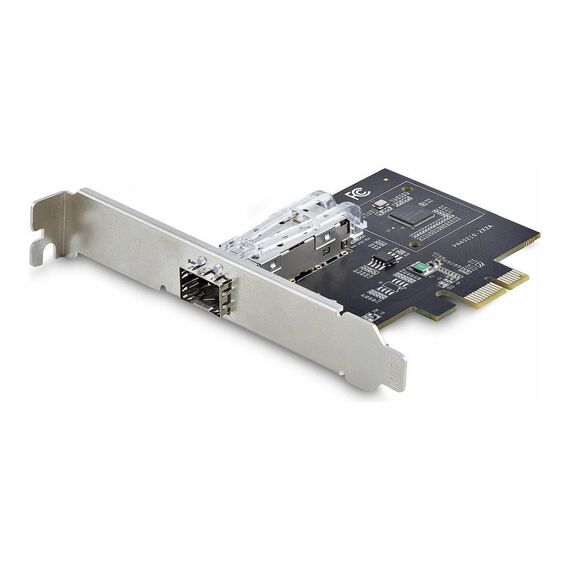

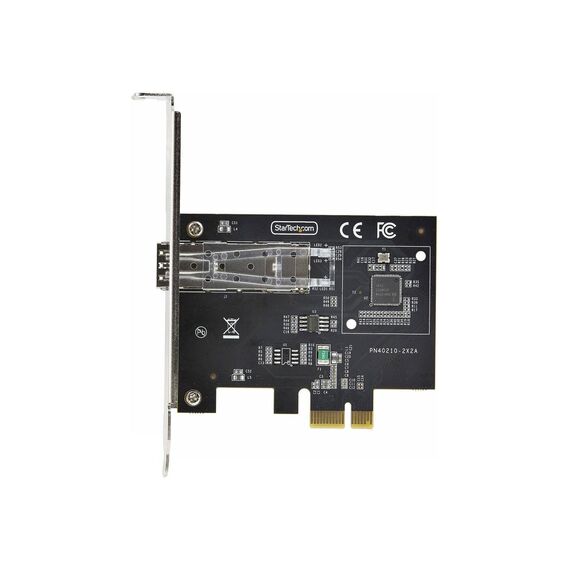

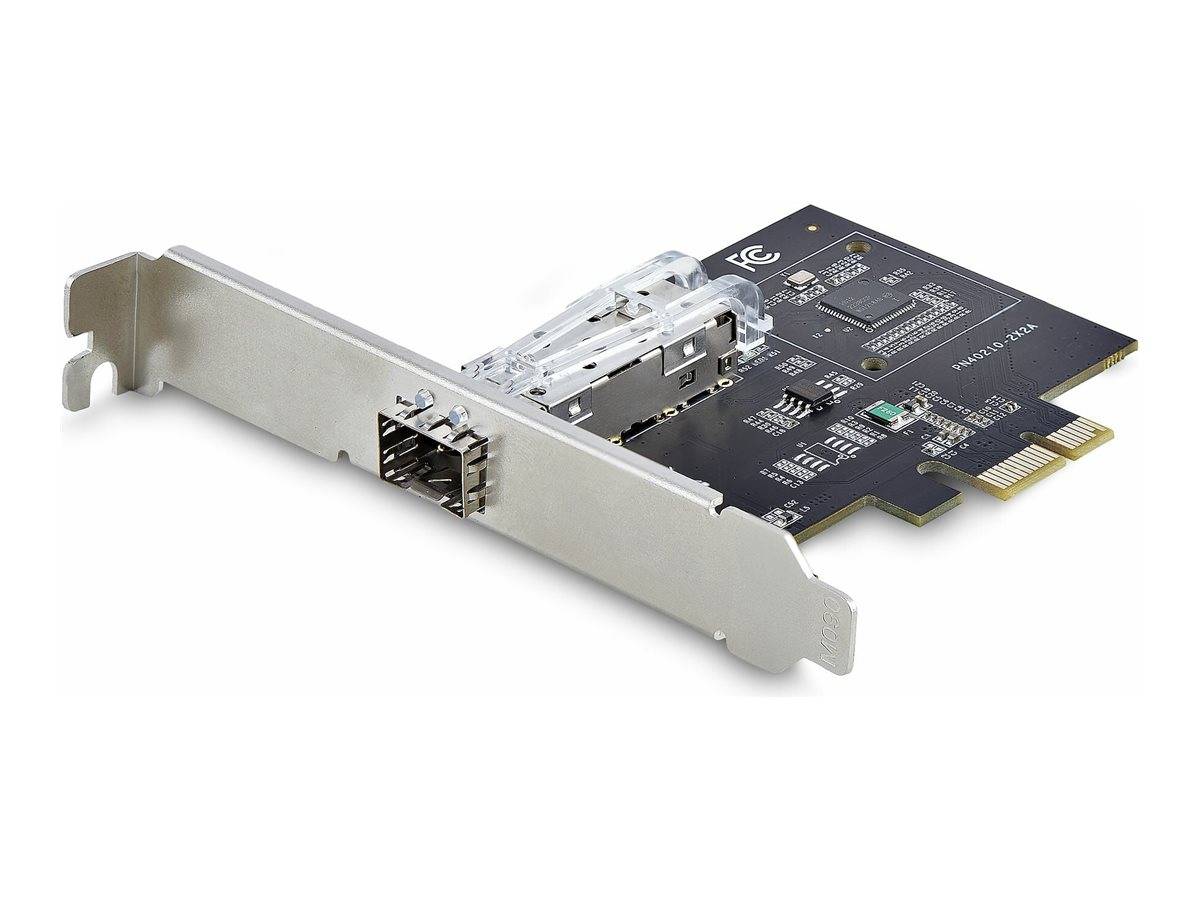

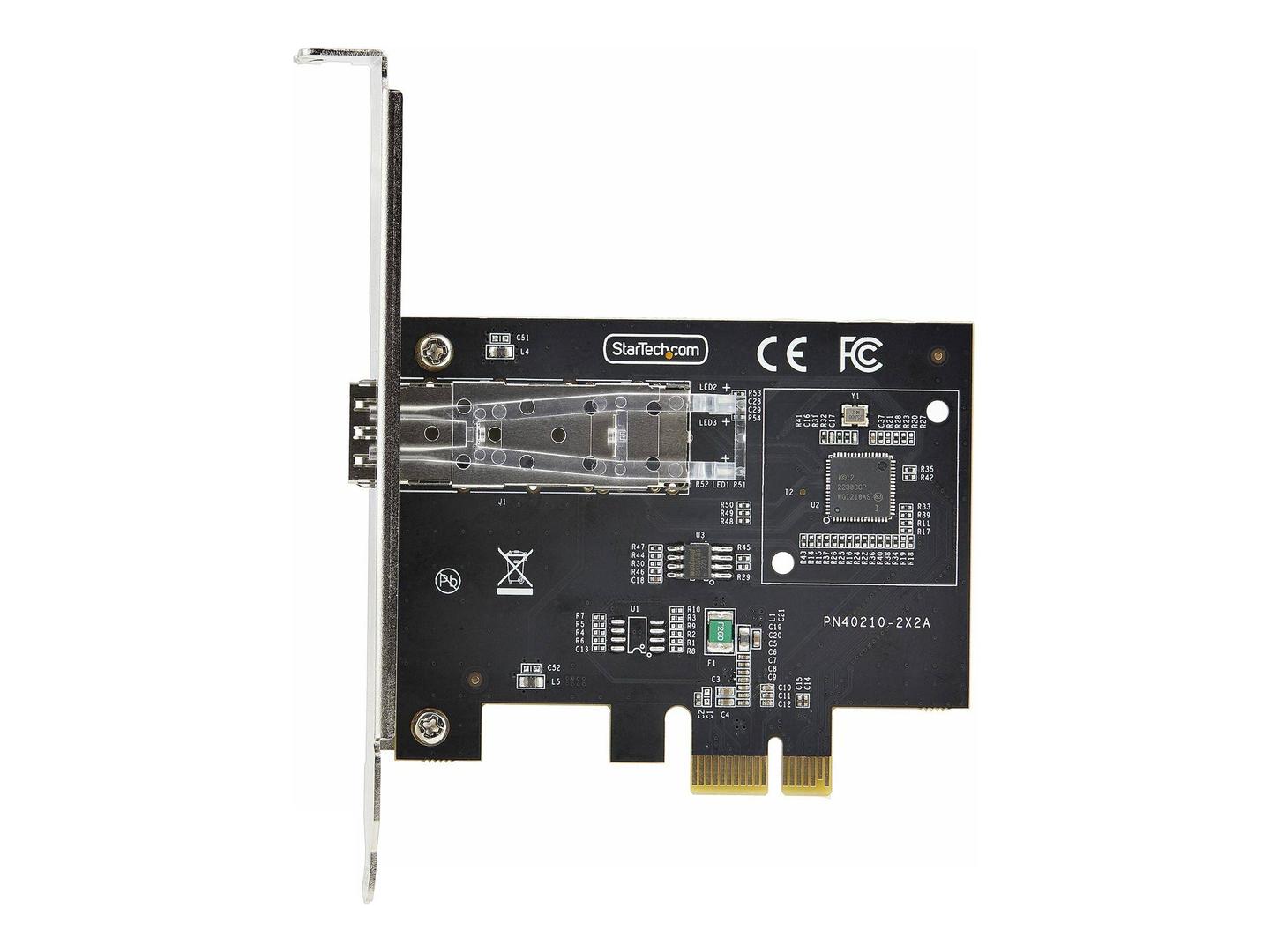

High-performance 1-Port PCIe network card featuring Intel I210-IS chipset adds a Gigabit open SFP slot to a desktop or server. Supports IPv4, IPv6, TCP/UDP offloading, link aggregation. - Unlocked 1 GB SFP slot
Works with any singlemode/multimode MSA-compliant or branded SFP/direct attach copper cable (DACC) module, 1 Gbps (full-duplex) bandwidth, Fiber enables longer cable runs than copper cabling while being immune to EMI. - Thoughtful design
LED indicators for port status or network activity monitoring, and to assist with troubleshooting. Full-profile bracket installed by default with a low-profile bracket included. - High performance Intel chipset
The network controller features an Intel I210 chip known for its reliability and high-performance capabilities, offering low-latency and low CPU utilization, ensuring smooth and efficient network data transfer, which is critical for business applications and services. Support for VMDq, SR-IOV, and Intel VT-c technologies allow for enhanced virtual machine performance, reduced CPU overhead, and improved network virtualization capabilities. The PCIe network card supports PXE boot, enabling centralized operating system deployment and updates. It also features 9K jumbo frame support, reducing packet overhead for improved data transmission efficiency. VLAN tagging support allows for efficient network management and segmentation. - Flexible network connections
The card features an SFP slot for interchangeable SFP modules. Select fiber transceiver modules that great for the network needs of the application, based on the distance and connector type. - Highly flexible applications
Create a high-speed and flexible network infrastructure in data centers or enterprise networks.
Special Features
- Intel i210 series network card
- Unlocked 1 GB SFP slot
- Thoughtful design
- High performance Intel chipset
- Flexible network connections
- Highly flexible applications
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0, PCIe 2.1 |
| Networking | Networking |
| Ports | Gigabit SFP x 1 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 1000Base-LX, Ethernet 1000Base-SX, Ethernet 1000Base-T, Ethernet 1000Base-KX |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Capacity | Jumbo frame size: 9000 |
| Network / Transport Protocol | TCP/IP, UDP/IP, IPv4, IPv6 |
| Status Indicators | Link/activity, link/speed |
| Features | Full duplex capability, Virtual Machine Device Queues (VMDq), Single Root I/O Virtualization (SR-IOV), Virtualization Technology for Connectivity (VT-c), Link Aggregation, Digital Diagnostics Monitoring (DDM), Energy-Efficient Ethernet (EEE), VLAN Tagging, promiscuous mode, with heat sink, Automatic Media-Dependent Interface Crossover (MDIX), PXE boot, bus powered |
| Compliant Standards | IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ap, IEEE 802.3az, IEEE 802.11ax |
| Processor / Memory | Processor / Memory |
| Processor | Intel I210-IS |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1000Base-LX/SX - SFP (mini-GBIC) |
| Miscellaneous | Miscellaneous |
| Included Accessories | Low-profile bracket |
| Compliant Standards | FCC, WEEE, MSA, EMI |
| Colour | Black |
| Power | Power |
| Power Consumption Operational | 0.6 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Hyper-V Server, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows 10 / 11, VMware ESXi 7.x, Linux 2.4.x or later (LTS versions only) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 1.6 cm |
| Depth | 8.7 cm |
| Height | 6.7 cm |
| Weight | 40 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 3 cm |
| Shipping Depth | 14.2 cm |
| Shipping Height | 17 cm |
| Shipping Weight | 47.5 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
