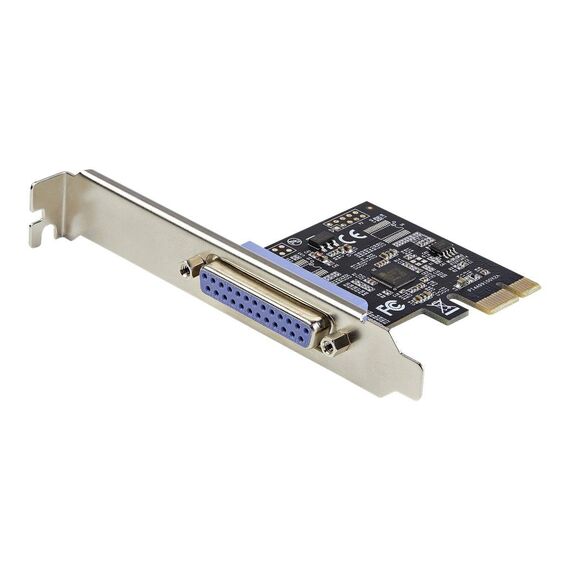

StarTech.com 1-Port Parallel PCIe Card / IEEE 1284 | PEX1P2
Please sign in so that we can notify you about a reply
Product Features
- Adds a parallel port to your desktop computer
The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps. - Wide installation compatibility
This add-on card includes both full-profile and low-profile installation brackets (full-profile bracket pre-installed) ensuring you can install it into either a full or low-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1).
Special Features
- Adds a parallel port to your desktop computer
- Wide installation compatibility
Product Specification
| Device Type | Parallel adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express |
| PCI Specification Revision | PCIe 2.0 |
| Networking | Networking |
| Ports | IEEE 1284 |
| Connectivity Technology | Wired |
| Data Link Protocol | Parallel |
| Data Transfer Rate | 2.5 Mbps |
| Processor / Memory | Processor / Memory |
| Processor | ASIX AX99100 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25) |
| Miscellaneous | Miscellaneous |
| Included Accessories | Low-profile bracket |
| MTBF | 17,520 hours |
| Compliant Standards | FCC, RoHS, WEEE, RCM |
| Colour | Black |
| Software / System Requirements | Software / System Requirements |
| OS Required | Linux 2.6.x or later, Microsoft Windows Server 2008 R2, Microsoft Windows 2003, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 7.3 cm |
| Depth | 12 cm |
| Height | 1.85 cm |
| Weight | 45 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 17 cm |
| Shipping Depth | 14.2 cm |
| Shipping Height | 3 cm |
| Shipping Weight | 290 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 40 - 80% |
Features - StarTech.com - PEX1P2
More Details
Product Code
CB10463
EAN Code
0065030891400
Manufacturer
StarTech.com
