StarTech.com MCM7-MEDIA-CHASSIS 7-Slot Media Converter Chassis 10-inch Rack-Mount Black

Brand:
StarTech.com
StarTech.com 7-Slot Media Converter Chassis 10-inch Rack
StarTech.com MCM7-MEDIA-CHASSIS 7-Slot Media Converter Chassis 10-inch Rack-Mount Black
€450.17 inc. VAT
Buy
MCM7-MEDIA-CHASSIS
€378.29
€450.17 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
CQ71686
EAN Code
0065030917070
Manufacturer
StarTech.com
Quick Specs
Type
Media converter chassis
Slots
7 × MCM converters
Key spec
Central PSU · optional redundancy
Compatibility
10-inch rack · non-PoE MCM
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

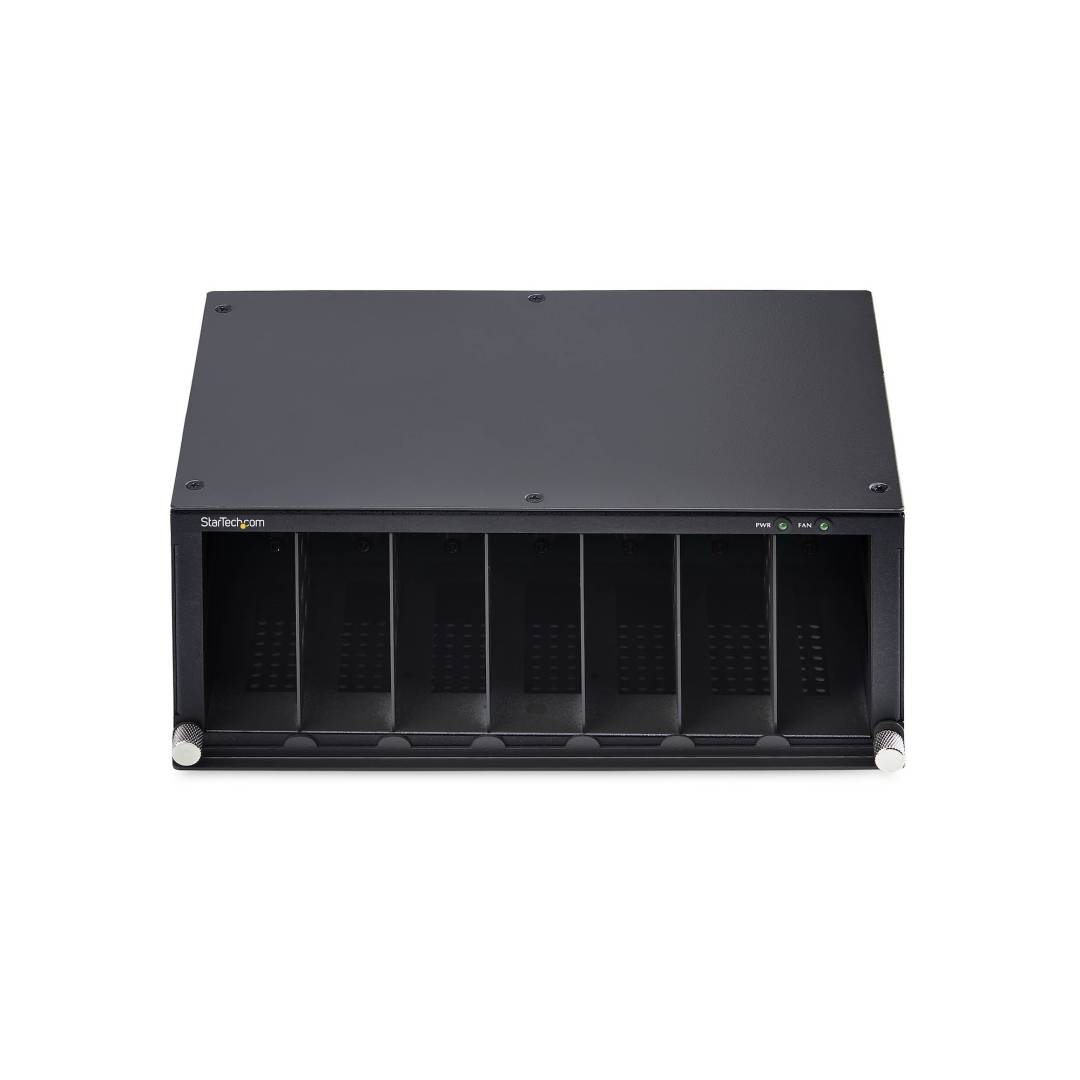

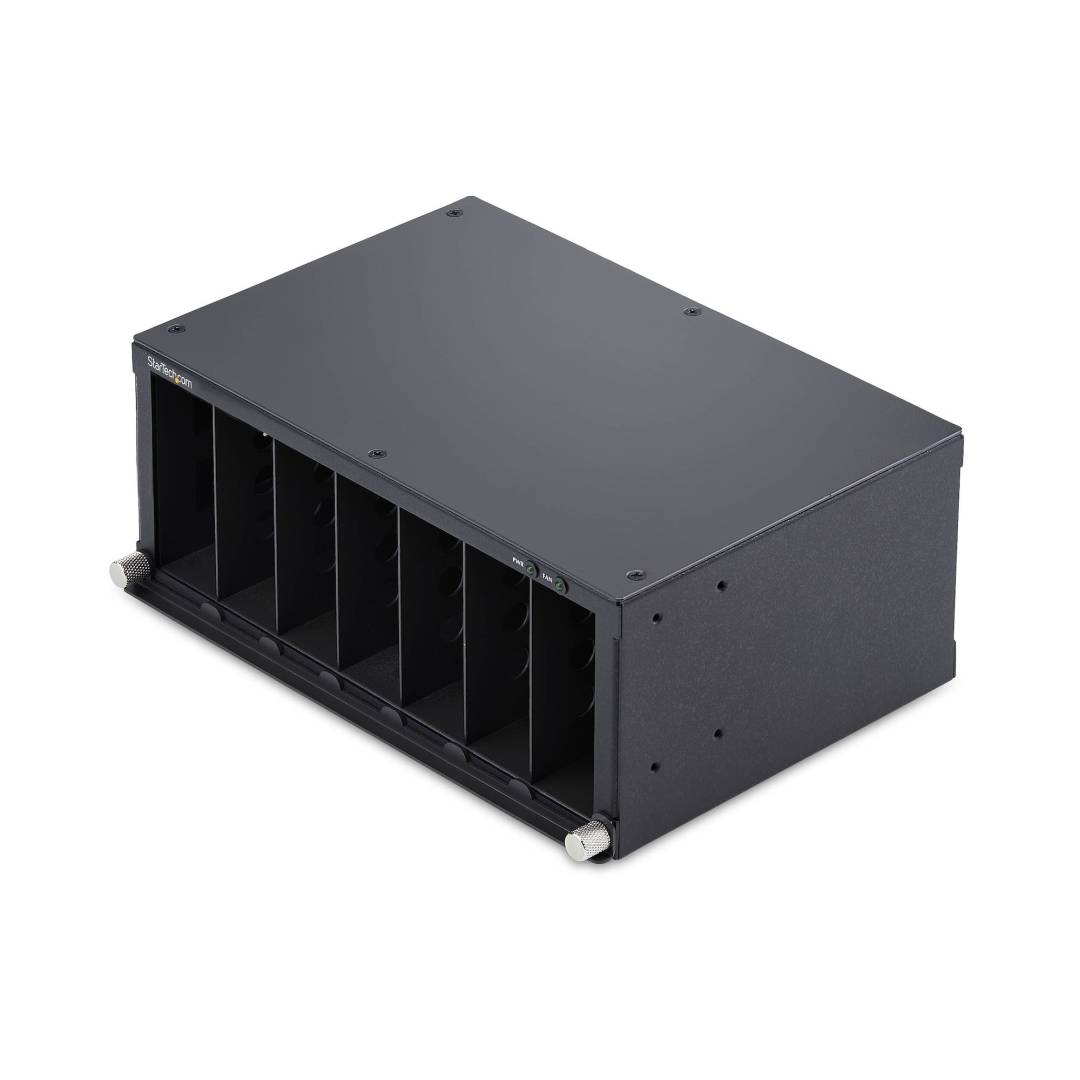

StarTech.com MCM7-MEDIA-CHASSIS — 7-Slot 10-inch Rack-Mount Media Converter Chassis

7 converter slots10-inch rack-mountHot-swap baysDual cooling fans

The StarTech.com MCM7-MEDIA-CHASSIS is a 7-slot, 10-inch rack-mount chassis that powers and organises StarTech.com MCM series media converters in one place, built for network closets, telecom rooms and data centres running several fibre links. Part number MCM7-MEDIA-CHASSIS replaces a tangle of individual power adapters with a single built-in power supply, with an optional hot-swappable redundant supply available, while each bay stays independently powered so converters can be swapped without downtime.

Compatibility note: The chassis is designed for StarTech.com MCM Media Converter Series modules only and is not compatible with PoE media converters. Converters are sold separately.

Key Features


High-density rack install
Up to 7 MCM converters in one 10-inch rack-mount enclosure, with a rack mounting kit and port covers for unused bays included.

Power you can service
Centralised power with independently powered, electrically isolated bays and over-voltage protection; swap a converter without taking the others down.

Built for the closet
All-metal chassis with dual cooling fans and front-panel power/fan LEDs, FCC, CE and UL compliant, TAA compliant.

Technical Specifications

Identification
Part Number MCM7-MEDIA-CHASSIS
EAN / GTIN 0065030917070
MPN MCM7-MEDIA-CHASSIS
Brand StarTech.com
Capacity & Compatibility
Slots 7 × StarTech.com MCM series media converters (e.g. MCM1110SMLC20, MCM1110SMLC40)
Form factor 10-inch rack-mount
PoE converters Not supported
Management Unmanaged
Power

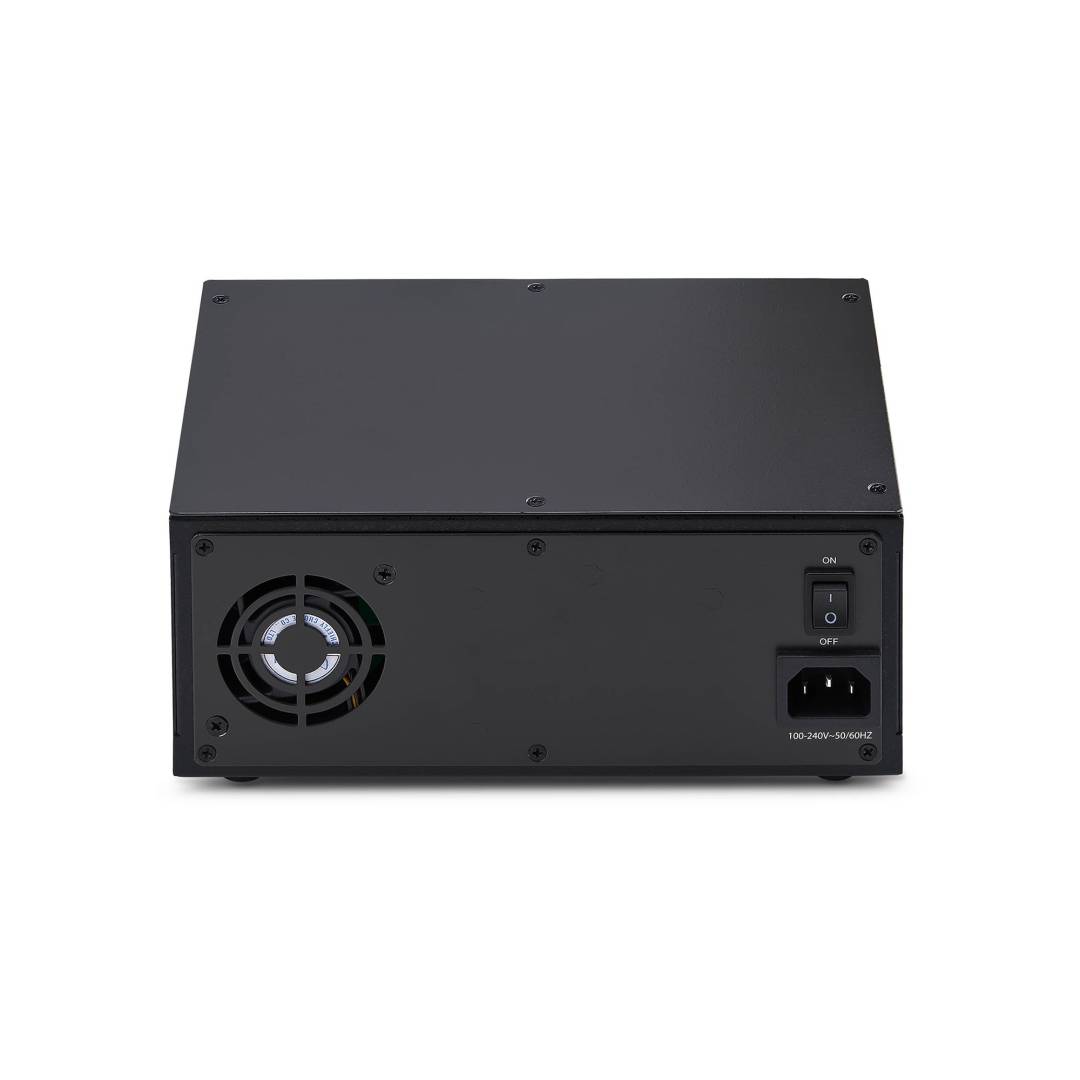

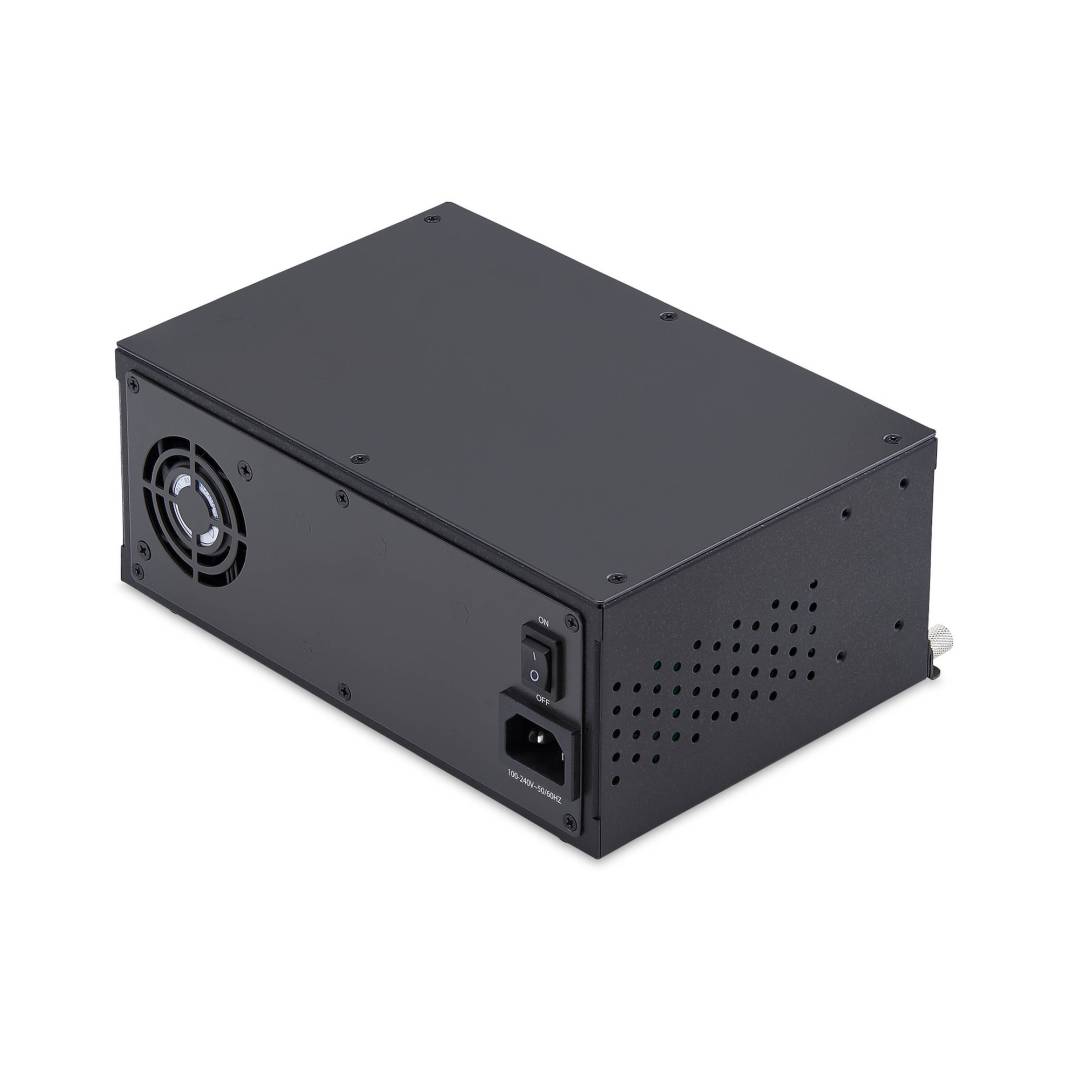

Power supply Single built-in supply for all 7 bays · optional hot-swappable redundant PSU per StarTech.com
Input 100–240 V AC, 2.5 A
Output 48 V DC, 4.2 A
Protection Independently powered bays, electrical isolation, over-voltage protection
Cooling & Status
Cooling Dual cooling fans
LED indicators 1 × power · 1 × fan
Physical & Environment
Material / colour Metal · black
Dimensions Height 88.5 mm
Weight 1.7 kg
Operating temperature 0 °C to 50 °C
Humidity 5–90% RH, non-condensing
MTBF 50,000 hours

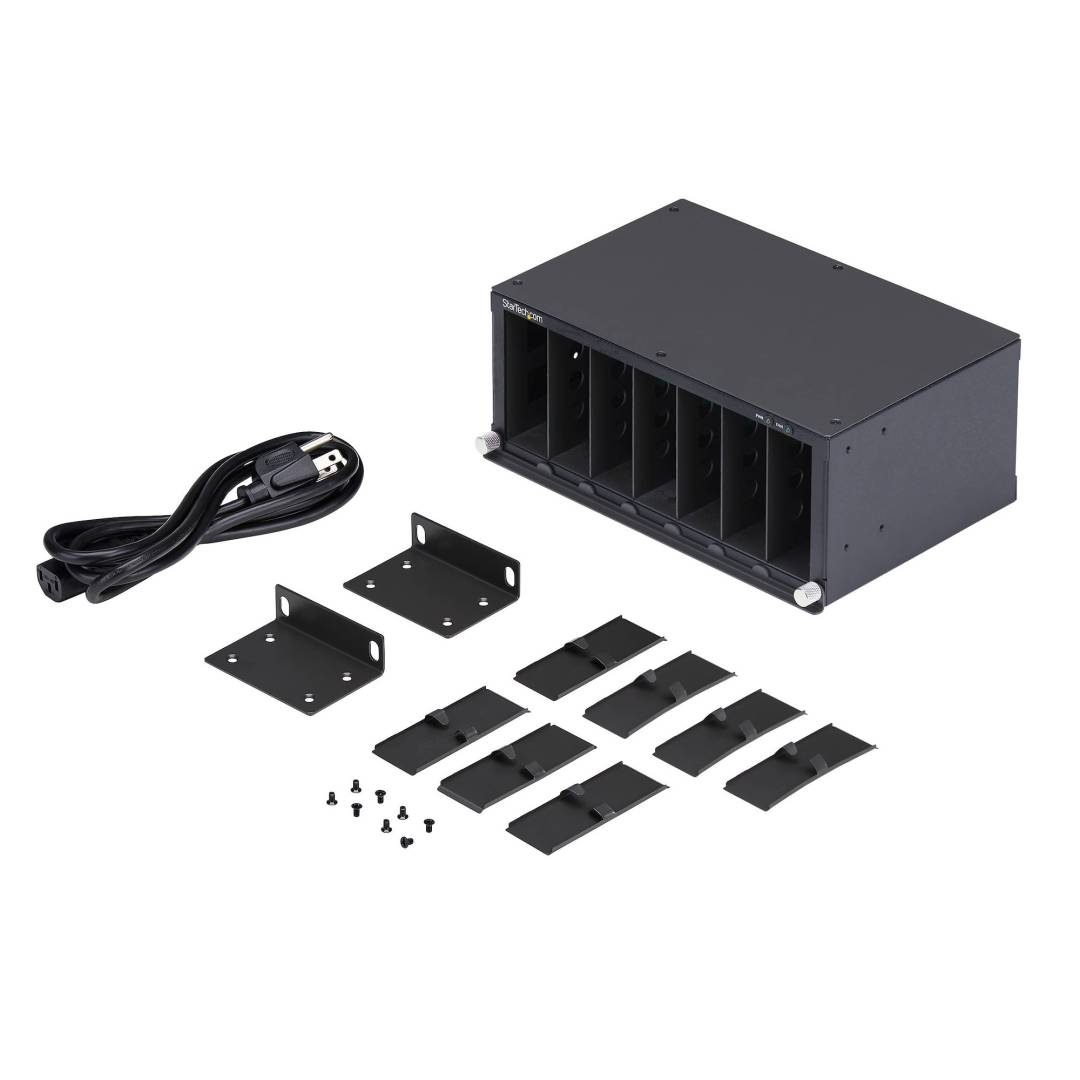

In the box Chassis · rack mounting kit · EU, UK and NA power cords · 5 port covers · documentation
Warranty 2 years (StarTech.com)

Frequently Asked Questions

Which media converters fit the MCM7-MEDIA-CHASSIS?
StarTech.com MCM Media Converter Series modules, such as the MCM1110SMLC20 (20 km) and MCM1110SMLC40 (40 km) single-mode Gigabit converters. PoE media converters and other brands are not supported.
Do I still need the converters’ own power adapters?
No. The chassis powers every installed converter from its central supply, so the individual adapters can stay in the box as spares.
What is the difference between the MCM7-MEDIA-CHASSIS and the MCM15-MEDIA-CHASSIS?
The MCM7-MEDIA-CHASSIS holds 7 converters in a compact 10-inch rack-mount format; the MCM15-MEDIA-CHASSIS holds 15 converters in a standard 19-inch rack with a pre-installed hot-swap PSU and a second PSU slot.
Singular Expert Insight
The MCM7-MEDIA-CHASSIS pays off once you run more than a few MCM converters in the same room: one supply, tidy rack mounting and hot-swappable bays make fibre links far easier to maintain than loose converters on a shelf. For a full 19-inch rack or more than seven links, step up to the MCM15-MEDIA-CHASSIS. If your fibre ends on switches with SFP ports, an SFP-based network switch may replace converters altogether.
✓ Buy it if you run several StarTech.com MCM converters and want central power and clean 10-inch rack mounting.
✕ Skip it if you only have one or two converters, or you use PoE or non-StarTech.com converters.
→ Also consider the MCM15-MEDIA-CHASSIS (15 slots, 19-inch).
