StarTech.com C6KEYTL180BL24PK Cat6 Toolless Keystone Jack 24-Pack UTP RJ45 180 Degree Rear Entry 10GBASE-T PoE Blue

Brand:
StarTech.com
StarTech.com C6KEYTL180BL24PK Cat6 Keystone Jack 24-Pack
StarTech.com C6KEYTL180BL24PK Cat6 Toolless Keystone Jack 24-Pack UTP RJ45 180 Degree Rear Entry 10GBASE-T PoE Blue
€129.32 inc. VAT
Buy
C6KEYTL180BL24PK
€108.67
€129.32 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
CS18810
EAN Code
0065030916653
Manufacturer
StarTech.com

Quick Specs

Pack
24 keystone jacks
Cable
Cat6 UTP (Cat5e compatible)
Termination
Toolless, 180° rear entry
Supports
10GBASE-T, 802.3bt PoE
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Cat6 Toolless Keystone Jacks — 24-pack, blue

24-packCat6 UTPToolless 180°Blue

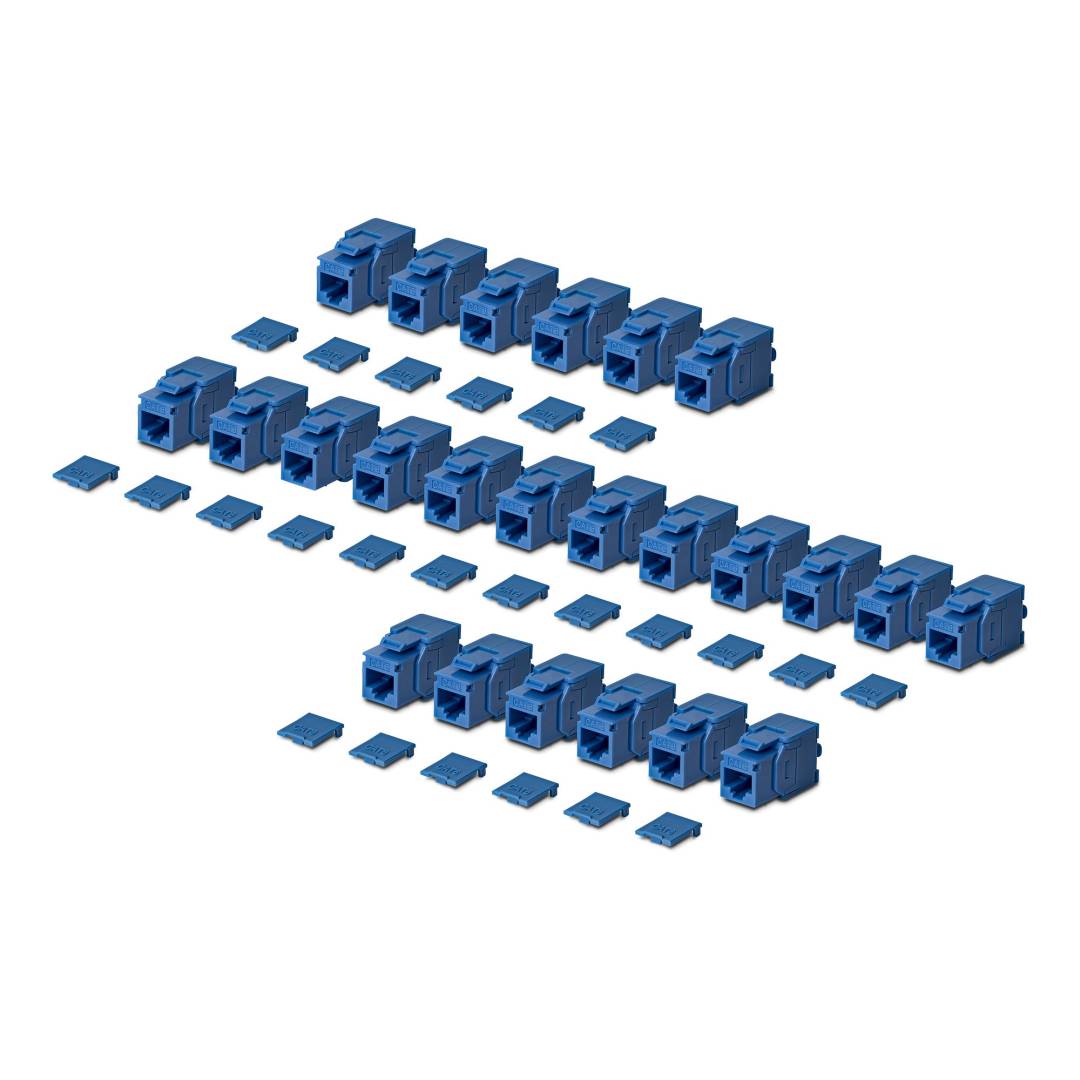

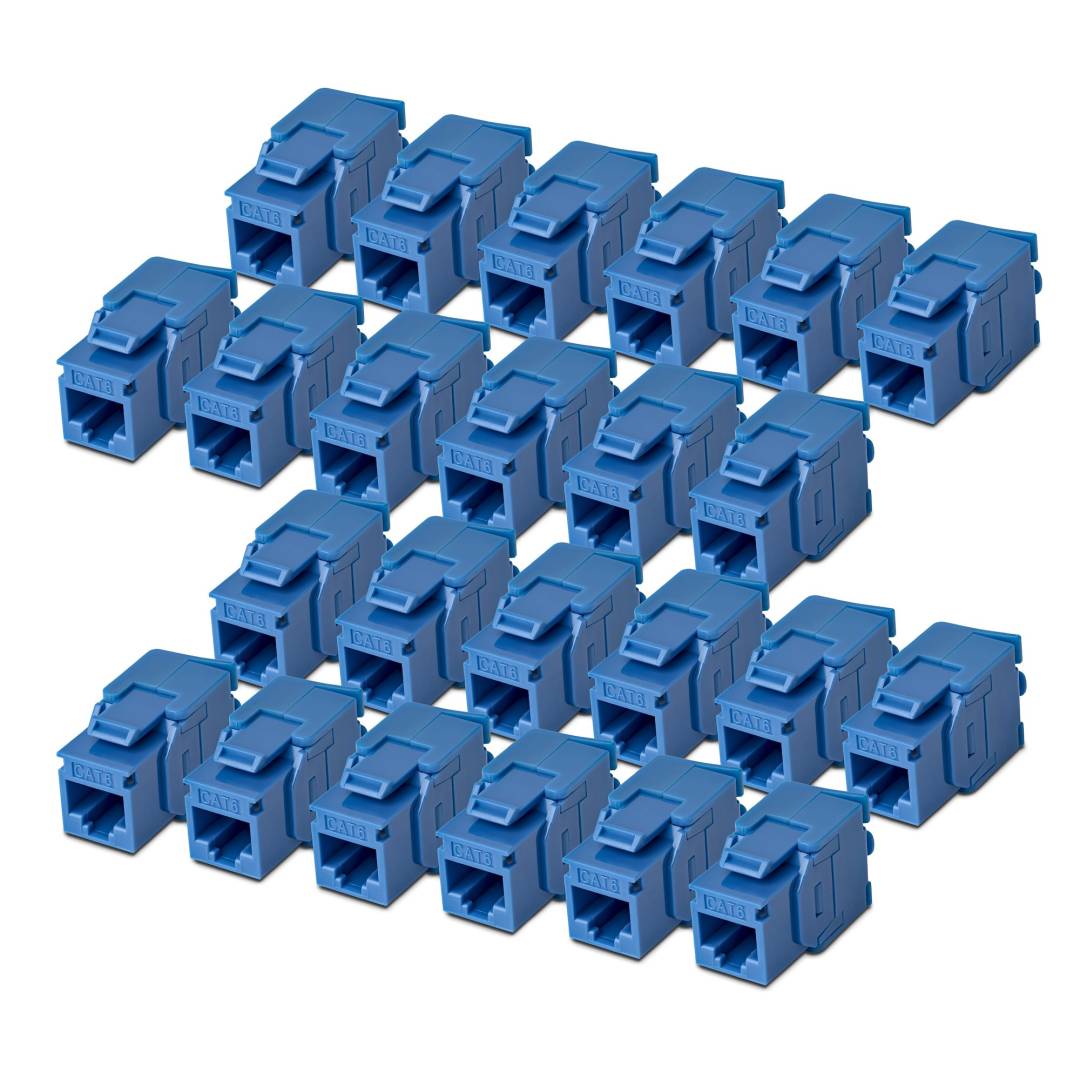

The StarTech.com C6KEYTL180BL24PK is a pack of 24 Cat6 UTP RJ45 keystone jacks in blue that terminate without a punch-down tool. The cable enters from the rear in a straight 180° line, which suits keystone patch panels and wall plates where the cable arrives from behind. Each jack is wired to T568A or T568B, has gold-plated phosphor-bronze contacts and, according to StarTech.com, supports 10/100/1000BASE-T, 2.5G/5GBASE-T, 10GBASE-T over Cat6 UTP and IEEE 802.3bt Type 4 PoE up to 100 W. In practice it is a quick, consistent way to terminate a structured-cabling job without special tools.

Compatibility — check before buying:
For unshielded (UTP) Cat6 or Cat5e cable only. These jacks have no shield, so they are not the right choice for shielded (STP/FTP) Cat6A installations — StarTech.com sells separate shielded toolless jacks for that. They fit standard keystone patch panels and wall plates. StarTech.com does not publish the accepted conductor gauge (AWG) or whether stranded cable is supported, so if you use patch-type stranded cable, send us the cable details first. Other colours of the same jack exist (C6KEYTL180BK24PK black, C6KEYTL180WH24PK white). Not sure? Tell us your model and we check it for you.

Best For

✓ Keystone patch panels
✓ Wall plates and outlets
✓ Office structured cabling
✓ Colour-coding network runs
✓ Installers without a punch tool
✓ PoE cameras and access points

Key Features

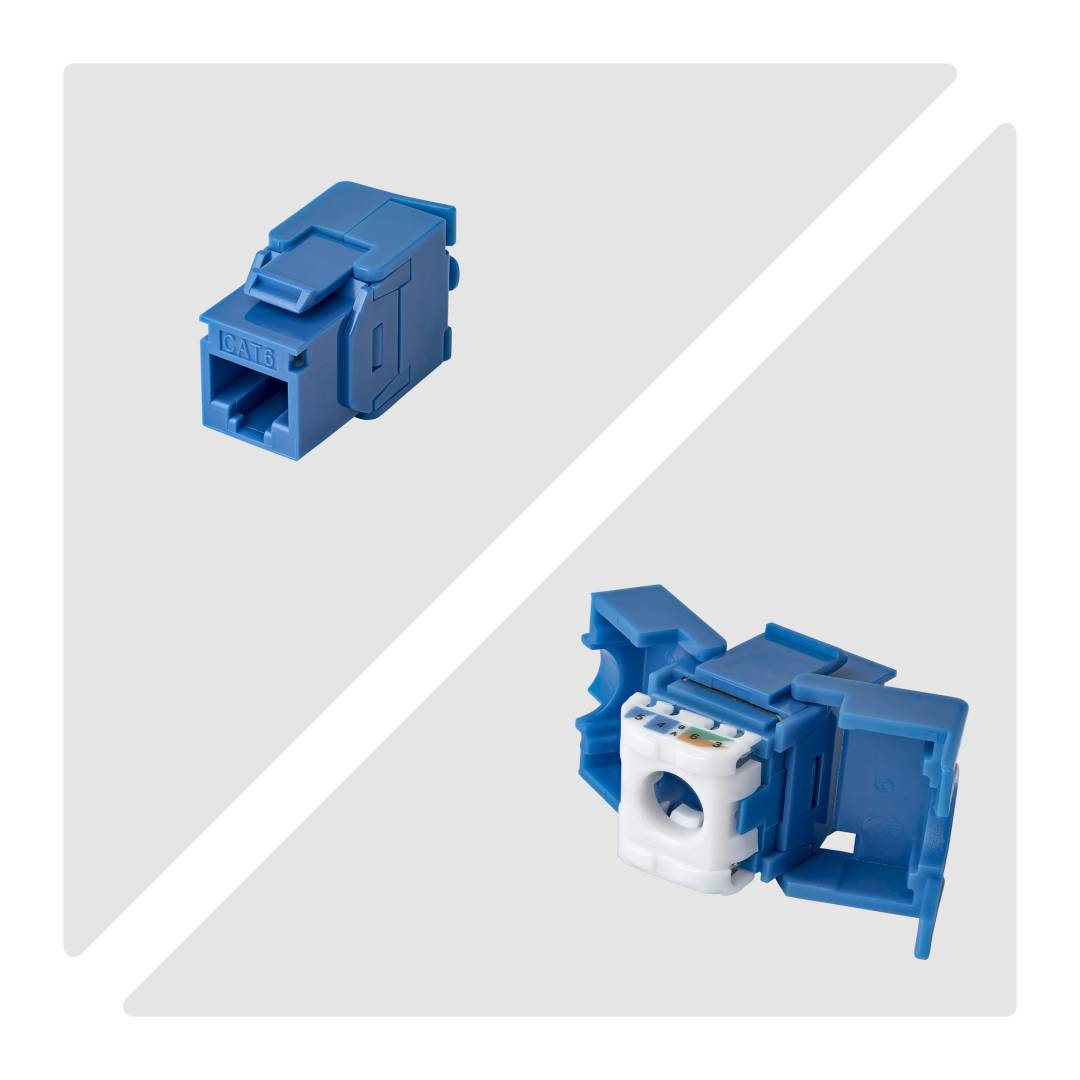

Toolless termination
Terminate each jack by hand, without a punch-down tool.

180° rear entry
The cable runs straight into the back of the jack.

10GBASE-T and PoE
StarTech.com lists 10GBASE-T and 802.3bt Type 4 (100 W) support.

Gold-plated contacts
Phosphor-bronze contacts with gold plating.

Technical Specifications

Identification
Brand StarTech.com
Product Cat6 Keystone Jack, 24-Pack, UTP, 180-Degree Toolless, Blue
Part Number C6KEYTL180BL24PK
EAN / GTIN 0065030916653
Product Type Cat6 UTP keystone jack (toolless, 180°)
Pack 24 jacks
Colour Blue
Jack
Category Cat6, backward compatible with Cat5e
Cable type UTP (unshielded)
Connector RJ45 female
Wiring TIA/EIA T568A and T568B
Standard ANSI/TIA-568-C.2
Termination Toolless, 180° rear entry
Performance
Ethernet IEEE 802.3 10/100/1000BASE-T, 802.3bz 2.5G/5GBASE-T, 802.3ae 10GBASE-T
PoE IEEE 802.3bt Type 4 (4PPoE), up to 100 W
Contacts Gold-plated phosphor bronze
Physical
Dimensions (per jack) 36.7 × 17 × 19.2 mm
Weight (per jack) 7 g
Housing material ABS / polycarbonate
Colour Blue
Environment
Operating temperature −10 to 60 °C
Storage temperature −40 to 70 °C
Humidity 85%
Before You Order
Your cable Must be UTP Cat6 or Cat5e
Your panel or plate Standard keystone openings
Quantity 24 jacks = 24 terminations
In the Box
Included 24 keystone jacks, 24 wire caps, 24 dust covers, quick-start guide
Not Included Network cable; keystone patch panel or wall plate; cable tester
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term StarTech.com publishes a 3-year warranty for this product in its datasheet. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Do I need a punch-down tool?
No. The jacks are toolless: you press the wire cap closed by hand.
Can I use shielded cable?
No. These are UTP jacks; choose shielded keystones for STP/FTP cable.
Does it support 10 Gigabit?
StarTech.com lists 10GBASE-T over Cat6 UTP. Real-world reach depends on your cable and run length.
How many jacks are in the pack?
24, each with a wire cap and a dust cover.
Singular Expert Insight
Toolless jacks save time on site and give more consistent results than a worn punch tool. Test every run after termination. Keeping one colour per service (for example cameras or phones) makes later maintenance easier. For the rest of the cabinet, see our networking accessories and network switches.

Buyer’s Guide

Buy it if

You terminate Cat6 or Cat5e UTP cable into keystone panels or wall plates.

Skip it if

Your installation uses shielded Cat6A cable.

Also consider

StarTech.com C6KEYTL180BK24PK black, C6KEYTL180WH24PK white — the same jack in another colour.
