StarTech.com C6KEYTL180WH24PK Cat6 Toolless Keystone Jack 24-Pack RJ45 UTP 180 Degree T568A/B PoE++ 10GBASE-T White

Brand:
StarTech.com
StarTech.com C6KEYTL180WH24PK Cat6 Toolless Keystone 24-Pack
StarTech.com C6KEYTL180WH24PK Cat6 Toolless Keystone Jack 24-Pack RJ45 UTP 180 Degree T568A/B PoE++ 10GBASE-T White
€122.74 inc. VAT
Buy
C6KEYTL180WH24PK
€103.14
€122.74 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
Product Code
CS18749
EAN Code
0065030916745
Manufacturer
StarTech.com

Quick Specs

Category
Cat6 UTP
Termination
Toolless, 180°
Pack
24 jacks
PoE
Up to 802.3bt 100 W
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Cat6 Toolless Keystone Jack — 24-pack, 180°

Cat6 UTPToolless180° entry24-pack

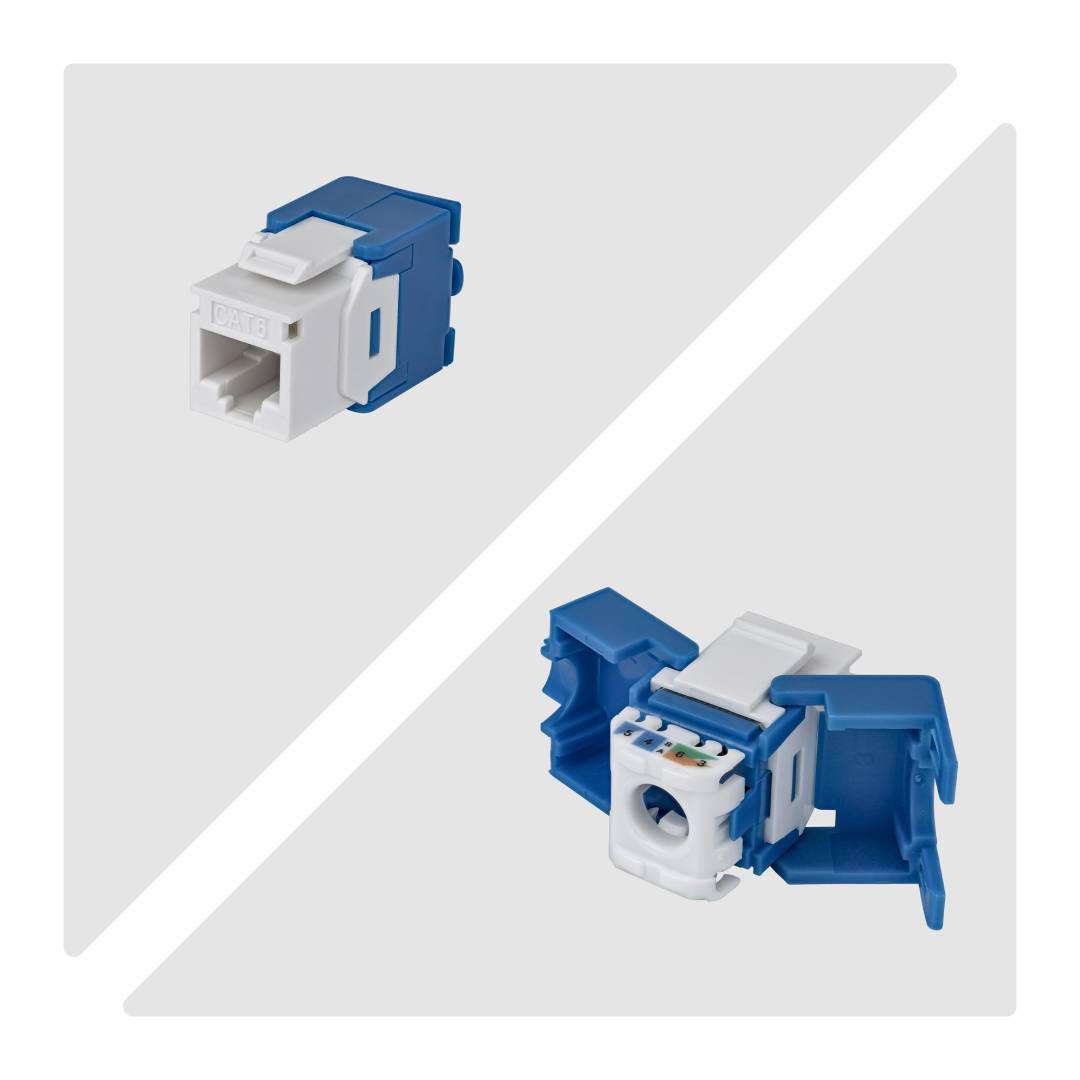

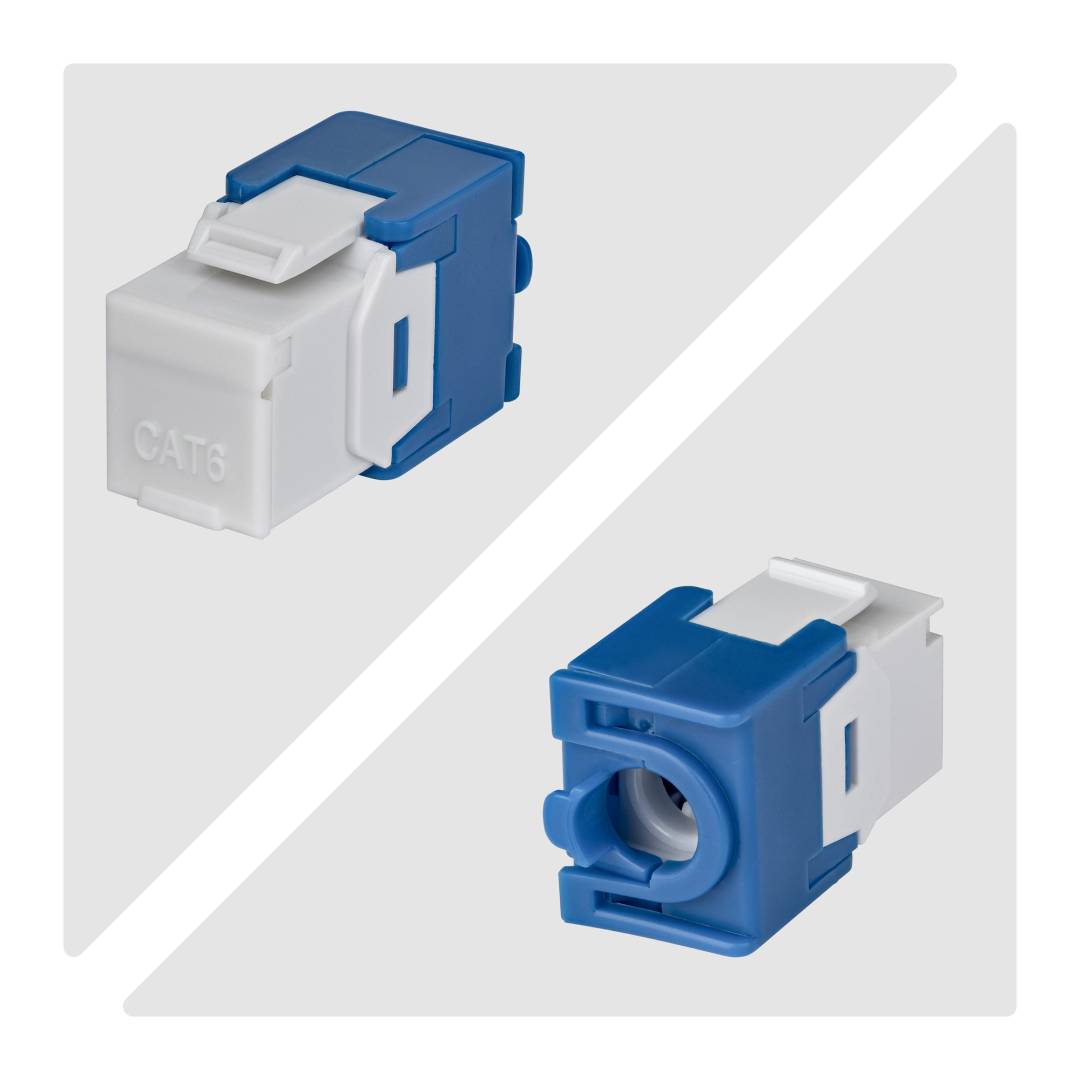

The StarTech.com C6KEYTL180WH24PK is a pack of 24 toolless Cat6 UTP RJ45 keystone jacks. The conductors are pressed into place with the hinged termination cap, so no punch-down tool is needed, and the cable enters straight from the rear (180°). The jacks support T568A or T568B wiring, have gold-plated phosphor-bronze contacts, and are rated for 10GBASE-T and PoE up to IEEE 802.3bt Type 4 (100 W). StarTech.com lists the colour as white; the termination caps are blue, as the official photos show. In practice it makes termination quicker and more repeatable, even for occasional installers.

Compatibility — check before buying:
Unshielded Cat6 only. At 36.7 mm the toolless body is longer than a punch-down jack — check the depth of shallow wall boxes. The jack body is white with a blue termination cap. Fits standard keystone openings. Not sure? Tell us your faceplate or patch panel model and we check it for you.

Best For

✓ Quick outlet installation
✓ Occasional installers
✓ Keystone patch panels
✓ Office and home wiring
✓ PoE devices
✓ Moves and changes

Key Features


Toolless termination
No punch-down tool needed.

180° rear entry
Straight cable path for panels and boxes.

10GBASE-T and PoE++
Supports 10 Gb/s and up to 100 W 802.3bt power.

Complete pack
24 jacks with wire caps and dust covers.

Technical Specifications

Identification
Brand StarTech.com
Product Cat6 Keystone Jack, 24-Pack, 180-Degree Toolless, White
Part Number C6KEYTL180WH24PK
EAN / GTIN 0065030916745
Product Type Keystone jack (RJ45), UTP, toolless
Pack 24 jacks
Connector
Type RJ45 keystone jack
Category Cat6, unshielded (UTP), backward compatible with Cat5e
Termination Toolless
Cable entry 180°
Wiring T568A / T568B
Contacts Gold-plated phosphor bronze
Housing ABS and polycarbonate
Performance
Ethernet 10/100/1000BASE-T, 2.5G/5GBASE-T (802.3bz), 10GBASE-T (802.3ae)
PoE Up to IEEE 802.3bt Type 4 (100 W)
Standard ANSI/TIA-568-C.2
Physical
Dimensions 36.7 × 17 × 19.2 mm
Weight 7 g per jack
Colour White (blue termination cap)
Environment
Operating temperature −10 to 60 °C
Storage temperature −40 to 70 °C
Humidity 85%
Before You Order
Cable type Unshielded (UTP) Cat6 or Cat5e solid installation cable
Conductor gauge StarTech.com does not publish an AWG range — check with us for thick 23 AWG cable
Mounting Standard keystone opening in faceplates, surface boxes and keystone patch panels
In the Box

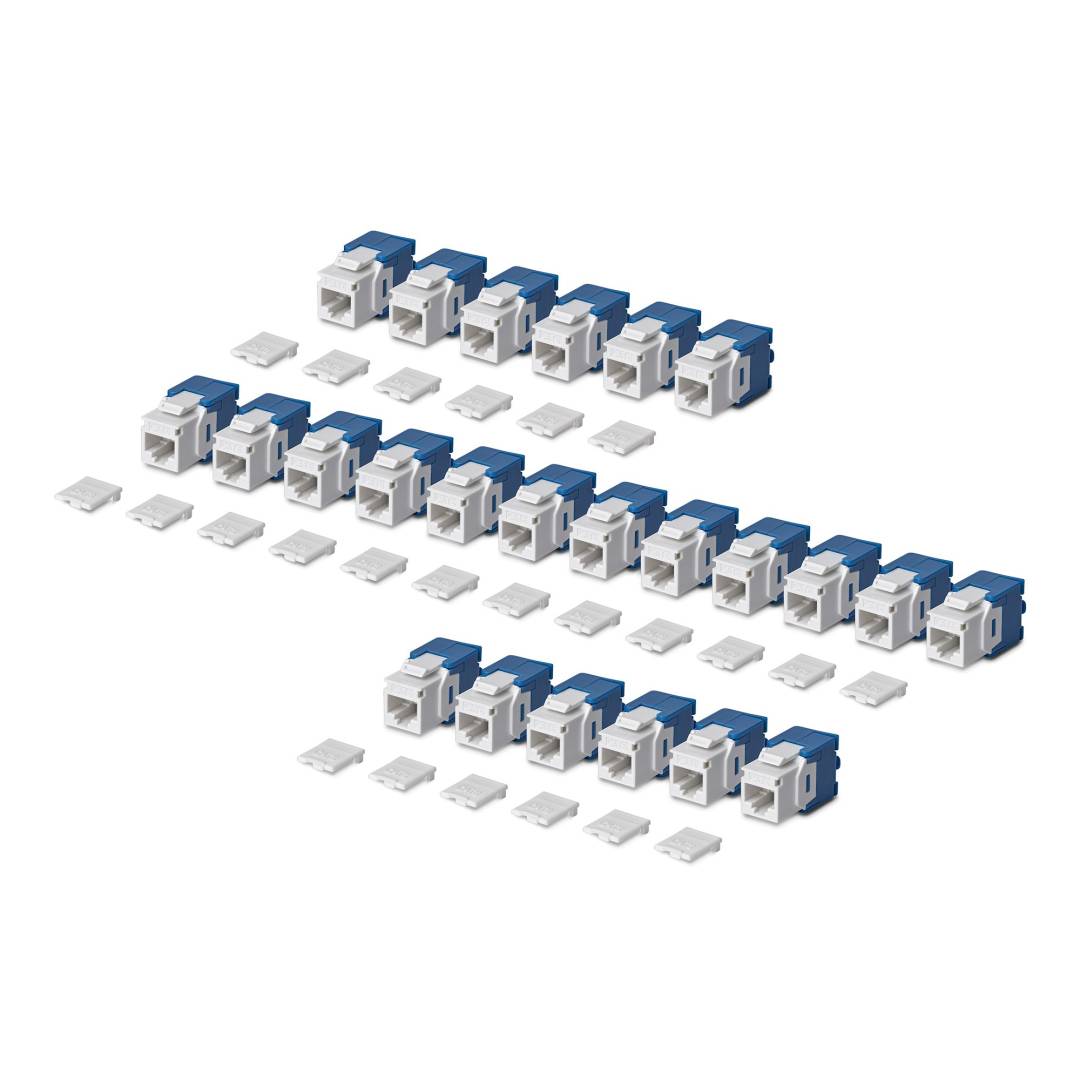

Included 24 keystone jacks, 24 wire caps, 24 dust covers, quick-start guide
Not Included Faceplates or patch panel; cable; cable stripper
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term StarTech.com publishes a 3-year warranty for this product in its datasheet. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Do I need a punch-down tool?
No. The jacks terminate without tools.
Is it shielded?
No. It is a UTP jack.
Why is the cap blue?
The white jack uses a blue termination cap, as in StarTech.com’s photos.
Will it fit a shallow wall box?
The jack is 36.7 mm deep; check your box depth first.
Singular Expert Insight
Toolless jacks save time on small jobs and give consistent results, but they still need a clean strip and correct untwist length. For the switches and access points, see our network switches and access points.

Buyer’s Guide

Buy it if

You want quick Cat6 UTP termination without a punch-down tool.

Skip it if

Your wall boxes are very shallow or you use shielded cable.

Also consider

StarTech.com C6KEY110180BK24PK — 180° punch-down, black.
