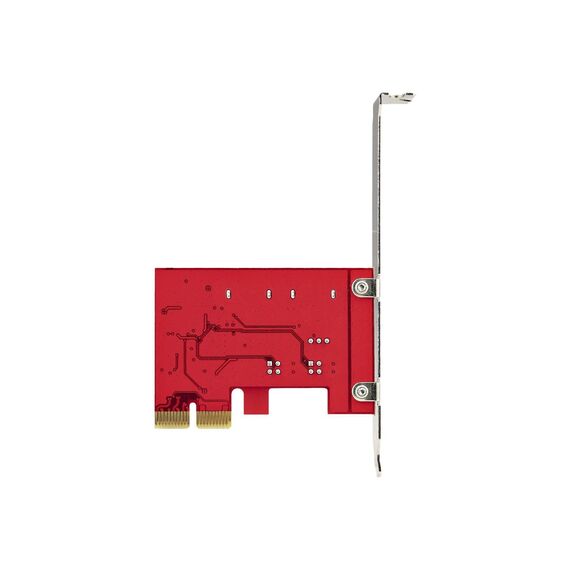

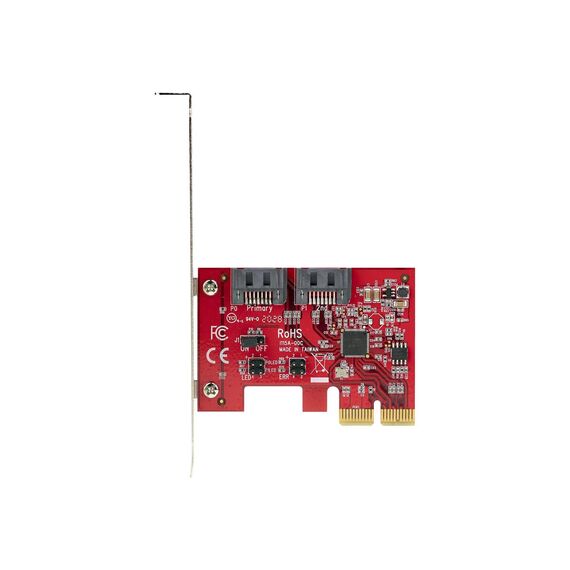

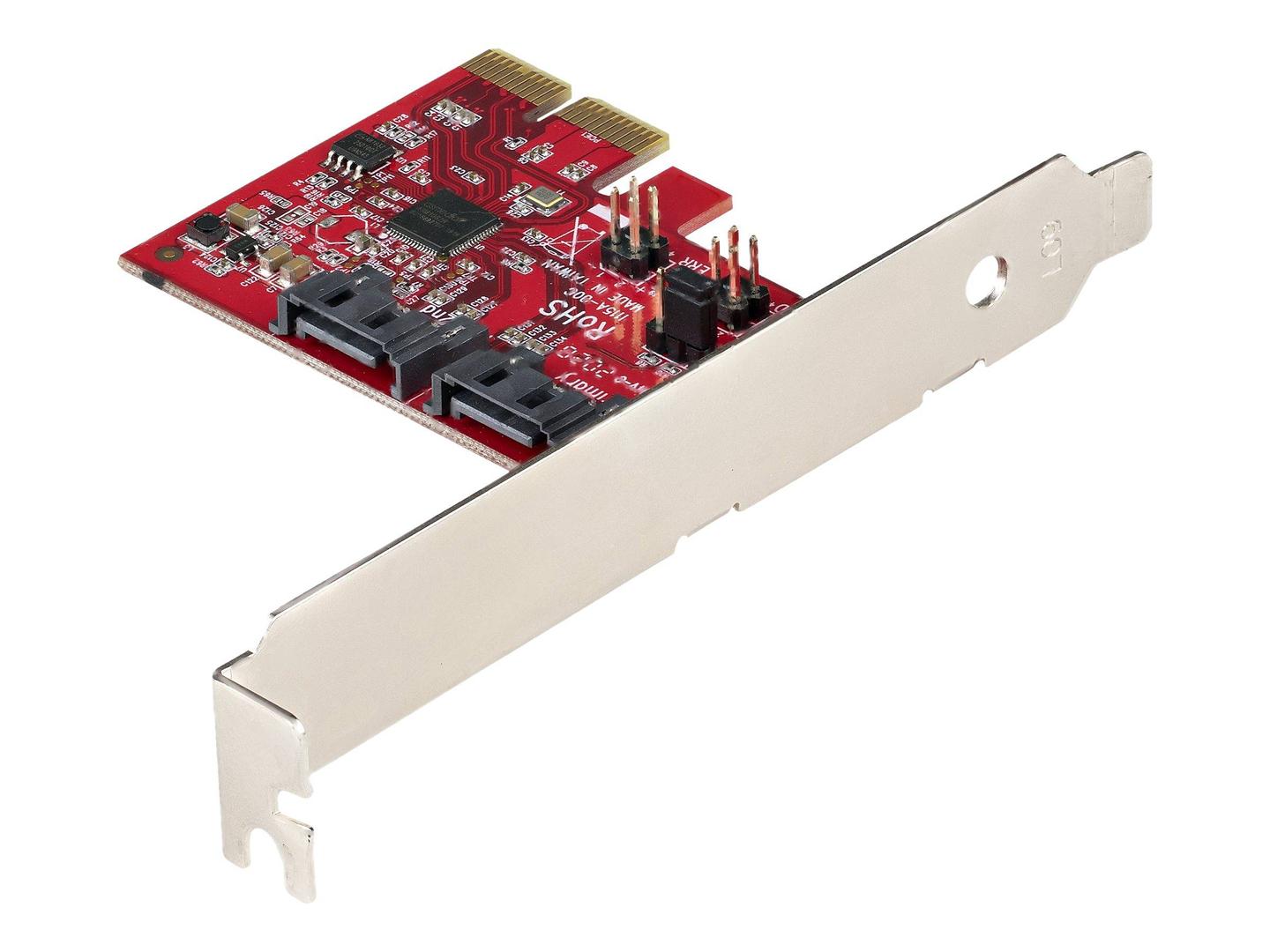

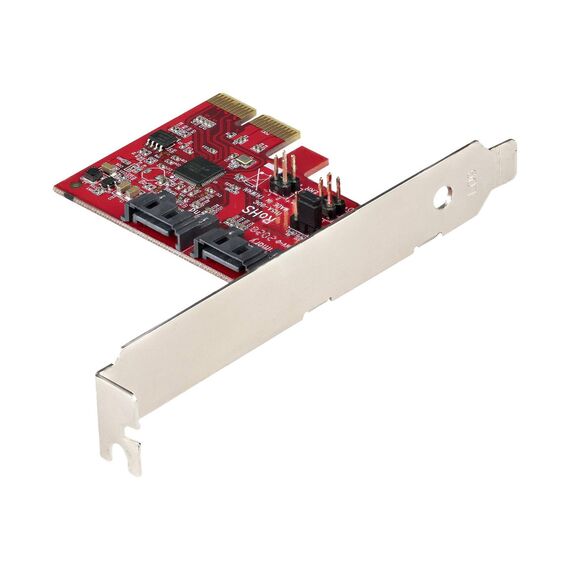

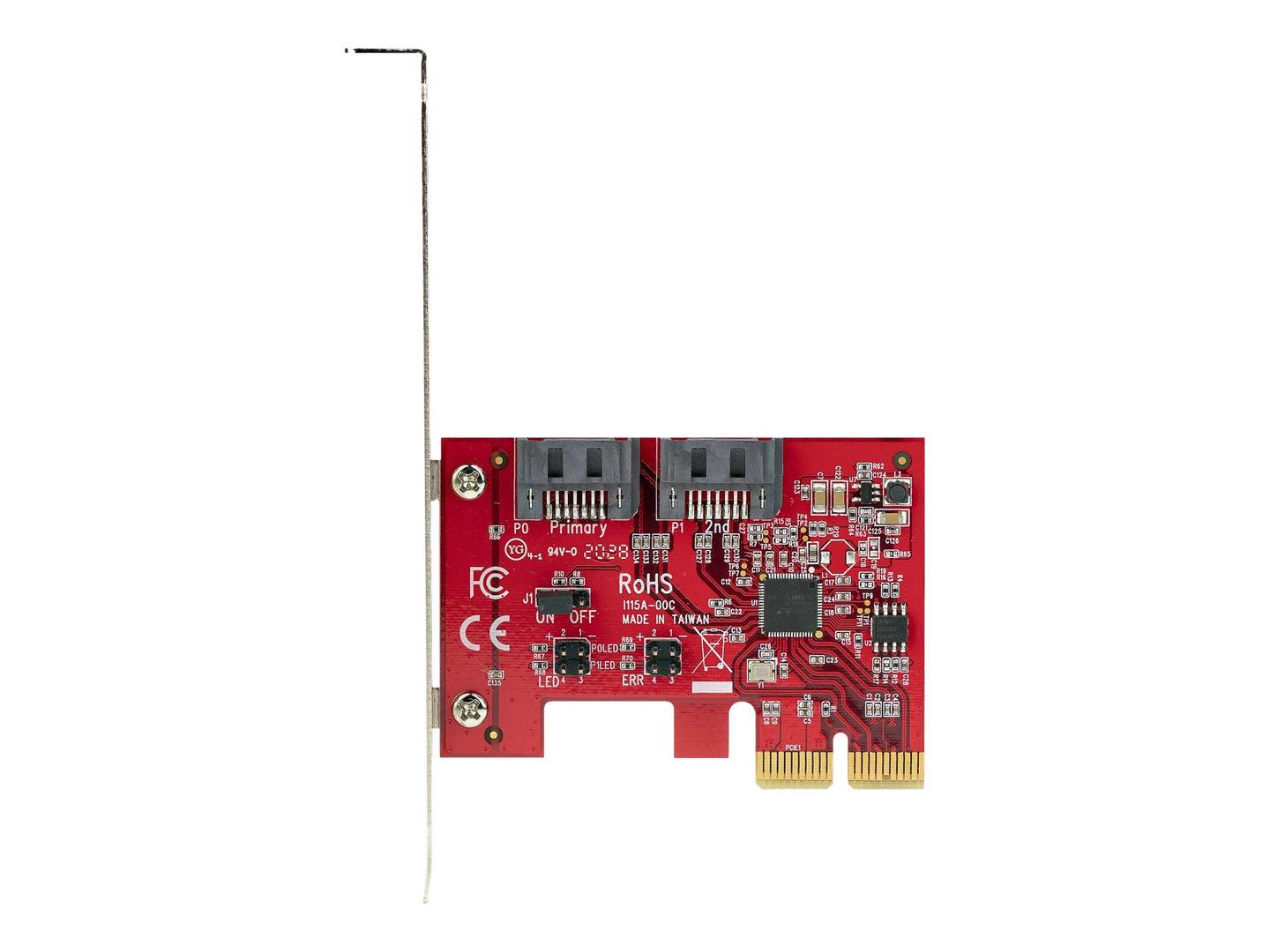

StarTech.com SATA PCIe Card, 2 Port PCIe SATA Expansion card, 6Gbps SATA Card, Full/Low Profile, PCI Express to SATA Adapter, ASM1062R SATA RAID Controller Card / PCIe to SATA Converter / Storage controller / SATA 6Gb/s / low profi | 2P6GR-PCIE-SATA-CARD
Please sign in so that we can notify you about a reply
Special Features
- Supports SATA Rev 3.0 transfer speeds up to 6.0Gbps and backwards compatible with SATA I/II at 1.5/3.0Gbps
- Port Multiplier FIS-based and Command-based switching supported
- Supports RAID 0 and 1 modes
- Compliant with PCI Express 2.0 standards
- Uses existing SATA I/II connectors and cabling
- Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands

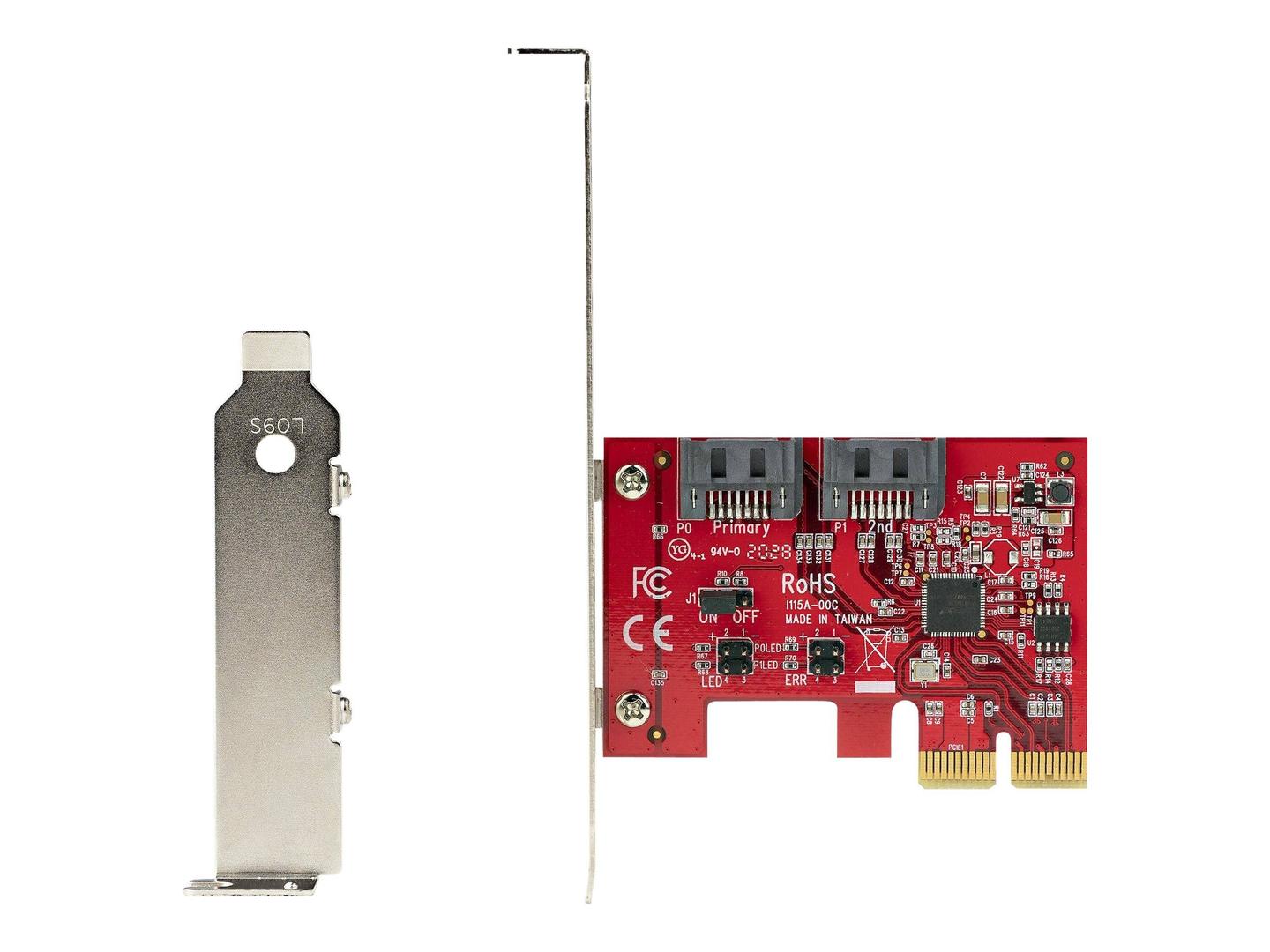

- Ships with a full profile bracket install, low profile included
- LED headers for HDD activity LED indicators
Product Specification
| Device Type | Storage controller - plug-in card - low profile |
| Host Bus | PCIe 2.0 x2 |
| Colour | Red |
| Storage Controller | Storage Controller |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 6 Gbit/s |
| Supported Devices | Hard drive, solid state drive |
| RAID Level | RAID 0, RAID 1, JBOD |
| Processor | ASMedia ASM1062R |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x SATA 6Gb/s - SATA (internal) |
| Miscellaneous | Miscellaneous |
| Included Accessories | Low-profile bracket |
| Features | Support port multiplier, S.M.A.R.T. support, TRIM support, 4Kn drive compatible, bootable, ATAPI support |
| Compliant Standards | Plug and Play, RoHS |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, Linux 2.6.32 or later, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 8.1 / 10 / 11 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Dimensions & Weight | Dimensions & Weight |
| Width | 2.2 cm |
| Depth | 6.9 cm |
| Height | 12.1 cm |
| Weight | 35 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 14.2 cm |
| Shipping Depth | 17 cm |
| Shipping Height | 3 cm |
| Shipping Weight | 126 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 85 °C |
| Humidity Range Operating | 20 - 80% |
Features - StarTech.com - 2P6GR-PCIE-SATA-CARD
More Details
Product Code
CD40632
EAN Code
0065030893169
Manufacturer
StarTech.com
