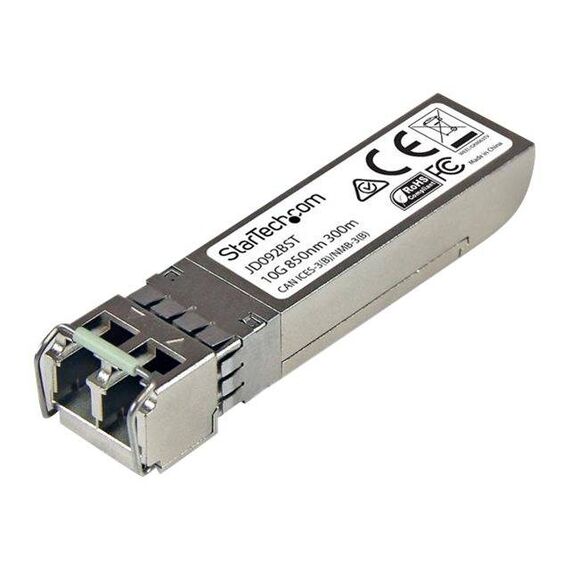

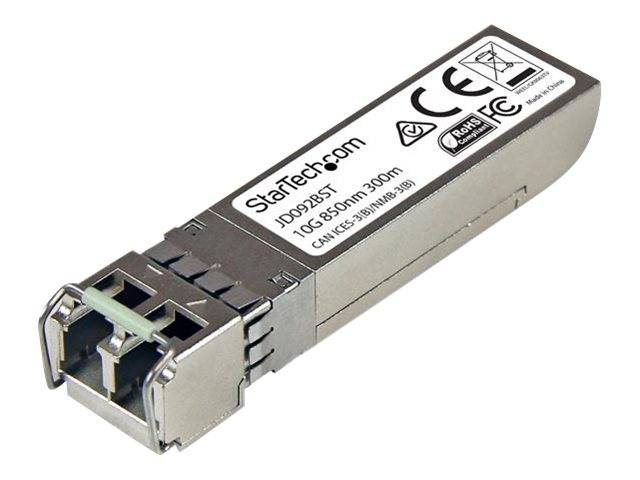

StarTech.com JD092B-ST — HPE JD092B Compatible 10G SR SFP+
HPE JD092B coded10GBASE-SRLC multimodeUp to 300 m
The StarTech.com JD092B-ST is a 10 Gbit SFP+ transceiver coded to work as the HPE JD092B, the 10GBASE-SR optic of HPE’s Comware (FlexNetwork) switch line. It runs at 850 nm over multimode fibre with an LC duplex connector, reaches up to 300 m and supports digital diagnostics. It suits networks built on HPE 5120, 5500, 5810 or 5900AF switches. In practice, multimode optics are the cheaper choice for links inside one building: most server rooms and floor risers already carry OM3 or OM4 fibre, and the module plus a short LC patch cord is all a port needs. Before you order, check the fibre grade printed on the cable jacket and the real length of the run, including patch panels.
Compatibility — check before buying:
It is coded for HPE JD092B on Comware switches. HPE Aruba/ProCurve switches use J9150A coding — ordering this part for an Aruba 2930 or similar is the most common mix-up; use J9150A-ST there. It needs multimode fibre and an SR module at the far end, and will not link to an LR optic or over single-mode fibre. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your switch model and the cable run and we check it before you order.
Best For
✓ 10G links inside one building on multimode fibre
✓ Server and storage uplinks in a data room
✓ Replacing a failed JD092B optic
✓ Keeping a spare on the shelf
✓ Top-of-rack to aggregation links
✓ Budget-conscious 10G rollouts
Key Features
Coded for HPE Comware
Programmed to identify as the HPE JD092B, so Comware switches such as the 5120 and 5900AF accept it as a 10G SR optic.
Multimode fibre, short reach
Built for the short runs inside a building or data room over OM-grade multimode fibre. Reach depends on the fibre grade, so check what is actually in your walls before you plan a link.
Monitoring you can read
Digital diagnostics (DDM) let the switch report temperature, laser power and received light, so a dirty connector or a failing link shows up in the switch before users call.
Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
HPE sells two switch operating systems with different optic coding, and this is the Comware one. If your switch runs ArubaOS (2530, 2930, 3810), choose the J9150A-ST instead. For 10 km single-mode links on Aruba switches, the J9151E-ST is the matching LR part. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status from the switch and we help you find out whether it is the optic, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.
Buyer’s Guide
Buy it if
You run HPE Comware switches (5120, 5500, 5810, 5900AF) and need 10G SR links up to 300 m on multimode fibre.
Skip it if
Your switch is HPE Aruba/ProCurve (use J9150A-ST), your fibre is single-mode, or the port is 1G-only.
Also consider
StarTech.com J9150A-ST for HPE Aruba/ProCurve switches.
Features - StarTech.com - JD092B-ST
Port Speed
- 10 Gbps
More Details
Product Code
V933710
EAN Code
0065030865241
Manufacturer
StarTech.com
