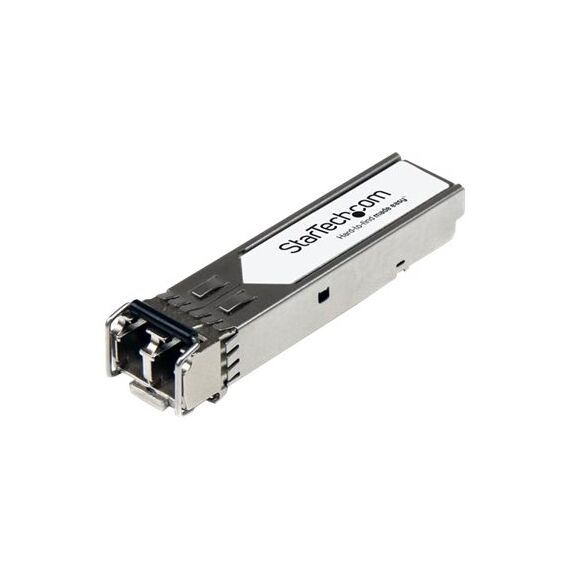

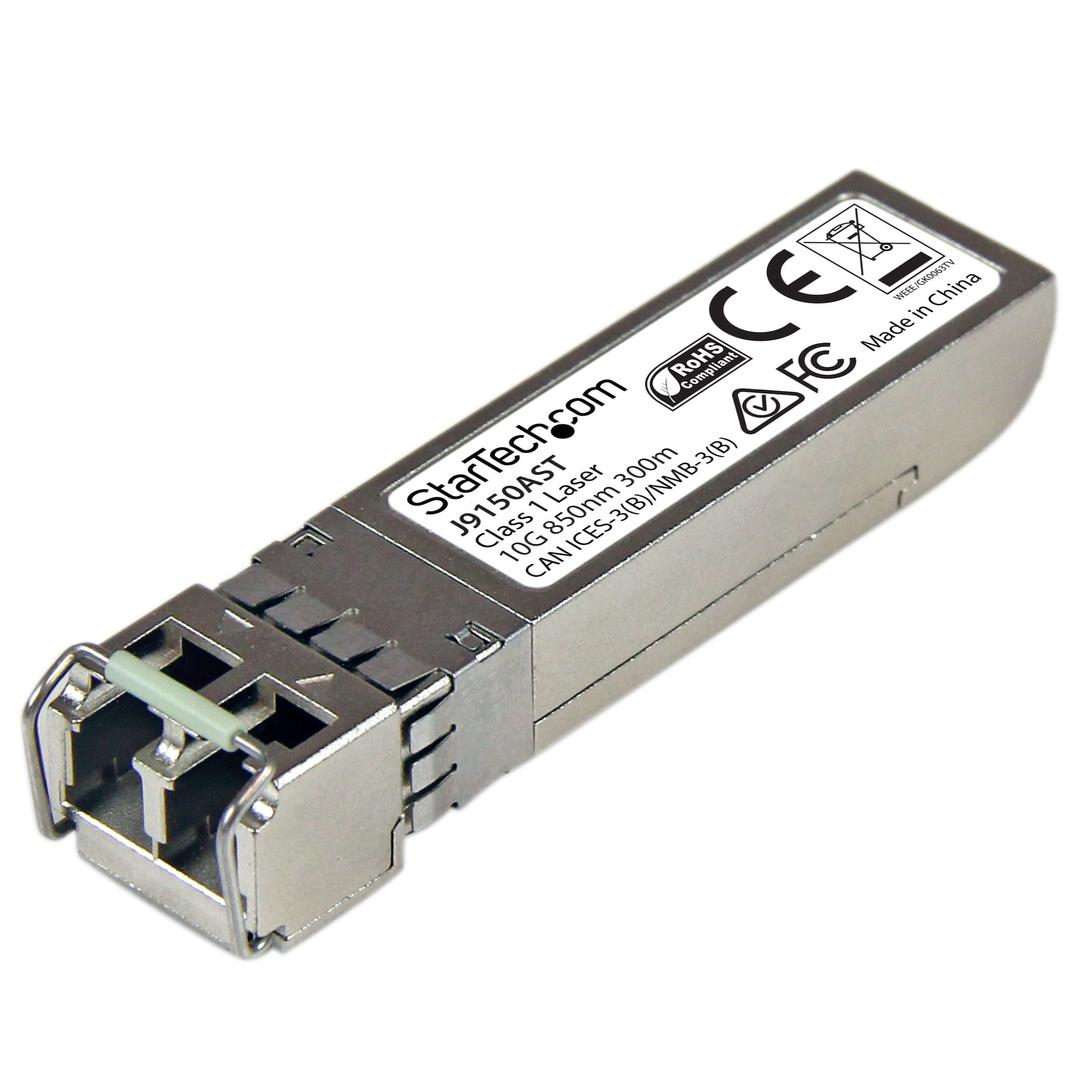

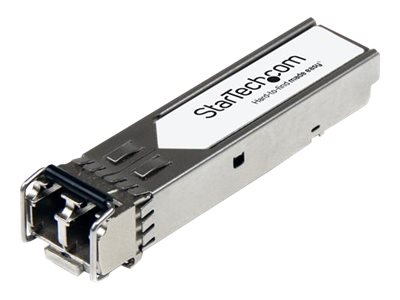

StarTech.com J9150A-ST HPE J9150A Compatible SFP+ Transceiver 10GBASE-SR 850 nm LC Multimode up to 300 m with DDM

Brand:
StarTech.com
StarTech.com HP J9150A Compatible SFP+ Module - 10GBA | J9150A-ST
StarTech.com J9150A-ST HPE J9150A Compatible SFP+ Transceiver 10GBASE-SR 850 nm LC Multimode up to 300 m with DDM
€233.74 inc. VAT
Buy
J9150A-ST
€196.42
€233.74 inc. VAT
Ships from EU stock: 8 item(s)
+ −
Add to wish list Ask a question
Product Code
V933708
EAN Code
0065030865258
Manufacturer
StarTech.com

Quick Specs

Standard
10GBASE-SR · 10 Gbps
Fibre & Reach
Multimode · up to 300 m
Connector
LC duplex · 850 nm
Coded For
HPE J9150A
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

StarTech.com J9150A-ST — HPE J9150A Compatible 10G SR SFP+

HPE J9150A coded10GBASE-SRLC multimodeUp to 300 m

The StarTech.com J9150A-ST is a 10 Gbit SFP+ transceiver coded to work as an HPE J9150A, the short-reach 10GBASE-SR optic used in HPE Aruba and ProCurve switches. It runs at 850 nm over multimode fibre with an LC duplex connector, reaches up to 300 m and supports digital diagnostics. It suits IT teams replacing or adding 10G fibre links on HPE access and aggregation switches. In practice, multimode optics are the cheaper choice for links inside one building: most server rooms and floor risers already carry OM3 or OM4 fibre, and the module plus a short LC patch cord is all a port needs. Before you order, check the fibre grade printed on the cable jacket and the real length of the run, including patch panels.

Compatibility — check before buying:
It is coded for HPE J9150A ports on Aruba/ProCurve switches. HPE’s Comware switches (5120, 5500, 5900) use the JD092B coding and BladeSystem uses 455883-B21 — those are different StarTech.com parts (JD092B-ST, 455883B21ST). It needs multimode fibre and an SR module at the far end; it will not link to a 1310 nm LR optic or over single-mode fibre, and StarTech.com does not publish 1G operation. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your switch model and the cable run and we check it before you order.

Best For

✓ 10G links inside one building on multimode fibre
✓ Server and storage uplinks in a data room
✓ Replacing a failed J9150A optic
✓ Keeping a spare on the shelf
✓ Top-of-rack to aggregation links
✓ Budget-conscious 10G rollouts

Key Features


Coded for HPE J9150A
Programmed to identify as an HPE J9150A, so Aruba and ProCurve switches that expect that part accept it as a 10G SR optic.

Multimode fibre, short reach
Built for the short runs inside a building or data room over OM-grade multimode fibre. Reach depends on the fibre grade, so check what is actually in your walls before you plan a link.

Monitoring you can read
Digital diagnostics (DDM) let the switch report temperature, laser power and received light, so a dirty connector or a failing link shows up in the switch before users call.

Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.

Technical Specifications

Identification
Brand StarTech.com
Model HPE J9150A Compatible SFP+ Module — 10GBASE-SR
Part Number J9150A-ST
EAN / GTIN 0065030865258
Pack Size Single unit
Compatible With HPE J9150A
Interface
Form Factor SFP+
Standard 10GBASE-SR (IEEE 802.3ae)
Data Rate 10 Gbps

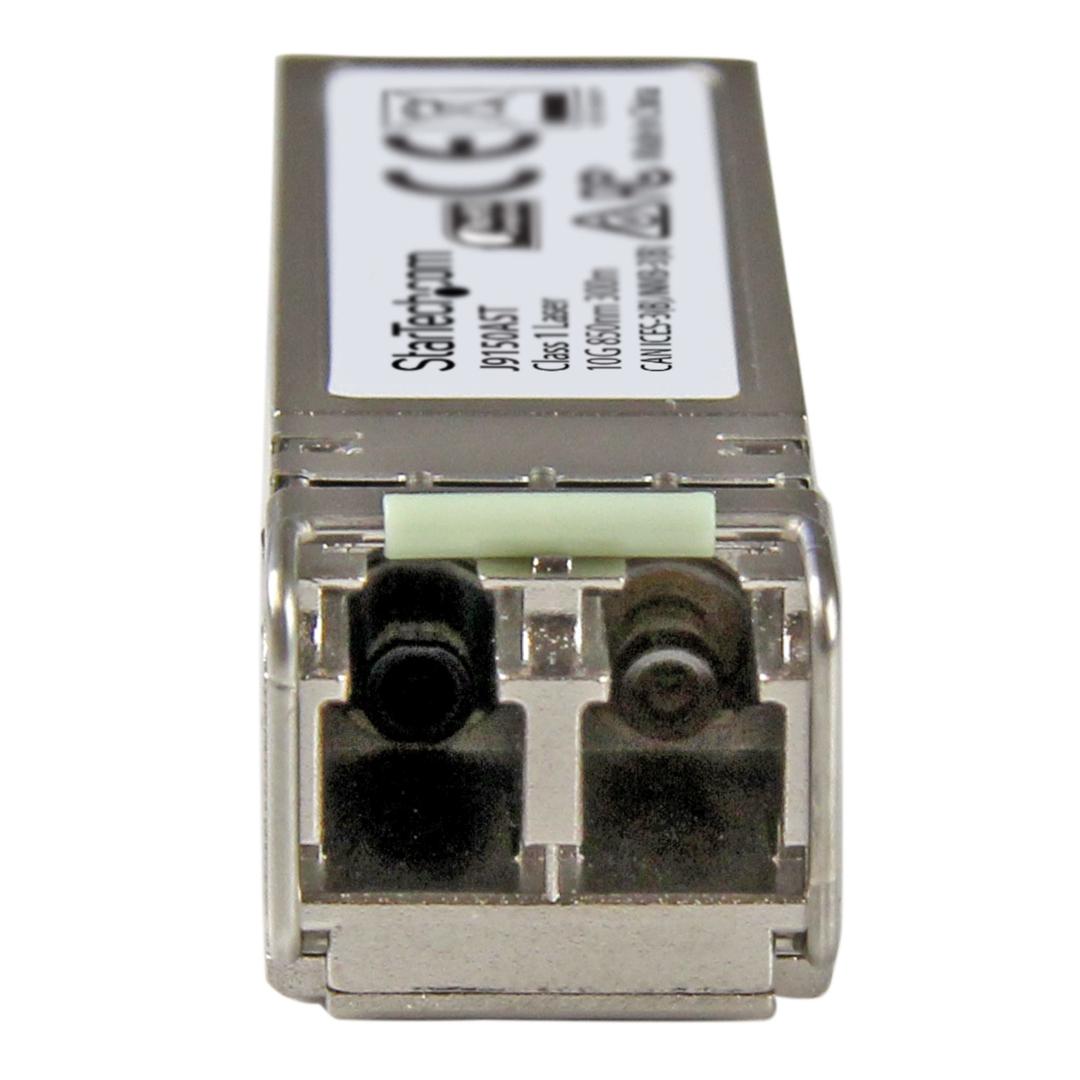

Connector LC duplex
Optics & Reach
Wavelength 850 nm
Fibre Multimode, duplex
Reach Up to 300 m (StarTech.com publishes no per-grade figures)
Duplex Full duplex
Environment & Power
Operating Temperature Not published on the current data sheet
Power Consumption Less than 1.3 W
Diagnostics DDM supported
Hot-Swap Yes
Compatibility
Designed For the OEM platforms StarTech.com lists for this part, plus MSA switches that accept uncoded modules — StarTech.com lists HPE (Aruba/ProCurve) switches such as the 1400, 1700, 1800, 2510 and 2600
Link Partner Another 10GBASE-SR 850 nm module on multimode fibre
In the Box
Included 1 SFP+ transceiver
Not Included Fibre patch cords, the far-end module and cleaning tools
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term StarTech.com publishes a lifetime warranty on this module — the lifetime of the module, not of the switch. Its free lifetime technical assistance is support, not warranty cover. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Does it work with HPE switches?
StarTech.com codes this module for HPE J9150A. StarTech.com names HPE Aruba/ProCurve switches such as the 1400, 1700, 1800, 2510 and 2600. Tell us the exact switch model and software version and we check it before you order.
How far will it reach?
StarTech.com publishes up to 300 m on multimode fibre at 850 nm. It does not break that down by fibre grade, so on older OM1/OM2 fibre plan for much shorter runs — send us the fibre grade and the length and we advise.
Are fibre patch cords included?
No. You get 1 SFP+ transceiver. The LC duplex patch cord, a matching module for the far end of the link and a fibre cleaning tool are bought separately. Tell us the distance and the fibre type and we quote the right cord.
Will it work in a switch from another brand?
StarTech.com codes each module for one OEM family (shown in the table) and also lists MSA switches that accept uncoded modules, such as Ubiquiti, D-Link, NETGEAR, Supermicro and TP-Link. A switch that enforces vendor coding may reject a module coded for another brand — send us the switch model and we check it.
Singular Expert Insight
We offer the J9150A-ST as the cost-effective alternative to the HPE-branded J9150A for Aruba/ProCurve switches. Check the switch family first: on Comware models such as the 5120 or 5900 the JD092B-ST is the right coding, and on BladeSystem the 455883B21ST. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status from the switch and we help you find out whether it is the optic, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.

Buyer’s Guide

Buy it if

You run HPE Aruba/ProCurve switches that take the J9150A and need 10G SR links up to 300 m on multimode fibre.

Skip it if

Your switch is HPE Comware (use JD092B-ST), your fibre is single-mode, or the port is 1G-only.

Also consider

StarTech.com JD092B-ST for HPE Comware, or J9151E-ST for 10 km single-mode.
