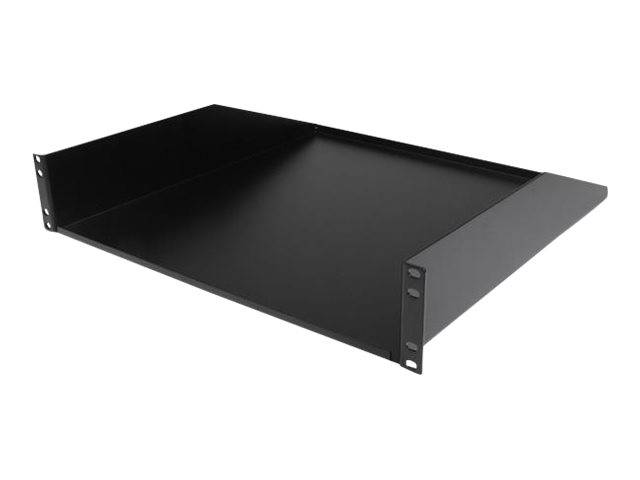

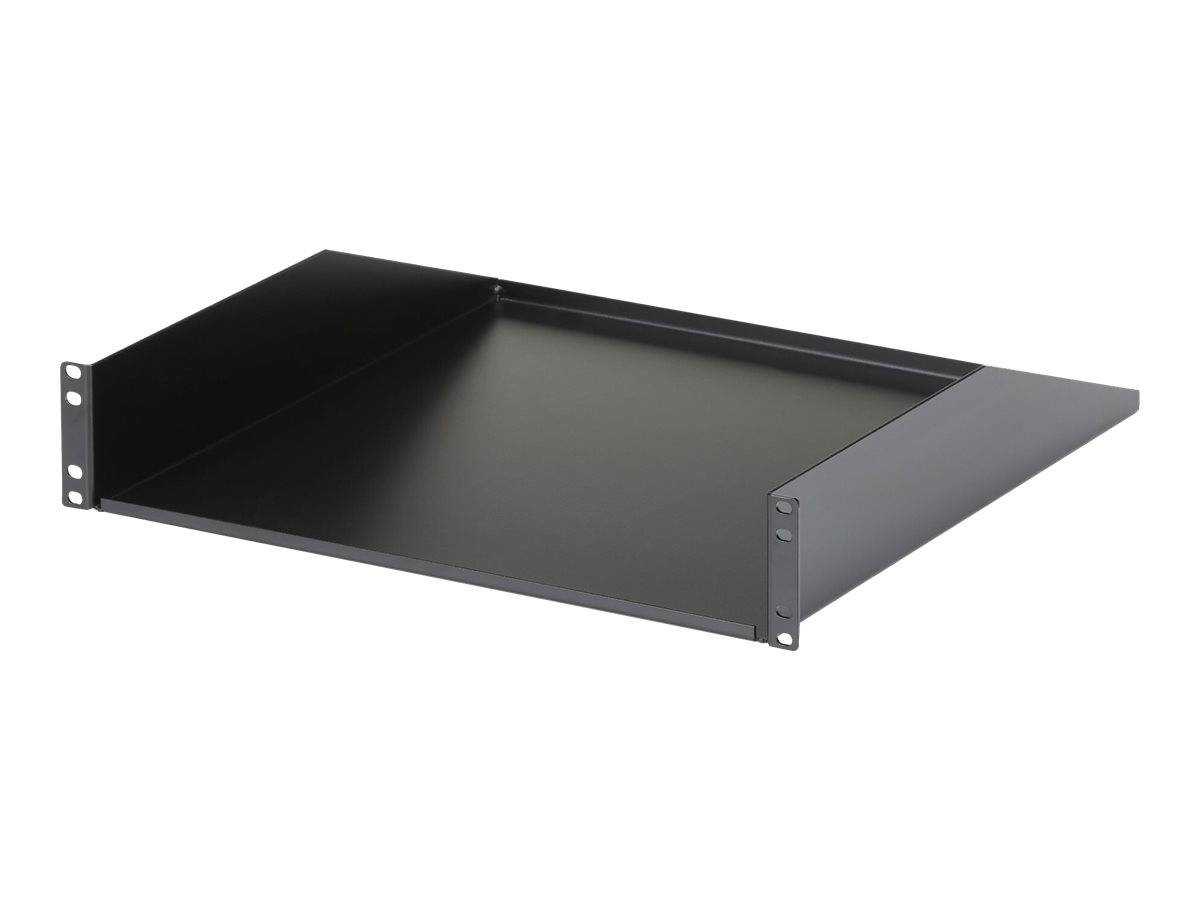

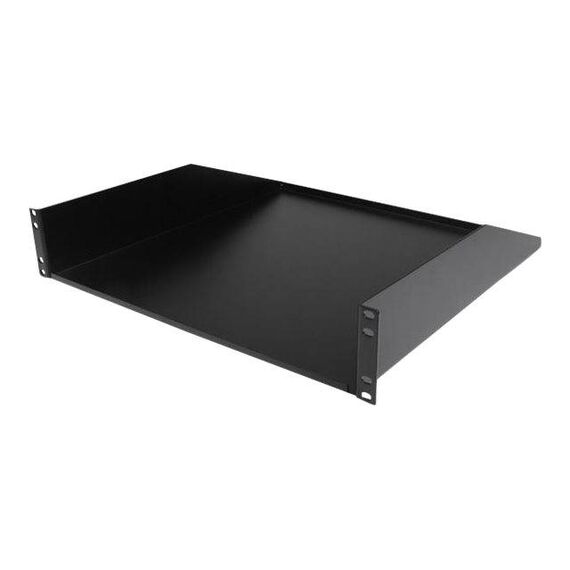

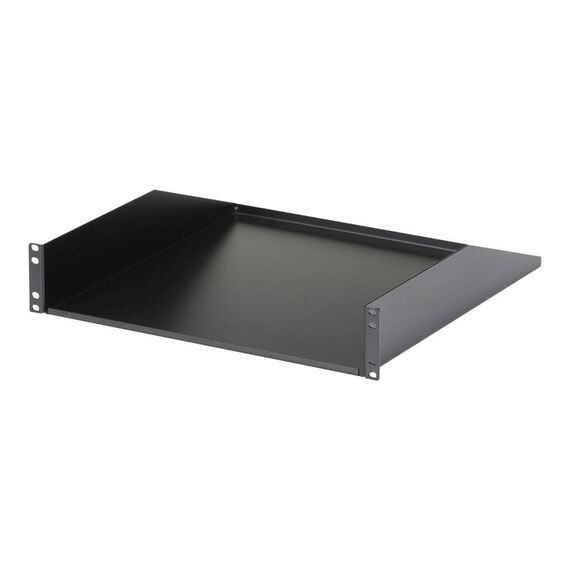

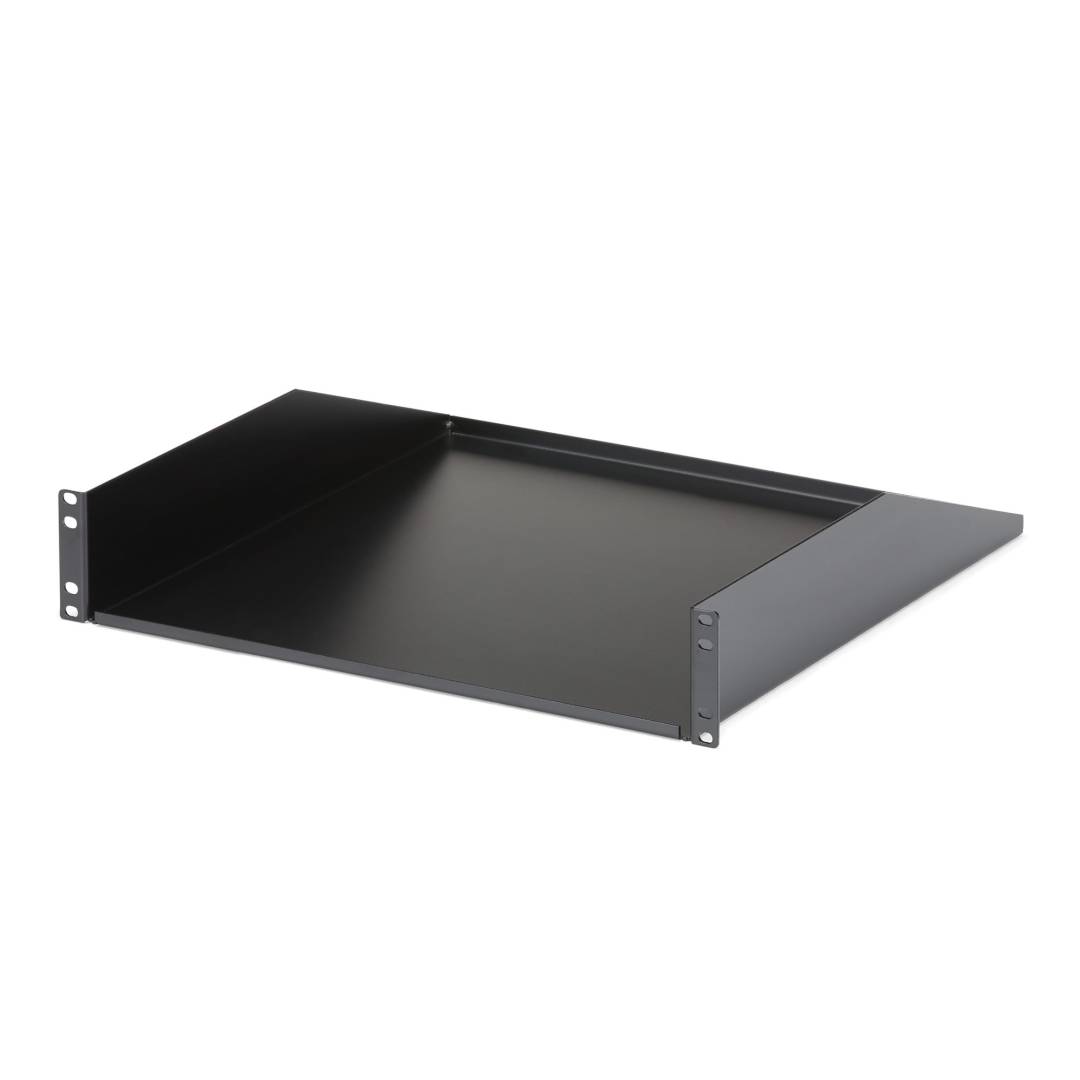

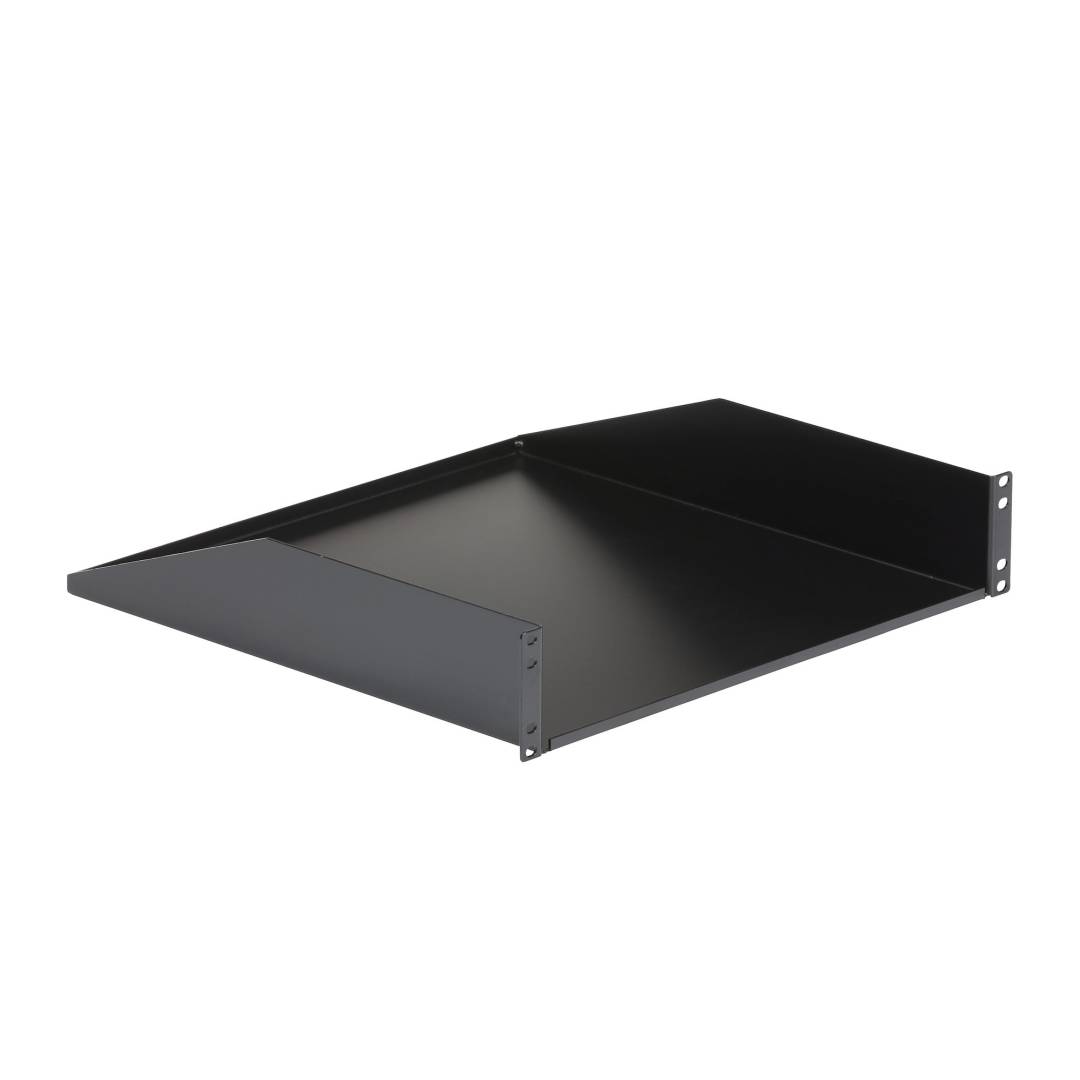

StarTech.com 2U 19-inch Heavy-Duty Cantilever Rack Shelf, Front Mount, 457 mm Deep, 56 kg Load, Steel, Black

The StarTech.com CABSHELFHD is a 2U heavy-duty cantilever shelf for 19-inch server racks and network cabinets, 457 mm deep with a 56 kg static load rating, for anyone who needs to put a desktop PC, NAS, modem, small UPS or other non-rackmount device into a rack.

Cantilever means the shelf fixes to the front rails only and extends backwards unsupported, so it works in 2-post and 4-post racks and cabinets alike, without rear rails or depth adjustment. The tray is 457 mm deep with a 443 mm usable width, and it has lips at the front and rear so equipment does not slide off.

• 1 × 2U rack shelf
• 8 × M6 screws
• 8 × M6 cage nuts
• 8 × M6 plastic washers
• 1 × quick-start guide

• 457 mm of depth fits most small-form-factor PCs, NAS units, routers and ISP modems.
• 443 mm of usable width fits between the rack rails; wider devices will not sit flat.
• 2U of height means the shelf itself uses 2U — the device on it will need more rack units above.
• Uses M6 fixings; if your rack uses M5 cage nuts, keep the rack's own hardware.

• Deep servers or tower systems over 457 mm deep — they overhang the rear and unbalance a front-only shelf.
• Loads above 56 kg, or point loads concentrated at the rear edge.
• Sliding access — this is a fixed shelf, not a pull-out tray.
• 10-inch or 23-inch racks.
