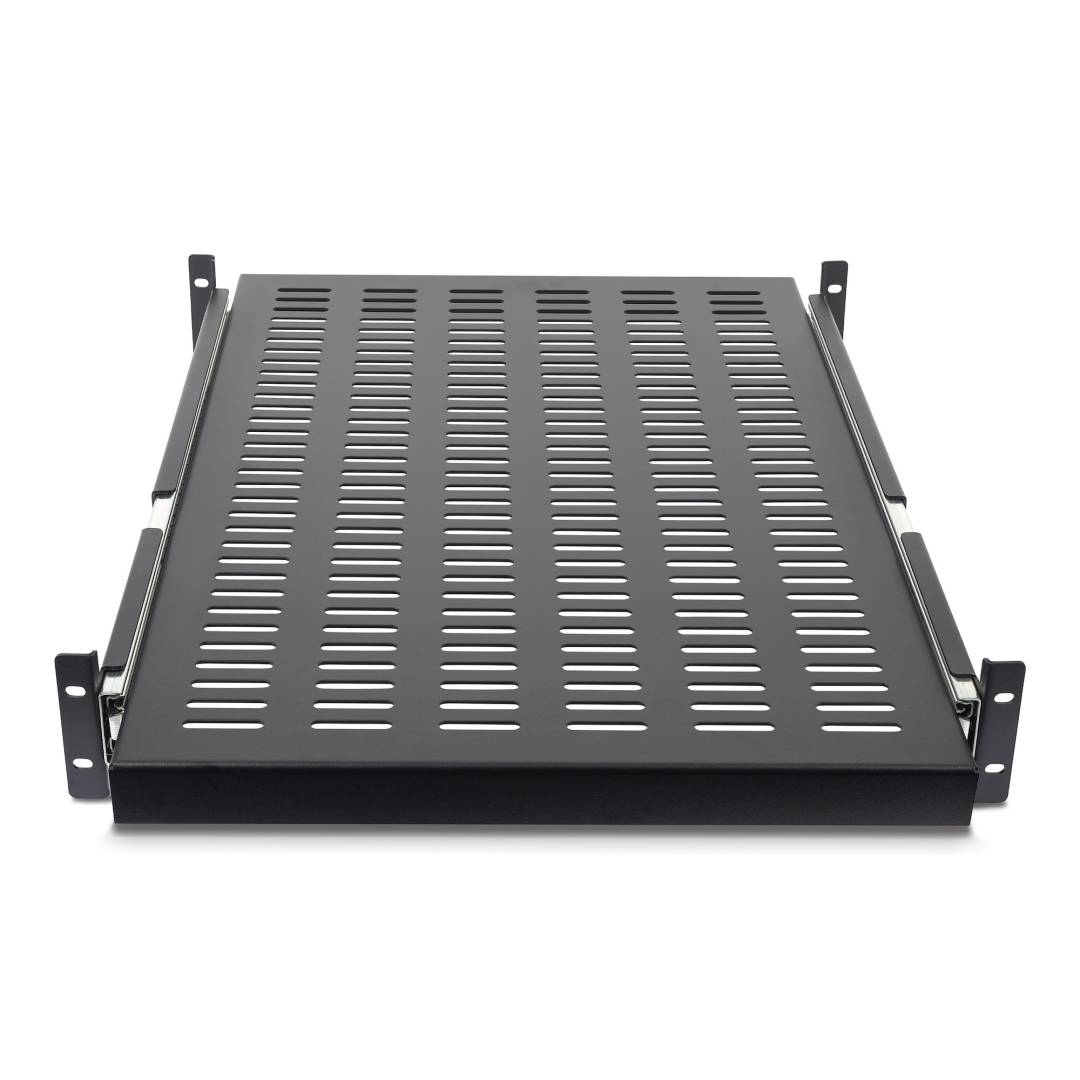

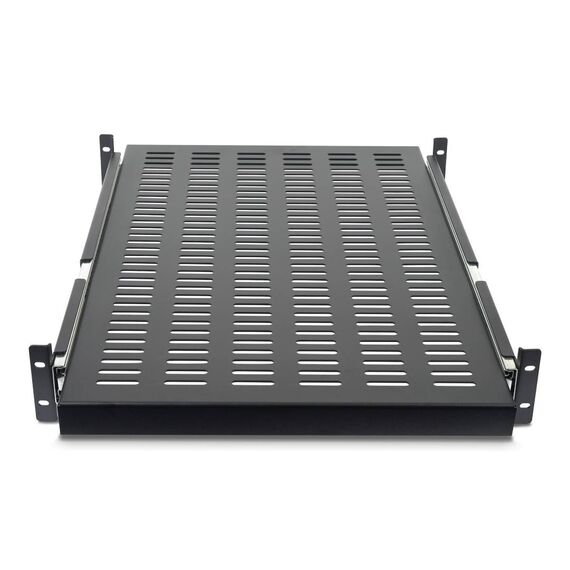

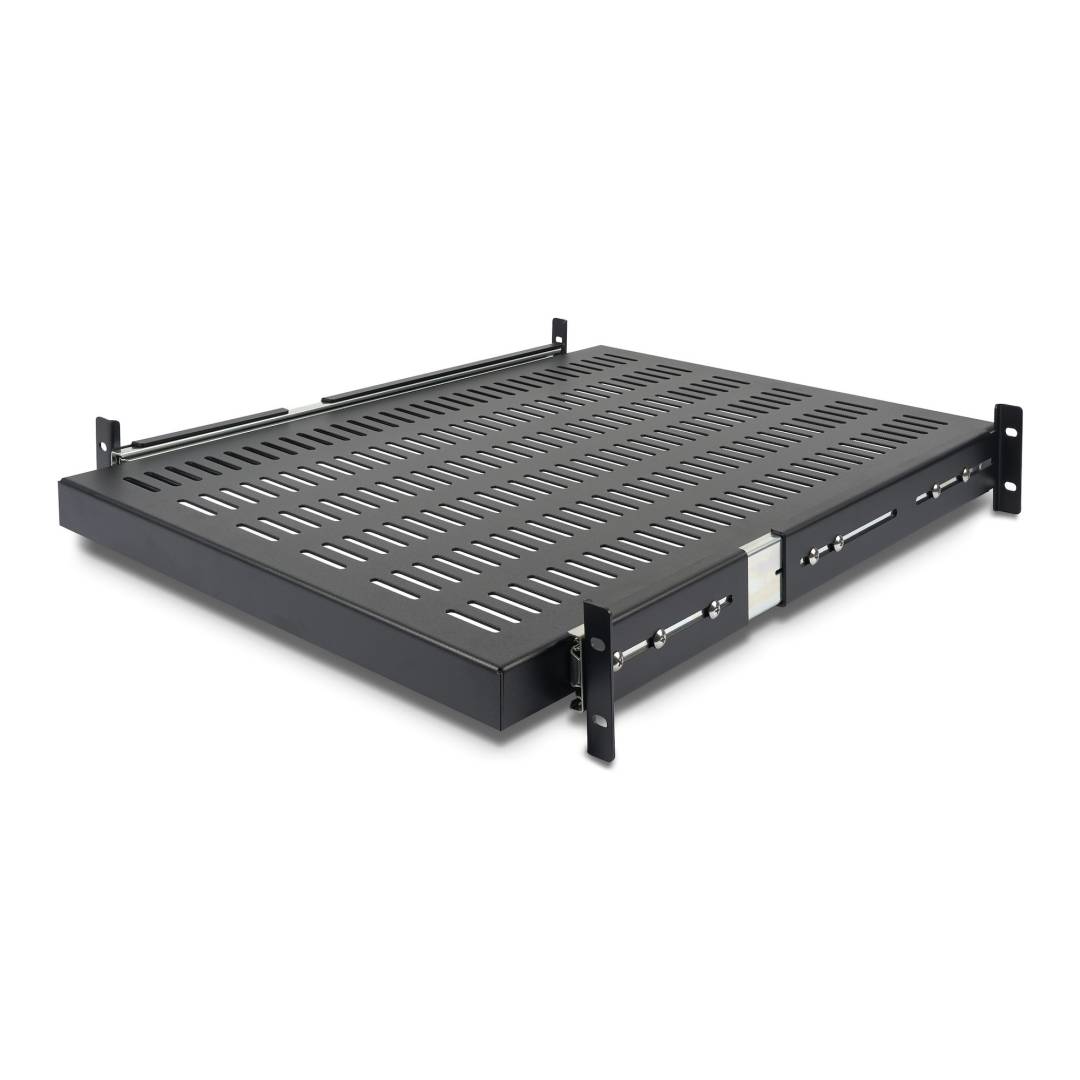

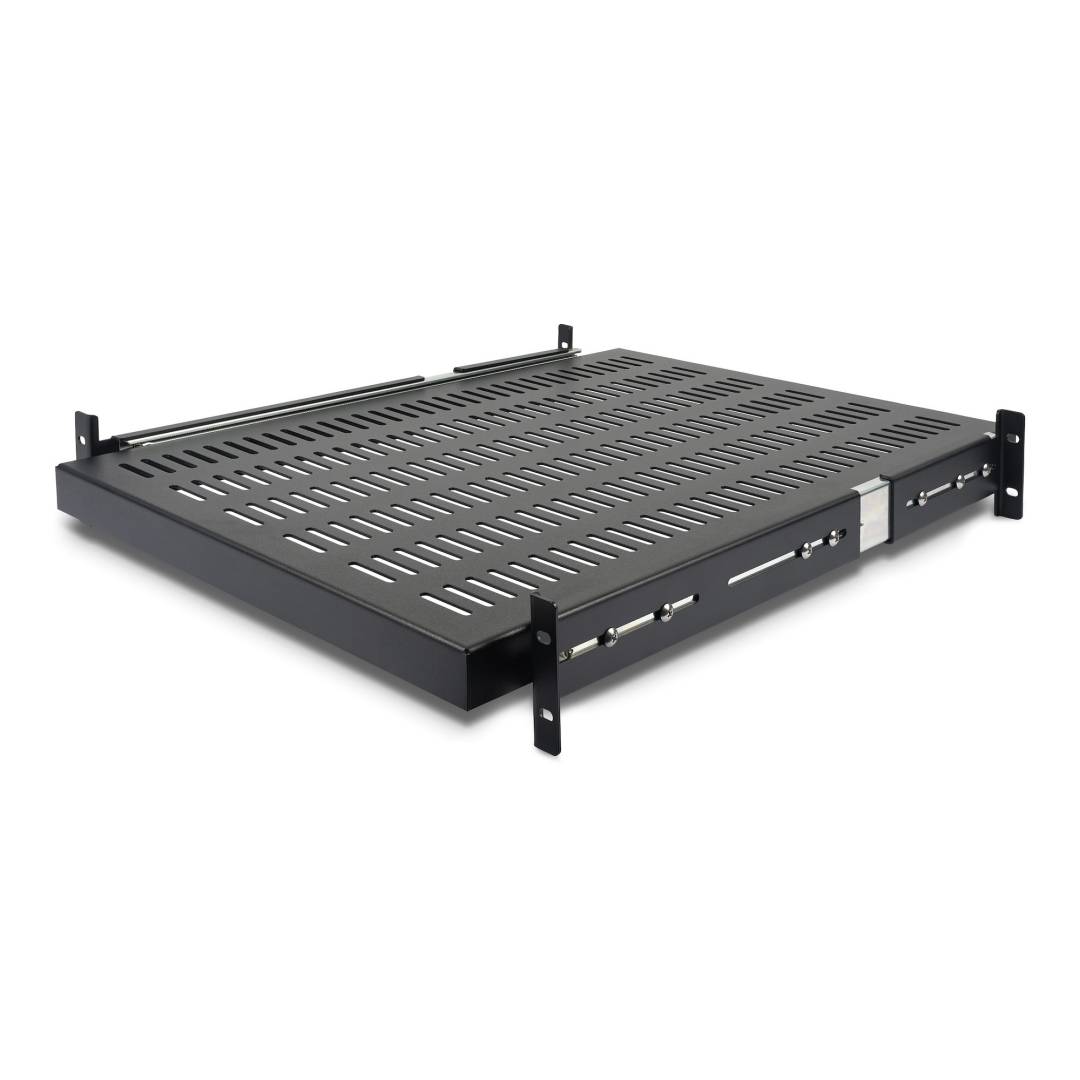

StarTech.com UNISLDSHF19 - 2U Sliding Vented Rack Shelf, Adjustable Depth
2U 19-inchPull-out sliding51-74.4 cm depth22.7 kg
The StarTech.com UNISLDSHF19 is a 2U sliding shelf for 4-post 19-inch racks that pulls out like a drawer, so you can reach equipment such as a keyboard, a small PC, a modem or a monitor without removing it from the rack. It adjusts to mounting depths from 51 to 74.4 cm.
The shelf is made of cold-rolled steel in black, with a vented surface for airflow, and carries up to 22.7 kg when stationary. It locks at about three-quarters extension so it cannot slide out of the rack by accident.
Before you order: This shelf needs a 4-post rack: all four mounting points must be fixed to the front and rear posts. It will not work in a 2-post rack or a wall-mount open frame.

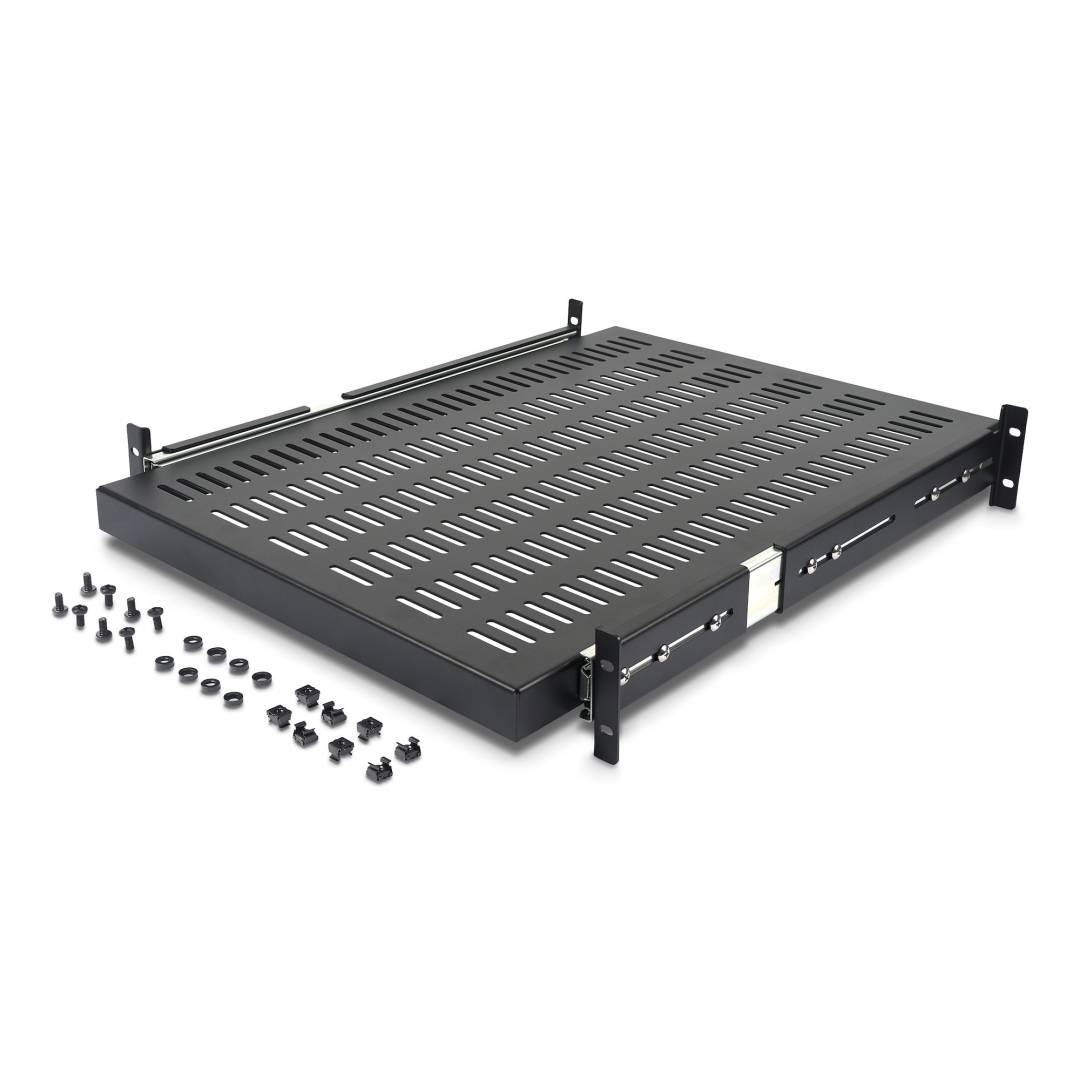

What's in the Box
- 1 x 2U sliding shelf
- 8 x M6 screws
- 8 x M6 cage nuts
- 1 x quick-start guide
What It Means in Practice
- Pull the shelf out to work on equipment and slide it back in - no need to unscrew anything.
- The adjustable depth of 51-74.4 cm fits most 600 mm to 1000 mm deep server cabinets.
- The vented surface lets air pass through, which helps equipment that sits on the shelf.
- A lock at about three-quarters extension stops the shelf from coming out completely.
What Will Not Work
- 2-post racks and wall-mount open frames - it must be secured at four points.
- Racks with a front-to-rear rail distance above 74.4 cm - StarTech.com says never exceed 744 mm.
- Loads above 22.7 kg, such as UPS units or heavy servers.
- There is no cable management arm - leave enough slack on cables so the shelf can slide.
Key Features
Sliding design
Pulls out for easy access to equipment on the shelf.
Adjustable depth
Fits 4-post racks with 51-74.4 cm mounting depth.
Vented surface
Allows airflow through the shelf.
Safety lock
Locks at about 3/4 extension to prevent it from falling out.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A sliding shelf is the practical choice for anything you need to reach regularly inside a server cabinet - a KVM console, a small firewall or a desktop PC. Check the rail-to-rail depth first, because the UNISLDSHF19 needs 51-74.4 cm. Browse our rack accessories for fixed shelves and panels.
✓ Buy it if you have a 4-post rack with 51-74.4 cm between rails and need a pull-out shelf for up to 22.7 kg.
✕ Skip it if you have a 2-post or wall-mount frame, or need to carry heavier equipment.
→ Also consider StarTech.com ADJSHELF, a fixed 1U shelf rated for 80 kg.
Not sure it fits your rack? Send us the rack model or the rail-to-rail depth and we will check before you order.
Features - StarTech.com - UNISLDSHF19
Colour
black
More Details
Product Code
V931291
EAN Code
0065030837859
Manufacturer
StarTech.com
