StarTech.com 4 Port PCI Express RS232 Serial Adapter Card / 16950 UART / Serial adapter / PCIe low profile / RS-232 x 4 | PEX4S953LP
Please sign in so that we can notify you about a reply
StarTech.com 4 Port PCI Express RS232 Serial Adapter Card / 16950 UART / Serial adapter / PCIe low profile / RS-232 x 4 | PEX4S953LP
Description

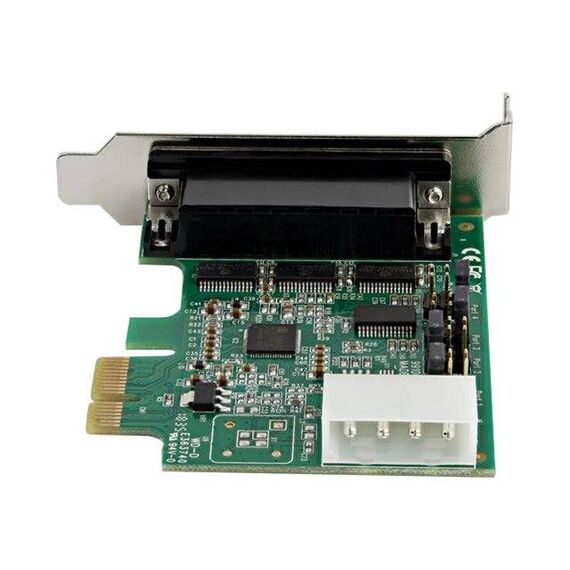

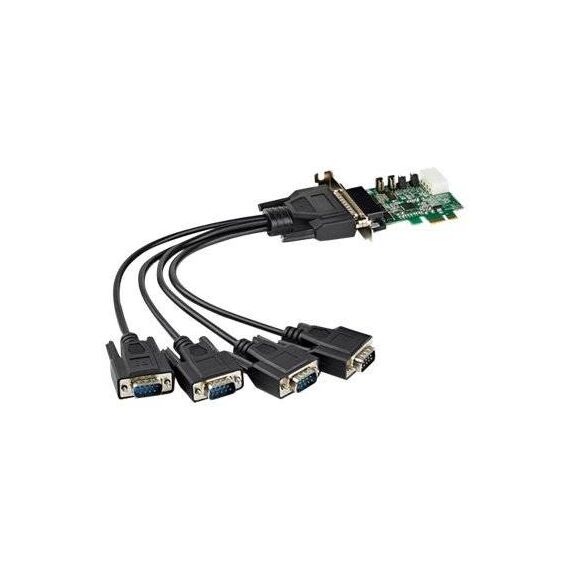

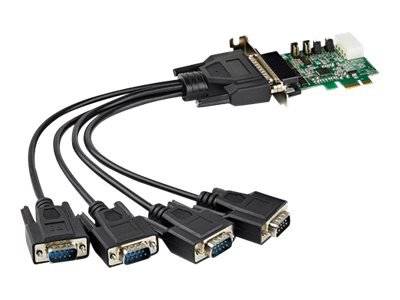

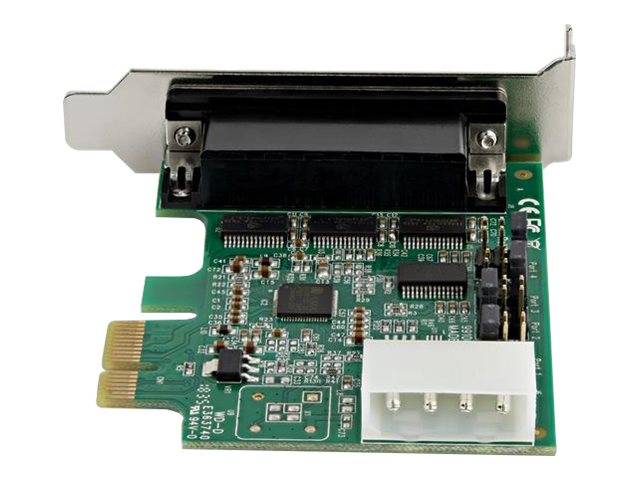

This PCI Express RS232 serial adapter card lets you add four RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. The 4 port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.
StarTech.com 4 Port PCI Express RS232 Serial Adapter Card / 16950 UART | PEX4S953LP
Special Features
- Add RS232 DB9 capabilities without purchasing a new server or computer
- PCI Express 1.1 compliant, ensuring wide compatibility

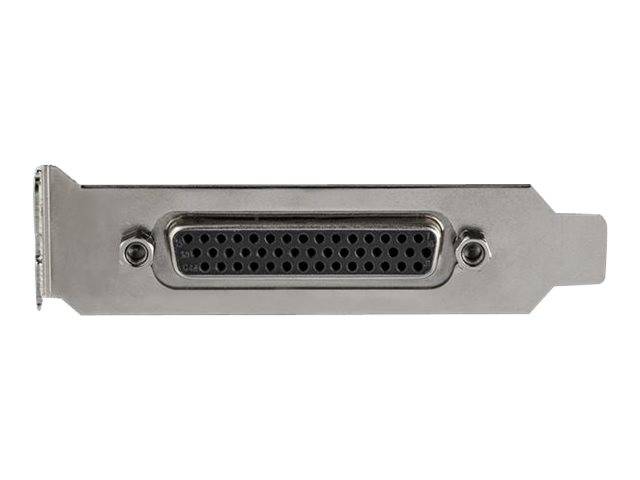

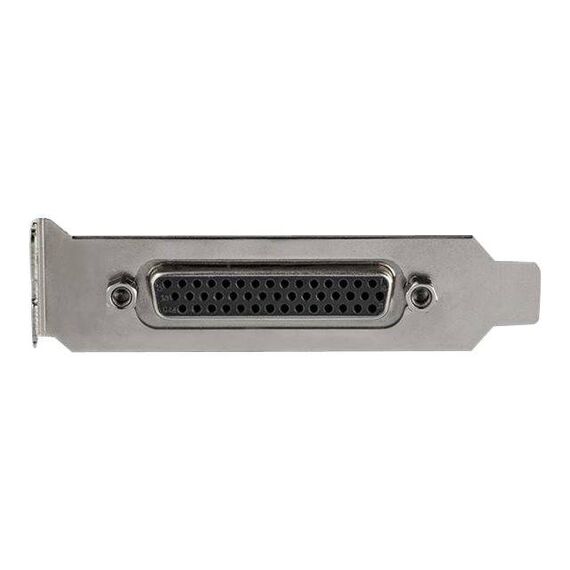

- Maximize case form factor integration with a low-profile or full profile brackets
Product Specification
| Device Type | Serial adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express x1 |
| PCI Specification Revision | PCIe 1.1 |
| Ports | RS-232 x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 921.6 Kbps |
| Features | Full duplex mode, 256-byte FIFO |
| Processor | AX99100 - ASIX |
| Interfaces | 4 x RS-232 - 9 pin D-Sub (DB-9) (on cable) ¦ 1 x SATA power - 15 pin Serial ATA power (internal) |
| Included Accessories | Full-height bracket |
| Compliant Standards | FCC, RoHS, WEEE, REACH |
| OS Required | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x - 2.6.x LTS versions only |
| Depth | 6.3 cm |
| Shipping Width | 21.3 cm |
| Shipping Depth | 14.9 cm |
| Shipping Height | 5.1 cm |
| Shipping Weight | 386 g |
| Service & Support | Limited warranty - lifetime |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 80 °C |
| Humidity Range Operating | 5 - 85% |
Features - StarTech.com - PEX4S953LP
More Details
Product Code
V934945
EAN Code
0065030887052
Manufacturer
StarTech.com
