StarTech.com RK619WALLV — 6U Vertical Wall-Mount Bracket for 19" Equipment
6U · 19"Mounts vertically on the wall90.7 kg rated loadCage nuts & wood screws included

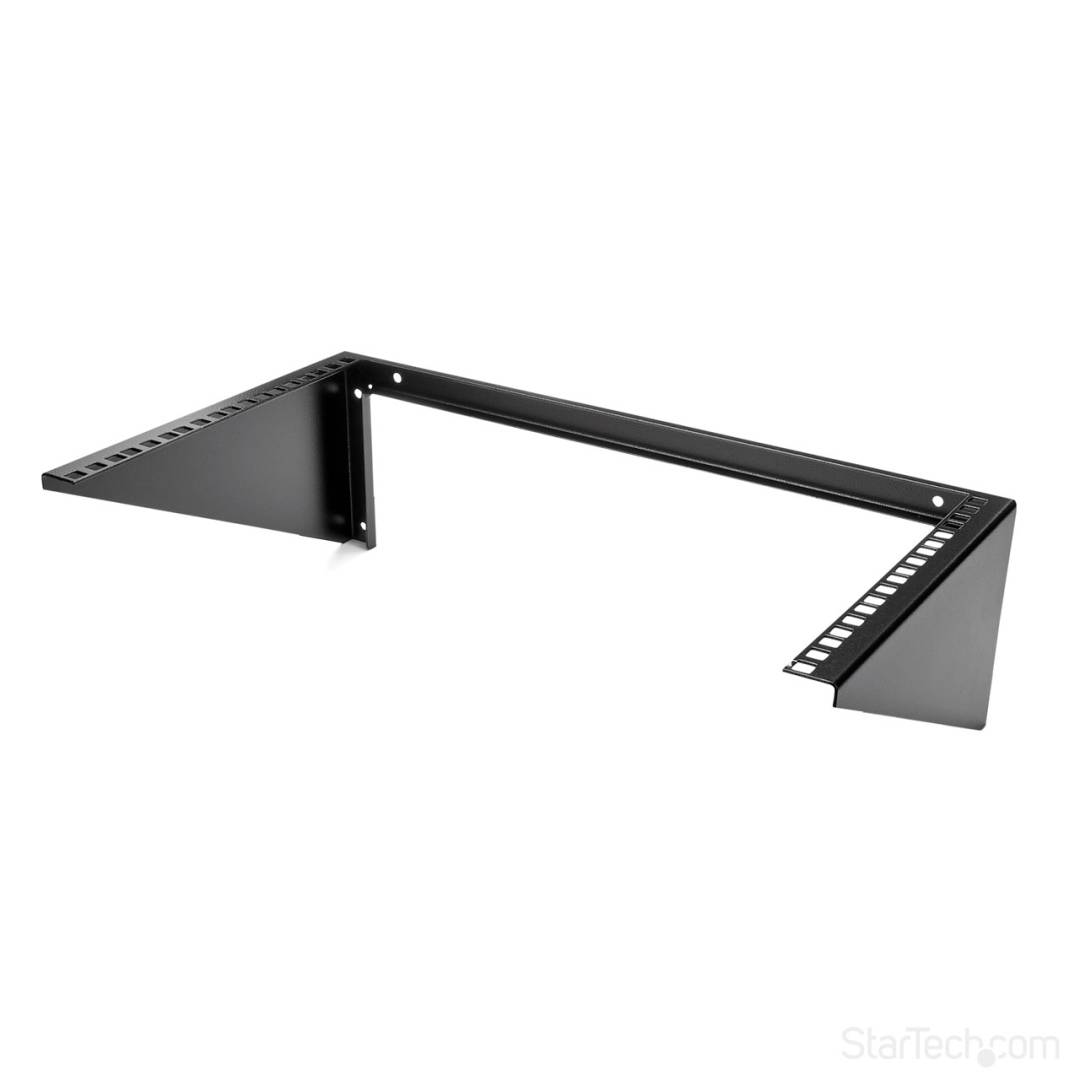

The StarTech.com RK619WALLV is a 6U vertical wall-mount bracket that lets you fix 19" patch panels, switches and other shallow rackmount equipment flat against a wall, with the front panel facing outwards — ideal for installers and small offices that need a tidy cabling point where a full rack or cabinet will not fit.

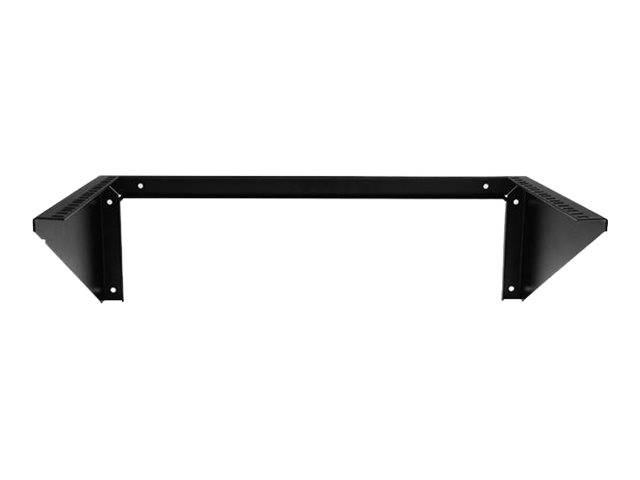

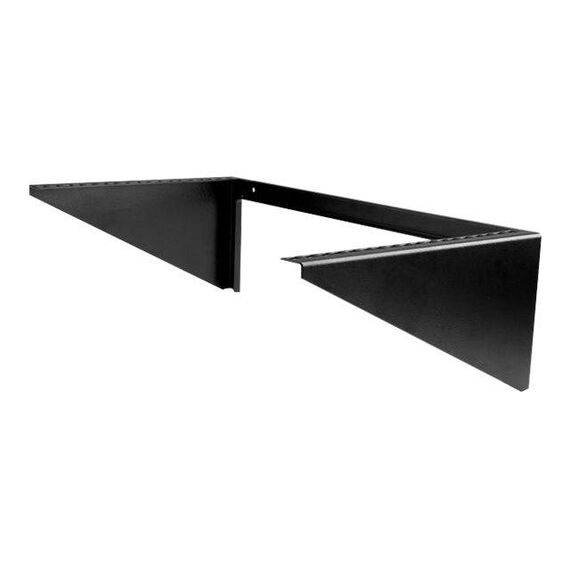

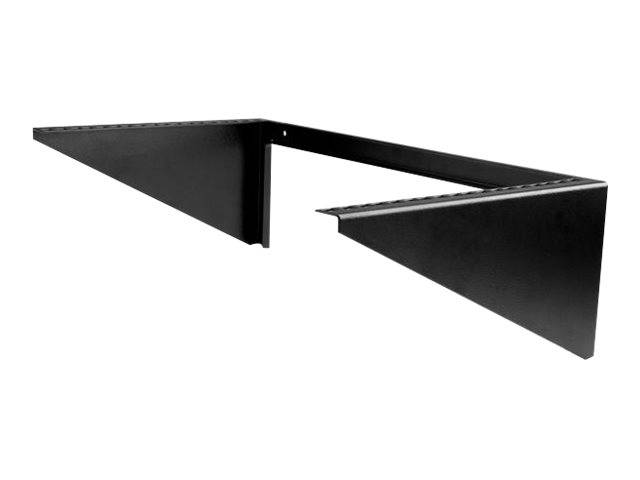

The open steel frame is rated for 90.7 kg, uses square holes for M5 cage nuts and ships with both the rack hardware and wood screws for wall fixing.
Before you order: Equipment is mounted vertically, so this bracket suits patch panels and shallow switches. Check your device's depth and airflow direction before mounting it this way, and use wall plugs rated for your wall type.

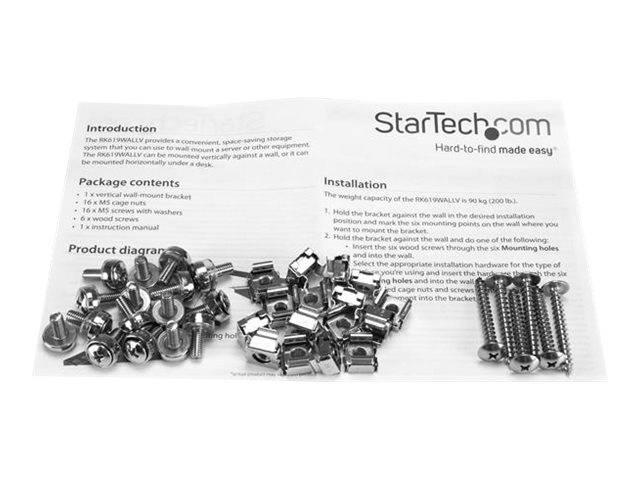

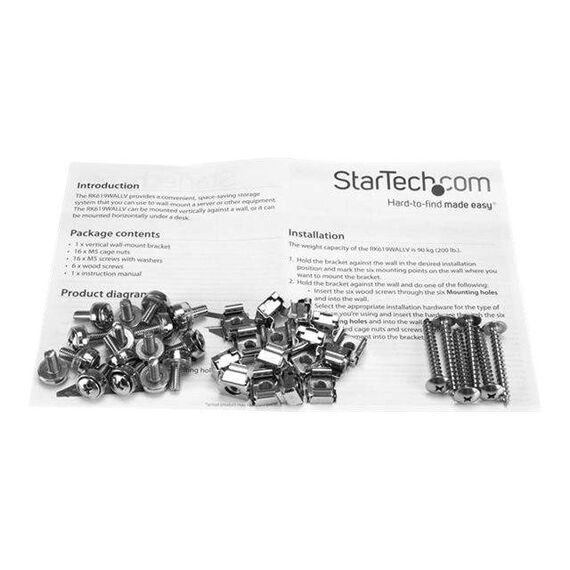

What's in the Box
- 1 × 6U vertical wall-mount bracket
- 16 × M5 cage nuts
- 16 × M5 screws
- 6 × wood screws
- 1 × instruction manual
What It Means in Practice
- Patch panels and small switches can be mounted directly on a wall in a corridor, ceiling void or plant room without a cabinet.
- The vertical orientation keeps the bracket's projection from the wall small, which helps in narrow spaces.
- Six rack units is enough for a typical combination such as two patch panels, a cable manager and a 1U switch.
- Being an open frame, cabling at the back stays easy to reach during installation.
What Will Not Work
- It is not an enclosure — there is no door, lock or dust protection.
- It is not meant for deep servers or UPS units; it suits shallow network equipment.
- It does not include wall plugs for plasterboard or masonry; only wood screws are supplied.
- It is a 19" bracket and will not take 10" equipment without adapters.
Key Features
Vertical wall mounting
Equipment faces outward from the wall, keeping patch ports accessible in tight spaces.
90.7 kg rated load
Steel construction rated for 200 lb when correctly fixed to a suitable wall.

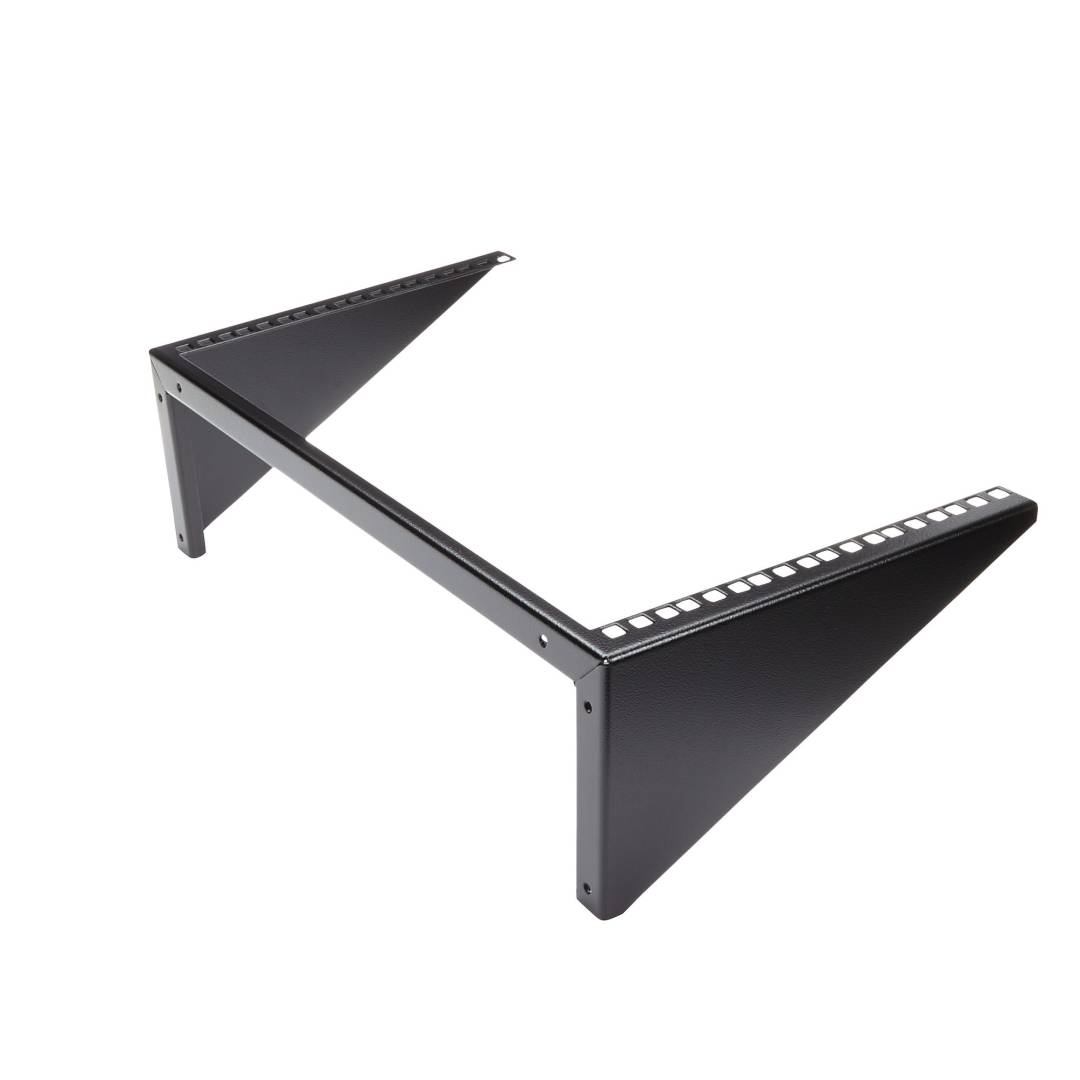

Square cage-nut holes
Works with the supplied M5 cage nuts and screws for standard 19" rackmount hardware.
EIA/ECA-310-E
Standard 19" spacing so patch panels and switches from any brand will fit.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A vertical 6U bracket is one of the neatest ways to terminate cabling in a small office where a cabinet would be overkill. Plan the wall fixing first — the bracket is rated for 90.7 kg, but that only helps if the wall anchors are. More mounting options are in our rack accessories.
✓ Buy it if you need to wall-mount patch panels or a small switch without a cabinet.
✕ Skip it if you need a lockable, dust-protected enclosure or plan to install deep equipment.
→ Also consider A wall-mount network cabinet if you need a door, lock and ventilation.
Not sure it suits your equipment? Tell us the model of your patch panels or switch and your wall type, and we will check before you order.
Features - StarTech.com - RK619WALLV
Colour
black
More Details
Product Code
V933941
EAN Code
0065030866392
Manufacturer
StarTech.com
