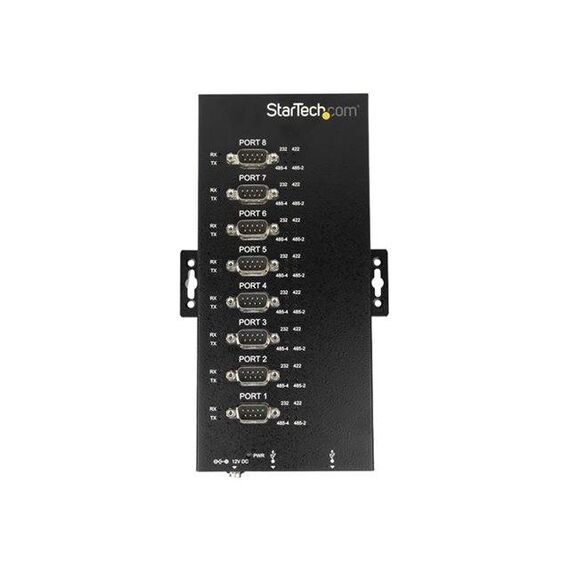

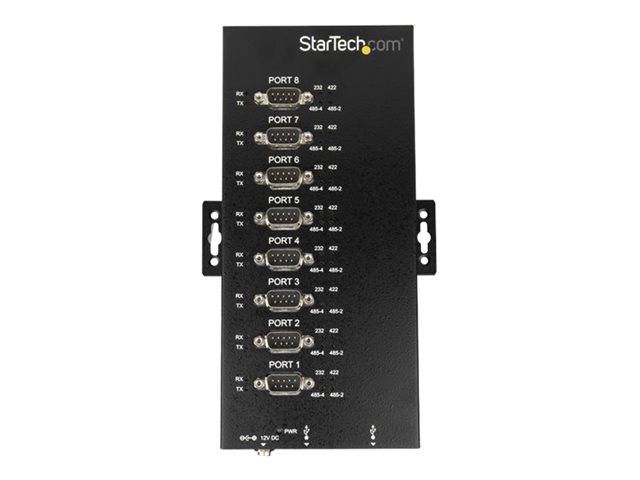

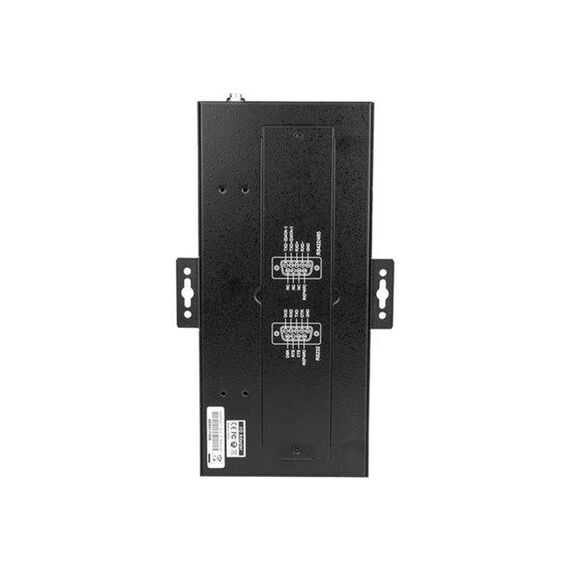

StarTech.com ICUSB234858I — 8-Port Industrial USB to RS-232 / RS-422 / RS-485 Serial Hub
8x DB-9, RS-232 / 422 / 485 per portUp to 921.6 kbpsFTDI FT4232H36 W universal adapter included
The StarTech.com ICUSB234858I is an eight-port USB-to-serial hub for panels with a lot of legacy equipment: eight DB-9 ports, each switchable between RS-232, RS-422 and RS-485, on FTDI silicon, in an IP30 steel DIN-rail case with a 36 W universal adapter in the box. It connects PLCs, drives, meters, scales and instruments to one USB 2.0 port on a modern PC.
Compatibility — check before buying:
This is a serial adapter, not a USB hub: the eight ports are DB-9 serial. StarTech’s connector table also lists one USB-A port whose purpose it does not explain, so do not plan around it. The adapter is included (12 V / 3 A, plugs for NA, JP, UK, EU and ANZ); the unit can also run from 5 V USB power. StarTech does not publish how the per-port mode is selected or the RS-485 termination details. FTDI drivers cover current and legacy Windows, Linux and macOS.
Best For
✓ Cabinets with many PLCs, drives and meters
✓ Building automation with mixed RS-232 and RS-485 devices
✓ Retrofitting legacy machines to a new PC
✓ Test benches with several serial instruments
✓ Energy meters and sensor networks on RS-485
✓ Rack and DIN-rail control systems
Key Features
Eight serial ports, three standards
Each DB-9 port is individually configurable as RS-232, RS-422 or RS-485 (2-wire or 4-wire) at up to 921.6 kbps, with 7 or 8 data bits, 1 or 2 stop bits, odd/even/mark/space/none parity and a 2 KB buffer; per-port LEDs show mode, TX and RX.
Industrial protection

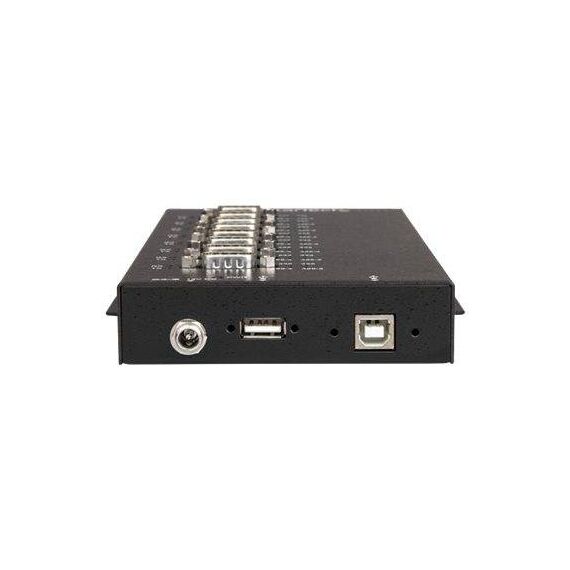

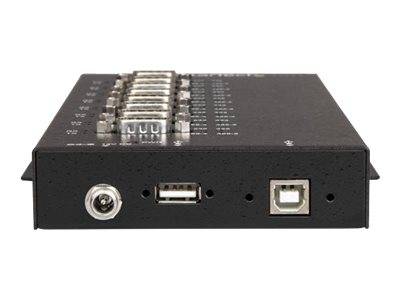

15 kV Level 4 ESD protection on the ports, IP30 steel enclosure, 0–55 °C, 175,901-hour MTBF, screw-lock USB-B host port with a 2 m screw-lock cable included.
Powered and mountable
Universal 12 V / 3 A (36 W) adapter with five regional plugs, or 5 V USB power; built-in ears and DIN-rail brackets in the box.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Eight configurable serial ports with the adapter in the box makes this the panel-scale version of the four-port ICUSB234854I; for a single console port on a laptop, StarTech’s 5G2A1SGBB-USB-C-HUB with its RS-232 port is the light option. FTDI silicon keeps legacy software happy on all of them. For the USB and network sides of the same cabinet see our USB hubs and network switches. Not sure your computer, cabinet supply or cable fits? Tell us the model and we check it before you order.
Buyer’s Guide
Buy it if
You need eight RS-232 / RS-422 / RS-485 ports from one USB cable on a DIN rail, with FTDI drivers, IP30 steel and the adapter included.
Skip it if
You need USB ports rather than serial, only one or two serial ports, or RS-485 termination details published up front.
Also consider
ICUSB234854I for four ports bus-powered; 5G2A1SGBB-USB-C-HUB for one RS-232 port plus Ethernet on a laptop.
