StarTech.com 20U Vertical 0U Cable Management Panel with D-Ring Hooks, Tool-Less Mounting, Steel, Black
Brand:
StarTech.com
StarTech.com 20U Vertical 0U Cable Management Panel with D-Ring Hooks, Tool-Less Mounting, Steel, Black
€68.29 inc. VAT
CMVER20UD
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
StarTech.com CMVER20UD — 20U Vertical 0U D-Ring Cable Manager
20U · 0U mountingTool-less installFront or rear mountSteel · black

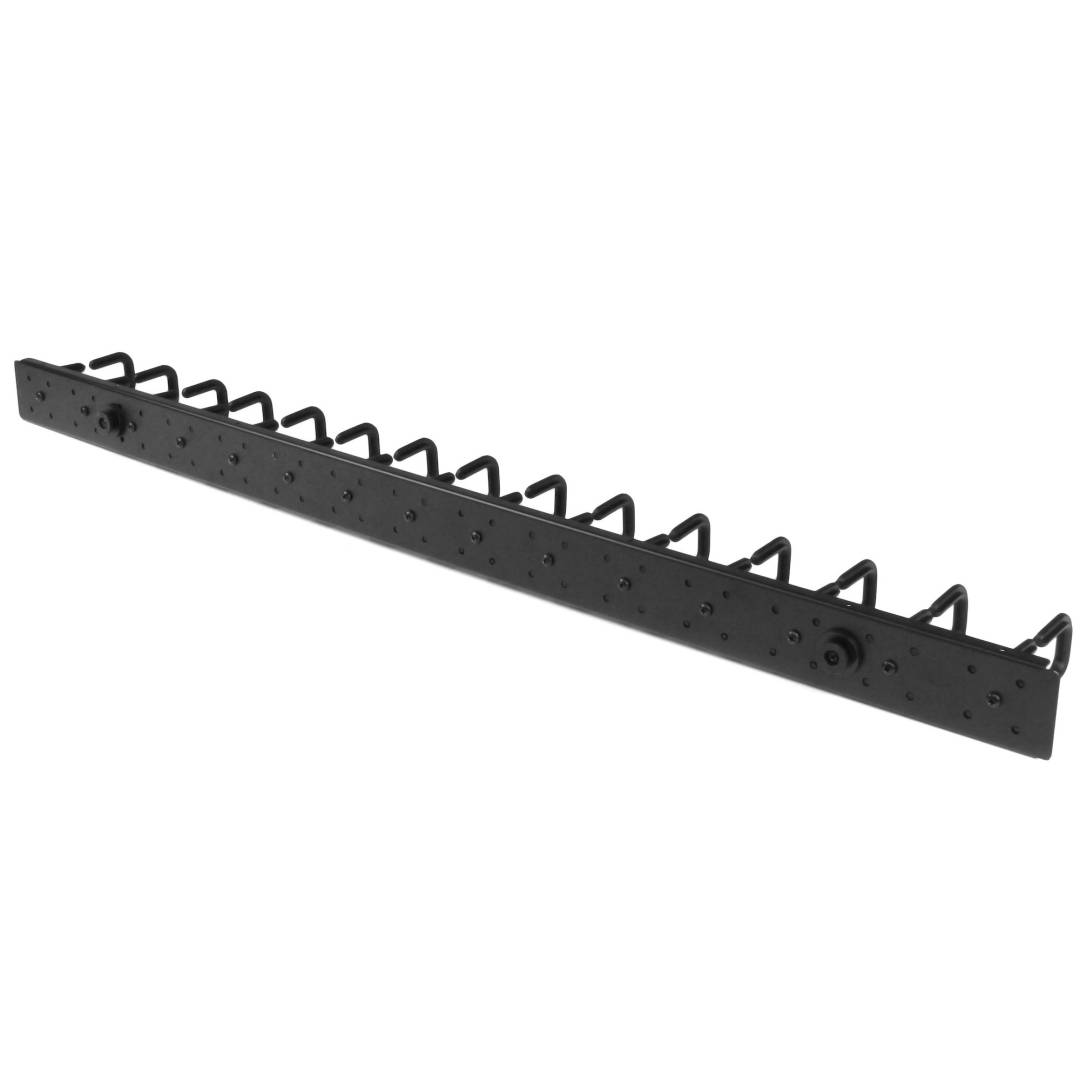

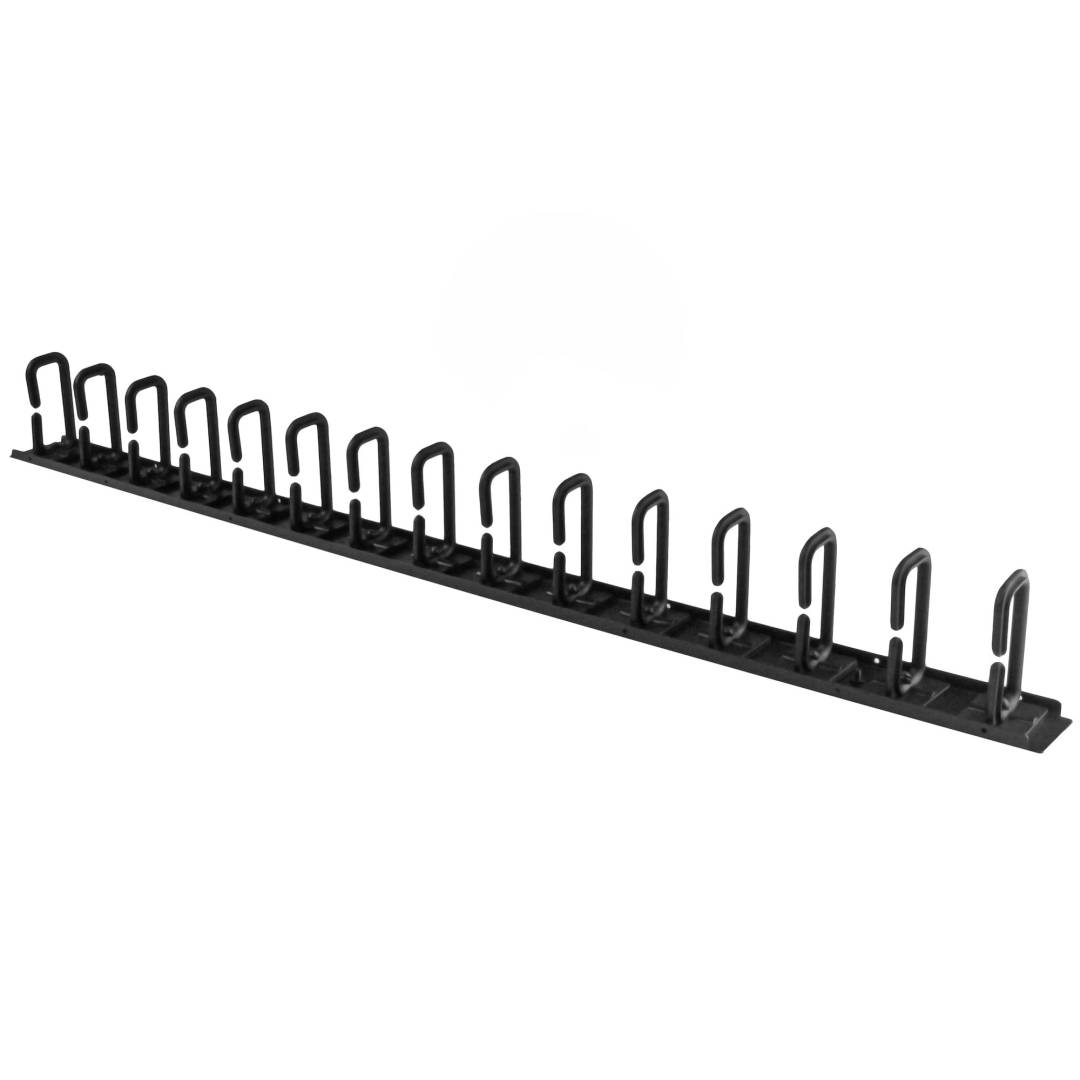

The StarTech.com CMVER20UD is a 20U vertical cable manager with D-ring hooks that mounts in the 0U space at the side of a server rack or cabinet, so you can route patch and power cables up and down the rack without giving up any rack units for equipment.
It is 864 mm (2.8 ft) long and StarTech.com rates it as compatible with most racks that are 20U or taller. It can be clipped tool-free into keyhole-shaped holes on the rack frame, or fixed with the supplied M4 screws and nuts to the horizontal mounting rails or other holes in the rack.
Before you order: The organizer needs a rack that is at least 20U tall and has space at the side of the mounting rails. Tool-less installation needs keyhole-shaped holes in the frame; otherwise use the supplied M4 hardware.
What's in the Box
- 1 × vertical cable organizer with D-ring hooks
- 2 × M4 x 16 mm screws
- 4 × M4 nuts
- 4 × 12 mm washers
- 1 × instruction manual
What It Means in Practice
- Cables run vertically to the level where they are needed, then cross over horizontally — the rack stays readable and ports stay accessible.
- 0U mounting means no loss of rack space: every U remains free for switches, patch panels and servers.
- Use one at each side to separate network cables from power cables.
- Install at the front or the rear of the rack, depending on where the cabling is heaviest.
What Will Not Work
- Racks shorter than 20U — the organizer is 864 mm long.
- Cabinets with no free space beside the 19-inch rails, where side-mounted cable management physically will not fit.
- Horizontal cable routing between patch panels and switches — pair it with a 1U horizontal manager such as the CABLMANAGERH.
Key Features
0U design
Mounts beside the rails and takes up no rack units.

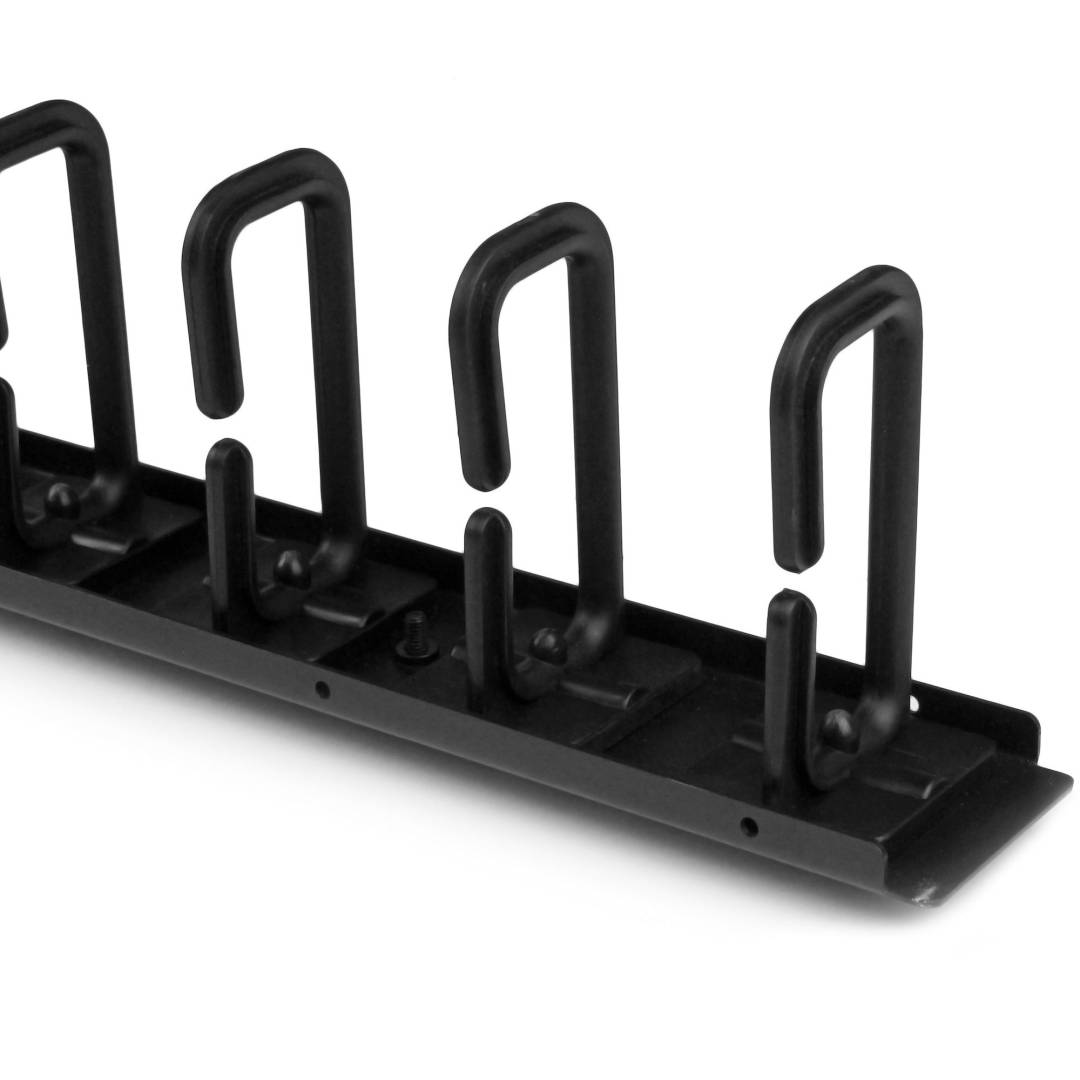

D-ring hooks
Open hooks let you add or remove cables without unplugging them.

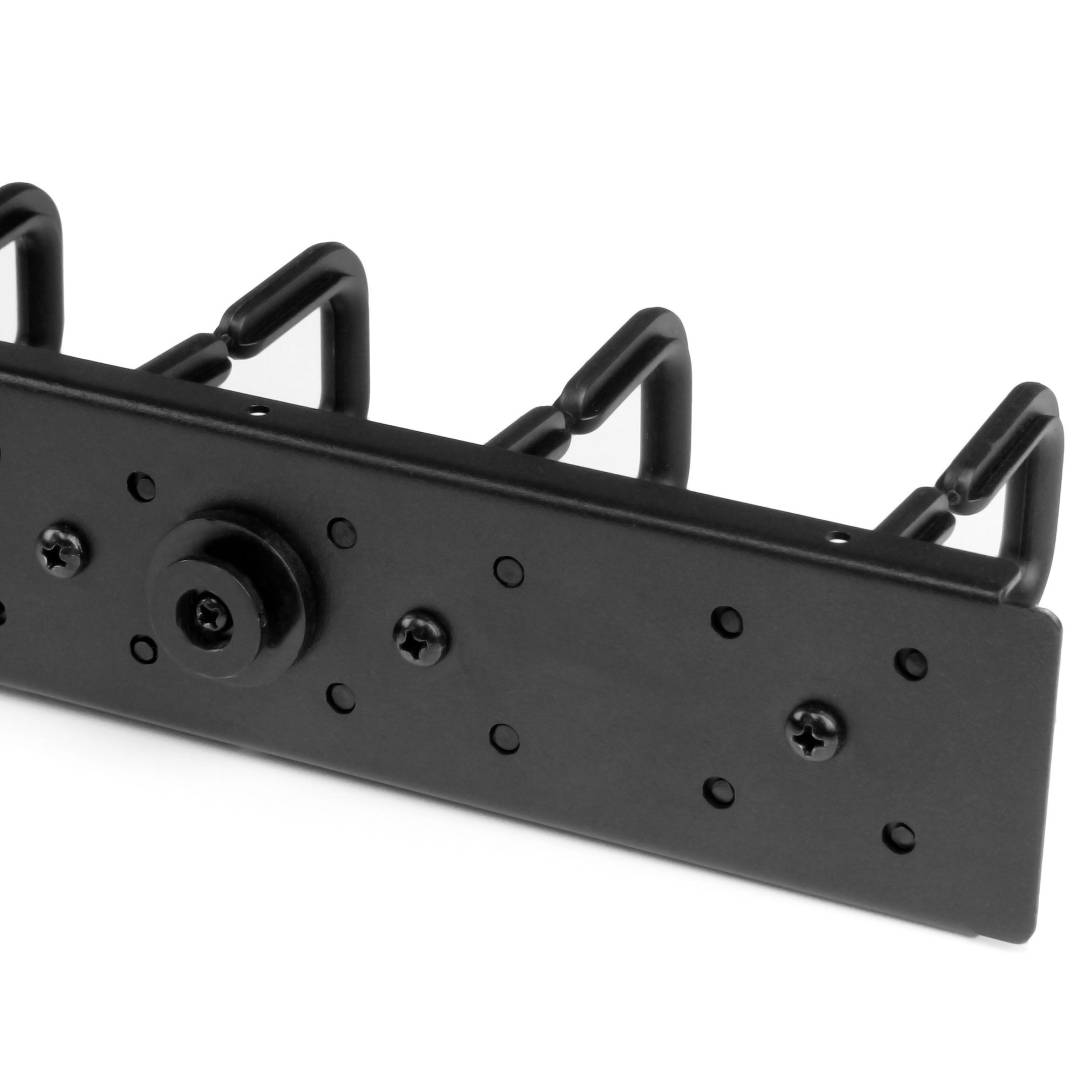

Tool-less or screwed
Clips into keyhole holes, or fixes with the included M4 hardware.
Front or rear
Install on either side of the rack, front or back.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Vertical managers are what make a busy rack serviceable: cables travel along the sides instead of across the equipment. The CMVER20UD adds this without using a single U, as long as your rack is 20U or taller and has room beside the rails. Horizontal managers, shelves and screw kits are in our rack accessories range.
✓ Buy it if your rack is 20U or taller and you want to route cables vertically without losing rack space.
✕ Skip it if your rack is shorter than 20U, or your cabinet has no free space beside the 19-inch rails.
→ Also consider StarTech.com CABLMANAGERH (1U horizontal D-ring manager) for the cross-over points.
Send us your rack or cabinet model and we will check that there is room for a side-mounted cable manager.
Features - StarTech.com - CMVER20UD
Colour
black
More Details
Product Code
05:V933837
EAN Code
0065030864817
Manufacturer
StarTech.com
