StarTech 25SAT22MSAT Dual mSATA SSD to 2.5-inch SATA RAID Adapter
A dual mSATA SSD adapter that converts two mSATA drives into a standard 2.5-inch SATA form factor with RAID support.
2× mSATA SSD2.5 inch SATARAID 0/1SATA III 6Gb/s

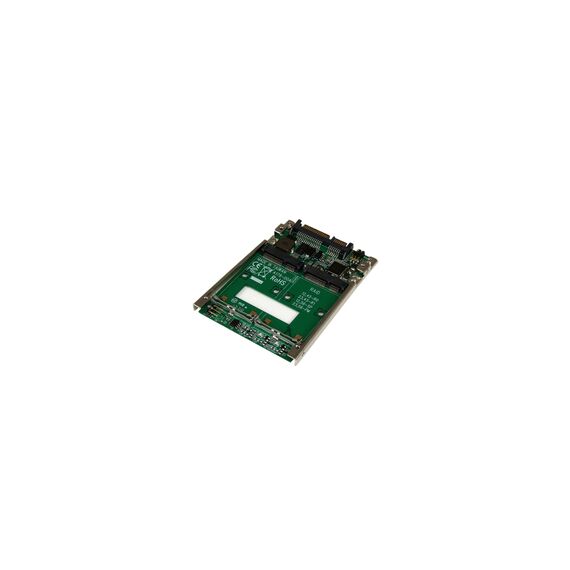

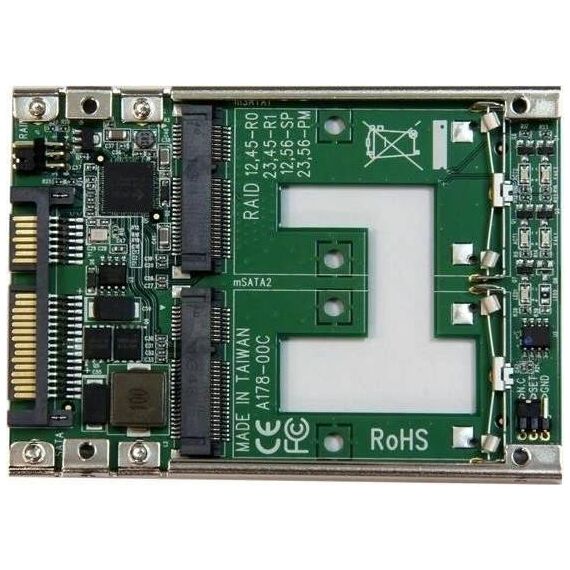

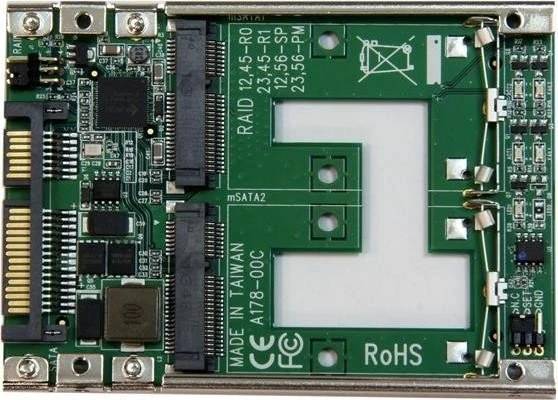

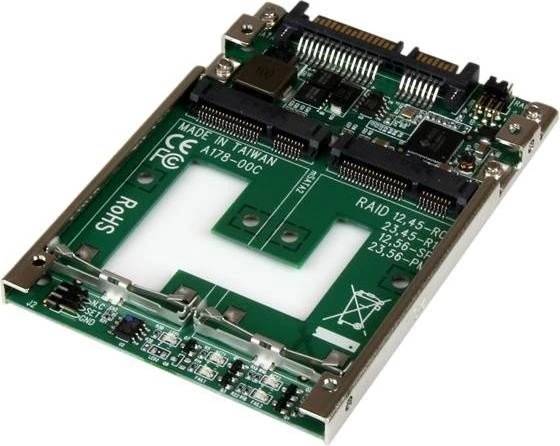

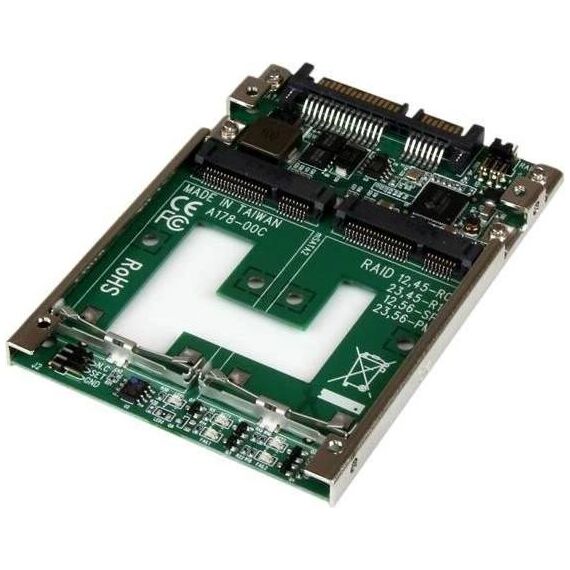

The StarTech 25SAT22MSAT is a dual mSATA SSD to 2.5-inch SATA RAID adapter converter. It allows two mSATA SSDs to be installed into a 2.5-inch SATA HDD/SSD bay, supporting RAID 0, RAID 1, BIG and JBOD modes for performance, redundancy or flexible storage configurations. Its 7mm open-frame design makes it suitable for compatible laptops, desktops, small form factor systems and embedded applications that use a standard 2.5-inch SATA connection.
Compatibility Note: This adapter is for mSATA SSDs, not M.2 SATA or M.2 NVMe SSDs. Please confirm the host system accepts a 2.5-inch SATA device and that your SSDs are mSATA format before purchase.
Key Features
Dual mSATA SSD Conversion
Installs two mSATA SSDs into a standard 2.5-inch SATA application, useful when reusing mSATA drives or building compact SSD storage.
Flexible RAID Modes
RAID 0 can improve performance, RAID 1 can mirror data for redundancy, while BIG and JBOD provide alternative capacity and drive-management options.
Standard 2.5-inch SATA Fit
The adapter presents as a 2.5-inch SATA drive, making it suitable for many systems that accept standard 2.5-inch SATA HDDs or SSDs.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Choose the StarTech 25SAT22MSAT if you need to combine or mirror two mSATA SSDs inside a standard 2.5-inch SATA bay. If your SSDs are M.2 or NVMe, this is not the correct adapter.
Buyer’s Guide
Buy it if
You need to install two mSATA SSDs into a 2.5-inch SATA bay with RAID 0, RAID 1, BIG or JBOD configuration options.
Skip it if
You need support for M.2 SATA, M.2 NVMe, 3.5-inch desktop drives, USB external access or a simple single-drive SATA enclosure.
Also consider
Consider an M.2 SATA or NVMe adapter if your SSD uses the newer M.2 format instead of mSATA.
Features - StarTech.com - 25SAT22MSAT
More Details
Product Code
V933089
EAN Code
0065030855617
Manufacturer
StarTech.com
