StarTech.com IC232485S Industrial RS232 to RS422/485 Converter, 15kV ESD, 921.6Kbps

Brand:
StarTech.com
StarTech.com V932905
StarTech.com IC232485S Industrial RS232 to RS422/485 Converter, 15kV ESD, 921.6Kbps
€125.91 inc. VAT
Buy
IC232485S
€105.81
€125.91 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
V932905
EAN Code
0065030852555
Manufacturer
StarTech.com

Quick Specs

Interface
Serial
Port style
External hub
Mounting
Wall-mountable
Power source
AC adapter included
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

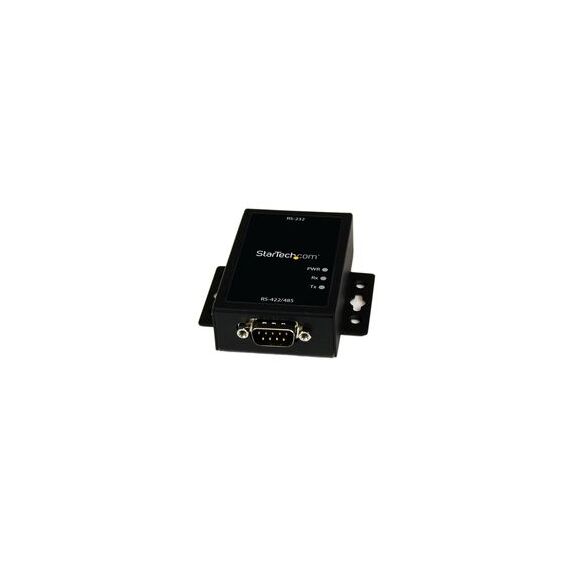

StarTech.com IC232485S Industrial Serial Converter - RS232 to RS422/485

The StarTech.com IC232485S is a bi-directional industrial serial converter for connecting RS232 equipment with RS422 or 2-wire and 4-wire RS485 networks. Automatic protocol and baud-rate detection, support for speeds up to 921.6 Kbps, and connection distances up to 1200 m make it suitable for industrial serial installations. Its steel wall-mountable housing provides ±15 kV ESD protection on all signal pins.
Serial External hub Wall-mountable AC adapter included

The StarTech.com IC232485S is a bi-directional industrial serial converter for connecting RS232 equipment with RS422 or 2-wire and 4-wire RS485 networks. Automatic protocol and baud-rate detection, support for speeds up to 921.6 Kbps, and connection distances up to 1200 m make it suitable for industrial serial installations. Its steel wall-mountable housing provides ±15 kV ESD protection on all signal pins.

Best For
✓ A good fit for installers
✓ Industrial mounting are important

Key Features


Commercial Fit
The main buying reason is its combination of broad serial conversion support and installation-focused protection. Automatic protocol and baud-rate detection simplify setup, while the steel wall-mountable housing and ±15 kV ESD protection support demanding serial installations.

Number of Ports
Number of Ports: 1

Interface
Interface: Serial

Power Consumption
Power Consumption: 5 W

Technical Specifications

Product Type Bi-directional industrial serial port converter
Conversion RS232 to RS422 or RS485, and RS422/RS485 to RS232
RS485 Wiring Modes 2-wire or 4-wire
RS422/RS485 Mode Detection Automatic detection supported | manual selection via integrated DIP switch
Baud Rate Detection Automatic baud rate detection supported
Maximum Baud Rate 921.6 Kbps
Serial Protocol RS-232/422/485
Maximum Connection Distance 1200 m / 3936 ft / approximately 4000 ft
ESD Protection ±15 kV ESD protection on all signal pins
Connectors 2 x DB-9, 9-pin D-Sub
Number of Ports 1
Interface Serial
Port Style External hub
LED Indicators Power green | Rx yellow | Tx yellow
Mounting Wall-mountable
Housing Material Steel
Colour Black
Power Source AC adapter included
AC Input Voltage 100-240 V AC
Input Current 0.5 A
DC Output Voltage 5 V DC
DC Output Current 1 A
Centre-Tip Polarity Positive
DC Plug Type M
Power Consumption 5 W
Included in Package RS-232 to RS-422/485 converter | universal power adapter for NA/EU/UK | instruction manual
Drivers No drivers needed
Product Dimensions 8.4 x 7.3 x 2.2 cm / 3.3 x 2.9 x 0.9 in (L x W x H)
Product Weight 143 g / 5.0 oz
Package Quantity 1
Package Dimensions 11.9 x 18.9 x 7.1 cm / 4.7 x 7.4 x 2.8 in (L x W x H)
Shipping Weight 346 g / 12.2 oz
Operating Temperature 0°C to 50°C / 32°F to 122°F
Certifications and Compliance TAA compliant | RoHS and REACH | FCC | CE | WEEE
Warranty 2 years
Technical Support Free lifetime technical support
Manufacturer StarTech.com
Country of Origin China
Storage temperature -20°C to 60°C / -4°F to 140°F
Product name Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection
Operating humidity 5% to 85% RH
Manufacturer product ID IC232485S
UPC 065030852555
SKU / EAN IC232485S | 065030852555

Frequently Asked Questions

What should I know before buying?
This is an external serial converter with DB-9 connectors and requires the included AC adapter for power. Check that the connected equipment uses compatible RS232, RS422, or RS485 interfaces and that the required wiring mode is supported. The stated operating range is 0°C to 50°C.
What connectivity does it offer?
1
What is it compatible with?
Free lifetime technical support
Singular Expert Insight
The main buying reason is its combination of broad serial conversion support and installation-focused protection. Automatic protocol and baud-rate detection simplify setup, while the steel wall-mountable housing and ±15 kV ESD protection support demanding serial installations.

Buyer’s Guide

Buy it if
A good fit for installers and businesses that need to connect RS232 equipment to RS422 or RS485 infrastructure, particularly where flexible 2-wire or 4-wire operation, long cable runs, and industrial mounting are important.
Skip it if
This is an external serial converter with DB-9 connectors and requires the included AC adapter for power. Check that the connected equipment uses compatible RS232, RS422, or RS485 interfaces and that the required wiring mode is supported. The stated operating range is 0°C to 50°C.
